目前业界操作数据库的框架一般是 Mybatis，但在很多业务场景下，我们需要在一个工程里配置多个数据源来实现业务逻辑。在SpringBoot中也可以实现多数据源并配合Mybatis框架编写xml文件来执行SQL。在SpringBoot中，配置多数据源的方式十分便捷，
下面开始上代码：
在pom.xml文件中需要添加一些依赖
<!-- Spring Boot Mybatis 依赖 -->
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>1.2.0</version>
</dependency>
<!-- MySQL 连接驱动依赖 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.39</version>
</dependency>
<!-- Druid 数据连接池依赖 -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>1.0.18</version>
</dependency>
application.properties 配置两个数据源配置
# master 数据源配置
master:
datasource:
url: jdbc:sqlserver://localhost:1433;DatabaseName=RYAccountsDB
driver-class-name: com.microsoft.sqlserver.jdbc.SQLServerDriver
username: sa
password: sa!@123
initial-size: 1
min-idle: 1
max-active: 20
test-on-borrow: true
max-wait: 60000
time-between-eviction-runs-millis: 60000
min-evictable-idle-time-millis: 300000
validation-query: SELECT 1 FROM DUAL
test-While-Idle: true
test-on-return: false
pool-prepared-statements: false
max-pool-prepared-statement-per-connection-size: 20
filters: stat,wall,log4j,config
# second 数据源配置
second:
datasource:
url: jdbc:mysql://localhost:33306/game_score_log?serverTimezone=GMT&useUnicode=true&characterEncoding=utf8
username: root
password: 1q2w#E4r
driver-class-name: com.mysql.cj.jdbc.Driver
max-idle: 10
max-wait: 10000
min-idle: 5
initial-size: 5
#mybatis:
# type-aliases-package: com.cjrh.game_api.dao
# mapper-locations: classpath*:mapper/*.xml
server:
port: 7000
数据源配置
多数据源配置的时候注意，必须要有一个主数据源，即 MasterDataSourceConfig 配置
@Primary 标志这个 Bean 如果在多个同类 Bean 候选时，该 Bean 优先被考虑。「多数据源配置的时候注意，必须要有一个主数据源，用 @Primary 标志该 Bean
@MapperScan 扫描 Mapper 接口并容器管理，包路径精确到 master，为了和下面 cluster 数据源做到精确区分
@Value 获取全局配置文件 application.properties 的 kv 配置,并自动装配sqlSessionFactoryRef 表示定义了 key ，表示一个唯一 SqlSessionFactory 实例
MasterDataSourceConfig的代码：
package com.cjrh.game_api.jdbc;
import com.alibaba.druid.pool.DruidDataSource;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import javax.sql.DataSource;
/**
* @program: game_api
* @description:
* @author: Dading
* @create: 2021-04-12 14:14
* @version: 1.0
**/
@Configuration
// 扫描 Mapper 接口并容器管理
@MapperScan(basePackages = MasterDataSourceConfig.PACKAGE, sqlSessionFactoryRef = "masterSqlSessionFactory")
public class MasterDataSourceConfig {
精确到 master 目录，以便跟其他数据源隔离
static final String PACKAGE = "com.cjrh.game_api.dao.master";
static final String MAPPER_LOCATION = "classpath:mapper/master/*.xml";
@Value("${master.datasource.url}")
private String url;
@Value("${master.datasource.username}")
private String user;
@Value("${master.datasource.password}")
private String password;
@Value("${master.datasource.driver-class-name}")
private String driverClass;
@Bean(name = "masterDataSource")
@Primary
public DataSource masterDataSource() {
DruidDataSource dataSource = new DruidDataSource();
dataSource.setDriverClassName(driverClass);
dataSource.setUrl(url);
dataSource.setUsername(user);
dataSource.setPassword(password);
return dataSource;
}
@Bean(name = "masterTransactionManager")
@Primary
public DataSourceTransactionManager masterTransactionManager() {
return new DataSourceTransactionManager(masterDataSource());
}
@Bean(name = "masterSqlSessionFactory")
@Primary
public SqlSessionFactory masterSqlSessionFactory(@Qualifier("masterDataSource") DataSource masterDataSource)
throws Exception {
final SqlSessionFactoryBean sessionFactory = new SqlSessionFactoryBean();
sessionFactory.setDataSource(masterDataSource);
sessionFactory.setMapperLocations(new PathMatchingResourcePatternResolver()
.getResources(MasterDataSourceConfig.MAPPER_LOCATION));
return sessionFactory.getObject();
}
}
第二个数据源SecondDataSourceConfig的配置如下:
package com.cjrh.game_api.jdbc;
import com.alibaba.druid.pool.DruidDataSource;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import javax.sql.DataSource;
/**
* @program: game_api
* @description:
* @author: Dading
* @create: 2021-04-12 14:14
* @version: 1.0
**/
@Configuration
// 扫描 Mapper 接口并容器管理
@MapperScan(basePackages = SecondDataSourceConfig.PACKAGE, sqlSessionFactoryRef = "secondSqlSessionFactory")
public class SecondDataSourceConfig {
// 精确到 cluster 目录，以便跟其他数据源隔离
static final String PACKAGE = "com.cjrh.game_api.dao.second";
static final String MAPPER_LOCATION = "classpath:mapper/second/*.xml";
@Value("${second.datasource.url}")
private String url;
@Value("${second.datasource.username}")
private String user;
@Value("${second.datasource.password}")
private String password;
@Value("${second.datasource.driver-class-name}")
private String driverClass;
@Bean(name = "secondDataSource")
public DataSource clusterDataSource() {
DruidDataSource dataSource = new DruidDataSource();
dataSource.setDriverClassName(driverClass);
dataSource.setUrl(url);
dataSource.setUsername(user);
dataSource.setPassword(password);
return dataSource;
}
@Bean(name = "secondTransactionManager")
public DataSourceTransactionManager clusterTransactionManager() {
return new DataSourceTransactionManager(clusterDataSource());
}
@Bean(name = "secondSqlSessionFactory")
public SqlSessionFactory clusterSqlSessionFactory(@Qualifier("secondDataSource") DataSource clusterDataSource)
throws Exception {
final SqlSessionFactoryBean sessionFactory = new SqlSessionFactoryBean();
sessionFactory.setDataSource(clusterDataSource);
sessionFactory.setMapperLocations(new PathMatchingResourcePatternResolver()
.getResources(SecondDataSourceConfig.MAPPER_LOCATION));
return sessionFactory.getObject();
}
}

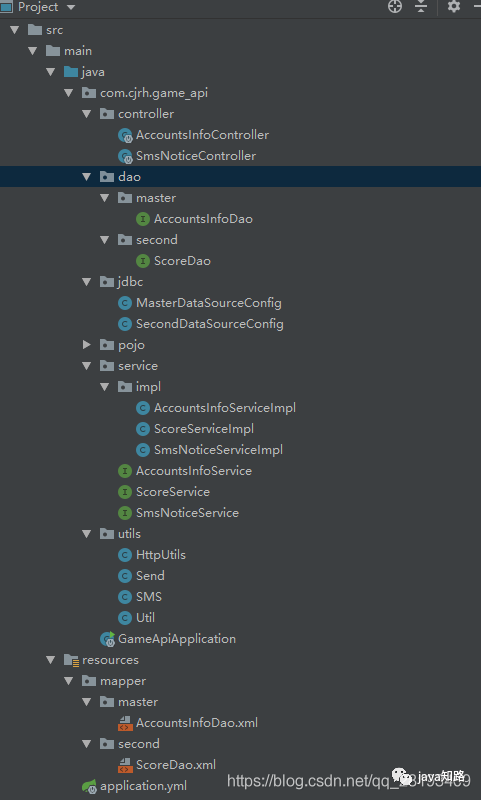

项目目录如下：
