Flink实战：FlinkSQL接收开启Kerberos认证的Kafka集群存入MySQL

大数据开发运维架构 2020-03-01

1399

上篇文章展示了Flink连接Kafka集群的代码，平时我们做统计分析，经常会用到FlinkSQL,这里就贴一下FlinkSQL消费Kafka数据存入Mysql的代码实例，更多实战内容关注微信公众号：“大数据开发运维架构”

版本信息：

flink1.9.0

kafka0.10.0

mysql5.6.40

废话不多说直接上实战代码：

1.这里mysql数据库recommend中有一张表student，创建表语句：

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;
-- ----------------------------
-- Table structure for student
-- ----------------------------
DROP TABLE IF EXISTS `student`;
CREATE TABLE `student`  (
  `id` int(64) NULL DEFAULT NULL,
  `name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `course` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `score` double(128, 0) NULL DEFAULT NULL
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Compact;

SET FOREIGN_KEY_CHECKS = 1;
复制

2.对应student表的实体类：

package com.hadoop.ljs.flink.sql;
/**
 * @author: Created By lujisen
 * @company ChinaUnicom Software JiNan
 * @date: 2020-03-01 07:50
 * @version: v1.0
 * @description: com.hadoop.ljs.flink.sql
 */
public class Student {
    /*唯一ID*/
    int  id;
    /*名字*/
    String name;
    /*课程*/
    String course;
    /*分数*/
    double score;
    public Student(Integer f0, String f1, String f2, Double f3) {
        id=f0;
        name=f1;
        course=f2;
        score=f3;
    }
    public int getId() {
        return id;
    }
    public void setId(int id) {
        this.id = id;
    }
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }
    public String getCourse() {
        return course;
    }
    public void setCourse(String course) {
        this.course = course;
    }
    public double getScore() {
        return score;
    }
    public void setScore(double score) {
        this.score = score;
    }
}
复制

3.自定义Sink类，存数据到mysql中：

package com.hadoop.ljs.flink.sql;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.functions.sink.RichSinkFunction;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.PreparedStatement;
/**
 * @author: Created By lujisen
 * @company ChinaUnicom Software JiNan
 * @date: 2020-03-01 07:48
 * @version: v1.0
 * @description: com.hadoop.ljs.flink.sql
 */
public class SinkStudent2MySQL extends RichSinkFunction<Student> {

    public static final String url="jdbc:mysql://10.124.165.31:3306/recommend??useUnicode=true&characterEncoding=UTF-8";
    public static final String userName="root";
    public static final String password="123456a?";
    private static final long serialVersionUID = -4443175430371919407L;
    PreparedStatement ps;
    private Connection connection;
    /**这里的open只调用一次
     * @param parameters
     * @throws Exception
     */
    @Override
    public void open(Configuration parameters) throws Exception {
        super.open(parameters);
        connection = getConnection();
        String sql = "replace  into student(id,name,course,score) values(?, ?, ?,?);";
        ps = this.connection.prepareStatement(sql);
    }
    @Override
    public void close() throws Exception {
        super.close();
        if (connection != null) {
            connection.close();
        }
        if (ps != null) {
            ps.close();
        }
    }
    /**
     * 每条数据的插入都要调用一次 invoke() 方法
     *
     * @param context
     * @throws Exception
     */
    @Override
    public void invoke(Student student, Context context) throws Exception {
        /*对每一条数据进行处理，组装数据*/
        ps.setLong(1, student.getId());
        ps.setString(2,student.getName());
        ps.setString(3, student.getCourse());
        ps.setDouble(4,student.getScore());
        ps.executeUpdate();
    }
    private static Connection getConnection() {
        Connection con = null;
        try {
            Class.forName("com.mysql.jdbc.Driver");
            con = DriverManager.getConnection(url,userName,password);
            System.out.println("msql连接成功！");
        } catch (Exception e) {
            System.out.println("msql连接失败，错误信息"+ e.getMessage());
        }
        return con;
    }
}
复制

4.主函数类，从kafka接收消息，对每行数据进行拆分，注册为临时表，调用自定义SinkStudent2MySQL类，存入数据到student表中：

package com.hadoop.ljs.flink.sql;
import org.apache.flink.api.common.functions.FilterFunction;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.api.common.typeinfo.Types;
import org.apache.flink.api.java.tuple.Tuple4;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.java.StreamTableEnvironment;
import java.util.Properties;
/**
 * @author: Created By lujisen
 * @company ChinaUnicom Software JiNan
 * @date: 2020-03-01 07:47
 * @version: v1.0
 * @description: com.hadoop.ljs.flink.sql
 */
public class FlinkKafkaKerberosSQLConsumer {
    public static final String krb5Conf="D:\\kafkaSSL\\krb5.conf";
    public static final String kafkaJaasConf="D:\\kafkaSSL\\kafka_client_jaas.conf";
    public static final String topic="topic2";
    public static final String consumerGroup="test_topic2";
    public static final String bootstrapServer="salver31.hadoop.unicom:6667,salver32.hadoop.unicom:6667";

    public static void main(String[] args) throws Exception {

        //在windows中设置JAAS，也可以通过-D方式传入
        System.setProperty("java.security.krb5.conf", krb5Conf);
        System.setProperty("java.security.auth.login.config", kafkaJaasConf);

        StreamExecutionEnvironment senv = StreamExecutionEnvironment.getExecutionEnvironment();
        senv.setDefaultLocalParallelism(1);
        EnvironmentSettings bsSettings = EnvironmentSettings.newInstance().useBlinkPlanner().inStreamingMode().build();
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(senv, bsSettings);

        FlinkKafkaConsumer010<String> myConsumer = new FlinkKafkaConsumer010<String>(topic, new SimpleStringSchema(),getComsumerProperties());
        DataStream<String> stream = senv.addSource(myConsumer);
        stream.filter(new FilterFunction<String>() {
            @Override
            public boolean filter(String value) throws Exception {
                if(null==value||value.split(",").length!=4){
                    return false;
                }
                return true;
            }
        });
        DataStream<Tuple4<Integer, String, String, Double>> map = stream.map(new MapFunction<String, Tuple4<Integer, String, String, Double>>() {
            private static final long serialVersionUID = 1471936326697828381L;
            @Override
            public Tuple4<Integer, String, String, Double> map(String value) throws Exception {
                String[] split = value.split(",");
                return new Tuple4<>(Integer.valueOf(split[0]), split[1], split[2], Double.valueOf(split[3]));
            }
        });
        //将数据注册为临时表，并制定fields
        tableEnv.registerDataStream("student", map, "id,name,course,score");
        Table sqlQuery = tableEnv.sqlQuery("select id,name,course,score  from  student");
        DataStream<Tuple4<Integer, String,String, Double>> appendStream = tableEnv.toAppendStream(sqlQuery, Types.TUPLE(Types.INT, Types.STRING, Types.STRING,Types.DOUBLE));
        appendStream.print();
        /*将每条数据转换成student实体类数据，sink到mysql中*/
        appendStream.map(new MapFunction<Tuple4<Integer, String,String, Double>, Student>() {
            private static final long serialVersionUID = -4770965496944515917L;
            @Override
            public Student map(Tuple4<Integer, String,String, Double> value) throws Exception {

                return new Student(value.f0, value.f1, value.f2,value.f3);
            }
        }).addSink(new SinkStudent2MySQL());

        senv.execute("FlinkKafkaKerberosSQLConsumer");
    }
    /*获取Kafka消费端配置*/
    private static Properties getComsumerProperties() {
        Properties props = new Properties();
        props.put("bootstrap.servers",bootstrapServer);
        props.put("group.id",consumerGroup);
        props.put("auto.offset.reset", "earliest");
        /*keberos集群，必须制定以下三项配置*/
        props.put("security.protocol", "SASL_PLAINTEXT");
        props.put("sasl.kerberos.service.name", "kafka");
        props.put("sasl.mechanism", "GSSAPI");
        return props;
    }
}
复制

5.这里贴下pom.xml：

<properties>
  <flink.version>1.9.0</flink.version>
  <java.version>1.8</java.version>
  <scala.binary.version>2.11</scala.binary.version>
  <hbase.version>1.2.5</hbase.version>
  <kafka.version>0.10.1.0</kafka.version>
</properties>

<dependency>
  <groupId>org.apache.flink</groupId>
  <artifactId>flink-connector-kafka-0.10_2.11</artifactId>
  <version>${flink.version}</version>
</dependency>
<dependency>
  <groupId>org.apache.flink</groupId>
  <artifactId>flink-table-planner-blink_${scala.binary.version}</artifactId>
  <version>${flink.version}</version>
</dependency>
<dependency>
  <groupId>org.apache.flink</groupId>
  <artifactId>flink-table-runtime-blink_${scala.binary.version}</artifactId>
  <version>${flink.version}</version>
</dependency>
<dependency>
  <groupId>org.apache.flink</groupId>
  <artifactId>flink-table-common</artifactId>
  <version>${flink.version}</version>
</dependency>
<dependency>
  <groupId>mysql</groupId>
  <artifactId>mysql-connector-java</artifactId>
  <version>5.1.46</version>
</dependency>
复制

6.发送数据到kafka，每条记录用逗号“,”拆分：

1001,name1,yuwen1,81
1002,name2,yuwen2,82
1003,name3,yuwen3,83
复制

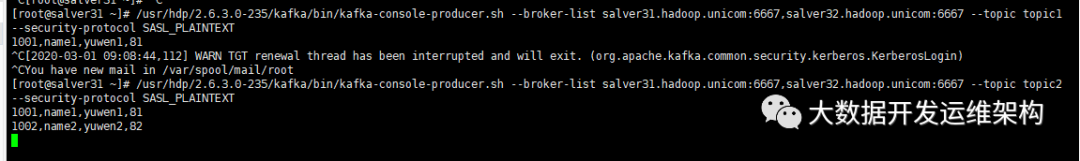

发送数据截图：

最近一些文章都是根据粉丝留言进行编写实战代码，如有其他需求直接给我公众号留言即可，觉得有用，多给转转朋友圈，谢谢关注！！！
