MySQL 上亿大表优化实践

码咖 2020-03-21
198

点击上方蓝色字体，选择“设为星标”

优质文章，及时送达

本文来源：

https://www.cnblogs.com/YangJiaXin/p/10828244.html

目录

  • 背景

  • 分析

    • select xxx_record语句

    • delete xxx_record语句

  • 测试

  • 实施

  • 索引优化后

  • delete大表优化为小批量删除

  • 总结

背景

XX实例（一主一从）xxx告警中每天凌晨在报SLA报警，该报警的意思是存在一定的主从延迟（若在此时发生主从切换，需要长时间才可以完成切换，要追延迟来保证主从数据的一致性）

XX实例的慢查询数量最多（执行时间超过1s的sql会被记录），XX应用那方每天晚上在做删除一个月前数据的任务

分析

使用pt-query-digest工具分析最近一周的mysql-slow.log

  1. pt-query-digest --since=148h mysql-slow.log | less

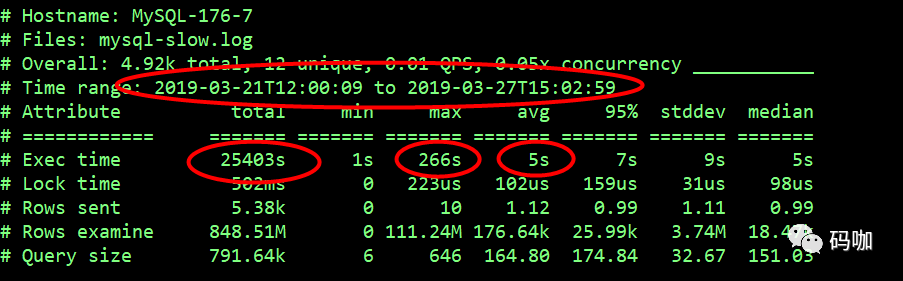

结果第一部分

最近一个星期内，总共记录的慢查询执行花费时间为25403s，最大的慢sql执行时间为266s，平均每个慢sql执行时间5s，平均扫描的行数为1766万

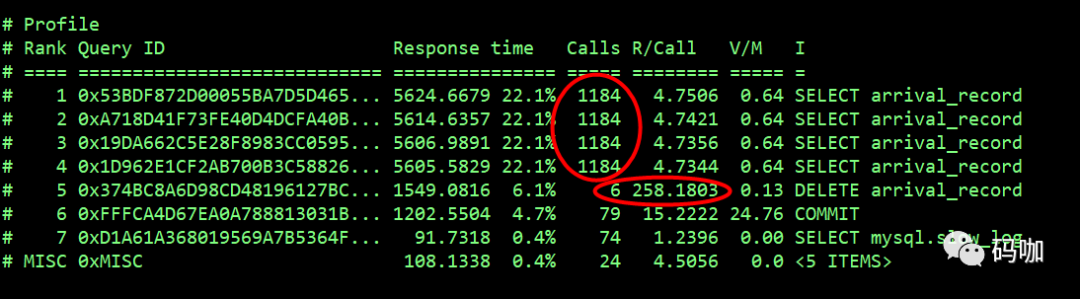

结果第二部分

select arrivalrecord操作记录的慢查询数量最多有4万多次，平均响应时间为4s，delete arrivalrecord记录了6次，平均响应时间258s

select xxx_record语句

select arrival_record 慢查询语句都类似于如下所示，where语句中的参数字段是一样的，传入的参数值不一样

  1. select count(*) from arrival_record where product_id=26and receive_time between '2019-03-25 14:00:00'and'2019-03-25 15:00:00'and receive_spend_ms>=0\G

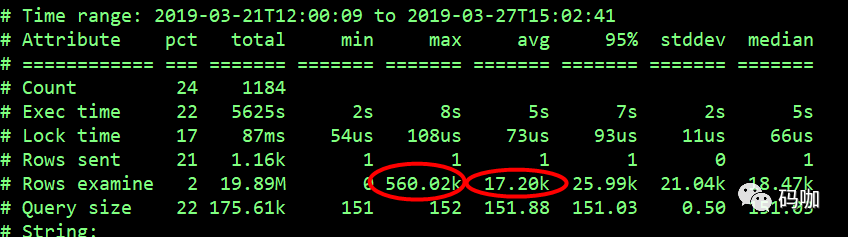

select arrival_record 语句在mysql中最多扫描的行数为5600万、平均扫描的行数为172万，推断由于扫描的行数多导致的执行时间长

查看执行计划

  1. explain select count() from arrival_record where product_id=26and receive_time between '2019-03-25 14:00:00'and'2019-03-25 15:00:00'and receive_spend_ms>=0\G;
  1. ************************** 1. row ***************************
  2. id: 1
  3. select_type: SIMPLE
  4. table: arrival_record
  5. partitions: NULL
  6. type: ref
  7. possible_keys: IXFK_arrival_record
  8. key: IXFK_arrival_record
  9. key_len: 8
  10. ref: const
  11. rows: 32261320
  12. filtered: 3.70
  13. Extra: Using index condition; Usingwhere
  14. 1 row inset, 1 warning (0.00 sec)

用到了索引IXFKarrivalrecord，但预计扫描的行数很多有3000多w行

  1. show index from arrival_record;
  2. +----------------+------------+---------------------+--------------+--------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
  3. | Table| Non_unique| Key_name| Seq_in_index| Column_name| Collation| Cardinality| Sub_part| Packed| Null| Index_type| Comment| Index_comment|
  4. +----------------+------------+---------------------+--------------+--------------+-----------+-------------+----------+--------+------+------------+---------+---------------+
  5. | arrival_record | 0| PRIMARY | 1| id | A | 107990720| NULL | NULL | | BTREE | | |
  6. | arrival_record | 1| IXFK_arrival_record | 1| product_id | A | 1344| NULL | NULL | | BTREE | | |
  7. | arrival_record | 1| IXFK_arrival_record | 2| station_no | A | 22161| NULL | NULL | YES | BTREE | | |
  8. | arrival_record | 1| IXFK_arrival_record | 3| sequence | A | 77233384| NULL | NULL | | BTREE | | |
  9. | arrival_record | 1| IXFK_arrival_record | 4| receive_time | A | 65854652| NULL | NULL | YES | BTREE | | |
  10. | arrival_record | 1| IXFK_arrival_record | 5| arrival_time | A | 73861904| NULL | NULL | YES | BTREE | | |
  11. +----------------+------------+---------------------+--------------+--------------+-----------+-------------+----------+--------+------+------------+---------+---------------+

  13. show create table arrival_record;
  14. ..........
  15. arrival_spend_ms bigint(20) DEFAULT NULL,
  16. total_spend_ms bigint(20) DEFAULT NULL,
  17. PRIMARY KEY (id),
  18. KEY IXFK_arrival_record (product_id,station_no,sequence,receive_time,arrival_time) USING BTREE,
  19. CONSTRAINT FK_arrival_record_product FOREIGN KEY (product_id) REFERENCES product (id) ON DELETE NO ACTION ON UPDATE NO ACTION
  20. ) ENGINE=InnoDB AUTO_INCREMENT=614538979 DEFAULT CHARSET=utf8 COLLATE=utf8_bin |
  21. ---

  • 该表总记录数约1亿多条，表上只有一个复合索引，product_id字段基数很小，选择性不好

  • 传入的过滤条件 where productid=26 and receivetime between '2019-03-25 14:00:00' and '2019-03-25 15:00:00' and receivespendms>=0 没有stationnu字段，使用不到复合索引 IXFKarrivalrecord的 productid,stationno,sequence,receivetime 这几个字段

  • 根据最左前缀原则，select arrivalrecord只用到了复合索引IXFKarrivalrecord的第一个字段productid，而该字段选择性很差，导致扫描的行数很多，执行时间长

  • receivetime字段的基数大，选择性好，可对该字段单独建立索引，select arrivalrecord sql就会使用到该索引

现在已经知道了在慢查询中记录的select arrivalrecord where语句传入的参数字段有 productid，receivetime，receivespend_ms，还想知道对该表的访问有没有通过其它字段来过滤了？

神器tcpdump出场的时候到了

使用tcpdump抓包一段时间对该表的select语句

  1. tcpdump -i bond0 -s 0-l -w - dst port 3316| strings | grep select| egrep -i 'arrival_record'>/tmp/select_arri.log

获取select 语句中from 后面的where条件语句

  1. IFS_OLD=$IFS
  2. IFS=$'\n'
  3. for i in`cat tmp/select_arri.log `;do echo ${i#*'from'}; done | less
  4. IFS=$IFS_OLD
  1. arrival_record arrivalrec0_ where arrivalrec0_.sequence='2019-03-27 08:40'and arrivalrec0_.product_id=17and arrivalrec0_.station_no='56742'
  2. arrival_record arrivalrec0_ where arrivalrec0_.sequence='2019-03-27 08:40'and arrivalrec0_.product_id=22and arrivalrec0_.station_no='S7100'
  3. arrival_record arrivalrec0_ where arrivalrec0_.sequence='2019-03-27 08:40'and arrivalrec0_.product_id=24and arrivalrec0_.station_no='V4631'
  4. arrival_record arrivalrec0_ where arrivalrec0_.sequence='2019-03-27 08:40'and arrivalrec0_.product_id=22and arrivalrec0_.station_no='S9466'
  5. arrival_record arrivalrec0_ where arrivalrec0_.sequence='2019-03-27 08:40'and arrivalrec0_.product_id=24and arrivalrec0_.station_no='V4205'
  6. arrival_record arrivalrec0_ where arrivalrec0_.sequence='2019-03-27 08:40'and arrivalrec0_.product_id=24and arrivalrec0_.station_no='V4105'
  7. arrival_record arrivalrec0_ where arrivalrec0_.sequence='2019-03-27 08:40'and arrivalrec0_.product_id=24and arrivalrec0_.station_no='V4506'
  8. arrival_record arrivalrec0_ where arrivalrec0_.sequence='2019-03-27 08:40'and arrivalrec0_.product_id=24and arrivalrec0_.station_no='V4617'
  9. arrival_record arrivalrec0_ where arrivalrec0_.sequence='2019-03-27 08:40'and arrivalrec0_.product_id=22and arrivalrec0_.station_no='S8356'
  10. arrival_record arrivalrec0_ where arrivalrec0_.sequence='2019-03-27 08:40'and arrivalrec0_.product_id=22and arrivalrec0_.station_no='S8356'

  • select 该表 where条件中有productid,stationno,sequence字段，可以使用到复合索引IXFKarrivalrecord的前三个字段。

综上所示，优化方法为，删除复合索引IXFKarrivalrecord，建立复合索引idxsequencestationnoproductid，并建立单独索引indxreceive_time。

delete xxx_record语句

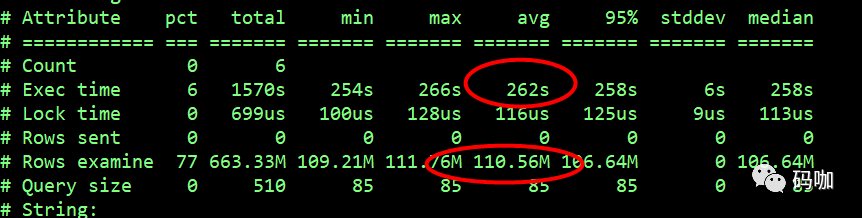

该delete操作平均扫描行数为1.1亿行，平均执行时间是262s

delete语句如下所示，每次记录的慢查询传入的参数值不一样

  1. deletefrom arrival_record where receive_time < STR_TO_DATE('2019-02-23', '%Y-%m-%d')\G

执行计划

  1. explain select* from arrival_record where receive_time < STR_TO_DATE('2019-02-23', '%Y-%m-%d')\G
  2. *************************** 1. row ***************************
  3. id: 1
  4. select_type: SIMPLE
  5. table: arrival_record
  6. partitions: NULL
  7. type: ALL
  8. possible_keys: NULL
  9. key: NULL
  10. key_len: NULL
  11. ref: NULL
  12. rows: 109501508
  13. filtered: 33.33
  14. Extra: Usingwhere
  15. 1 row inset, 1 warning (0.00 sec)

  • 该delete语句没有使用索引（没有合适的索引可用），走的全表扫描，导致执行时间长

  • 优化方法也是 建立单独索引indxreceivetime(receive_time)

测试

拷贝arrival_record表到测试实例上进行删除重新索引操作XX实例arrival_record表信息

  1. du -sh datas/mysql/data/3316/cq_new_cimiss/arrival_record*
  2. 12K/datas/mysql/data/3316/cq_new_cimiss/arrival_record.frm
  3. 48G/datas/mysql/data/3316/cq_new_cimiss/arrival_record.ibd
  1. select count() from cq_new_cimiss.arrival_record;
  2. +-----------+
  3. | count() |
  4. +-----------+
  5. | 112294946|
  6. +-----------+
  7. 1亿多记录数
  1. SELECT
  2. table_name,
  3. CONCAT(FORMAT(SUM(data_length)  1024/ 1024,2),'M') AS dbdata_size,
  4. CONCAT(FORMAT(SUM(index_length)  1024/ 1024,2),'M') AS dbindex_size,
  5. CONCAT(FORMAT(SUM(data_length + index_length)  1024/ 1024/ 1024,2),'G') AS table_size(G),
  6. AVG_ROW_LENGTH,table_rows,update_time
  7. FROM
  8. information_schema.tables
  9. WHERE table_schema = 'cq_new_cimiss'and table_name='arrival_record';
  1. +----------------+-------------+--------------+------------+----------------+------------+---------------------+
  2. | table_name | dbdata_size | dbindex_size | table_size(G) | AVG_ROW_LENGTH | table_rows | update_time |
  3. +----------------+-------------+--------------+------------+----------------+------------+---------------------+
  4. | arrival_record | 18,268.02M| 13,868.05M| 31.38G| 175| 109155053| 2019-03-2612:40:17|
  5. +----------------+-------------+--------------+------------+----------------+------------+---------------------+

磁盘占用空间48G，mysql中该表大小为31G，存在17G左右的碎片，大多由于删除操作造成的（记录被删除了，空间没有回收)。

备份还原该表到新的实例中，删除原来的复合索引，重新添加索引进行测试。

mydumper并行压缩备份。

  1.  user=root
  2.   passwd=xxxx
  3.  socket=/datas/mysql/data/3316/mysqld.sock
  4.  db=cq_new_cimiss
  5.  table_name=arrival_record
  6.  backupdir=/datas/dump_$table_name
  7.  mkdir -p $backupdir

  9.    nohup echo `date +%T`&& mydumper -u $user -p $passwd -S $socket  -B $db -c  -T $table_name  -o $backupdir  -t 32-r 2000000&& echo `date +%T`&

并行压缩备份所花时间（52s）和占用空间（1.2G，实际该表占用磁盘空间为48G，mydumper并行压缩备份压缩比相当高！）

  1. Starteddump at: 2019-03-2612:46:04
  2. ........

  4. Finisheddump at: 2019-03-2612:46:56

  6. du -sh   datas/dump_arrival_record/
  7. 1.2G/datas/dump_arrival_record/

拷贝dump数据到测试节点

  1. scp -rp datas/dump_arrival_record root@10.230.124.19:/datas

多线程导入数据

  1. time myloader -u root -S datas/mysql/data/3308/mysqld.sock -P 3308-p root -B test -d datas/dump_arrival_record -t 32
  1. real 126m42.885s
  2. user 1m4.543s
  3. sys 0m4.267s

逻辑导入该表后磁盘占用空间

  1. du -h -d 1/datas/mysql/data/3308/test/arrival_record.
  2. 12K/datas/mysql/data/3308/test/arrival_record.frm
  3. 30G/datas/mysql/data/3308/test/arrival_record.ibd

没有碎片，和mysql的该表的大小一致。

  1. cp -rp datas/mysql/data/3308/datas

分别使用online DDL和 pt-osc工具来做删除重建索引操作

先删除外键，不删除外键，无法删除复合索引，外键列属于复合索引中第一列

  1. nohup bash /tmp/ddl_index.sh &
  2. 2019-04-04-10:41:39begin stop mysqld_3308
  3. 2019-04-04-10:41:41begin rm -rf datadir and cp -rp datadir_bak
  4. 2019-04-04-10:46:53 start mysqld_3308
  5. 2019-04-04-10:46:59 online ddl begin
  6. 2019-04-04-11:20:34 onlie ddl stop
  7. 2019-04-04-11:20:34begin stop mysqld_3308
  8. 2019-04-04-11:20:36begin rm -rf datadir and cp -rp datadir_bak
  9. 2019-04-04-11:22:48 start mysqld_3308
  10. 2019-04-04-11:22:53 pt-osc begin
  11. 2019-04-04-12:19:15 pt-osc stop

online ddl 花费时间为34 分钟，pt-osc花费时间为57 分钟，使用onlne ddl时间约为pt-osc工具时间的一半。

实施

由于是一主一从实例，应用是连接的vip，删除重建索引采用online ddl来做。停止主从复制后，先在从实例上做（不记录binlog），主从切换，再在新切换的从实例上做（不记录binlog)

  1. function red_echo () {

  3. local what="$*"
  4.         echo -e "$(date +%F-%T)  ${what}"
  5. }

  7. function check_las_comm(){
  8. if[ "$1"!= "0"];then
  9.         red_echo "$2"
  10.         echo "exit 1"
  11. exit1
  12. fi
  13. }

  15. red_echo "stop slave"
  16. mysql -uroot -p$passwd --socket=/datas/mysql/data/${port}/mysqld.sock -e"stop slave"
  17. check_las_comm "$?""stop slave failed"

  19. red_echo "online ddl begin"
  20.  mysql -uroot -p$passwd --socket=/datas/mysql/data/${port}/mysqld.sock -e"set sql_log_bin=0;select now() as  ddl_start;ALTER TABLE $db_.\`${table_name}\` DROP FOREIGN KEY FK_arrival_record_product,drop index IXFK_arrival_record,add index idx_product_id_sequence_station_no(product_id,sequence,station_no),add index idx_receive_time(receive_time);select now() as ddl_stop">>${log_file} 2>& 1
  21.  red_echo "onlie ddl stop"
  22.  red_echo "add foreign key"
  23.  mysql -uroot -p$passwd --socket=/datas/mysql/data/${port}/mysqld.sock -e"set sql_log_bin=0;ALTER TABLE $db_.${table_name} ADD CONSTRAINT _FK_${table_name}_product FOREIGN KEY (product_id) REFERENCES cq_new_cimiss.product (id) ON DELETE NO ACTION ON UPDATE NO ACTION;">>${log_file} 2>& 1
  24.  check_las_comm "$?""add foreign key error"
  25.  red_echo "add foreign key stop"

  27. red_echo "start slave"
  28. mysql -uroot -p$passwd --socket=/datas/mysql/data/${port}/mysqld.sock -e"start slave"
  29. check_las_comm "$?""start slave failed"

执行时间

  1. 2019-04-08-11:17:36 stop slave
  2. mysql: [Warning] Using a password on the command line interface can be insecure.
  3. ddl_start
  4. 2019-04-0811:17:36
  5. ddl_stop
  6. 2019-04-0811:45:13
  7. 2019-04-08-11:45:13 onlie ddl stop
  8. 2019-04-08-11:45:13 add foreign key
  9. mysql: [Warning] Using a password on the command line interface can be insecure.
  10. 2019-04-08-12:33:48 add foreign key stop
  11. 2019-04-08-12:33:48 start slave

删除重建索引花费时间为28分钟，添加外键约束时间为48分钟。

再次查看delete 和select语句的执行计划

  1. explain select count() from arrival_record where receive_time < STR_TO_DATE('2019-03-10', '%Y-%m-%d')\G
  2. ************************** 1. row ***************************
  3. id: 1
  4. select_type: SIMPLE
  5. table: arrival_record
  6. partitions: NULL
  7. type: range
  8. possible_keys: idx_receive_time
  9. key: idx_receive_time
  10. key_len: 6
  11. ref: NULL
  12. rows: 7540948
  13. filtered: 100.00
  14. Extra: Usingwhere; Using index
  1. explain select count() from arrival_record where product_id=26and receive_time between '2019-03-25 14:00:00'and'2019-03-25 15:00:00'and receive_spend_ms>=0\G;
  2. ************************** 1. row ***************************
  3. id: 1
  4. select_type: SIMPLE
  5. table: arrival_record
  6. partitions: NULL
  7. type: range
  8. possible_keys: idx_product_id_sequence_station_no,idx_receive_time
  9. key: idx_receive_time
  10. key_len: 6
  11. ref: NULL
  12. rows: 291448
  13. filtered: 16.66
  14. Extra: Using index condition; Usingwhere

都使用到了idxreceivetime 索引，扫描的行数大大降低。

索引优化后

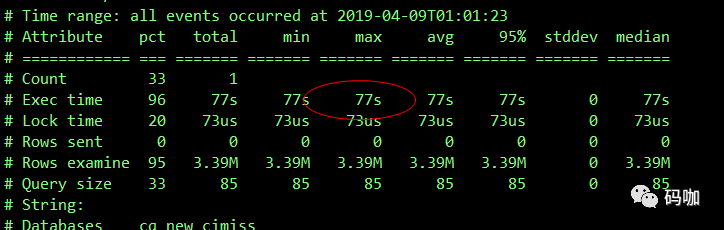

delete 还是花费了77s时间

  1. deletefrom arrival_record where receive_time < STR_TO_DATE('2019-03-10', '%Y-%m-%d')\G

delete 语句通过receive_time的索引删除300多万的记录花费77s时间

delete大表优化为小批量删除

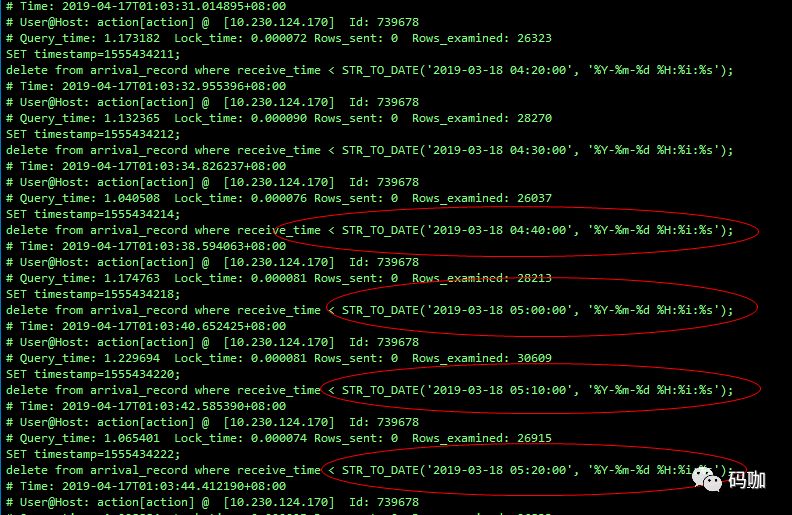

应用端已优化成每次删除10分钟的数据（每次执行时间1s左右），xxx中没在出现SLA（主从延迟告警）

另一个方法是通过主键的顺序每次删除20000条记录

  1. #得到满足时间条件的最大主键ID
  2. #通过按照主键的顺序去 顺序扫描小批量删除数据
  3. #先执行一次以下语句
  4.  SELECT MAX(id) INTO @need_delete_max_id FROM `arrival_record` WHERE receive_time<'2019-03-01';
  5.  DELETE FROM arrival_record WHERE id<@need_delete_max_id LIMIT 20000;
  6. select ROW_COUNT();  #返回20000


  9. #执行小批量delete后会返回row_count(), 删除的行数
  10. #程序判断返回的row_count()是否为0，不为0执行以下循环，为0退出循环，删除操作完成
  11.  DELETE FROM arrival_record WHERE id<@need_delete_max_id LIMIT 20000;
  12. select ROW_COUNT();
  13. #程序睡眠0.5s

总结

  • 表数据量太大时，除了关注访问该表的响应时间外，还要关注对该表的维护成本（如做DDL表更时间太长，delete历史数据）

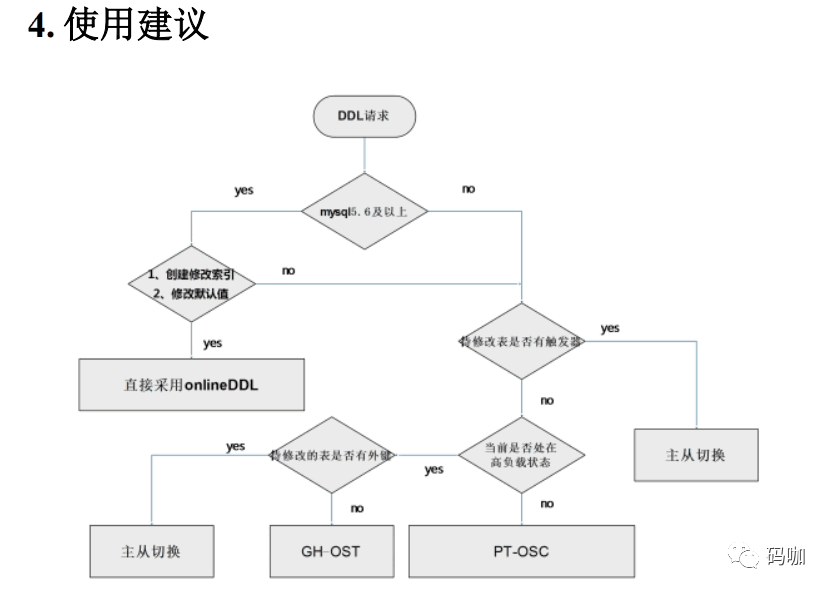

  • 对大表进行DDL操作时，要考虑表的实际情况（如对该表的并发表，是否有外键）来选择合适的DDL变更方式

  • 对大数据量表进行delete，用小批量删除的方式，减少对主实例的压力和主从延迟
