1使用场景

1gateway网关

用户浏览器访问网页时，在gateway网关配置压缩，减少传输数据，加快网页打开速度。

2mesh内部

微服务相互通信时，特别是用了rest协议，即用http协议通信，配置压缩和解压，可以有效加快数据传输速度，减少网路延迟

这个很有用，比如如果我们的rpc协议是http，启用压缩就可以提高传输效率。

2实操

2.1网关配置压缩

2.1.1示例1

cat << EOF > ef-ingressgateway-http-filter-compression.yaml apiVersion: networking.istio.io/v1alpha3kind: EnvoyFiltermetadata:  namespace: istio-system  name: apply-tospec:  workloadSelector:    labels:      istio: ingressgateway  configPatches:    - applyTo: HTTP_FILTER      match:        context: GATEWAY        listener:          filterChain:            filter:              name: envoy.filters.network.http_connection_manager              subFilter:                name: envoy.filters.http.router      patch:        operation: INSERT_BEFORE        value:          name: envoy.filters.http.compressor          typed_config:            "@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor            response_direction_config:              common_config:                min_content_length: 100                content_type:                - 'text/html'            compressor_library:              name: text_optimized              typed_config:                "@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip                memory_level: 3                window_bits: 10                compression_level: BEST_COMPRESSION                compression_strategy: DEFAULT_STRATEGYEOFkubectl apply -f ef-ingressgateway-http-filter-compression.yaml  -n istio-system

配置参数说明：

作用在http_filter上，type_url是固定的。response_direction_config对响应做配置，min_content_length最小启用压缩大小，content_type对哪些类型启用压缩。compressor_library压缩库配置，

window_bits：

窗口位大小，值从9到15，大的值会有更好的压缩，但内存消耗更大，默认是12，将产生4096字节窗口

compression_level

压缩级别，将影响压缩速度和压缩大小。BEST,高压缩，高延迟；SPEED低压缩，低延迟；DEFAULT优化的压缩，将介于BEST和SPEED之间。默认没设置是DEFAULT.

memory_level

内存级别，从1到9，控制压缩库内存的使用量，值越高内存用的多，但是更快，压缩结果更好。默认值是5.

compression_strategy:

DEFAULT , FILTERED , HUFFMAN , RLE

content_type:

默认值 “application/javascript”, “application/json”, “application/xhtml+xml”, “image/svg+xml”, “text/css”, “text/html”, “text/plain”, “text/xml”

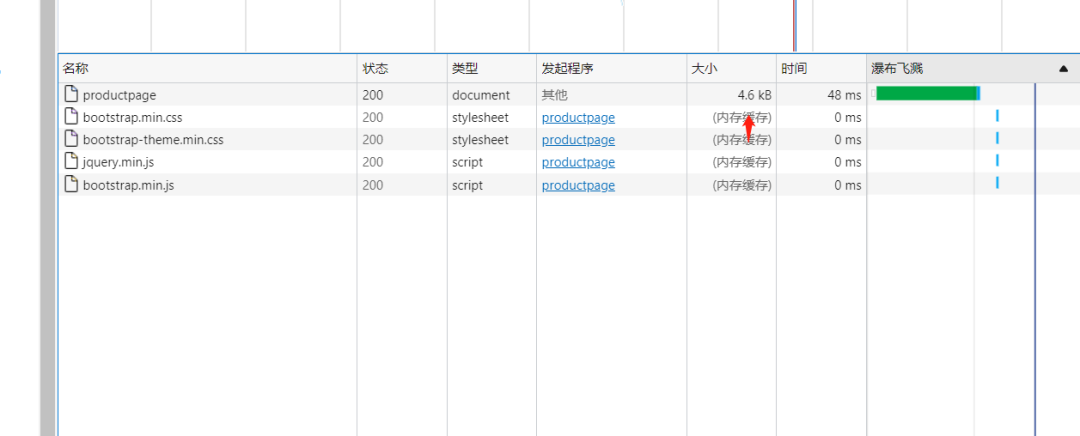

没启用压缩前：

传输大小是4.6k

启用压缩后：

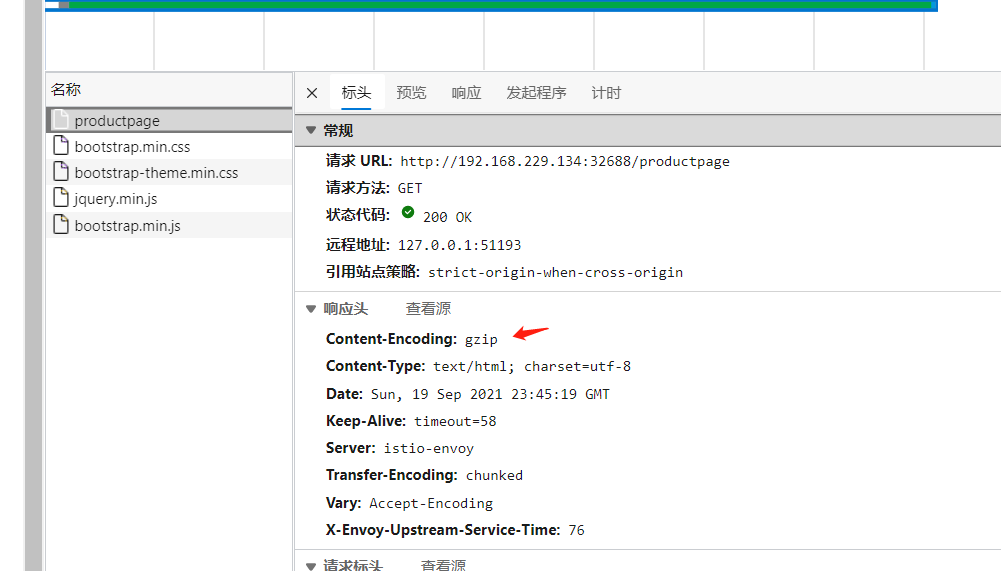

content-encoding为gzip，说明启用了gzip压缩

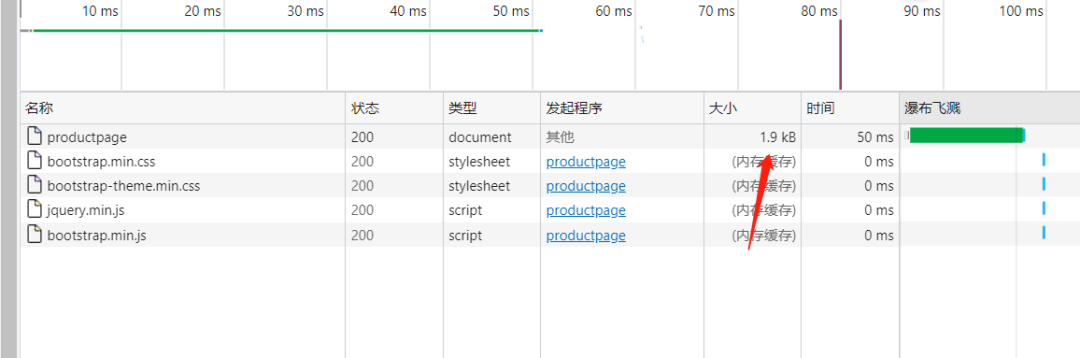

大小由4.6k降到了1.9k

2.1.2提高压缩参数

cat << EOF > ef-ingressgateway-http-filter-compression-2.yaml apiVersion: networking.istio.io/v1alpha3kind: EnvoyFiltermetadata:  namespace: istio-system  name: apply-tospec:  workloadSelector:    labels:      istio: ingressgateway  configPatches:    - applyTo: HTTP_FILTER      match:        context: GATEWAY        listener:          filterChain:            filter:              name: envoy.filters.network.http_connection_manager              subFilter:                name: envoy.filters.http.router      patch:        operation: INSERT_BEFORE        value:          name: envoy.filters.http.compressor          typed_config:            "@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor            response_direction_config:              common_config:                min_content_length: 100                content_type:                - 'text/html'            compressor_library:              name: text_optimized              typed_config:                "@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip                memory_level: 9                window_bits: 15                compression_level: BEST_COMPRESSION                compression_strategy: DEFAULT_STRATEGYEOFkubectl apply -f ef-ingressgateway-http-filter-compression-2.yaml  -n istio-system

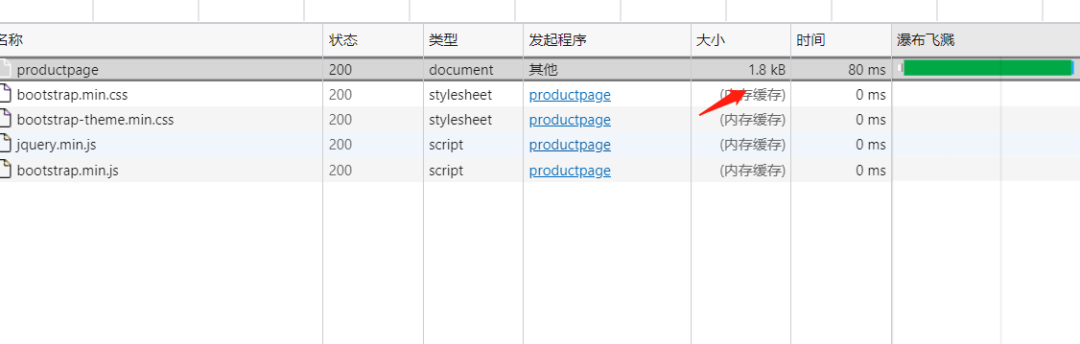

提高参数后传输数据从1.9k下降到1.8k

2.1.3最快压缩速度

compression_level: best_speed

cat << EOF > ef-ingressgateway-http-filter-compression-3.yaml apiVersion: networking.istio.io/v1alpha3kind: EnvoyFiltermetadata:  namespace: istio-system  name: apply-tospec:  workloadSelector:    labels:      istio: ingressgateway  configPatches:    - applyTo: HTTP_FILTER      match:        context: GATEWAY        listener:          filterChain:            filter:              name: envoy.filters.network.http_connection_manager              subFilter:                name: envoy.filters.http.router      patch:        operation: INSERT_BEFORE        value:          name: envoy.filters.http.compressor          typed_config:            "@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor            response_direction_config:              common_config:                min_content_length: 100                content_type:                - 'text/html'            compressor_library:              name: text_optimized              typed_config:                "@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip                memory_level: 9                window_bits: 15                compression_level: BEST_SPEED                compression_strategy: DEFAULT_STRATEGYEOFkubectl apply -f ef-ingressgateway-http-filter-compression-3.yaml  -n istio-system

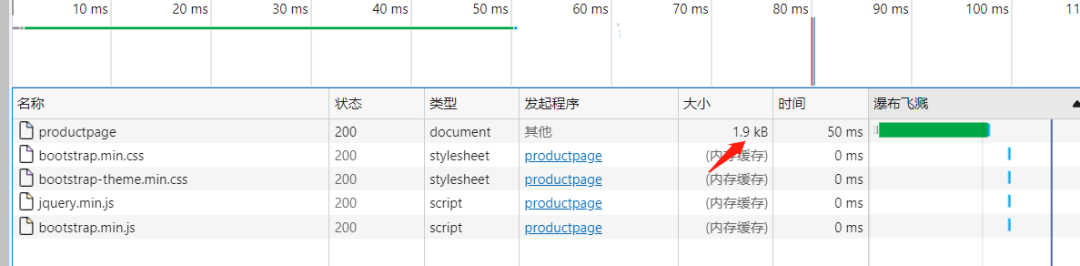

BEST_SPEED传输大小从1.8k提升到1.9k

2.1.4请求启用压缩

cat << EOF > ef-ingressgateway-http-filter-compression-4.yaml apiVersion: networking.istio.io/v1alpha3kind: EnvoyFiltermetadata:  namespace: istio-system  name: apply-tospec:  workloadSelector:    labels:      istio: ingressgateway  configPatches:    - applyTo: HTTP_FILTER      match:        context: GATEWAY        listener:          filterChain:            filter:              name: envoy.filters.network.http_connection_manager              subFilter:                name: envoy.filters.http.router      patch:        operation: INSERT_BEFORE        value:          name: envoy.filters.http.compressor          typed_config:            "@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor            response_direction_config:              common_config:                min_content_length: 100                content_type:                - 'text/html'            request_direction_config:              common_config:                enabled:                  default_value: true                  runtime_key: request_compressor_enabled            compressor_library:              name: text_optimized              typed_config:                "@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip                memory_level: 9                window_bits: 15                compression_level: BEST_SPEED                compression_strategy: DEFAULT_STRATEGYEOFkubectl apply -f ef-ingressgateway-http-filter-compression-4.yaml  -n istio-system

request_direction_config配置请求压缩

2.1.5禁用响应压缩，只用请求压缩

cat << EOF > ef-ingressgateway-http-filter-compression-5.yaml apiVersion: networking.istio.io/v1alpha3kind: EnvoyFiltermetadata:  namespace: istio-system  name: apply-tospec:  workloadSelector:    labels:      istio: ingressgateway  configPatches:    - applyTo: HTTP_FILTER      match:        context: GATEWAY        listener:          filterChain:            filter:              name: envoy.filters.network.http_connection_manager              subFilter:                name: envoy.filters.http.router      patch:        operation: INSERT_BEFORE        value:          name: envoy.filters.http.compressor          typed_config:            "@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor            response_direction_config:              common_config:                enabled:                  default_value: false                  runtime_key: response_compressor_enabled                min_content_length: 100                content_type:                - 'text/html'            request_direction_config:              common_config:                enabled:                  default_value: true                  runtime_key: request_compressor_enabled            compressor_library:              name: text_optimized              typed_config:                "@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip                memory_level: 9                window_bits: 15                compression_level: BEST_SPEED                compression_strategy: DEFAULT_STRATEGYEOFkubectl apply -f ef-ingressgateway-http-filter-compression-5.yaml  -n istio-system

2.2mesh内部配置压缩

reviews，ratings之间启用压缩

cat << EOF > ef-ratings-http-filter-compression.yaml apiVersion: networking.istio.io/v1alpha3kind: EnvoyFiltermetadata:  name: ratingsspec:  workloadSelector:    labels:      app: ratings  configPatches:    - applyTo: HTTP_FILTER      match:        context: SIDECAR_INBOUND        listener:          filterChain:            filter:              name: envoy.filters.network.http_connection_manager              subFilter:                name: envoy.filters.http.router      patch:        operation: INSERT_BEFORE        value:          name: envoy.filters.http.compressor          typed_config:            "@type": type.googleapis.com/envoy.extensions.filters.http.compressor.v3.Compressor            response_direction_config:              common_config:                enabled:                  default_value: true                  runtime_key: response_compressor_enabled                min_content_length: 10                content_type:                - 'application/json'            request_direction_config:              common_config:                enabled:                  default_value: true                  runtime_key: request_compressor_enabled            compressor_library:              name: text_optimized              typed_config:                "@type": type.googleapis.com/envoy.extensions.compression.gzip.compressor.v3.Gzip                memory_level: 9                window_bits: 12                compression_level: BEST_SPEED                compression_strategy: DEFAULT_STRATEGYEOFkubectl apply -f ef-ratings-http-filter-compression.yaml  -n istio

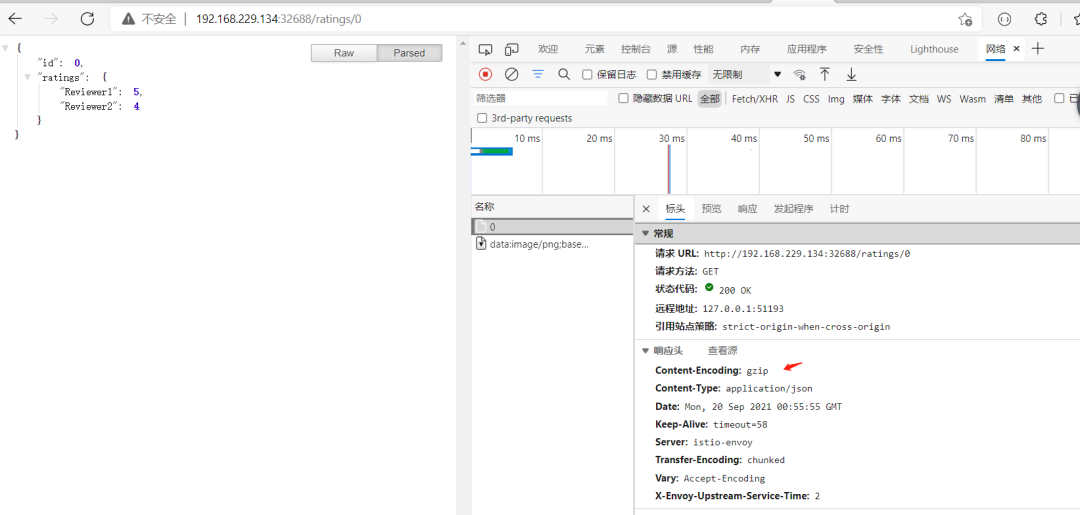

raings启用了压缩

reviews启用解压缩

cat << EOF > ef-reviews-http-filter-compression.yaml apiVersion: networking.istio.io/v1alpha3kind: EnvoyFiltermetadata:  name: reviewsspec:  workloadSelector:    labels:      app: reviews  configPatches:    - applyTo: HTTP_FILTER      match:        context: SIDECAR_OUTBOUND        listener:          filterChain:            filter:              name: envoy.filters.network.http_connection_manager              subFilter:                name: envoy.filters.http.router      patch:        operation: INSERT_BEFORE        value:          name: envoy.filters.http.decompressor          typed_config:            "@type": type.googleapis.com/envoy.extensions.filters.http.decompressor.v3.Decompressor            response_direction_config:              common_config:                enabled:                  default_value: true                  runtime_key: response_decompressor_enabled            request_direction_config:              common_config:                enabled:                  default_value: false                  runtime_key: request_decompressor_enabled            decompressor_library:              name: text_optimized              typed_config:                "@type": type.googleapis.com/envoy.extensions.compression.gzip.decompressor.v3.Gzip                chunk_size: 4096
                window_bits: 15
EOF

kubectl apply -f ef-reviews-http-filter-compression.yaml  -n istio

• window_bits

  窗口位大小，值从9到15，解压的窗口位大小需要大于等于压缩的窗口位大小。默认值是15

• chunk_size

  块大小，用于输出缓存，默认值是4096

  value must be inside range [4096, 65536]
