HBase入门

数据湖 2020-09-14

280

HBase在大数据生态中的地位举足轻重，它是谷歌bigtable的开源实现，是一种分布式存储的NoSQL数据库，能自动分片和故障转移，与HDFS高度集成，适合海量数据的高效查询。我目前用过的业务场景包括：

1.存储日志数据

2.存储车辆GPS数据，设备上报数据

3.kafka tpoic的offset

HBase架构

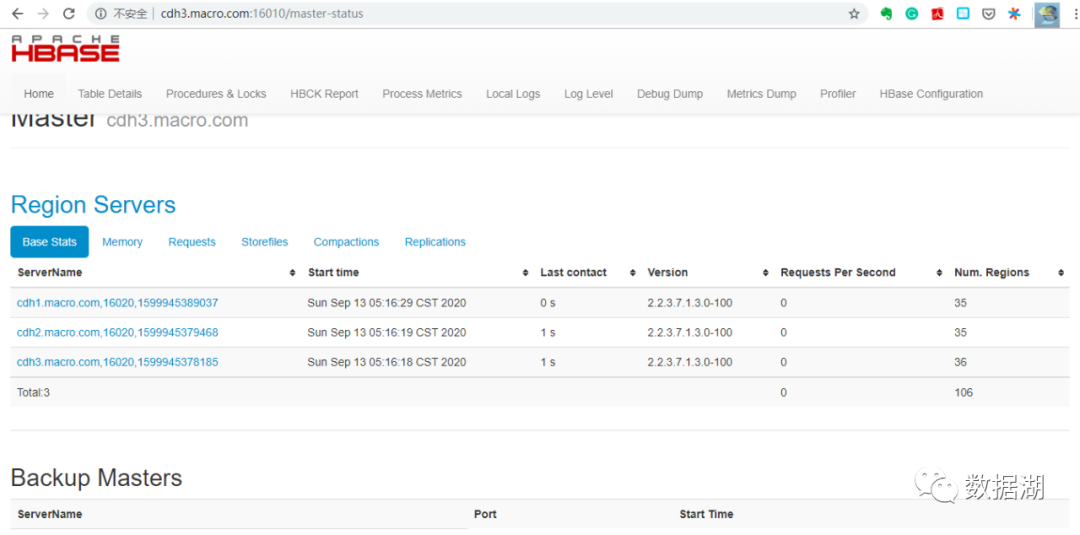

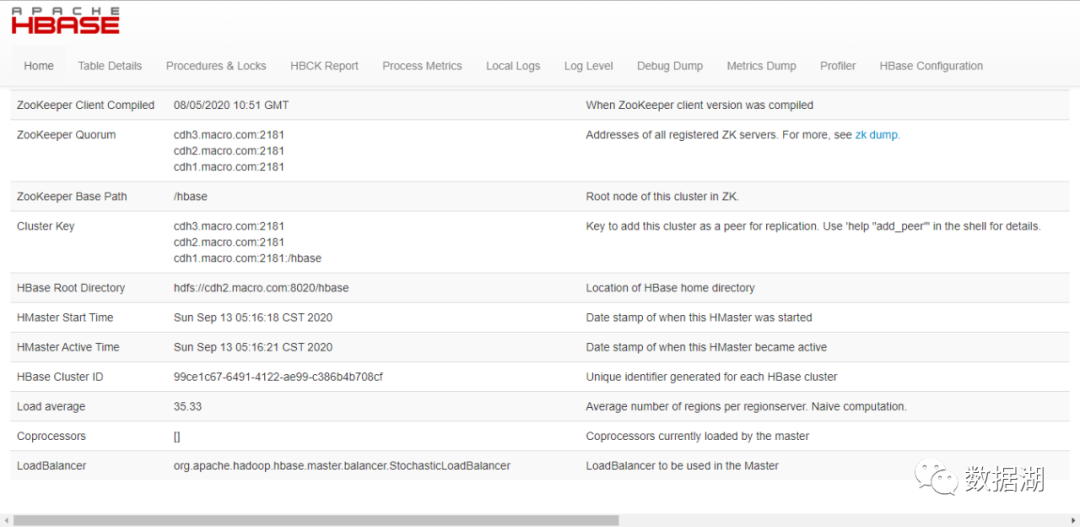

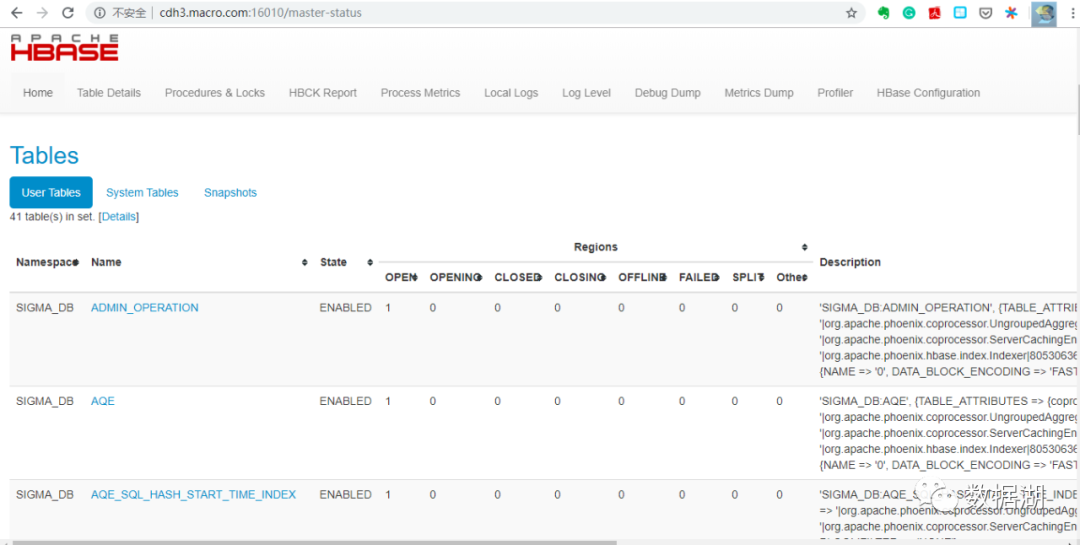

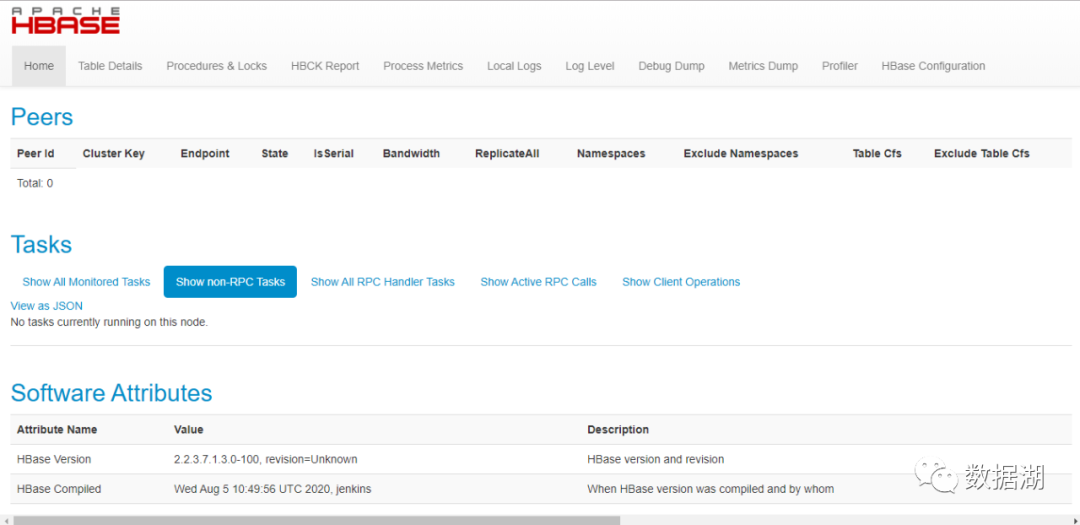

我们可以通过HBase的web管理界面来直观感受HBase的架构

1.HBase依赖Zookeeper，Zookeeper存储其元数据，对Master和RegionServer进行分布式协调

2.HDFS作为HBase运行的底层文件系统

3.RegionServer为从节点，是数据节点，存储数据

4.Master RegionServer需要实时地向Master上报运行状况

常用HBase Shell命令

查看帮助信息

[root@cdh3 ~]# hbase shell
HBase Shell
Use "help" to get list of supported commands.
Use "exit" to quit this interactive shell.
For Reference, please visit: http://hbase.apache.org/2.0/book.html#shell
Version 2.2.3.7.1.3.0-100, rUnknown, Wed Aug  5 10:49:56 UTC 2020
Took 0.0012 seconds
hbase(main):001:0> help
HBase Shell, version 2.2.3.7.1.3.0-100, rUnknown, Wed Aug  5 10:49:56 UTC 2020
Type 'help "COMMAND"', (e.g. 'help "get"' -- the quotes are necessary) for help on a specific command.
Commands are grouped. Type 'help "COMMAND_GROUP"', (e.g. 'help "general"') for help on a command group.


COMMAND GROUPS:
  Group name: general
  Commands: processlist, status, table_help, version, whoami


  Group name: ddl
  Commands: alter, alter_async, alter_status, clone_table_schema, create, describe, disable, disable_all, drop, drop_all, enable, enable_all, exists, get_table, is_disabled, is_enabled, list, list_regions, locate_region, show_filters


  Group name: namespace
  Commands: alter_namespace, create_namespace, describe_namespace, drop_namespace, list_namespace, list_namespace_tables


  Group name: dml
  Commands: append, count, delete, deleteall, get, get_counter, get_splits, incr, put, scan, truncate, truncate_preserve
复制

创建一个表，必须要指定表名称和列簇名

hbase(main):002:0> create 'test', 'cf'
Created table test
Took 1.8893 seconds
=> Hbase::Table - test
复制

列出表信息

hbase(main):003:0> list 'test'
TABLE
test
1 row(s)
Took 0.0231 seconds
 => ["test"]
复制

查看表详细信息，使用describe命令

hbase(main):004:0> describe 'test'
Table test is ENABLED
test
COLUMN FAMILIES DESCRIPTION
{NAME => 'cf', VERSIONS => '1', EVICT_BLOCKS_ON_CLOSE => 'false', NEW_VERSION_BEHAVIOR => 'false', KEEP_DELETED_CELLS => 'FALSE', CAC
HE_DATA_ON_WRITE => 'false', DATA_BLOCK_ENCODING => 'NONE', TTL => 'FOREVER', MIN_VERSIONS => '0', REPLICATION_SCOPE => '0', BLOOMFIL
TER => 'ROW', CACHE_INDEX_ON_WRITE => 'false', IN_MEMORY => 'false', CACHE_BLOOMS_ON_WRITE => 'false', PREFETCH_BLOCKS_ON_OPEN => 'fa
lse', COMPRESSION => 'NONE', BLOCKCACHE => 'true', BLOCKSIZE => '65536'}
1 row(s)
QUOTAS
0 row(s)
Took 0.2339 seconds
复制

添加数据

hbase(main):005:0> put 'test','row1','cf:a','value1'
Took 0.1284 seconds
hbase(main):006:0> put 'test','row2','cf:b','value2'
Took 0.0048 seconds
hbase(main):007:0> put 'test','row3','cf:c','value3'
Took 0.0085 seconds
复制

查看表中的所有数据

hbase(main):008:0> scan 'test'
ROW                                COLUMN+CELL
row1                              column=cf:a, timestamp=1600003697537, value=value1
row2                              column=cf:b, timestamp=1600003711262, value=value2
row3                              column=cf:c, timestamp=1600003732296, value=value3
3 row(s)
Took 0.0235 seconds
复制

获取单行的数据

hbase(main):009:0> get 'test','row1'
COLUMN                             CELL
cf:a                              timestamp=1600003697537, value=value1
1 row(s)
Took 0.0139 second
复制

HBase Java常用API

并以创建表为例进行测试

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.hbase.HBaseConfiguration;
import org.apache.hadoop.hbase.HColumnDescriptor;
import org.apache.hadoop.hbase.HTableDescriptor;
import org.apache.hadoop.hbase.TableName;
import org.apache.hadoop.hbase.client.*;
import org.apache.hadoop.hbase.util.Bytes;
import java.io.IOException;
import java.lang.reflect.Field;
import java.text.SimpleDateFormat;
import java.util.*;


public class HBaseUtil {
    private static Connection connection = null;


    /**
     * 初始化hbase的连接
     *
     * @throws IOException
     */
    private static void initConnection() throws IOException {
        if (connection == null || connection.isClosed()) {
            Configuration conf = HBaseConfiguration.create();
            conf.set("hbase.zookeeper.quorum", "192.168.0.171,192.168.0.207,192.168.0.208");
            conf.set("hbase.zookeeper.property.clientPort", "2181");
            connection = ConnectionFactory.createConnection(conf);
        }
    }


    /**
     * 获得连接
     *
     * @return
     * @throws IOException
     */
    public static Connection getConnection() throws IOException {
        if (connection == null || connection.isClosed()) {
            initConnection();
        }


        //连接可用直接返回连接
        return connection;
    }


    /**
     * 创建表
     *
     * @param tableNameString
     * @param columnFamily
     * @throws IOException
     */
    public static void createTable(Connection connection, String tableNameString, String columnFamily) throws IOException {
        Admin admin = connection.getAdmin();
        TableName tableName = TableName.valueOf(tableNameString); //d2h (data to HBase)
        HTableDescriptor table = new HTableDescriptor(tableName);
        HColumnDescriptor family = new HColumnDescriptor(columnFamily);
        table.addFamily(family);
        //判断表是否已经存在
        if (admin.tableExists(tableName)) {
            admin.disableTable(tableName);
            admin.deleteTable(tableName);
        }
        admin.createTable(table);
    }


    /**
     * 判断hbase的表是否存在
     *
     * @param tableName
     * @return
     * @throws Exception
     */
    public static boolean tableExists(String tableName) throws Exception {
        if (connection == null || connection.isClosed()) {
            initConnection();
        }


        Admin admin = connection.getAdmin();
        if (admin.tableExists(TableName.valueOf(tableName))) {
            return true;
        }
        return false;
    }


    public static Table getTable(String tableName)throws Exception{
        Connection connection = getConnection();
        return connection.getTable(TableName.valueOf(tableName));
    }


    /**
     * 获取插入HBase的操作put
     *
     * @param rowKeyString
     * @param familyName
     * @param columnName
     * @param columnValue
     * @return
     */
    public static Put createPut(String rowKeyString, byte[] familyName, String columnName, String columnValue) {
        byte[] rowKey = rowKeyString.getBytes();
        Put put = new Put(rowKey);
        put.addColumn(familyName, columnName.getBytes(), columnValue.getBytes());
        return put;
    }




    /**
     * 获取插入HBase的操作put
     *
     * @param rowKeyString
     * @param familyName
     * @param columns      列
     * @return
     */
    public static Put createPut(String rowKeyString, byte[] familyName, Map<String, String> columns) {
        byte[] rowKey = rowKeyString.getBytes();
        Put put = new Put(rowKey);
        for (Map.Entry<String, String> entry : columns.entrySet()) {
            put.addColumn(familyName, entry.getKey().getBytes(), entry.getValue().getBytes());
        }
        return put;
    }

    /**
     * 打印HBase查询结果
     *
     * @param result
     */
    public static void print(Result result) {
        //result是个四元组<行键，列族，列(标记符)，值>
        byte[] row = result.getRow(); //行键
        NavigableMap<byte[], NavigableMap<byte[], NavigableMap<Long, byte[]>>> map = result.getMap();
        for (Map.Entry<byte[], NavigableMap<byte[], NavigableMap<Long, byte[]>>> familyEntry : map.entrySet()) {
            byte[] familyBytes = familyEntry.getKey(); //列族
            for (Map.Entry<byte[], NavigableMap<Long, byte[]>> entry : familyEntry.getValue().entrySet()) {
                byte[] column = entry.getKey(); //列
                for (Map.Entry<Long, byte[]> longEntry : entry.getValue().entrySet()) {
                    Long time = longEntry.getKey(); //时间戳
                    byte[] value = longEntry.getValue(); //值
                    System.out.println(String.format("行键rowKey=%s,列族columnFamily=%s,列column=%s,时间戳timestamp=%d,值value=%s", new String(row), new String(familyBytes), new String(column), time, new String(value)));
                }
            }
        }


    }


    // 测试创建hbase_test表
    public static void main(String[] args) throws Exception {
        Connection connection = HBaseUtil.getConnection();
        Boolean tableExists = HBaseUtil.tableExists("hbase_test");
        System.out.println(tableExists);
        HBaseUtil.createTable(connection, "hbase_test", "cf1");
        tableExists = HBaseUtil.tableExists("hbase_test");
        System.out.println(tableExists);
    }
}
复制

控制台打印

20/09/13 20:49:05 INFO zookeeper.ZooKeeper: Initiating client connection, connectString=192.168.0.171:2181,192.168.0.207:2181,192.168.0.208:2181 sessionTimeout=90000 watcher=hconnection-0x704d6e830x0, quorum=192.168.0.171:2181,192.168.0.207:2181,192.168.0.208:2181, baseZNode=/hbase
20/09/13 20:49:09 INFO zookeeper.ClientCnxn: Opening socket connection to server cdh3.macro.com/192.168.0.208:2181. Will not attempt to authenticate using SASL (unknown error)
20/09/13 20:49:09 INFO zookeeper.ClientCnxn: Socket connection established to cdh3.macro.com/192.168.0.208:2181, initiating session
20/09/13 20:49:09 INFO zookeeper.ClientCnxn: Session establishment complete on server cdh3.macro.com/192.168.0.208:2181, sessionid = 0x10014dbded00993, negotiated timeout = 60000
false
20/09/13 20:49:13 INFO Configuration.deprecation: hadoop.native.lib is deprecated. Instead, use io.native.lib.available
20/09/13 20:49:17 INFO client.HBaseAdmin: Created hbase_test
true
复制

首次连接HBase，判断表不存在为false，创建表之后，判断表存在为true

查看HBase表，发现hbase_test表被成功创建

hbase(main):009:0> list
TABLE
Student
blobstore
hbase_test
kylin_metadata
40 row(s)
Took 0.0595 seconds
复制

本文大致介绍了Hbase入门需要知道的一些原理和实践，另外HBase的官方文档非常详细，是入门HBase的不二之选，推荐读者多阅读其官方文档。
