Programming Kubernetes读书笔记-Chapter3

package main


import (
    "fmt"
    "os"
    "path/filepath"
    "time"


    "k8s.io/apimachinery/pkg/util/wait"
    "k8s.io/client-go/informers"
    "k8s.io/client-go/rest"


    "k8s.io/client-go/kubernetes"
    "k8s.io/client-go/tools/cache"
    "k8s.io/client-go/tools/clientcmd"
)


func main() {
     先从集群Pod中/var/run/secrets/kubernetes.io/serviceaccount获取到service account转换为rest.Config
    config, err := rest.InClusterConfig()
    if err != nil {
         获取service account失败，直接去读取kubeconfig文件
        kubeconfig := filepath.Join("~", ".kube", "config")
         或者是从环境变量中获取到kubeconfig的位置
        if envvar := os.Getenv("KUBECONFIG"); len(envvar) > 0 {
            kubeconfig = envvar
        }
         通过kubeconfig文件构建rest.Config
        config, err = clientcmd.BuildConfigFromFlags("", kubeconfig)
        if err != nil {
            fmt.Printf("The kubeconfig cannot be loaded: %v\n", err)
            os.Exit(1)
        }
         返回的config可以做一些自定义操作，比如自定义UserAgent、自定义AcceptContentTypes、超时实际、限流等
         config.UserAgent = fmt.Sprintf("Go %s", runtime.GOOS);
         config.AcceptContentTypes = "application/vnd.kubernetes.protobuf,application/json"
    }
     用reset.Config构建kubernetes client
    clientset, err := kubernetes.NewForConfig(config)
     读取book namespace下的名为example的Pod对象
    pod, err = “clientset.CoreV1().Pods("book").Get("example", metav1.GetOptions{})
}
复制

apiVersion: v1
kind: Pod
metadata:
  name: pod-demo
  namespace: default
  labels:
    app: myapp
    tier: fronted
spec:
  containers:
  - name: myapp
    image: ikubernetes/myapp:v1
  - name: busybox
    image: busybox:latest
    command:
    - "bin/sh"
    - "-c"
    - "echo $(date) >> tmp/txt; sleep 5"
复制

// Object interface must be supported by all API types registered with Scheme. Since objects in a scheme are
// expected to be serialized to the wire, the interface an Object must provide to the Scheme allows
// serializers to set the kind, version, and group the object is represented as. An Object may choose
// to return a no-op ObjectKindAccessor in cases where it is not expected to be serialized.
type Object interface {
    GetObjectKind() schema.ObjectKind
    DeepCopyObject() Object
}




// All objects that are serialized from a Scheme encode their type information. This interface is used
// by serialization to set type information from the Scheme onto the serialized version of an object.
// For objects that cannot be serialized or have unique requirements, this interface may be a no-op.
type ObjectKind interface {
    // SetGroupVersionKind sets or clears the intended serialized kind of an object. Passing kind nil
    // should clear the current setting.
    SetGroupVersionKind(kind GroupVersionKind)
    // GroupVersionKind returns the stored group, version, and kind of an object, or nil if the object does
    // not expose or provide these fields.
    GroupVersionKind() GroupVersionKind
}
复制

// TypeMeta describes an individual object in an API response or request
// with strings representing the type of the object and its API schema version.
// Structures that are versioned or persisted should inline TypeMeta.
//
// +k8s:deepcopy-gen=false
type TypeMeta struct {
    // Kind is a string value representing the REST resource this object represents.
    // Servers may infer this from the endpoint the client submits requests to.
    // Cannot be updated.
    // In CamelCase.
    // More info: https://git.k8s.io/community/contributors/devel/api-conventions.md#types-kinds
    // +optional
    Kind string `json:"kind,omitempty" protobuf:"bytes,1,opt,name=kind"`


    // APIVersion defines the versioned schema of this representation of an object.
    // Servers should convert recognized schemas to the latest internal value, and
    // may reject unrecognized values.
    // More info: https://git.k8s.io/community/contributors/devel/api-conventions.md#resources
    // +optional
    APIVersion string `json:"apiVersion,omitempty" protobuf:"bytes,2,opt,name=apiVersion"`
}


type ObjectMeta struct {
    Name string `json:"name,omitempty"`
    Namespace string `json:"namespace,omitempty"`
    UID types.UID `json:"uid,omitempty"`
    ResourceVersion string `json:"resourceVersion,omitempty"`
    CreationTimestamp Time `json:"creationTimestamp,omitempty"`
    DeletionTimestamp *Time `json:"deletionTimestamp,omitempty"`
    Labels map[string]string `json:"labels,omitempty"`
    Annotations map[string]string `json:"annotations,omitempty"`
    ...
}
复制

// Pod is a collection of containers that can run on a host. This resource is created
// by clients and scheduled onto hosts.
type Pod struct {
    metav1.TypeMeta `json:",inline"`
    // Standard object's metadata.
    // More info: https://git.k8s.io/community/contributors/devel/api-conventions.md#metadata
    // +optional
    metav1.ObjectMeta `json:"metadata,omitempty" protobuf:"bytes,1,opt,name=metadata"`


    // Specification of the desired behavior of the pod.
    // More info: https://git.k8s.io/community/contributors/devel/api-conventions.md#spec-and-status
    // +optional
    Spec PodSpec `json:"spec,omitempty" protobuf:"bytes,2,opt,name=spec"`


    // Most recently observed status of the pod.
    // This data may not be up to date.
    // Populated by the system.
    // Read-only.
    // More info: https://git.k8s.io/community/contributors/devel/api-conventions.md#spec-and-status
    // +optional
    Status PodStatus `json:"status,omitempty" protobuf:"bytes,3,opt,name=status"`
}
复制

// Clientset contains the clients for groups. Each group has exactly one
// version included in a Clientset.
type Clientset struct {
    *discovery.DiscoveryClient
    admissionregistrationV1      *admissionregistrationv1.AdmissionregistrationV1Client
    admissionregistrationV1beta1 *admissionregistrationv1beta1.AdmissionregistrationV1beta1Client
    appsV1                       *appsv1.AppsV1Client
    appsV1beta1                  *appsv1beta1.AppsV1beta1Client
    appsV1beta2                  *appsv1beta2.AppsV1beta2Client
......
}
复制

// DeploymentsGetter has a method to return a DeploymentInterface.
// A group's client should implement this interface.
type DeploymentsGetter interface {
    Deployments(namespace string) DeploymentInterface
}


type AppsV1Interface interface {
    RESTClient() rest.Interface
    ControllerRevisionsGetter
    DaemonSetsGetter
    DeploymentsGetter
    ReplicaSetsGetter
    StatefulSetsGetter
}


// AppsV1Client is used to interact with features provided by the apps group.
type AppsV1Client struct {
    restClient rest.Interface
}


// DeploymentInterface has methods to work with Deployment resources.
type DeploymentInterface interface {
    Create(*v1.Deployment) (*v1.Deployment, error)
    Update(*v1.Deployment) (*v1.Deployment, error)
    UpdateStatus(*v1.Deployment) (*v1.Deployment, error)
    Delete(name string, options *metav1.DeleteOptions) error
    DeleteCollection(options *metav1.DeleteOptions, listOptions metav1.ListOptions) error
    Get(name string, options metav1.GetOptions) (*v1.Deployment, error)
    List(opts metav1.ListOptions) (*v1.DeploymentList, error)
    Watch(opts metav1.ListOptions) (watch.Interface, error)
    Patch(name string, pt types.PatchType, data []byte, subresources ...string) (result *v1.Deployment, err error)
    GetScale(deploymentName string, options metav1.GetOptions) (*autoscalingv1.Scale, error)
    UpdateScale(deploymentName string, scale *autoscalingv1.Scale) (*autoscalingv1.Scale, error)


    DeploymentExpansion
}


// Get takes name of the deployment, and returns the corresponding deployment object, and an error if there is any.
func (c *deployments) Get(name string, options metav1.GetOptions) (result *v1.Deployment, err error) {
    result = &v1.Deployment{}
    err = c.client.Get().
        Namespace(c.ns).
        Resource("deployments").
        Name(name).
        VersionedParams(&options, scheme.ParameterCodec).
        Do().
        Into(result)
    return
}
复制

// Interface can be implemented by anything that knows how to watch and report changes.
type Interface interface {
    // Stops watching. Will close the channel returned by ResultChan(). Releases
    // any resources used by the watch.
    Stop()


    // Returns a chan which will receive all the events. If an error occurs
    // or Stop() is called, this channel will be closed, in which case the
    // watch should be completely cleaned up.
    ResultChan() <-chan Event
}


// EventType defines the possible types of events.
type EventType string


const (
    Added    EventType = "ADDED"
    Modified EventType = "MODIFIED"
    Deleted  EventType = "DELETED"
    Bookmark EventType = "BOOKMARK"
    Error    EventType = "ERROR"


    DefaultChanSize int32 = 100
)


// Event represents a single event to a watched resource.
// +k8s:deepcopy-gen=true
type Event struct {
    Type EventType


    // Object is:
    //  * If Type is Added or Modified: the new state of the object.
    //  * If Type is Deleted: the state of the object immediately before deletion.
    //  * If Type is Bookmark: the object (instance of a type being watched) where
    //    only ResourceVersion field is set. On successful restart of watch from a
    //    bookmark resourceVersion, client is guaranteed to not get repeat event
    //    nor miss any events.
    //  * If Type is Error: *api.Status is recommended; other types may make sense
    //    depending on context.
    Object runtime.Object
}
复制

    informerFactory := informers.NewSharedInformerFactory(clientset, time.Second*30)
    podInformer := informerFactory.Core().V1().Pods()
    podInformer.Informer().AddEventHandler(cache.ResourceEventHandlerFuncs{
        AddFunc:    func(new interface{}) { fmt.Println("Create a pod") },
        UpdateFunc: func(old, new interface{}) { fmt.Println("Update a pod") },
        DeleteFunc: func(obj interface{}) { fmt.Println("Delete a pod") },
    })
    informerFactory.Start(wait.NeverStop)
    informerFactory.WaitForCacheSync(wait.NeverStop)
    pod, _ := podInformer.Lister().Pods("default").Get("details-v1-5974b67c8-n7vdw")
复制

informerFactory := informers.NewSharedInformerFactoryWithOptions(clientset, time.Second*30, informers.WithNamespace("default"))
复制

func (s *Scheme) ObjectKinds(obj Object) ([]schema.GroupVersionKind, bool, error)
复制

scheme.AddKnownTypes(schema.GroupVersionKind{"", "v1", "Pod"}, &Pod{})
复制

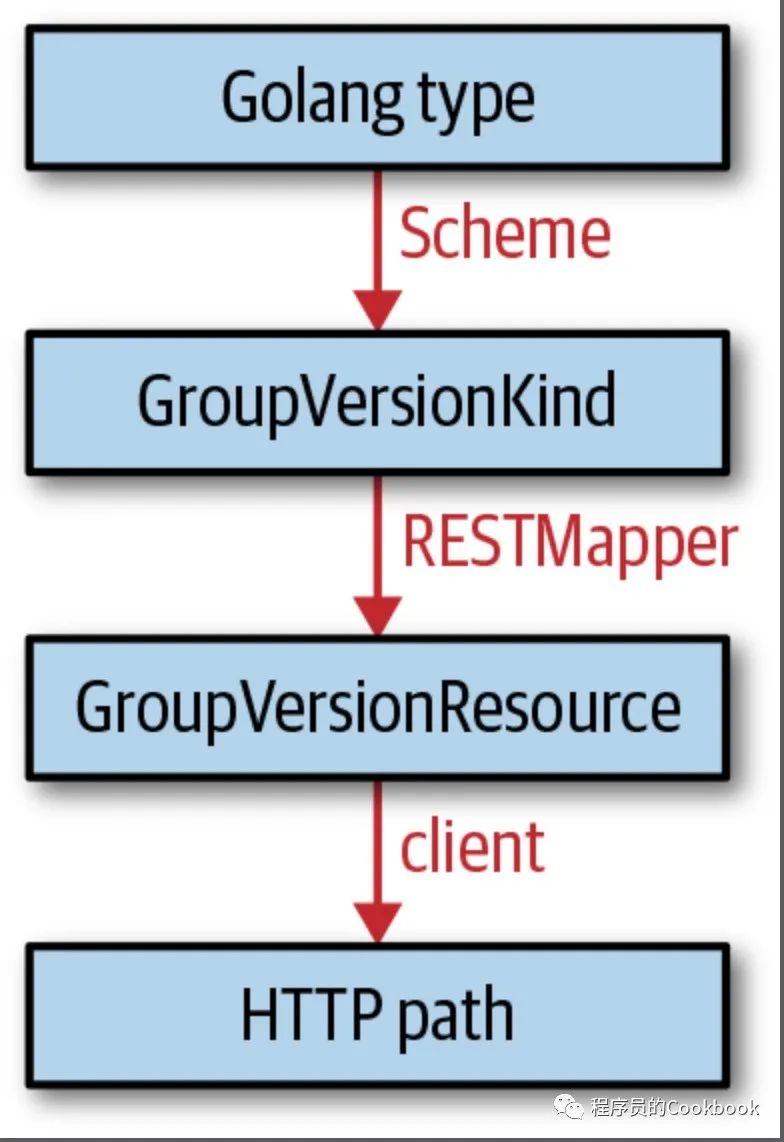

// RESTMapping contains the information needed to deal with objects of a specific
// resource and kind in a RESTful manner.
type RESTMapping struct {
    // Resource is the GroupVersionResource (location) for this endpoint
    Resource schema.GroupVersionResource


    // GroupVersionKind is the GroupVersionKind (data format) to submit to this endpoint
    GroupVersionKind schema.GroupVersionKind


    // Scope contains the information needed to deal with REST Resources that are in a resource hierarchy
    Scope RESTScope
}
复制
