介绍
从 Kubernetes 1.8 开始，Kubernetes 通过 Metrics API 获取资源使用指标，例如容器 CPU 和内存使用情况。这些度量指标可以由用户直接访问，例如通过使用kubectl top 命令，或者使用集群中的控制器。
Metrics API: 通过 Metrics API，您可以获得 node 或 pod 当前的资源使用情况（但是不存储）。
大致是说它符合 kubernetes 的监控架构设计，受 heapster 项目启发，并且比 heapster 优势在于：
访问不需要 apiserver 的代理机制，提供认证和授权等;
很多集群内组件依赖它（HPA,scheduler,kubectl top），因此它应该在集群中默认运行;
下载编排
[root@master-01 opt]# git clone https://github.com/kubernetes-incubator/metrics-server
[root@master-01 opt]# cd metrics-server/deploy/1.8+/复制
创建metrics-server证书
创建签名请求
[root@master-01 1.8+]# cd etc/kubernetes/ssl/
[root@master-01 ssl]# cat > metrics-server-csr.json <<EOF
{
"CN": "aggregator",
"hosts": [],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"ST": "Hangzhou",
"L": "Hangzhou",
"O": "k8s",
"OU": "4Paradigm"
}
]
}
EOF复制
创建证书和私钥
[root@master-01 ssl]# cfssl gencert -ca=/etc/kubernetes/ssl/ca.pem -ca-key=/etc/kubernetes/ssl/ca-key.pem -config=/etc/kubernetes/ssl/ca-config.json -profile=kubernetes metrics-server-csr.json|cfssljson -bare metrics-server
2019/03/13 15:23:01 [INFO] generate received request
2019/03/13 15:23:01 [INFO] received CSR
2019/03/13 15:23:01 [INFO] generating key: rsa-2048
2019/03/13 15:23:01 [INFO] encoded CSR
2019/03/13 15:23:01 [INFO] signed certificate with serial number 102667513905881026309937413350748574897223013201
2019/03/13 15:23:01 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").复制
同步证书
同步证书到master-2、master-03
[root@master-01 ssl]# scp metrics-server-key.pem metrics-server.pem 192.168.209.131:/etc/kubernetes/ssl/
[root@master-01 ssl]# scp metrics-server-key.pem metrics-server.pem 192.168.209.132:/etc/kubernetes/ssl/复制
开启聚合配置
修改kube-apiserver配置文件来支持metres-server，加入如下启动参数来启用aggregation layer：
--proxy-client-cert-file=/etc/kubernetes/ssl/metrics-server.pem \
--proxy-client-key-file=/etc/kubernetes/ssl/metrics-server-key.pem \
--runtime-config=api/all=true \
--requestheader-client-ca-file=/etc/kubernetes/ssl/ca.pem \
--requestheader-allowed-names=aggregator \
--requestheader-extra-headers-prefix=X-Remote-Extra- \
--requestheader-group-headers=X-Remote-Group \
--requestheader-username-headers=X-Remote-User# proxy-client-cert-file，proxy-client-key-file使用刚才生成的证书复制
--requestheader-XXX、--proxy-client-XXX 是 kube-apiserver 的 aggregator layer 相关的配置参数，metrics-server & HPA 需要使用。
--requestheader-client-ca-file：用于签名 --proxy-client-cert-file 和 --proxy-client-key-file 指定的证书；在启用了 metric aggregator 时使用。
如果 --requestheader-allowed-names 不为空，则--proxy-client-cert-file 证书的 CN 必须位于 allowed-names 中，默认为 aggregator。
注意：需要重启三台主控的kube-apiserver
如果不开启聚合配置可能会报如下错误
这是因为没用开启聚合层
I0313 05:18:36.447202 1 serving.go:273] Generated self-signed cert (apiserver.local.config/certificates/apiserver.crt, apiserver.local.config/certificates/apiserver.key)
Error: cluster doesn't provide requestheader-client-ca-file复制
修改编排文件
在metrics-server-deployment.yaml文件中containers字段下添加如下
command:
- metrics-server
- --kubelet-insecure-tls
- --kubelet-preferred-address-types=InternalIP复制
如果不添加 稍后可能会报如下错误
E0313 08:23:41.193222 1 manager.go:102] unable to fully collect metrics: [unable to fully scrape metrics from source kubelet_summary:192.168.209.130: unable to fetch metrics from Kubelet 192.168.209.130 (192.168.209.130): Get https://192.168.209.130:10250/stats/summary/: x509: certificate signed by unknown authority, unable to fully scrape metrics from source kubelet_summary:192.168.209.131: unable to fetch metrics from Kubelet 192.168.209.131 (192.168.209.131): Get https://192.168.209.131:10250/stats/summary/: x509: certificate signed by unknown authority, unable to fully scrape metrics from source kubelet_summary:192.168.209.132: unable to fetch metrics from Kubelet 192.168.209.132 (192.168.209.132): Get https://192.168.209.132:10250/stats/summary/: x509: certificate signed by unknown authority, unable to fully scrape metrics from source kubelet_summary:192.168.209.133: unable to fetch metrics from Kubelet 192.168.209.133 (192.168.209.133): Get https://192.168.209.133:10250/stats/summary/: x509: certificate signed by unknown authority]复制
资料
https://github.com/kubernetes-incubator/metrics-server/issues/67
https://github.com/mattkelly/metrics-server/commit/bfddc174c783290cb86d6da2fe1182d53a3b9bd5
gcr.io的镜像访问不到的话需要将metrics-server-deployment.yaml中的镜像替换为：registry.cn-beijing.aliyuncs.com/minminmsn/metrics-server:v0.3.1
创建metrics-server
[root@master-01 1.8+]# kubectl apply -f ./复制
查看服务状态
[root@master-01 1.8+]# kubectl get pod -nkube-system
NAME READY STATUS RESTARTS AGE
metrics-server-7c499cd69d-499js 1/1 Running 0 14s复制
测试功能
可以看到资源使用信息采集到了
[root@master-01 1.8+]# kubectl top pods --all-namespaces
NAMESPACE NAME CPU(cores) MEMORY(bytes)
default dnstools-6b77cc4988-b5smz 0m 2Mi
default nginx-7899755b7-rgdch 0m 2Mi
default tests-mychart-7d84ff968f-76d2l 1m 3Mi
default wordpress-test-mariadb-59cfd7c475-27chl 5m 116Mi
default wordpress-test-wordpress-6fc9b7cc7f-b2nfq 4m 149Mi
ingress-nginx grafana-69549786b6-d78nv 1m 30Mi
ingress-nginx prometheus-server-8658d8cdbb-4qps2 1m 20Mi
kube-system coredns-5d668bd598-4xxwn 3m 13Mi
kube-system coredns-5d668bd598-f5g96 2m 9Mi
kube-system kubernetes-dashboard-cb55bd5bd-gc84g 1m 19Mi
kube-system metrics-server-84f9775b88-gh7x7 2m 16Mi
kube-system tiller-deploy-87d7c6dfb-kxj7p 1m 9Mi
monitoring kube-state-metrics-6f8967c6c5-nzkxp 2m 30Mi
monitoring node-exporter-4n9wj 1m 8Mi
monitoring node-exporter-5wtgw 0m 8Mi
monitoring node-exporter-gdj8f 1m 11Mi
monitoring node-exporter-p96zj 1m 9Mi
monitoring prometheus-operator-795895d784-v569s 1m 10Mi
[root@master-01 1.8+]# kubectl top nodes
NAME CPU(cores) CPU% MEMORY(bytes) MEMORY%
192.168.209.130 158m 7% 1965Mi 53%
192.168.209.131 103m 5% 1859Mi 50%
192.168.209.132 123m 6% 2152Mi 58%
192.168.209.133 38m 1% 1022Mi 27%复制
通过 kube-apiserver接口访问
https://192.168.209.130:6443/apis/metrics.k8s.io/v1beta1/nodes
https://192.168.209.130:6443/apis/metrics.k8s.io/v1beta1/nodes/
https://192.168.209.130:6443/apis/metrics.k8s.io/v1beta1/pods
https://192.168.209.130:6443/apis/metrics.k8s.io/v1beta1/namespace/pods/
[root@master-01 1.8+]# curl -k https://192.168.209.130:6443/apis/metrics.k8s.io/v1beta1/pods
{
"kind": "PodMetricsList",
"apiVersion": "metrics.k8s.io/v1beta1",
"metadata": {
"selfLink": "/apis/metrics.k8s.io/v1beta1/pods"
},
"items": [
{
"metadata": {
"name": "coredns-5d668bd598-f5g96",
"namespace": "kube-system",
"selfLink": "/apis/metrics.k8s.io/v1beta1/namespaces/kube-system/pods/coredns-5d668bd598-f5g96",
"creationTimestamp": "2019-03-13T09:23:58Z"
},
"timestamp": "2019-03-13T09:23:17Z",
"window": "30s",
"containers": [
{
"name": "coredns",
"usage": {
"cpu": "2073503n",
"memory": "9628Ki"
}
...............复制

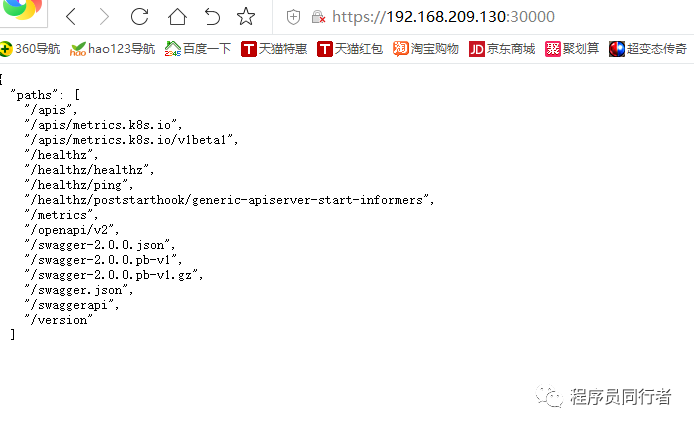

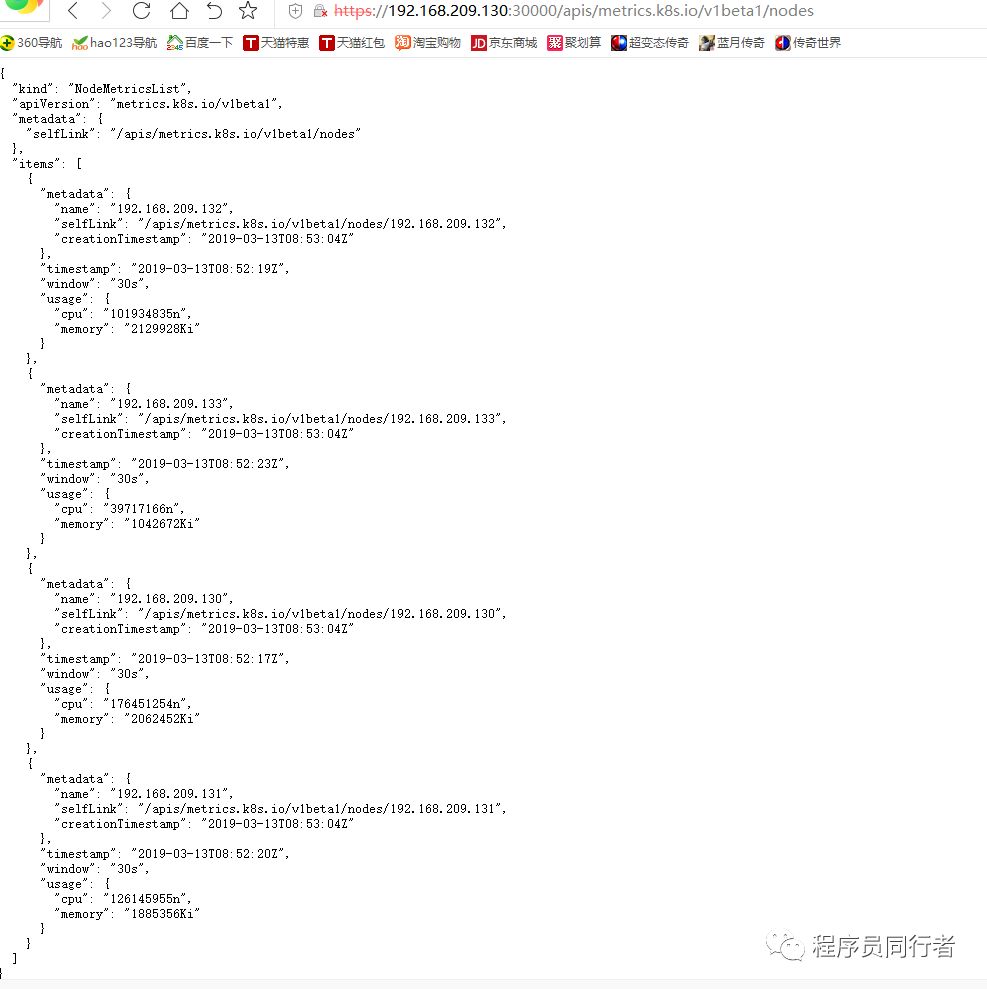

浏览器访问
这里的30000端口是我把metrics-server端口改成NodePort了。
好了，进行到这，metrics就部署完了，敬请期待后续分享，谢谢！
