通过oracle导出csv再在heavydb用copy方式导入csv，注意生成的csv必须是utf8格式，否则中文乱码。
上一篇heavydb的安装文档还是在一年以前的了，参见https://www.modb.pro/db/400781
1.利用sqluldr2从oracle导出csv文件
可参考https://www.modb.pro/db/1696201950291382272
[oracle]$ /home/oracle/sqluldr2 test/test@192.168.207.58:1521/lndb query="select * from addressinfo" head=yes file=addressinfo.csv text=CSV Charset=utf8
0 rows exported at 2023-09-18 12:47:55, size 0 MB.
1000000 rows exported at 2023-09-18 12:48:05, size 388 MB.
2000000 rows exported at 2023-09-18 12:48:16, size 815 MB.
3000000 rows exported at 2023-09-18 12:48:30, size 1239 MB.
4000000 rows exported at 2023-09-18 12:48:43, size 1662 MB.
5000000 rows exported at 2023-09-18 12:48:55, size 2098 MB.
6000000 rows exported at 2023-09-18 12:49:10, size 2554 MB.
7000000 rows exported at 2023-09-18 12:49:27, size 2985 MB.
8000000 rows exported at 2023-09-18 12:49:41, size 3369 MB.
9000000 rows exported at 2023-09-18 12:49:56, size 3773 MB.
10000000 rows exported at 2023-09-18 12:50:10, size 4176 MB.
11000000 rows exported at 2023-09-18 12:50:26, size 4584 MB.
12000000 rows exported at 2023-09-18 12:50:39, size 5003 MB.
13000000 rows exported at 2023-09-18 12:50:50, size 5435 MB.
14000000 rows exported at 2023-09-18 12:51:04, size 5843 MB.
15000000 rows exported at 2023-09-18 12:51:20, size 6282 MB.
16000000 rows exported at 2023-09-18 12:51:33, size 6682 MB.
17000000 rows exported at 2023-09-18 12:51:45, size 7113 MB.
18000000 rows exported at 2023-09-18 12:51:56, size 7553 MB.
19000000 rows exported at 2023-09-18 12:52:08, size 8005 MB.
20000000 rows exported at 2023-09-18 12:52:22, size 8380 MB.
21000000 rows exported at 2023-09-18 12:52:34, size 8784 MB.
22000000 rows exported at 2023-09-18 12:52:48, size 9219 MB.
23000000 rows exported at 2023-09-18 12:52:59, size 9671 MB.
24000000 rows exported at 2023-09-18 12:53:10, size 10107 MB.
25000000 rows exported at 2023-09-18 12:53:25, size 10514 MB.
26000000 rows exported at 2023-09-18 12:53:36, size 10926 MB.
27000000 rows exported at 2023-09-18 12:53:52, size 11349 MB.
28000000 rows exported at 2023-09-18 12:54:07, size 11761 MB.
29000000 rows exported at 2023-09-18 12:54:20, size 12181 MB.
30000000 rows exported at 2023-09-18 12:54:34, size 12612 MB.
30748154 rows exported at 2023-09-18 12:54:42, size 12956 MB.
output file addressinfo.csv closed at 30748154 rows, size 12956 MB.
另外也可以使用存储过程方法，不过速度太慢，无法用工具时可应急：
SQL> CREATE OR REPLACE PROCEDURE SQL_TO_CSV
(
P_QUERY IN VARCHAR2, -- PLSQL文
P_DIR IN VARCHAR2, -- 导出的文件放置目录
P_FILENAME IN VARCHAR2 -- CSV名
)
IS
L_OUTPUT UTL_FILE.FILE_TYPE;
L_THECURSOR INTEGER DEFAULT DBMS_SQL.OPEN_CURSOR;
L_COLUMNVALUE VARCHAR2(4000);
L_STATUS INTEGER;
L_COLCNT NUMBER := 0;
L_SEPARATOR VARCHAR2(1);
L_DESCTBL DBMS_SQL.DESC_TAB;
P_MAX_LINESIZE NUMBER := 32000;
BEGIN
--OPEN FILE
L_OUTPUT := UTL_FILE.FOPEN(P_DIR, P_FILENAME, 'W', P_MAX_LINESIZE);
--DEFINE DATE FORMAT
EXECUTE IMMEDIATE 'ALTER SESSION SET NLS_DATE_FORMAT=''YYYY-MM-DD HH24:MI:SS''';
--OPEN CURSOR
DBMS_SQL.PARSE(L_THECURSOR, P_QUERY, DBMS_SQL.NATIVE);
DBMS_SQL.DESCRIBE_COLUMNS(L_THECURSOR, L_COLCNT, L_DESCTBL);
--DUMP TABLE COLUMN NAME
FOR I IN 1 .. L_COLCNT LOOP
UTL_FILE.PUT(L_OUTPUT,L_SEPARATOR || '"' || L_DESCTBL(I).COL_NAME || '"'); --输出表字段
DBMS_SQL.DEFINE_COLUMN(L_THECURSOR, I, L_COLUMNVALUE, 4000);
L_SEPARATOR := ',';
END LOOP;
UTL_FILE.NEW_LINE(L_OUTPUT); --输出表字段
--EXECUTE THE QUERY STATEMENT
L_STATUS := DBMS_SQL.EXECUTE(L_THECURSOR);
--DUMP TABLE COLUMN VALUE
WHILE (DBMS_SQL.FETCH_ROWS(L_THECURSOR) > 0) LOOP
L_SEPARATOR := '';
FOR I IN 1 .. L_COLCNT LOOP
DBMS_SQL.COLUMN_VALUE(L_THECURSOR, I, L_COLUMNVALUE);
UTL_FILE.PUT(L_OUTPUT,
L_SEPARATOR || '"' ||
TRIM(BOTH ' ' FROM REPLACE(L_COLUMNVALUE, '"', '""')) || '"');
L_SEPARATOR := ',';
END LOOP;
UTL_FILE.NEW_LINE(L_OUTPUT);
END LOOP;
--CLOSE CURSOR
DBMS_SQL.CLOSE_CURSOR(L_THECURSOR);
--CLOSE FILE
UTL_FILE.FCLOSE(L_OUTPUT);
EXCEPTION
WHEN OTHERS THEN
RAISE;
END;
/
Procedure created.
SQL> create directory ORADMP as '/oracle/dmp';
SQL> grant read,write on directory oradmp to public;
SQL> set lines 200 pages 200
SQL> col owner for a30
SQL> col directory_name for a30
SQL> col directory_path for a85
SQL> select * from dba_directories ;
OWNER DIRECTORY_NAME DIRECTORY_PATH
------------------------------ ------------------------------ -------------------------------------------------------------------------------------
SYS ORACLE_OCM_CONFIG_DIR2 /oracle/app/product/11.2.0/db_1/ccr/state
SYS DATA_PUMP_DIR /oracle/app/admin/lndb/dpdump/
SYS ORACLE_OCM_CONFIG_DIR /oracle/app/product/11.2.0/db_1/ccr/hosts/lnkf/state
SYS XMLDIR /oracle/app/product/11.2.0/db_1/rdbms/xml
SYS ORADMP /oracle/dmp
6 rows selected.

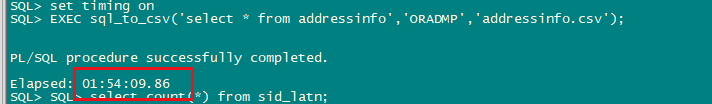

SQL> set timing on
SQL> EXEC sql_to_csv('select * from addressinfo','ORADMP','addressinfo.csv');
2.提取oracle中表结构
通过pl/sql工具或其它命令获取即可
-- Create table
create table ADDRESSINFO
(
id VARCHAR2(16) not null,
ods_id VARCHAR2(64),
code VARCHAR2(2000),
province VARCHAR2(100),
city VARCHAR2(100),
regionid VARCHAR2(20),
region_name VARCHAR2(256),
street_id VARCHAR2(50),
street_name VARCHAR2(512),
road_id VARCHAR2(50),
road_name VARCHAR2(512),
number_plate_id VARCHAR2(50),
number_plate_name VARCHAR2(512),
cpn_id VARCHAR2(50),
cpn_code VARCHAR2(50),
community_name VARCHAR2(255),
premises_network VARCHAR2(32),
building_code VARCHAR2(50),
building VARCHAR2(255),
unit_id VARCHAR2(50),
unit VARCHAR2(128),
layer_id VARCHAR2(50),
layer VARCHAR2(128),
room_id VARCHAR2(50),
room VARCHAR2(128),
rms_code VARCHAR2(255),
substation_id VARCHAR2(16),
simple_mark VARCHAR2(4000),
inner_symbol_id VARCHAR2(16),
if_inner VARCHAR2(2),
switch_no VARCHAR2(64),
type NUMBER(2) default 0,
queryindex VARCHAR2(255),
remark VARCHAR2(255),
alias_name VARCHAR2(255),
if_relate VARCHAR2(1) default 0,
addresstype VARCHAR2(10),
source VARCHAR2(32),
create_time DATE,
fldtag VARCHAR2(64) default 49,
original_company VARCHAR2(1) default 0,
useremark VARCHAR2(16),
village_code VARCHAR2(50),
update_time DATE,
create_op VARCHAR2(32)
);
3.在heavydb中创建表结构
注意字段类型修改参考：DATE改成timestamp，varchar2改成TEXT，NUMBER（2）可改成DECIMAL(2,0)
参考：https://docs.heavy.ai/sql/data-definition-ddl/datatypes-and-fixed-encoding
heavysql> create database lnlt;
heavysql> \c lnlt admin XXX;
heavysql> create table ADDRESSINFO
(
id TEXT ENCODING NONE,--内容重复性低的类型
ods_id TEXT,
code TEXT ENCODING NONE,--内容重复性低的类型
province TEXT,
city TEXT,
regionid TEXT,
region_name TEXT,
street_id TEXT,
street_name TEXT,
road_id TEXT,
road_name TEXT,
number_plate_id TEXT,
number_plate_name TEXT,
cpn_id TEXT,
cpn_code TEXT,
community_name TEXT,
premises_network TEXT,
building_code TEXT,
building TEXT,
unit_id TEXT,
unit TEXT,
layer_id TEXT,
layer TEXT,
room_id TEXT,
room TEXT,
rms_code TEXT,
substation_id TEXT,
simple_mark TEXT,
inner_symbol_id TEXT,
if_inner TEXT,
switch_no TEXT,
type INTEGER,
queryindex TEXT,
remark TEXT,
alias_name TEXT,
if_relate TEXT,
addresstype TEXT,
source TEXT,
create_time timestamp,
fldtag TEXT,
original_company TEXT,
useremark TEXT,
village_code TEXT,
uptimestamp_time timestamp,
create_op TEXT
);
4.scp到heavydb服务器
heavyai@node13:/var/lib/heavyai/storage/import/sample_datasets$ scp root@192.168.205.58:/oracle/addressinfo.csv ./
root@192.168.205.58's password:
addressinfo.csv 100% 13GB 8.6MB/s 24:59
heavyai@node13:/var/lib/heavyai/storage/import/sample_datasets$ ll
total 127487244
drwxr-xr-x 4 heavyai heavyai 4096 9 18 12:49 ./
drwxr-xr-x 3 root root 4096 9 7 15:54 ../
-rw-r--r-- 1 heavyai heavyai 13585817776 9 18 13:14 addressinfo.csv
5.导入到heavydb
heavysql> COPY addressinfo FROM '/var/lib/heavyai/storage/import/sample_datasets/addressinfo.csv';
Result
Loaded: 30748154 recs, Rejected: 0 recs in 57.354000 secs
1 rows returned.
Execution time: 57716 ms, Total time: 57718 ms
heavysql> select count(*) from addressinfo;
EXPR$0
30748154
1 rows returned.
Execution time: 14 ms, Total time: 15 ms
非交互式操作：
cat test.sql | heavysql -p admin --db lnlt
可能遇到显示乱码问题？：

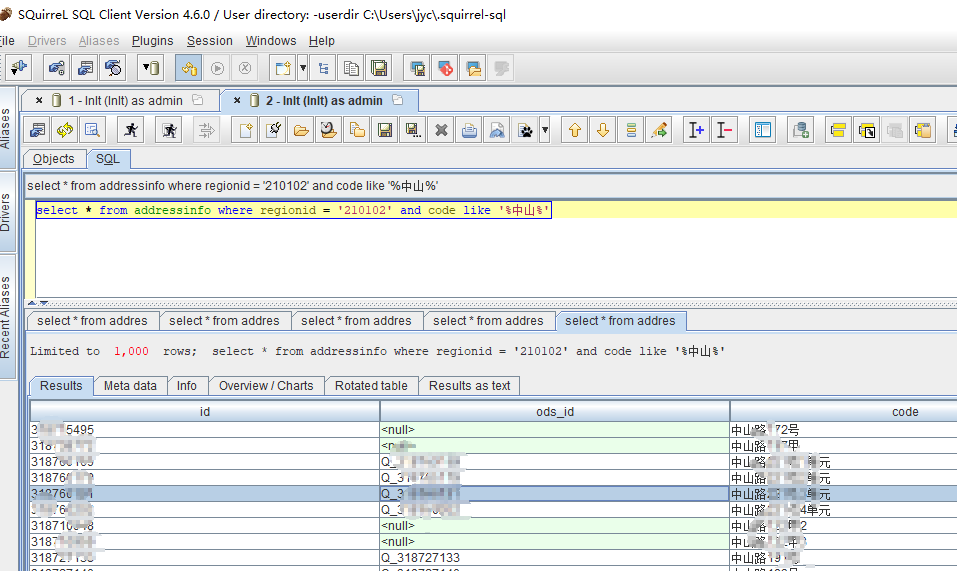

如果dbeaver查询乱码，需转换csv格式再copy导入。
centos/rehdat命令检查：
file addressinfo.csv
如下是ubuntu下检查和转换方法：
转换命令参考：https://zhuanlan.zhihu.com/p/27142605
heavyai@node13:/var/lib/heavyai/storage/import/sample_datasets$ enca -L zh_CN sid_latn1.csv
Simplified Chinese National Standard; GB2312
heavyai@node13:/var/lib/heavyai/storage/import/sample_datasets$ enca -L zh_CN -x UTF-8 < sid_latn1.csv > sid_latn2.csv
heavyai@node13:/var/lib/heavyai/storage/import/sample_datasets$ enca -L zh_CN sid_latn2.csv
Universal transformation format 8 bits; UTF-8
常用命令：
修改密码：ALTER USER admin (password = 'admin');
非交互式执行sql:
[heavyai@test heavyai]$ ./bin/heavysql heavyai -u admin -p admin -s 192.168.207.170 < /var/lib/heavyai/storage/import/sample_datasets/nyc_trees_2015_683k/nyc_trees_2015_683k.sql
User admin connected to database heavyai
User admin disconnected from database heavyai
非交互式导入数据：
[heavyai@test heavyai]$ echo "copy nyc_trees_2015_683k from '/var/lib/heavyai/storage/import/sample_datasets/nyc_trees_2015_683k/nyc_trees_2015_683k.csv' with (quoted='true');" | ./bin/heavysql heavyai -u admin -p admin -s 192.168.207.170
User admin connected to database heavyai
Result
Loaded: 683788 recs, Rejected: 0 recs in 1.570000 secs
User admin disconnected from database heavyai
配置文件参考：
heavyai@node13:/opt/heavyai/bin$ cat /var/lib/heavyai/heavy.conf
port = 6274
http-port = 6278
calcite-port = 6279
data = "/var/lib/heavyai/storage"
null-div-by-zero = true
#cpu-only=true
#rendering=false
allowed-export-paths=["/var/lib/heavyai6.4","/var/lib/heavyai"]
allowed-import-paths=["/var/lib/heavyai6.4","/var/lib/heavyai"]
[web]
port = 6273
frontend = "/opt/heavyai/frontend"
