Oracle 19.22单机+ASM安装

OS:Oracle Linux 7.6DB:Oracle 19.22单机+ASMRU:35940989

[root@cjc-db-02 soft]# vi /etc/yum.repos.d/yum.repo [cjcyum]name=cjcyumbaseurl=file:///mntgpgcheck=0enabled=1

mount V975367-01.iso /mnt

rpm -q --qf '%{NAME}-%{VERSION}-%{RELEASE} (%{ARCH})\n' binutils \
compat-libstdc++-33 \compat-libcap1 \elfutils-libelf \elfutils-libelf-devel \gcc \gcc-c++ \glibc \glibc-common \glibc-devel \glibc-headers \ksh \libaio \libaio-devel \libgcc \libstdc++ \libXext \libXtst \kde-l10n-Chinese.noarch \libstdc++-devel \make \xclock \sysstat \man \nfs-utils \lsof \expect \unzip \redhat-lsb \openssh-clients \smartmontools \unixODBC \perl \telnet \vsftpd \ntsysv \lsscsi \libX11 \libxcb \libXau \libXi \strace \sg3_utils \kexec-tools \net-tools \nmap \lrzsz \tree \dos2unix \ncurses \ncurses-devel \iotop \unixODBC-devel |grep "not installed" |awk '{print $2}' |xargs yum install -y

rpm -ivh /soft/compat-libstdc++-33-3.2.3-72.el7.x86_64.rpm --forcerpm -ivh /soft/cvuqdisk-1.0.10-1.rpm --force

groupadd -g 5000 dbagroupadd -g 5001 oinstallgroupadd -g 5002 opergroupadd -g 5003 asmadmingroupadd -g 5004 asmopergroupadd -g 5005 asmdbagroupadd -g 5006 backupdbagroupadd -g 5007 dgdbagroupadd -g 5008 kmdbagroupadd -g 5009 racdbauseradd -g oinstall -G asmadmin,asmdba,asmoper,dba griduseradd -g oinstall -G dba,asmdba,backupdba,dgdba,kmdba,racdba,oper oracle

[root@cjc-db-02 soft]# passwd oracle[root@cjc-db-02 soft]# passwd grid

mkdir -p /oracle/{db,grid,crs}mkdir -p /oracle/db/product/19.0.0

vi /home/oracle/.bash_profileexport ORACLE_BASE=/oracle/dbexport ORACLE_HOME=/oracle/db/product/19.0.0export PATH=$PATH:$ORACLE_HOME/bin:$ORACLE_HOME/OPatch:/oracle/crs/binexport LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/libexport ORACLE_SID=CJCalias cdo='cd $ORACLE_HOME'alias cdb='cd $ORACLE_HOME/dbs'alias cdn='cd $ORACLE_HOME/network/admin'alias cdal='cd $ORACLE_BASE/diag/rdbms/*/*/trace'alias sqp='sqlplus / as sysdba'

vi /home/grid/.bash_profileexport ORACLE_BASE=/oracle/gridexport ORACLE_HOME=/oracle/crsexport PATH=$PATH:$ORACLE_HOME/bin:$ORACLE_HOME/OPatchexport ORACLE_SID=+ASMalias cdal='cd $ORACLE_BASE/diag/crs/`hostname`/crs/trace'alias cdam='cd $ORACLE_BASE/diag/asm/+asm/+*/trace'alias sqm='sqlplus / as sysasm'

mem=$(free -g | grep Mem | awk {'print $2'})shm=$((mem*1024*1024*819))mall=$((shm/4096))

vi /etc/sysctl.conf##oracle parameterkernel.shmmni = 4096kernel.shmall = $mall   kernel.shmmax = $shmfs.aio-max-nr = 3145728fs.file-max = 6815744kernel.shmmni = 4096kernel.sem = 250 32000 100 128net.ipv4.ip_local_port_range = 9000 65500net.core.rmem_default = 262144net.core.rmem_max = 4194304net.core.wmem_default = 262144net.core.wmem_max = 1048586#vm.min_free_kbytes = 524288#vm.nr_hugepages = $hugemem

vi /etc/security/limits.confgrid soft nproc 16384grid hard nproc 16384grid soft nofile 65536grid hard nofile 65536grid soft stack 10240grid hard stack 32768grid hard  memlock  unlimitedgrid soft  memlock  unlimitedoracle soft nproc 16384oracle hard nproc 16384oracle soft nofile 65536oracle hard nofile 65536oracle soft stack 10240oracle hard stack 32768oracle  hard  memlock  unlimitedoracle  soft  memlock  unlimited

lsblksdb               8:16   0    2G  0 disk sdc               8:32   0    2G  0 disk sdd               8:48   0    2G  0 disk sde               8:64   0    2G  0 disk sdf               8:80   0    2G  0 disk sdg               8:96   0    2G  0 disk sdh               8:112  0    2G  0 disk sdi               8:128  0    2G  0 disk sdj               8:144  0    2G  0 disk sdk               8:160  0    2G  0 disk

for i in  b c d e f g h i j k; do echo "KERNEL==\"sd*\", SUBSYSTEM==\"block\", PROGRAM==\"/usr/lib/udev/scsi_id -g -u -d /dev/%k\", RESULT==\"`/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/sd$i`\", SYMLINK+=\"asm-disk$i\", OWNER=\"grid\", GROUP=\"asmadmin\", MODE=\"0660\"" | grep -v 'RESULT==""';  done >> /etc/udev/rules.d/99-oracleasm-disks.rules

[root@cjc-db-02 rules.d]# cat 99-oracleasm-disks.rules KERNEL=="sd*", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/%k", RESULT=="1ATA_VBOX_HARDDISK_VBcb863405-a76ed10f", SYMLINK+="asm-diskb", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd*", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/%k", RESULT=="1ATA_VBOX_HARDDISK_VB90e60f4f-a322e205", SYMLINK+="asm-diskc", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd*", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/%k", RESULT=="1ATA_VBOX_HARDDISK_VBa0798ef0-46a9482a", SYMLINK+="asm-diskd", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd*", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/%k", RESULT=="1ATA_VBOX_HARDDISK_VB5a0104a0-577777ff", SYMLINK+="asm-diske", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd*", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/%k", RESULT=="1ATA_VBOX_HARDDISK_VB195f21ce-0bf38a08", SYMLINK+="asm-diskf", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd*", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/%k", RESULT=="1ATA_VBOX_HARDDISK_VB2a33e667-f955b4f5", SYMLINK+="asm-diskg", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd*", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/%k", RESULT=="1ATA_VBOX_HARDDISK_VB0a74c095-493d4ec5", SYMLINK+="asm-diskh", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd*", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/%k", RESULT=="1ATA_VBOX_HARDDISK_VB4a17cc77-5ae64d39", SYMLINK+="asm-diski", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd*", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/%k", RESULT=="1ATA_VBOX_HARDDISK_VB2060d97a-3e8f14ba", SYMLINK+="asm-diskj", OWNER="grid", GROUP="asmadmin", MODE="0660"KERNEL=="sd*", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d /dev/%k", RESULT=="1ATA_VBOX_HARDDISK_VB0bd66b43-3a66e70a", SYMLINK+="asm-diskk", OWNER="grid", GROUP="asmadmin", MODE="0660"

[root@cjc-db-02 rules.d]# /sbin/udevadm control --reload-rules[root@cjc-db-02 rules.d]# /sbin/udevadm trigger

[root@cjc-db-02 rules.d]# ls -l /dev/asm-disk*lrwxrwxrwx 1 root root 3 Apr  4 13:21 /dev/asm-diskb -> sdblrwxrwxrwx 1 root root 3 Apr  4 13:21 /dev/asm-diskc -> sdclrwxrwxrwx 1 root root 3 Apr  4 13:21 /dev/asm-diskd -> sddlrwxrwxrwx 1 root root 3 Apr  4 13:21 /dev/asm-diske -> sdelrwxrwxrwx 1 root root 3 Apr  4 13:21 /dev/asm-diskf -> sdflrwxrwxrwx 1 root root 3 Apr  4 13:21 /dev/asm-diskg -> sdglrwxrwxrwx 1 root root 3 Apr  4 13:21 /dev/asm-diskh -> sdhlrwxrwxrwx 1 root root 3 Apr  4 13:21 /dev/asm-diski -> sdilrwxrwxrwx 1 root root 3 Apr  4 13:21 /dev/asm-diskj -> sdjlrwxrwxrwx 1 root root 3 Apr  4 13:21 /dev/asm-diskk -> sdk

[root@cjc-db-02 gi]# mv LINUX.X64_193000_grid_home.zip /oracle/crs/[root@cjc-db-02 gi]# chown grid:oinstall /oracle/crs -R[root@cjc-db-02 gi]# su - grid [grid@cjc-db-02 ~]$ cd /oracle/crs/[grid@cjc-db-02 crs]$ unzip LINUX.X64_193000_grid_home.zip

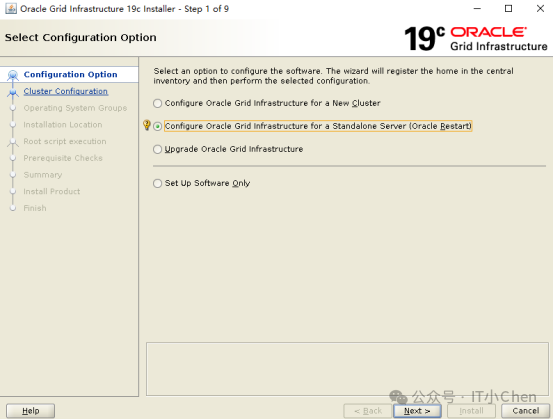

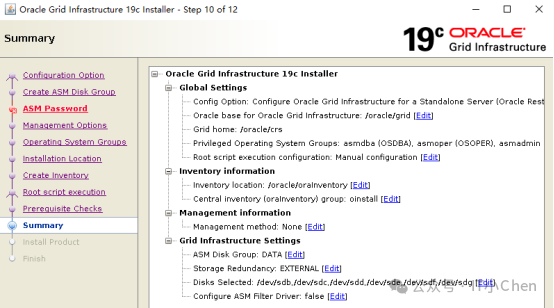

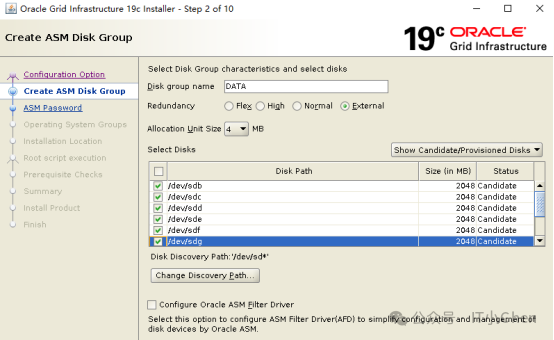

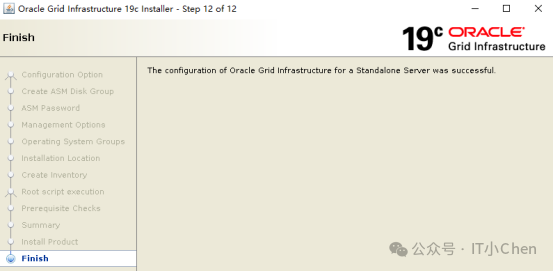

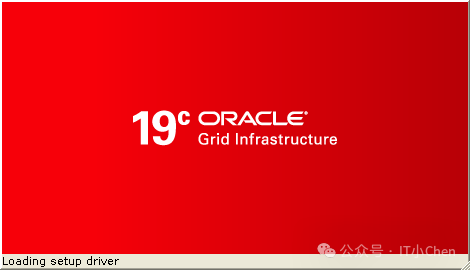

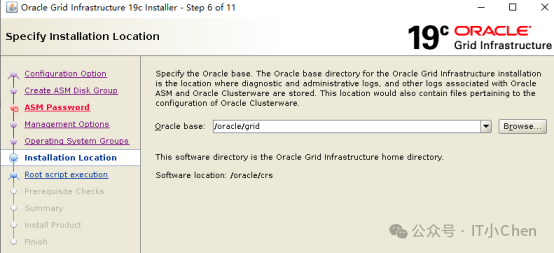

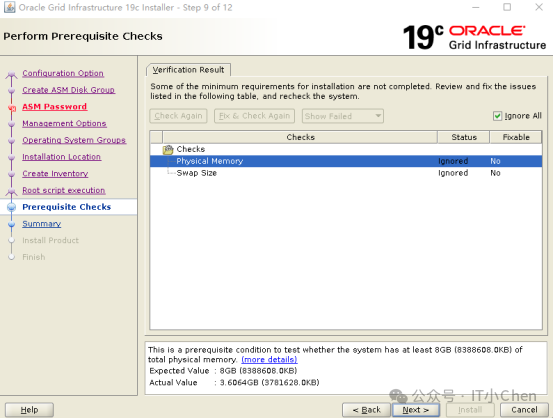

[grid@cjc-db-02 crs]$ ./gridSetup.sh

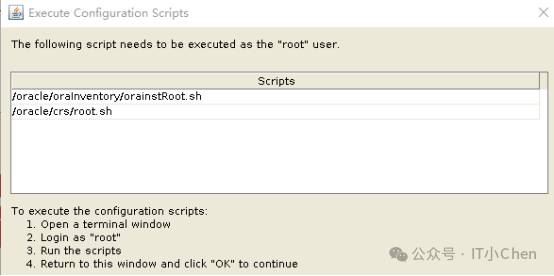

[root@cjc-db-02 ~]# /oracle/crs/root.shPerforming root user operation.
The following environment variables are set as:    ORACLE_OWNER= grid    ORACLE_HOME=  /oracle/crs
Enter the full pathname of the local bin directory: [/usr/local/bin]:    Copying dbhome to /usr/local/bin ...   Copying oraenv to /usr/local/bin ...   Copying coraenv to /usr/local/bin ...
Creating /etc/oratab file...Entries will be added to the /etc/oratab file as needed byDatabase Configuration Assistant when a database is createdFinished running generic part of root script.Now product-specific root actions will be performed.Using configuration parameter file: /oracle/crs/crs/install/crsconfig_paramsThe log of current session can be found at:  /oracle/grid/crsdata/cjc-db-02/crsconfig/roothas_2024-04-04_02-45-38PM.log2024/04/04 14:45:58 CLSRSC-363: User ignored prerequisites during installationLOCAL ADD MODE Creating OCR keys for user 'grid', privgrp 'oinstall'..Operation successful.LOCAL ONLY MODE Successfully accumulated necessary OCR keys.Creating OCR keys for user 'root', privgrp 'root'..Operation successful.CRS-4664: Node cjc-db-02 successfully pinned.2024/04/04 14:46:19 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'
cjc-db-02     2024/04/04 14:49:55     /oracle/grid/crsdata/cjc-db-02/olr/backup_20240404_144955.olr     724960844     2024/04/04 14:49:57 CLSRSC-327: Successfully configured Oracle Restart for a standalone server[root@cjc-db-02 ~]#

[grid@cjc-db-02 ~]$ crsctl stat res -t--------------------------------------------------------------------------------Name           Target  State        Server                   State details       --------------------------------------------------------------------------------Local Resources--------------------------------------------------------------------------------ora.DATA.dg               ONLINE  ONLINE       cjc-db-02                STABLEora.LISTENER.lsnr               ONLINE  ONLINE       cjc-db-02                STABLEora.asm               ONLINE  ONLINE       cjc-db-02                Started,STABLEora.ons               OFFLINE OFFLINE      cjc-db-02                STABLE--------------------------------------------------------------------------------Cluster Resources--------------------------------------------------------------------------------ora.cssd      1        ONLINE  ONLINE       cjc-db-02                STABLEora.diskmon      1        OFFLINE OFFLINE                               STABLEora.evmd      1        ONLINE  ONLINE       cjc-db-02                STABLE

SQL> select name,total_mb,free_mb from v$asm_diskgroup;
NAME         TOTAL_MB    FREE_MB------------------------------ ---------- ----------DATA            12288      12128

[root@cjc-db-02 bin]# ps -ef|grep d.bingrid     17648     1  2 14:49 ?        00:00:15 /oracle/crs/bin/ohasd.bin rebootgrid     17824     1  0 14:49 ?        00:00:02 /oracle/crs/bin/evmd.bingrid     21403     1  0 14:53 ?        00:00:02 /oracle/crs/bin/ocssd.bin

[grid@cjc-db-02 ~]$ lsnrctl status
LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 04-APR-2024 15:01:46
Copyright (c) 1991, 2019, Oracle.  All rights reserved.
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=cjc-db-02)(PORT=1521)))STATUS of the LISTENER------------------------Alias                     LISTENERVersion                   TNSLSNR for Linux: Version 19.0.0.0.0 - ProductionStart Date                04-APR-2024 14:52:23Uptime                    0 days 0 hr. 9 min. 23 secTrace Level               offSecurity                  ON: Local OS AuthenticationSNMP                      OFFListener Parameter File   /oracle/crs/network/admin/listener.oraListener Log File         /oracle/grid/diag/tnslsnr/cjc-db-02/listener/alert/log.xmlListening Endpoints Summary...  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=cjc-db-02)(PORT=1521)))  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))Services Summary...Service "+ASM" has 1 instance(s).  Instance "+ASM", status READY, has 1 handler(s) for this service...Service "+ASM_DATA" has 1 instance(s).  Instance "+ASM", status READY, has 1 handler(s) for this service...The command completed successfully

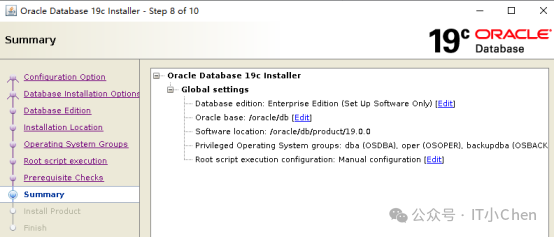

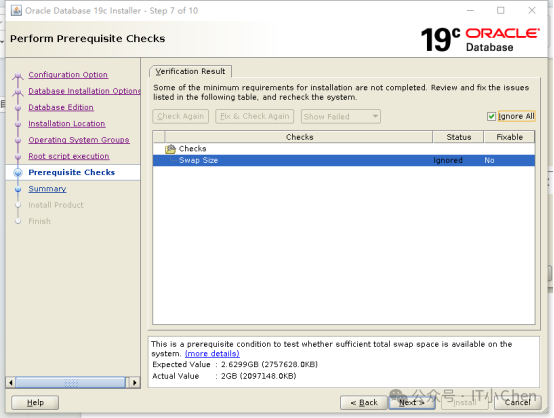

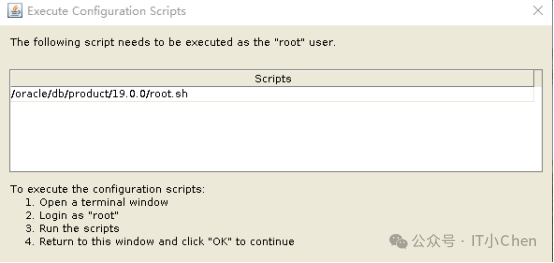

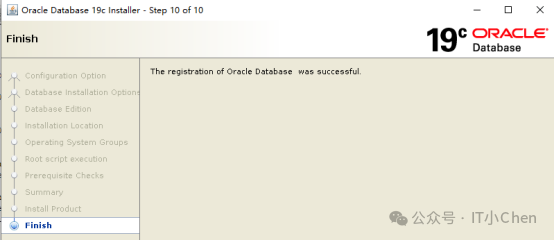

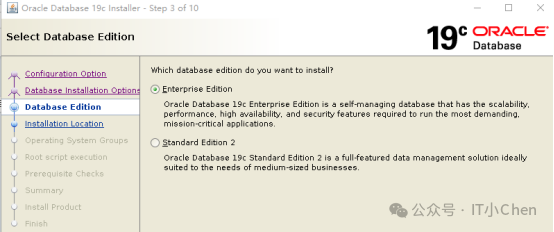

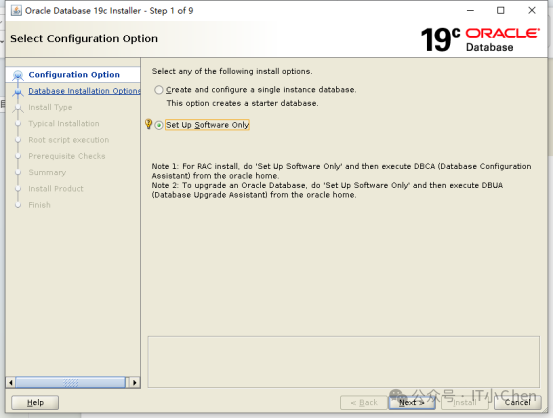

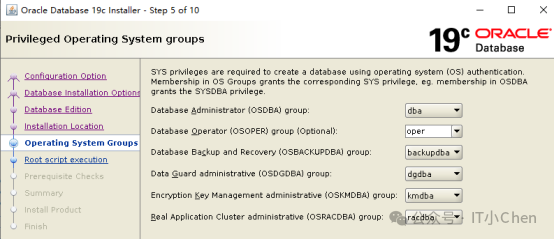

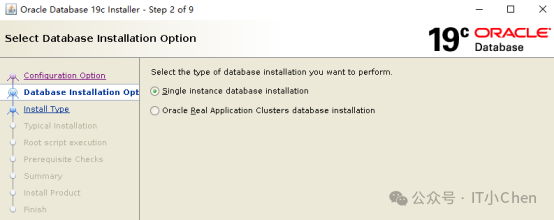

[root@cjc-db-02 db]# mv LINUX.X64_193000_db_home.zip /oracle/db/product/19.0.0/[root@cjc-db-02 db]# chown oracle:oinstall /oracle/db -R[oracle@cjc-db-02 19.0.0]$ unzip LINUX.X64_193000_db_home.zip [oracle@cjc-db-02 19.0.0]$ sh runInstaller

SQL> SELECT BANNER_FULL FROM V$VERSION;
BANNER_FULL--------------------------------------------------------------------------------Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - ProductionVersion 19.3.0.0.0
col PRODUCT for a50col VERSION for a20col VERSION_FULL for a20col STATUS for a20SELECT * FROM PRODUCT_COMPONENT_VERSION; PRODUCT              VERSION    VERSION_FULL       STATUS-------------------------------------------------- -------------------- -------------------- --------------------Oracle Database 19c Enterprise Edition       19.0.0.0.0    19.3.0.0.0       Production
查看RU_APPLYcol action for a25col COMMENTS for a80SELECT ACTION,COMMENTS FROM REGISTRY$HISTORY;ACTION        COMMENTS------------------------- --------------------------------------------------------------------------------BOOTSTRAP      RDBMS_19.3.0.0.0DBRU_LINUX.X64_190417RU_APPLY      Patch applied on 19.3.0.0.0: Release_Update - 190410122720
查看组件和版本SET PAGESIZE 100COL COMP_NAME FOR A35COL COMP_ID FOR A15COL VERSION FOR A15SELECT COMP_ID,COMP_NAME,VERSION FROM DBA_REGISTRY ORDER BY 1;COMP_ID   COMP_NAME          VERSION--------------- ----------------------------------- ---------------APS    OLAP Analytic Workspace       19.0.0.0.0CATALOG   Oracle Database Catalog Views      19.0.0.0.0CATJAVA   Oracle Database Java Packages      19.0.0.0.0CATPROC   Oracle Database Packages and Types  19.0.0.0.0CONTEXT   Oracle Text          19.0.0.0.0DV    Oracle Database Vault        19.0.0.0.0JAVAVM    JServer JAVA Virtual Machine      19.0.0.0.0OLS    Oracle Label Security        19.0.0.0.0ORDIM    Oracle Multimedia        19.0.0.0.0OWM    Oracle Workspace Manager      19.0.0.0.0RAC    Oracle Real Application Clusters    19.0.0.0.0SDO    Spatial           19.0.0.0.0XDB    Oracle XML Database        19.0.0.0.0XML    Oracle XDK          19.0.0.0.0XOQ    Oracle OLAP API         19.0.0.0.0
15 rows selected.
[grid@cjc-db-02 ~]$ opatch lspatches29585399;OCW RELEASE UPDATE 19.3.0.0.0 (29585399)29517247;ACFS RELEASE UPDATE 19.3.0.0.0 (29517247)29517242;Database Release Update : 19.3.0.0.190416 (29517242)29401763;TOMCAT RELEASE UPDATE 19.0.0.0.0 (29401763)OPatch succeeded.
[oracle@cjc-db-02 ~]$ opatch lspatches29585399;OCW RELEASE UPDATE 19.3.0.0.0 (29585399)29517242;Database Release Update : 19.3.0.0.190416 (29517242)OPatch succeeded.

[grid@cjc-db-02 OPatch_bak]$ ./opatch versionOPatch Version: 12.2.0.1.17
OPatch succeeded.

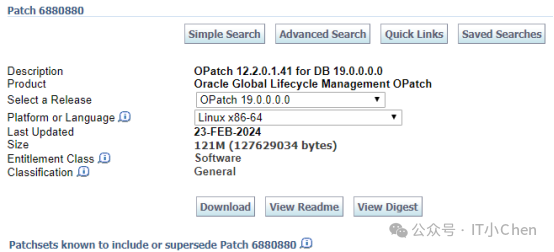

https://updates.oracle.com/ARULink/PatchDetails/process_form?patch_num=6880880

[root@cjc-db-02 gi]# ls -lrth p6880880_190000_Linux-x86-64.zip -rw-r--r-- 1 root root 122M Apr  5 17:58 p6880880_190000_Linux-x86-64.zip
[root@cjc-db-02 gi]# mv /oracle/crs/OPatch /oracle/crs/OPatch_bak[root@cjc-db-02 gi]# chown grid:oinstall p6880880_190000_Linux-x86-64.zip [root@cjc-db-02 gi]# unzip p6880880_190000_Linux-x86-64.zip [root@cjc-db-02 gi]# mv OPatch /oracle/crs/[root@cjc-db-02 gi]# chown grid:oinstall /oracle/crs/OPatch -R
[grid@cjc-db-02 OPatch]$ ./opatch versionOPatch Version: 12.2.0.1.41
OPatch succeeded.同理，更新Oracle home下的补丁工具。

[grid@cjc-db-02 OPatch]$ $ORACLE_HOME/OPatch/opatch lsinventory -detail -oh $ORACLE_HOMEOracle Interim Patch Installer version 12.2.0.1.41Copyright (c) 2024, Oracle Corporation.  All rights reserved.
Oracle Home       : /oracle/crsCentral Inventory : /oracle/oraInventory   from           : /oracle/crs/oraInst.locOPatch version    : 12.2.0.1.41OUI version       : 12.2.0.7.0Log file location : /oracle/crs/cfgtoollogs/opatch/opatch2024-04-05_18-07-31PM_1.log
Lsinventory Output file location : /oracle/crs/cfgtoollogs/opatch/lsinv/lsinventory2024-04-05_18-07-31PM.txt--------------------------------------------------------------------------------Local Machine Information::Hostname: cjc-db-02ARU platform id: 226......--------------------------------------------------------------------------------
OPatch succeeded.

[grid@cjc-db-02 gi]$ unzip p35940989_190000_Linux-x86-64.zip [root@cjc-db-02 gi]# chown grid:oinstall 35940989 -R
[grid@cjc-db-02 35940989]$ pwd/soft/oracle/gi/35940989[grid@cjc-db-02 35940989]$ ls33575402  35943157  35956421  35967489  36115038  automation  bundle.xml  README.html  README.txt先检查33575402，其他目录也按照相同方法检查[grid@cjc-db-02 35940989]$ cd 33575402/[grid@cjc-db-02 33575402]$ $ORACLE_HOME/OPatch/opatch prereq CheckConflictAgainstOHWithDetail -ph ./Oracle Interim Patch Installer version 12.2.0.1.41Copyright (c) 2024, Oracle Corporation.  All rights reserved.
PREREQ session
Oracle Home       : /oracle/crsCentral Inventory : /oracle/oraInventory   from           : /oracle/crs/oraInst.locOPatch version    : 12.2.0.1.41OUI version       : 12.2.0.7.0Log file location : /oracle/crs/cfgtoollogs/opatch/opatch2024-04-05_18-14-39PM_1.log
Invoking prereq "checkconflictagainstohwithdetail"
Prereq "checkConflictAgainstOHWithDetail" passed.
OPatch succeeded.

[root@cjc-db-02 35940989]# /oracle/crs/OPatch/opatchauto apply /soft/oracle/gi/35940989OPatchauto session is initiated at Fri Apr  5 20:25:27 2024
System initialization log file is /oracle/crs/cfgtoollogs/opatchautodb/systemconfig2024-04-05_08-25-42PM.log.
Session log file is /oracle/crs/cfgtoollogs/opatchauto/opatchauto2024-04-05_08-25-58PM.logThe id for this session is 7WJF
Executing OPatch prereq operations to verify patch applicability on home /oracle/db/product/19.0.0
Patch applicability verified successfully on home /oracle/db/product/19.0.0
Executing OPatch prereq operations to verify patch applicability on home /oracle/crs
Patch applicability verified successfully on home /oracle/crs
Executing patch validation checks on home /oracle/crsPatch validation checks successfully completed on home /oracle/crs
Performing prepatch operations on CRS - bringing down CRS service on home /oracle/crsPrepatch operation log file location: /oracle/grid/crsdata/cjc-db-02/crsconfig/hapatch_2024-04-05_08-34-48PM.logCRS service brought down successfully on home /oracle/crs
Start applying binary patch on home /oracle/crs
Binary patch applied successfully on home /oracle/crs
Running rootadd_rdbms.sh on home /oracle/crsSuccessfully executed rootadd_rdbms.sh on home /oracle/crs
Performing postpatch operations on CRS - starting CRS service on home /oracle/crs
Postpatch operation log file location: /oracle/grid/crsdata/cjc-db-02/crsconfig/hapatch_2024-04-05_09-10-19PM.logCRS service started successfully on home /oracle/crs
OPatchAuto successful.--------------------------------Summary--------------------------------Patching is completed successfully. Please find the summary as follows:
Host:cjc-db-02SIDB Home:/oracle/db/product/19.0.0Version:19.0.0.0.0Summary:
==Following patches were SKIPPED:
Patch: /soft/oracle/gi/35940989/35956421Reason: This patch is not applicable to this specified target type - "oracle_database"
Patch: /soft/oracle/gi/35940989/33575402Reason: This patch is not applicable to this specified target type - "oracle_database"
Patch: /soft/oracle/gi/35940989/36115038Reason: This patch is not applicable to this specified target type - "oracle_database"
Patch: /soft/oracle/gi/35940989/35967489Log: /oracle/db/product/19.0.0/cfgtoollogs/opatchauto/core/opatch/opatch2024-04-05_20-27-00PM_1.logReason: /soft/oracle/gi/35940989/35967489 is not required to be applied to oracle home /oracle/db/product/19.0.0
Patch: /soft/oracle/gi/35940989/35943157Log: /oracle/db/product/19.0.0/cfgtoollogs/opatchauto/core/opatch/opatch2024-04-05_20-27-00PM_1.logReason: /soft/oracle/gi/35940989/35943157 is not required to be applied to oracle home /oracle/db/product/19.0.0
Host:cjc-db-02SIHA Home:/oracle/crsVersion:19.0.0.0.0Summary:
==Following patches were SUCCESSFULLY applied:
Patch: /soft/oracle/gi/35940989/33575402Log: /oracle/crs/cfgtoollogs/opatchauto/core/opatch/opatch2024-04-05_20-35-28PM_1.log
Patch: /soft/oracle/gi/35940989/35943157Log: /oracle/crs/cfgtoollogs/opatchauto/core/opatch/opatch2024-04-05_20-35-28PM_1.log
Patch: /soft/oracle/gi/35940989/35956421Log: /oracle/crs/cfgtoollogs/opatchauto/core/opatch/opatch2024-04-05_20-35-28PM_1.log
Patch: /soft/oracle/gi/35940989/35967489Log: /oracle/crs/cfgtoollogs/opatchauto/core/opatch/opatch2024-04-05_20-35-28PM_1.log
Patch: /soft/oracle/gi/35940989/36115038Log: /oracle/crs/cfgtoollogs/opatchauto/core/opatch/opatch2024-04-05_20-35-28PM_1.log
OPatchauto session completed at Fri Apr  5 21:11:59 2024Time taken to complete the session 46 minutes, 18 seconds

Clusterware is either not running or not configured. You have the following 2 options: 1. Configure and start the Clusterware on this node and re-run the tool 2. Run the tool with '-oh <GI_HOME>' to first patch the Grid Home, then invoke tool with '-database <oracle database name>' or '-oh <RAC_HOME>' to patch the RAC home

Caused by: java.io.FileNotFoundException: /oracle/crs/opatchautocfg/db/dbtmp/patchinginfo_cjc-db-02.properties (No such file or directory)

OPATCHAUTO-72046: Wallet option is required during patching as non-root user.OPATCHAUTO-72046: Please provide a wallet option or execute as root user.

Required amount of space(8777.758MB) is not available.Required amount of space(11045.28MB) is not available.

SQL> SELECT BANNER_FULL FROM V$VERSION;BANNER_FULL--------------------------------------------------------------------------------Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - ProductionVersion 19.22.0.0.0
set line 300col PRODUCT for a50col VERSION for a20col VERSION_FULL for a20col STATUS for a20SELECT * FROM PRODUCT_COMPONENT_VERSION; PRODUCT              VERSION    VERSION_FULL       STATUS-------------------------------------------------- -------------------- -------------------- --------------------Oracle Database 19c Enterprise Edition       19.0.0.0.0    19.22.0.0.0       Production
[oracle@cjc-db-02 ~]$ opatch lspatches35967489;OCW RELEASE UPDATE 19.22.0.0.0 (35967489)35943157;Database Release Update : 19.22.0.0.240116 (35943157)
OPatch succeeded.
[grid@cjc-db-02 ~]$ opatch lspatches36115038;TOMCAT RELEASE UPDATE 19.0.0.0.0 (36115038)35967489;OCW RELEASE UPDATE 19.22.0.0.0 (35967489)35956421;ACFS RELEASE UPDATE 19.22.0.0.0 (35956421)35943157;Database Release Update : 19.22.0.0.240116 (35943157)33575402;DBWLM RELEASE UPDATE 19.0.0.0.0 (33575402)
OPatch succeeded.（转）https://mp.weixin.qq.com/s/-tCPkWfbhaIsxEoUfctvaQ    IT小Chen
