oracle 19c 配置单机dataguard时候的一个小坑

oracle 19c 备库执行duplicate报错如下：

[oracle@ops-oracle-bidb-sty-ts-bj ~]$ rman target sys/"5px7zX9N*"@orcl auxiliary sys/"5px7zX9N*"@10.0.53.34:1522/orcl_sty

Recovery Manager: Release 19.0.0.0.0 - Production on Fri Jun 21 09:28:25 2024
Version 19.23.0.0.0

Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.

PL/SQL package SYS.DBMS_BACKUP_RESTORE version 19.14.00.00 in TARGET database is not current
PL/SQL package SYS.DBMS_RCVMAN version 19.14.00.00 in TARGET database is not current
connected to target database: ORCL (DBID=1622886715)
connected to auxiliary database: ORCL (not mounted)

RMAN> run {
allocate channel c1 type disk rate 200M;
allocate channel c2 type disk rate 200M;
allocate channel c3 type disk rate 200M;
allocate auxiliary channel st1 type disk rate 200M;
allocate auxiliary channel st2 type disk rate 200M;
allocate auxiliary channel st3 type disk rate 200M;2> 3> 4> 5> 6> 7>
duplicate target database for standby from active database nofilenamecheck dorecover;
release channel c1;
release channel c2;
release channel c3;
release channel st1;
release channel st2;
release channel st3;
}
8> 9> 10> 11> 12> 13> 14> 15>
using target database control file instead of recovery catalog
allocated channel: c1
channel c1: SID=4484 device type=DISK

allocated channel: c2
channel c2: SID=4605 device type=DISK

allocated channel: c3
channel c3: SID=4802 device type=DISK

allocated channel: st1
channel st1: SID=619 device type=DISK

allocated channel: st2
channel st2: SID=497 device type=DISK

allocated channel: st3
channel st3: SID=620 device type=DISK

Starting Duplicate Db at 21-JUN-24
current log archived

contents of Memory Script:
{
   backup as copy reuse
   passwordfile auxiliary format  '/u01/app/oracle/product/19.0.0/dbhome_1/dbs/orapworcl'   ;
}
executing Memory Script

Starting backup at 21-JUN-24
released channel: c1
released channel: c2
released channel: c3
released channel: st1
released channel: st2
released channel: st3
RMAN-00571: ===========================================================
RMAN-00569: =============== ERROR MESSAGE STACK FOLLOWS ===============
RMAN-00571: ===========================================================
RMAN-03002: failure of Duplicate Db command at 06/21/2024 09:31:47
RMAN-05501: aborting duplication of target database
RMAN-03015: error occurred in stored script Memory Script
RMAN-03009: failure of backup command on c1 channel at 06/21/2024 09:31:47
ORA-17627: ORA-12170: TNS:Connect timeout occurred
ORA-17629: Cannot connect to the remote database server

RMAN> exit

问题排查：

RMAN-05501: aborting duplication of target database
RMAN-03015: error occurred in stored script Memory Script
ORA-17627: ORA-12170: TNS:Connect timeout occurred
ORA-17629: Cannot connect to the remote database server

从报错信息来看，是无法连接远程数据库，这就需要看看防火墙/端口连通性方面

1、查看备库防火墙/selinux

主库

[root@oradbhost ~]# getenforce
Disabled
[root@oradbhost ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:firewalld(1)

备库

[root@ops-oracle-bidb-sty-ts-bj ~]# getenforce
Disabled
[root@ops-oracle-bidb-sty-ts-bj ~]# systemctl status firewalld
Unit firewalld.service could not be found.

2、主备库连通性排查

主库：

[oracle@oradbhost ~]$ tnsping orcl_sty

TNS Ping Utility for Linux: Version 19.0.0.0.0 - Production on 21-JUN-2024 13:45:16

Copyright (c) 1997, 2021, Oracle.  All rights reserved.

Used parameter files:
/u01/app/oracle/product/19.0.0/dbhome_1/network/admin/sqlnet.ora


Used TNSNAMES adapter to resolve the alias
Attempting to contact (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = ops-oracle-bidb-sty-ts-bj)(PORT = 1521)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = ORCL_STY)))
OK (10 msec)

备库：

[oracle@ops-oracle-bidb-sty-ts-bj trace]$ tnsping orcl

TNS Ping Utility for Linux: Version 19.0.0.0.0 - Production on 21-JUN-2024 13:45:25

Copyright (c) 1997, 2024, Oracle.  All rights reserved.

Used parameter files:
/u01/app/oracle/product/19.0.0/dbhome_1/network/admin/sqlnet.ora


Used TNSNAMES adapter to resolve the alias
Attempting to contact (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = oradbhost)(PORT = 1521)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = orcl)))
OK (10 msec)

3、测试主库账号连接

[oracle@ops-oracle-bidb-sty-ts-bj ~]$ sqlplus sys/"5px7zX9N*"@orcl as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Fri Jun 21 13:49:11 2024
Version 19.23.0.0.0

Copyright (c) 1982, 2023, Oracle.  All rights reserved.


Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.14.0.0.0

发现能正常连接，两边都是通的

4、监听排查

[oracle@ops-oracle-bidb-sty-ts-bj ~]$ lsnrctl status

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 20-JUN-2024 18:02:17

Copyright (c) 1991, 2024, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ops-oracle-bidb-sty-ts-bj)(PORT=1521)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                20-JUN-2024 17:08:09
Uptime                    0 days 0 hr. 54 min. 7 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/oracle/product/19.0.0/dbhome_1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ops-oracle-bidb-sty-ts-bj/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ops-oracle-bidb-sty-ts-bj)(PORT=1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
Services Summary...
Service "ORCL_STY" has 1 instance(s).
  Instance "orcl", status BLOCKED, has 2 handler(s) for this service...
The command completed successfully
[oracle@ops-oracle-bidb-sty-ts-bj ~]$ lsnrctl status LISTENER2
LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 20-JUN-2024 17:40:46

Copyright (c) 1991, 2024, Oracle.  All rights reserved.

Starting /u01/app/oracle/product/19.0.0/dbhome_1/bin/tnslsnr: please wait...

TNSLSNR for Linux: Version 19.0.0.0.0 - Production
System parameter file is /u01/app/oracle/product/19.0.0/dbhome_1/network/admin/listener.ora
Log messages written to /u01/app/oracle/diag/tnslsnr/ops-oracle-bidb-sty-ts-bj/listener2/alert/log.xml
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ops-oracle-bidb-sty-ts-bj)(PORT=1522)))

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ops-oracle-bidb-sty-ts-bj)(PORT=1522)))
STATUS of the LISTENER
------------------------
Alias                     listener2
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                20-JUN-2024 17:40:48
Uptime                    0 days 0 hr. 0 min. 2 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/oracle/product/19.0.0/dbhome_1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ops-oracle-bidb-sty-ts-bj/listener2/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ops-oracle-bidb-sty-ts-bj)(PORT=1522)))
Services Summary...
Service "orcl_sty" has 1 instance(s).
  Instance "orcl", status UNKNOWN, has 1 handler(s) for this service...
The command completed successfully

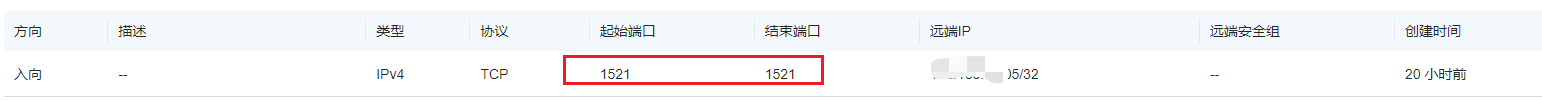

直到排查到监听，忽然意识到问题，自己在配置安全组的时候只配置了1521端口 ，没有配置1522的静态监听端口

在安全组中添加1522策略后，脚本执行正常。
