Linux驱动分析之I2C设备

static const struct i2c_device_id hym8563_id[] = {
  { "hym8563", 0 },
  {},
};
MODULE_DEVICE_TABLE(i2c, hym8563_id);


static const struct of_device_id hym8563_dt_idtable[] = {
  { .compatible = "haoyu,hym8563" },
  {},
};
MODULE_DEVICE_TABLE(of, hym8563_dt_idtable);


static struct i2c_driver hym8563_driver = {
  .driver    = {
    .name  = "rtc-hym8563",
    .pm  = &hym8563_pm_ops,
    .of_match_table  = hym8563_dt_idtable, //dt匹配表
  },
  .probe    = hym8563_probe,
  .id_table  = hym8563_id,// id表
};
// 封住了module_init()和module_exit()
// 里面会调用i2c_register_driver(hym8563_driver)
// 和i2c_del_driver(hym8563_driver)
module_i2c_driver(hym8563_driver);
复制

static int hym8563_probe(struct i2c_client *client,
       const struct i2c_device_id *id)
{
  struct hym8563 *hym8563;
  int ret;
    //申请内存空间
  hym8563 = devm_kzalloc(&client->dev, sizeof(*hym8563), GFP_KERNEL);
  if (!hym8563)
    return -ENOMEM;
    //保存数据
  hym8563->client = client;
  i2c_set_clientdata(client, hym8563);
    //HYM8563初始化
  ret = hym8563_init_device(client);


    //申请中断
  if (client->irq > 0) {
    ret = devm_request_threaded_irq(&client->dev, client->irq,
            NULL, hym8563_irq,
            IRQF_TRIGGER_LOW | IRQF_ONESHOT,
            client->name, hym8563);
  }


  //检查一下模块是否正常运行
  ret = i2c_smbus_read_byte_data(client, HYM8563_SEC);
  if (ret < 0)
    return ret;
    //VL位用来标识模块是否正常工作
  hym8563->valid = !(ret & HYM8563_SEC_VL);
  dev_dbg(&client->dev, "rtc information is %s\n",
    hym8563->valid ? "valid" : "invalid");
    //注册RTC设备
  hym8563->rtc = devm_rtc_device_register(&client->dev, client->name,
            &hym8563_rtc_ops, THIS_MODULE);


  /* the hym8563 alarm only supports a minute accuracy */
  hym8563->rtc->uie_unsupported = 1;


#ifdef CONFIG_COMMON_CLK
    //HYM8563可以作为时钟源
  hym8563_clkout_register_clk(hym8563);
#endif


  return 0;
}
复制

//查看datasheet对8563进行初始化，对寄存器进行设置
static int hym8563_init_device(struct i2c_client *client)
{
  int ret;


  /* Clear stop flag if present */
    //向寄存器中写入值
  ret = i2c_smbus_write_byte_data(client, HYM8563_CTL1, 0);
  if (ret < 0)
    return ret;
    //读取寄存器的值
  ret = i2c_smbus_read_byte_data(client, HYM8563_CTL2);
  if (ret < 0)
    return ret;


  /* Disable alarm and timer interrupts */
  ret &= ~HYM8563_CTL2_AIE;
  ret &= ~HYM8563_CTL2_TIE;


  /* Clear any pending alarm and timer flags */
  if (ret & HYM8563_CTL2_AF)
    ret &= ~HYM8563_CTL2_AF;


  if (ret & HYM8563_CTL2_TF)
    ret &= ~HYM8563_CTL2_TF;


  ret &= ~HYM8563_CTL2_TI_TP;
    //将修改后的值写入寄存器
  return i2c_smbus_write_byte_data(client, HYM8563_CTL2, ret);
}
复制

static int hym8563_rtc_read_time(struct device *dev, struct rtc_time *tm)
{
  struct i2c_client *client = to_i2c_client(dev);
  struct hym8563 *hym8563 = i2c_get_clientdata(client);
  u8 buf[7];
  int ret;


  if (!hym8563->valid) {
    dev_warn(&client->dev, "no valid clock/calendar values available\n");
    return -EPERM;
  }
    //读取寄存器值， 连续读取7个寄存器

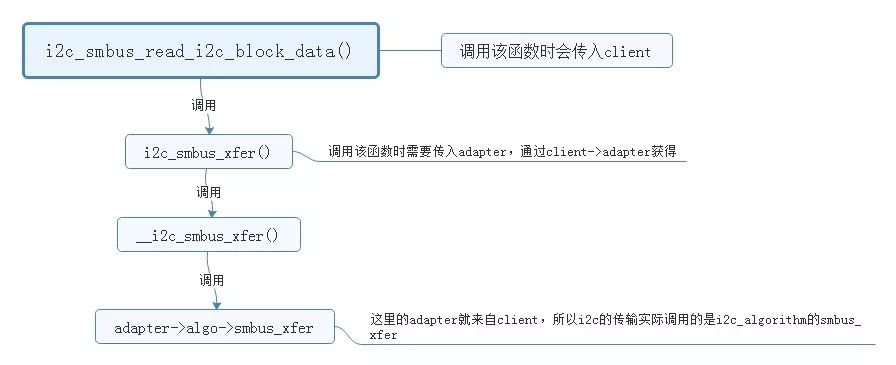

  ret = i2c_smbus_read_i2c_block_data(client, HYM8563_SEC, 7, buf);
    //bcd数转成2进制
  tm->tm_sec = bcd2bin(buf[0] & HYM8563_SEC_MASK);
  tm->tm_min = bcd2bin(buf[1] & HYM8563_MIN_MASK);
  tm->tm_hour = bcd2bin(buf[2] & HYM8563_HOUR_MASK);
  tm->tm_mday = bcd2bin(buf[3] & HYM8563_DAY_MASK);
  tm->tm_wday = bcd2bin(buf[4] & HYM8563_WEEKDAY_MASK); /* 0 = Sun */
  tm->tm_mon = bcd2bin(buf[5] & HYM8563_MONTH_MASK) - 1; /* 0 = Jan */
  tm->tm_year = bcd2bin(buf[6]) + 100;


  return 0;
}


static const struct rtc_class_ops hym8563_rtc_ops = {
  .read_time    = hym8563_rtc_read_time,
  .set_time    = hym8563_rtc_set_time,
  .alarm_irq_enable  = hym8563_rtc_alarm_irq_enable,
  .read_alarm    = hym8563_rtc_read_alarm,
  .set_alarm    = hym8563_rtc_set_alarm,
};
复制
