安装Oracle RAC 19C for RHEL 7.5 + RU 19.6.0.0.0

原创 张玉龙 2020-03-18
7721

1、操作系统配置

关闭防火墙

systemctl stop firewalld.service
systemctl disable firewalld.service

复制

关闭NetworkManager

systemctl stop NetworkManager.service
systemctl disable NetworkManager.service

复制

关闭selinux

sed -i "s/SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config
setenforce 0

复制

关闭avahi

systemctl stop avahi-daemon.socket
systemctl stop avahi-daemon.service
systemctl disable avahi-daemon.service
ps -ef|grep avahi-daemon
kill -9 pid avahi-daemon

复制

“NOZEROCONF=yes” 包含在 /etc/sysconfig/network

sed -i '$a\NOZEROCONF=yes' /etc/sysconfig/network

复制

配置yum，安装系统包

mkdir /media/cdrom
mount /dev/cdrom /media/cdrom

vi /etc/yum.repos.d/oracle.repo
[Server]
name=Red Hat Enterprise Linux $releasever Beta - $basearch - Source
baseurl=file:///media/cdrom
enabled=1
gpgcheck=1
gpgkey=file:///etc/pki/rpm-gpg/RPM-GPG-KEY-redhat-release

yum install binutils compat-libstdc++-33 elfutils-libelf elfutils-libelf-devel gcc gcc-c++ glibc glibc-common glibc-devel glibc-headers ksh libaio libaio-devel libgcc libstdc++ libstdc++-devel make sysstat unixODBC unixODBC-devel libXext libXtst libX11 libXau libxcb libXi compat-libcap1 iscsi-initiator-utils *vnc* -y

yum install bc binutils compat-libcap1 compat-libstdc++-33 elfutils-libelf elfutils-libelf-devel fontconfig-devel glibc glibc-devel ksh libaio libaio-devel libX11 libXau libXi libXtst libXrender libXrender-devel libgcc libstdc++ libstdc++-devel libxcb make net-tools nfs-utils python python-configshell python-rtslib python-six smartmontools sysstat targetcli -y

复制

vi /etc/hosts

192.168.56.51   rac1
192.168.56.52   rac2
192.168.56.53   rac1-vip
192.168.56.54   rac2-vip
192.168.56.55   rac-scan
10.10.10.51     rac1-priv
10.10.10.52     rac2-priv

复制

vi /etc/security/limits.conf

#for oracle
grid                 soft    nproc   16384
grid                 hard    nproc   16384
grid                 soft    nofile  1024
grid                 hard    nofile  65536
grid                 hard    stack   32768
grid                 soft    stack   10240
oracle               soft    nproc   16384
oracle               hard    nproc   16384
oracle               soft    nofile  1024
oracle               hard    nofile  65536
oracle               hard    stack   32768
oracle               soft    stack   10240
oracle               hard    memlock 3145728
oracle               soft    memlock 3145728

复制

vi /etc/pam.d/login

session    required     pam_limits.so

复制

vi /etc/profile

if [ $USER = "oracle" ] || [ $USER = "grid" ]; then
if [ $SHELL = "/bin/ksh" ]; then
ulimit -p 16384
ulimit -n 65536
else
ulimit -u 16384 -n 65536
fi
umask 022
fi

复制

vi /etc/sysctl.d/97-oracle-database-sysctl.conf

kernel.shmall = 4194304         physical RAM/page_size   getconf PAGE_SIZE   2097152
kernel.shmmax = 16106127360      1/2 of physical RAM    4294967296=4G  4294967296  最好大约SGA的大小
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048576
fs.aio-max-nr = 4194304
fs.file-max = 6815744
vm.min_free_kbytes=524288
kernel.randomize_va_space=0
kernel.panic_on_oops = 1
kernel.numa_balancing = 0

复制

#/sbin/sysctl --system

创建用户

/usr/sbin/groupadd -g 54321 oinstall
/usr/sbin/groupadd -g 54322 dba
/usr/sbin/groupadd -g 54323 oper
/usr/sbin/groupadd -g 54324 backupdba
/usr/sbin/groupadd -g 54325 dgdba
/usr/sbin/groupadd -g 54326 kmdba
/usr/sbin/groupadd -g 54327 asmdba
/usr/sbin/groupadd -g 54328 asmoper
/usr/sbin/groupadd -g 54329 asmadmin
/usr/sbin/groupadd -g 54330 racdba
/usr/sbin/useradd -u 54331 -g oinstall -G dba,asmdba,asmoper,asmadmin,racdba grid
/usr/sbin/useradd -u 54321 -g oinstall -G dba,oper,backupdba,dgdba,kmdba,asmdba,racdba oracle

echo "oracle" | passwd --stdin oracle
echo "grid" | passwd --stdin grid

复制

创建目录

mkdir -p /u01/app/19.0.0/grid
mkdir -p /u01/app/grid
mkdir -p /u02/app/oracle/product/19.0.0/db_1
chown -R grid:oinstall /u01/
chown -R oracle:oinstall /u02/
chmod -R 775 /u01/ /u02/

复制

配置环境变量
vi /home/grid/.bash_profile

if [ -t 0 ]; then
stty intr ^C
fi
PS1="[`whoami`@`hostname`:"'$PWD]$ '
export PS1
export ORACLE_SID=+ASM1   --节点2改为+ASM2
export ORACLE_BASE=/u01/app/grid
export ORACLE_HOME=/u01/app/19.0.0/grid
export NLS_DATE_FORMAT="yyyy-mm-dd HH24:MI:SS"
export PATH=$ORACLE_HOME/bin:$PATH:$HOME/bin:$ORACLE_PATH
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib
export LANG=C
umask 022

复制

vi /home/oracle/.bash_profile

if [ -t 0 ]; then
stty intr ^C
fi
PS1="[`whoami`@`hostname`:"'$PWD]$ '
export PS1
export ORACLE_SID=orcl1  --节点2改为orcl2
export ORACLE_BASE=/u02/app/oracle
export ORACLE_HOME=/u02/app/oracle/product/19.0.0/db_1
export NLS_DATE_FORMAT="yyyy-mm-dd HH24:MI:SS"
export PATH=$ORACLE_HOME/bin:$PATH:$HOME/bin
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:$ORACLE_HOME/lib32:$ORACLE_HOME/rdbms/lib:/lib:/usr/lib
export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib
export LANG=C
umask 022

复制

禁用NTPD服务：

service ntpd stop
chkconfig ntpd off
mv /etc/ntp.conf /etc/ntp.conf.bak
mv /etc/resolv.conf /etc/resolv.conf.bak
systemctl stop chronyd
systemctl disable chronyd
mv /etc/resolv.conf /etc/resolv.conf.bak
mv /etc/chrony.conf /etc/chrony.conf.bak

复制

建议关闭透明大页及NUMA

1 修改grub文件
cp /etc/default/grub /etc/default/grub.bak
vi /etc/default/grub

2 添加transparent_hugepage=never numa=off到GRUB_CMDLINE_LINUX的**行尾**，不要直接替换此行
GRUB_CMDLINE_LINUX=
"rd.lvm.lv=centos/root rd.lvm.lv=centos/swap rhgb quiet transparent_hugepage=never numa=off

3 执行命令
grub2-mkconfig -o /boot/grub2/grub.cfg
grub2-mkconfig -o /boot/efi/EFI/redhat/grub.cfg

4 不重启生效
[root@rac1 ~]#echo never > /sys/kernel/mm/transparent_hugepage/enabled

5 查看是否禁用透明大页
[root@rac1 ~]# cat /sys/kernel/mm/transparent_hugepage/enabled
always madvise [never]

[root@rac2 ~]# grep AnonHugePages /proc/meminfo
AnonHugePages:         0 kB---------->>>返回值若是零，代表成功禁用THP

复制

配置共享存储

查询磁盘设备的wwid
for i in `cat /proc/partitions | awk '{print $4}' |grep sd | grep [a-z]$`; do echo "### $i: ` /usr/lib/udev/scsi_id -g -u  -d  /dev/$i`"; done

vi /etc/udev/rules.d/99-oracle-asmdevices.rules
KERNEL=="sd*[!0-9]", ENV{DEVTYPE}=="disk", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d $devnode", RESULT=="1ATA_VBOX_HARDDISK_VB6ad1e9ef-331e7e1c", RUN+="/bin/sh -c 'mknod /dev/raw/raw1 b $major $minor; chown grid:asmadmin /dev/raw/raw1; chmod 0660 /dev/raw/raw1'"
KERNEL=="sd*[!0-9]", ENV{DEVTYPE}=="disk", SUBSYSTEM=="block", PROGRAM=="/usr/lib/udev/scsi_id -g -u -d $devnode", RESULT=="1ATA_VBOX_HARDDISK_VB65e80c32-76759d78", RUN+="/bin/sh -c 'mknod /dev/raw/raw2 b $major $minor; chown grid:asmadmin /dev/raw/raw2; chmod 0660 /dev/raw/raw2'"

/sbin/udevadm trigger --type=devices --action=change
# ll /dev/raw

复制

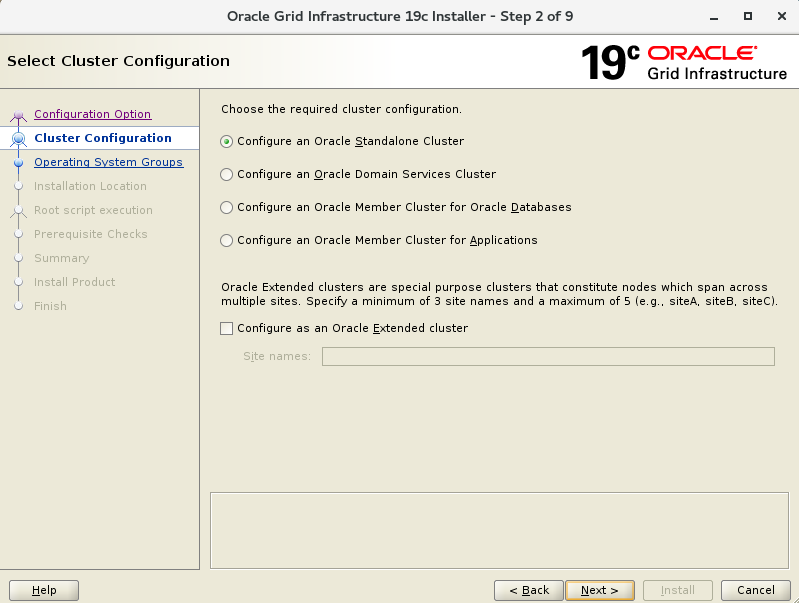

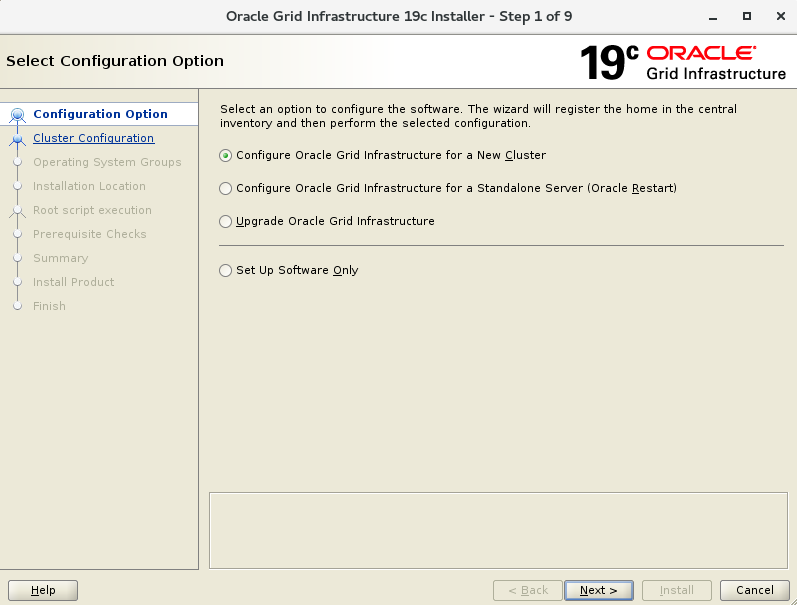

2、安装GI

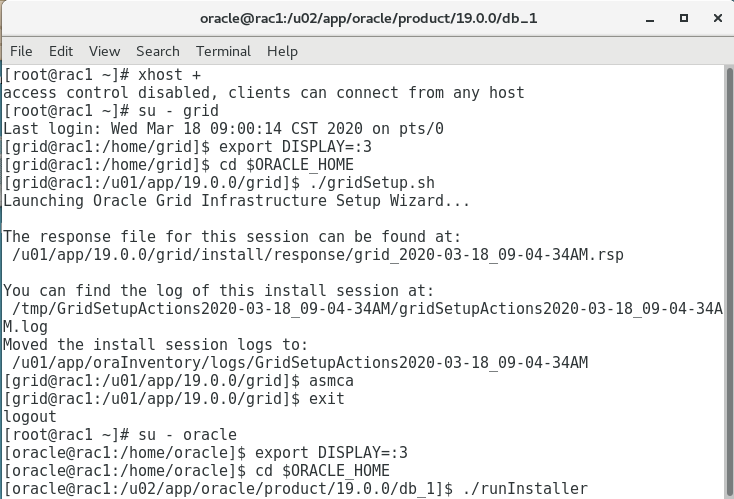

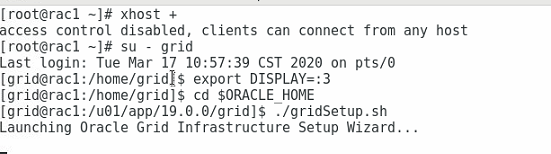

[root@rac1 ~]# su - grid
[grid@rac1:/home/grid]$ unzip /opt/LINUX.X64_193000_grid_home.zip -d $ORACLE_HOME

复制

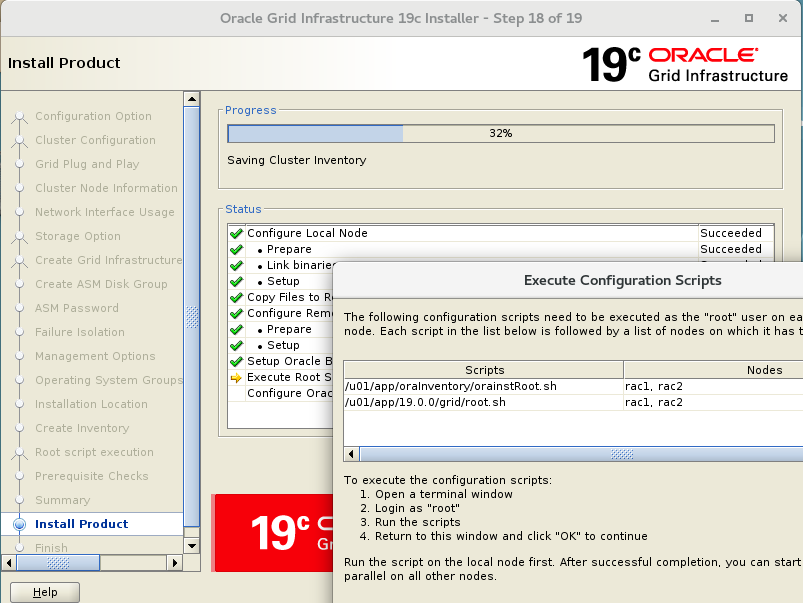

[root@rac1 ~]# /u01/app/oraInventory/orainstRoot.sh
Changing permissions of /u01/app/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.

Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete.
[root@rac1 ~]# /u01/app/19.0.0/grid/root.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= grid
    ORACLE_HOME=  /u01/app/19.0.0/grid

Enter the full pathname of the local bin directory: [/usr/local/bin]:
   Copying dbhome to /usr/local/bin ...
   Copying oraenv to /usr/local/bin ...
   Copying coraenv to /usr/local/bin ...

Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /u01/app/19.0.0/grid/crs/install/crsconfig_params
The log of current session can be found at:
  /u01/app/grid/crsdata/rac1/crsconfig/rootcrs_rac1_2020-03-17_11-31-30AM.log
2020/03/17 11:31:53 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2020/03/17 11:31:53 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2020/03/17 11:31:53 CLSRSC-363: User ignored prerequisites during installation
2020/03/17 11:31:53 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2020/03/17 11:31:55 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2020/03/17 11:31:56 CLSRSC-594: Executing installation step 5 of 19: 'SetupOSD'.
2020/03/17 11:31:56 CLSRSC-594: Executing installation step 6 of 19: 'CheckCRSConfig'.
2020/03/17 11:31:57 CLSRSC-594: Executing installation step 7 of 19: 'SetupLocalGPNP'.
2020/03/17 11:32:40 CLSRSC-594: Executing installation step 8 of 19: 'CreateRootCert'.
2020/03/17 11:32:41 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2020/03/17 11:32:46 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2020/03/17 11:33:03 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2020/03/17 11:33:03 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2020/03/17 11:33:09 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2020/03/17 11:33:10 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'
2020/03/17 11:34:11 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2020/03/17 11:35:05 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
2020/03/17 11:35:51 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2020/03/17 11:35:58 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.

[INFO] [DBT-30161] Disk label(s) created successfully. Check /u01/app/grid/cfgtoollogs/asmca/asmca-200317AM113635.log for details.

2020/03/17 11:38:00 CLSRSC-482: Running command: '/u01/app/19.0.0/grid/bin/ocrconfig -upgrade grid oinstall'
CRS-4256: Updating the profile
Successful addition of voting disk 63fa84d7b8114f78bfc9cab34b596cbb.
Successful addition of voting disk 879e4648e7934f87bf52edd826576142.
Successful addition of voting disk a64cd70858e74f7fbf1ac454f41a0e75.
Successfully replaced voting disk group with +CRS.
CRS-4256: Updating the profile
CRS-4266: Voting file(s) successfully replaced
##  STATE    File Universal Id                File Name Disk group
--  -----    -----------------                --------- ---------
 1. ONLINE   63fa84d7b8114f78bfc9cab34b596cbb (AFD:CRS1) [CRS]
 2. ONLINE   879e4648e7934f87bf52edd826576142 (AFD:CRS2) [CRS]
 3. ONLINE   a64cd70858e74f7fbf1ac454f41a0e75 (AFD:CRS3) [CRS]
Located 3 voting disk(s).
2020/03/17 11:39:48 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
2020/03/17 11:41:32 CLSRSC-343: Successfully started Oracle Clusterware stack
2020/03/17 11:41:32 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
2020/03/17 11:43:10 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
2020/03/17 11:43:52 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded


复制
[root@rac2 ~]# /u01/app/oraInventory/orainstRoot.sh
Changing permissions of /u01/app/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.

Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete.
[root@rac2 ~]# /u01/app/19.0.0/grid/root.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= grid
    ORACLE_HOME=  /u01/app/19.0.0/grid

Enter the full pathname of the local bin directory: [/usr/local/bin]:
   Copying dbhome to /usr/local/bin ...
   Copying oraenv to /usr/local/bin ...
   Copying coraenv to /usr/local/bin ...


Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
Relinking oracle with rac_on option
Using configuration parameter file: /u01/app/19.0.0/grid/crs/install/crsconfig_params
The log of current session can be found at:
  /u01/app/grid/crsdata/rac2/crsconfig/rootcrs_rac2_2020-03-17_11-45-29AM.log
2020/03/17 11:45:38 CLSRSC-594: Executing installation step 1 of 19: 'SetupTFA'.
2020/03/17 11:45:38 CLSRSC-594: Executing installation step 2 of 19: 'ValidateEnv'.
2020/03/17 11:45:38 CLSRSC-363: User ignored prerequisites during installation
2020/03/17 11:45:38 CLSRSC-594: Executing installation step 3 of 19: 'CheckFirstNode'.
2020/03/17 11:45:40 CLSRSC-594: Executing installation step 4 of 19: 'GenSiteGUIDs'.
2020/03/17 11:45:40 CLSRSC-594: Executing installation step 5 of 19: 'SetupOSD'.
2020/03/17 11:45:40 CLSRSC-594: Executing installation step 6 of 19: 'CheckCRSConfig'.
2020/03/17 11:45:42 CLSRSC-594: Executing installation step 7 of 19: 'SetupLocalGPNP'.
2020/03/17 11:45:43 CLSRSC-594: Executing installation step 8 of 19: 'CreateRootCert'.
2020/03/17 11:45:43 CLSRSC-594: Executing installation step 9 of 19: 'ConfigOLR'.
2020/03/17 11:45:53 CLSRSC-594: Executing installation step 10 of 19: 'ConfigCHMOS'.
2020/03/17 11:45:53 CLSRSC-594: Executing installation step 11 of 19: 'CreateOHASD'.
2020/03/17 11:45:55 CLSRSC-594: Executing installation step 12 of 19: 'ConfigOHASD'.
2020/03/17 11:45:55 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.service'
2020/03/17 11:46:15 CLSRSC-4002: Successfully installed Oracle Trace File Analyzer (TFA) Collector.
2020/03/17 11:47:00 CLSRSC-594: Executing installation step 13 of 19: 'InstallAFD'.
2020/03/17 11:47:57 CLSRSC-594: Executing installation step 14 of 19: 'InstallACFS'.
2020/03/17 11:48:42 CLSRSC-594: Executing installation step 15 of 19: 'InstallKA'.
2020/03/17 11:48:43 CLSRSC-594: Executing installation step 16 of 19: 'InitConfig'.
2020/03/17 11:48:55 CLSRSC-594: Executing installation step 17 of 19: 'StartCluster'.
2020/03/17 11:49:52 CLSRSC-343: Successfully started Oracle Clusterware stack
2020/03/17 11:49:52 CLSRSC-594: Executing installation step 18 of 19: 'ConfigNode'.
2020/03/17 11:50:09 CLSRSC-594: Executing installation step 19 of 19: 'PostConfig'.
2020/03/17 11:50:35 CLSRSC-325: Configure Oracle Grid Infrastructure for a Cluster ... succeeded
Error 4 opening dom ASM/Self in 0x63a08d0
Domain name to open is ASM/Self
Error 4 opening dom ASM/Self in 0x63a08d0

复制

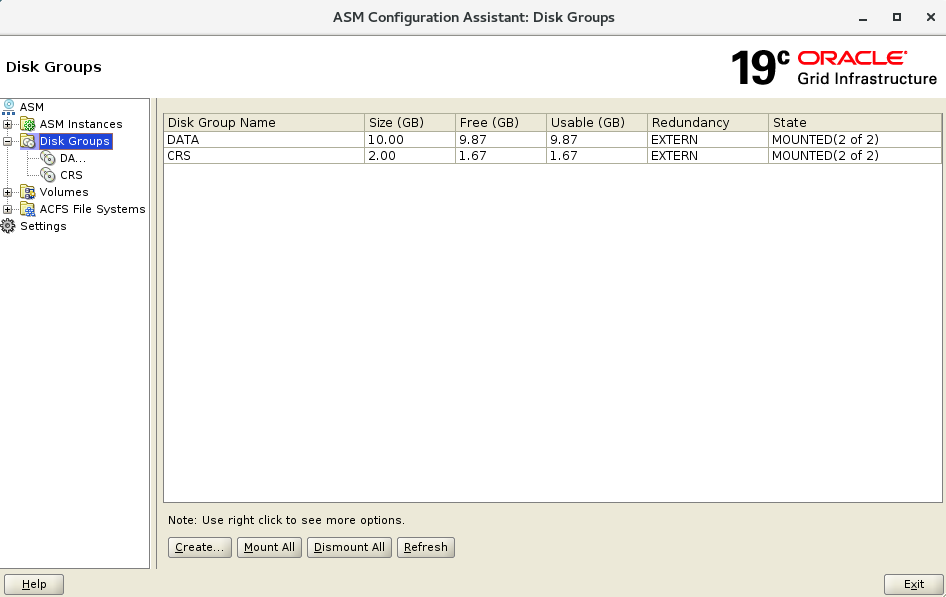

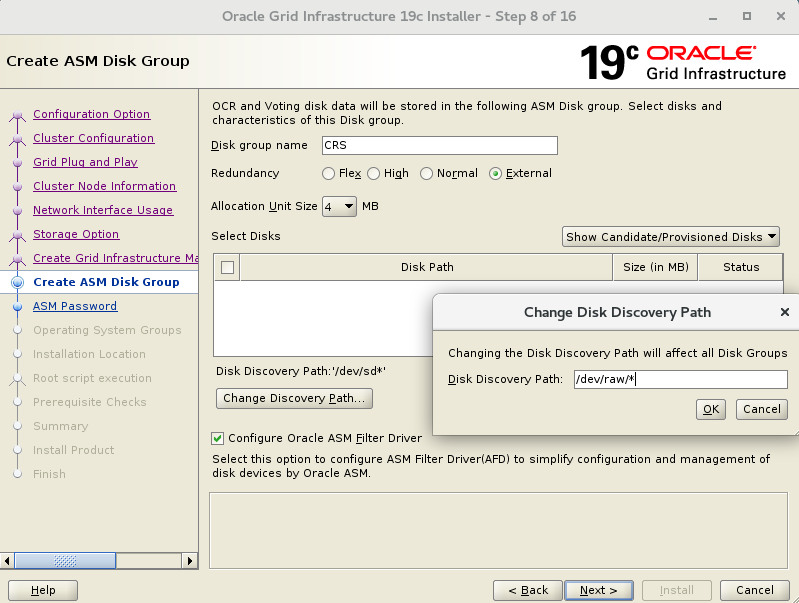

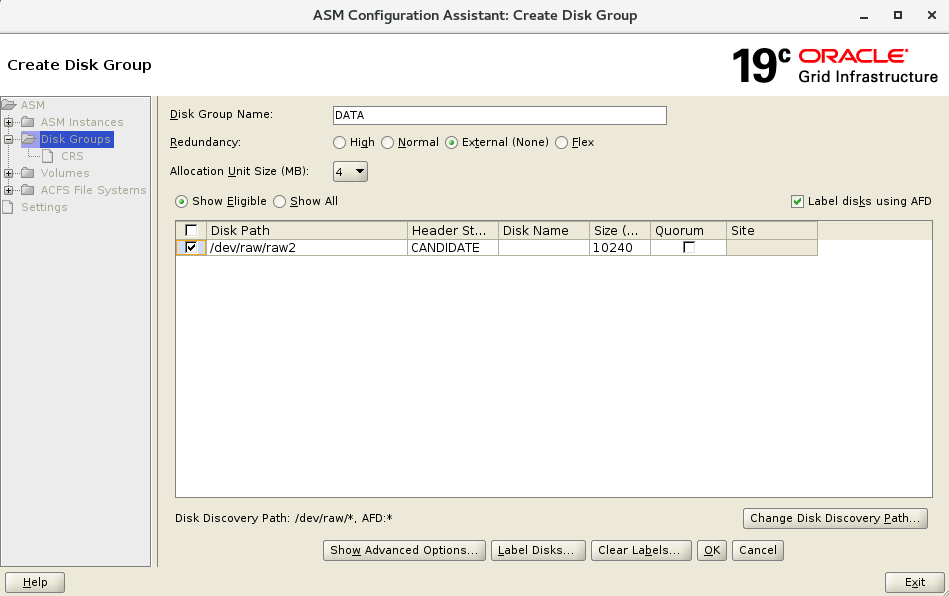

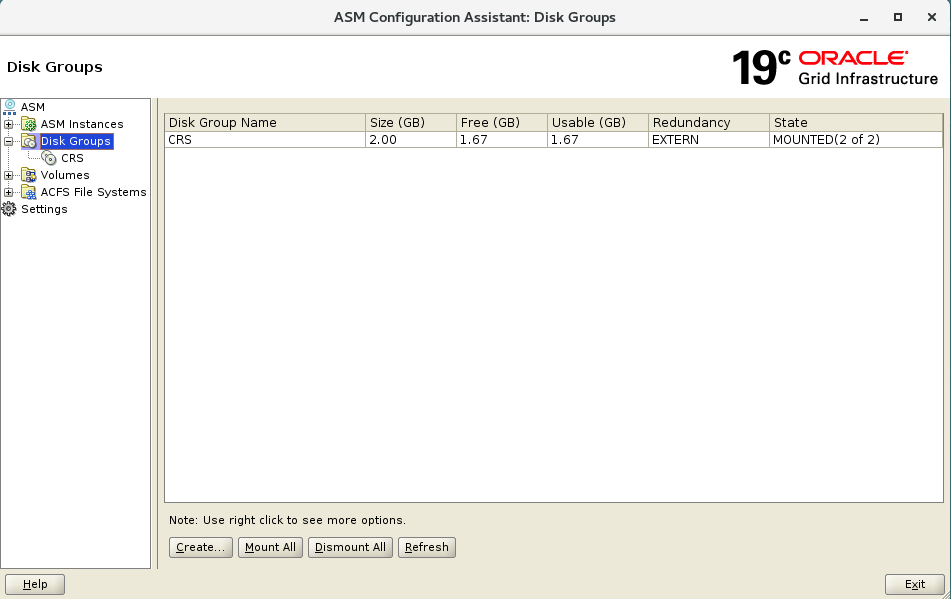

3、ASMCA 创建磁盘组


[root@rac1 ~]# /u01/app/19.0.0/grid/bin/crsctl status res -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.LISTENER.lsnr
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.chad
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.net1.network
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.ons
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.proxy_advm
               OFFLINE OFFLINE      rac1                     STABLE
               OFFLINE OFFLINE      rac2                     STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.CRS.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.DATA.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        ONLINE  OFFLINE                               STABLE
ora.LISTENER_SCAN1.lsnr
      1        ONLINE  ONLINE       rac1                     STABLE
ora.asm(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     Started,STABLE
      2        ONLINE  ONLINE       rac2                     Started,STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.asmnet1.asmnetwork(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.cvu
      1        ONLINE  ONLINE       rac1                     STABLE
ora.qosmserver
      1        ONLINE  ONLINE       rac1                     STABLE
ora.rac1.vip
      1        ONLINE  ONLINE       rac1                     STABLE
ora.rac2.vip
      1        ONLINE  ONLINE       rac2                     STABLE
ora.scan1.vip
      1        ONLINE  ONLINE       rac1                     STABLE
--------------------------------------------------------------------------------

复制

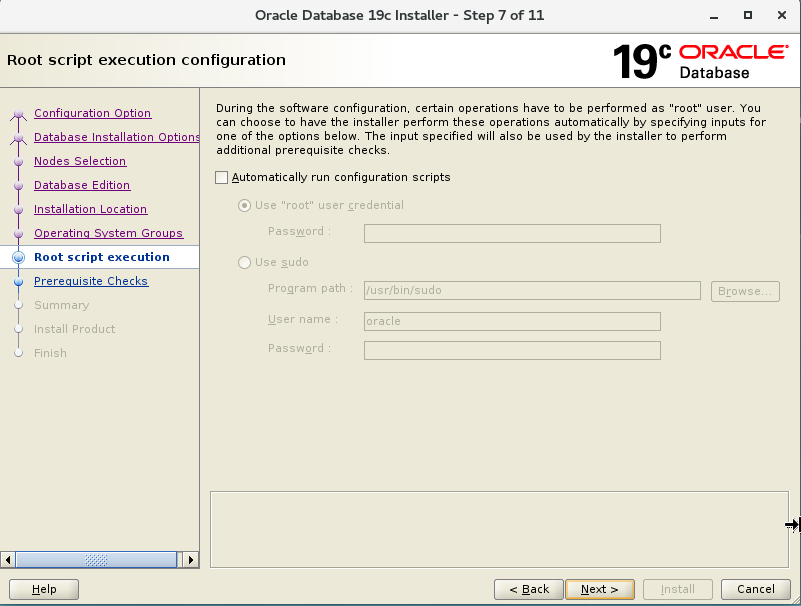

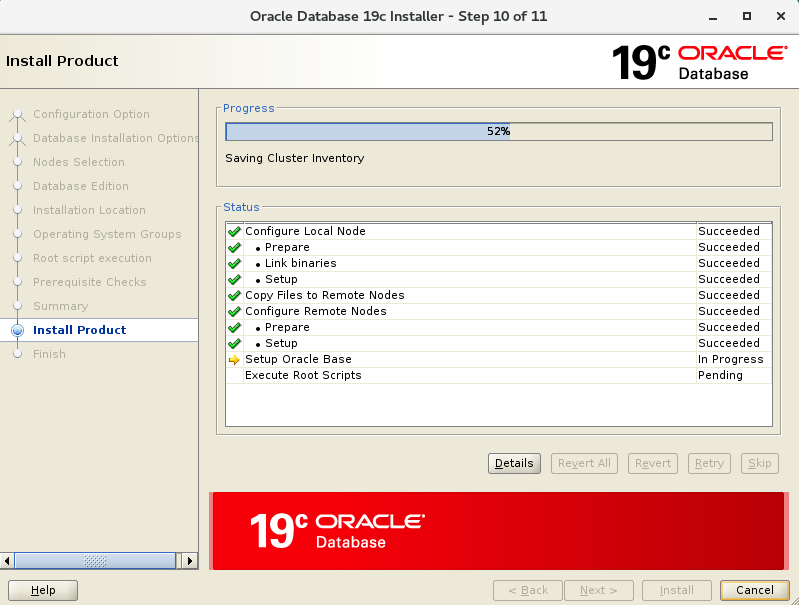

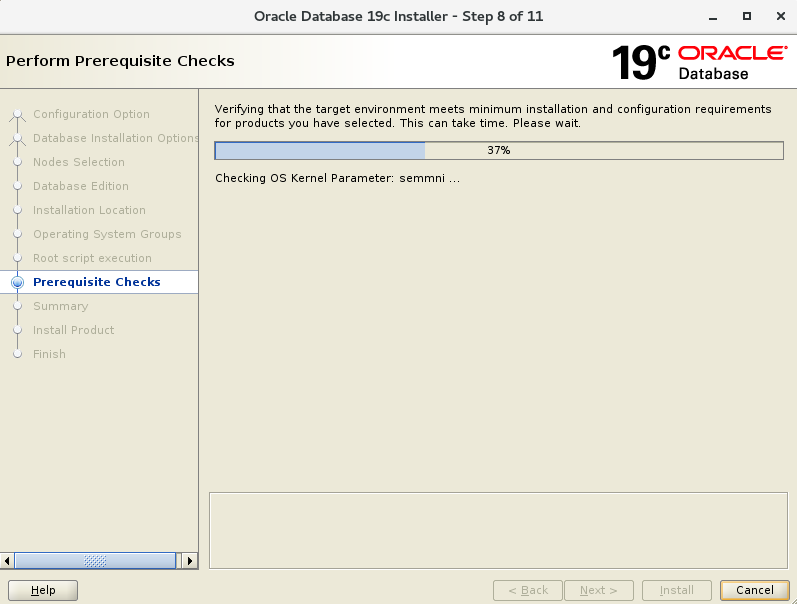

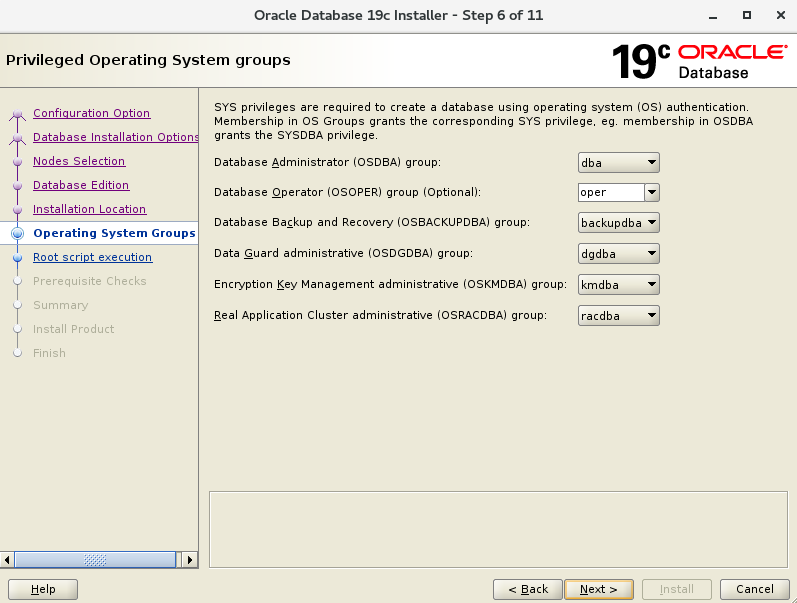

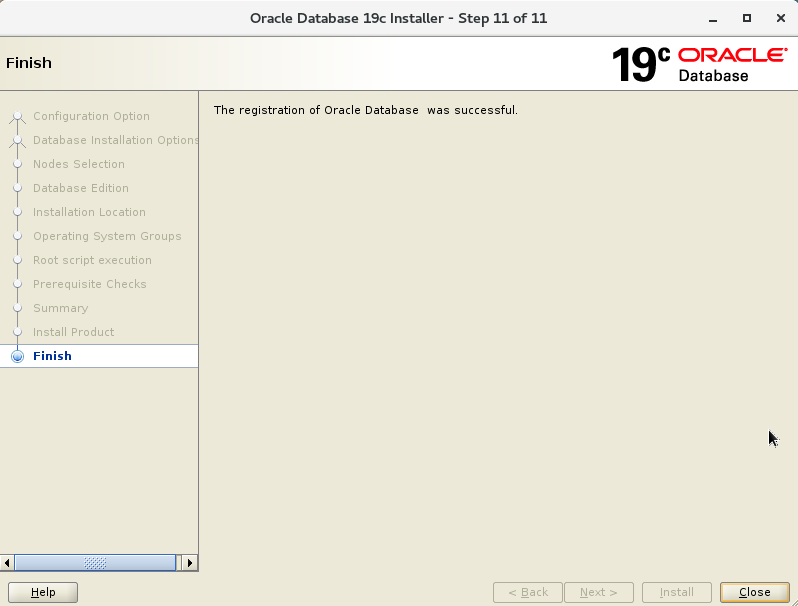

4、安装DB

[root@rac1 ~]# su - oracle
[oracle@rac1:/home/oracle]$ unzip /opt/LINUX.X64_193000_db_home.zip -d $ORACLE_HOME

复制

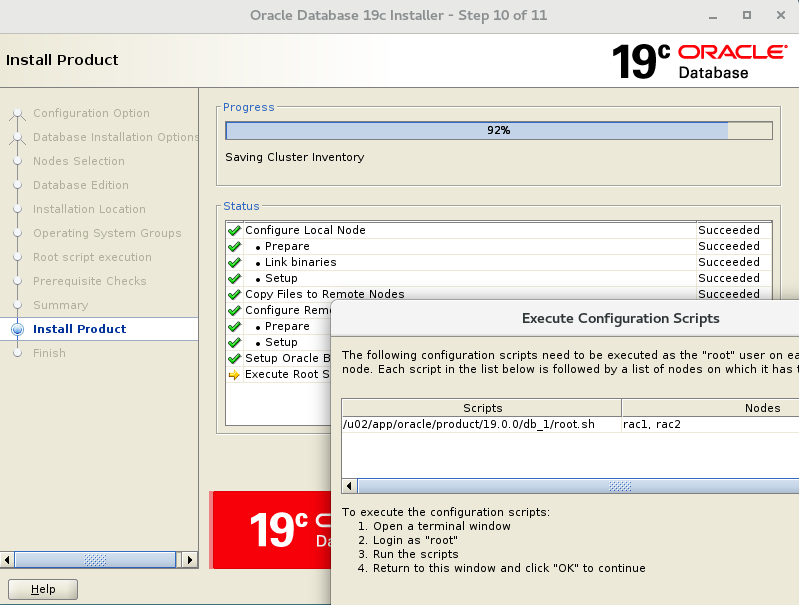

[root@rac1 ~]# /u02/app/oracle/product/19.0.0/db_1/root.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= oracle
    ORACLE_HOME=  /u02/app/oracle/product/19.0.0/db_1

Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.

Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.

[root@rac2 ~]# /u02/app/oracle/product/19.0.0/db_1/root.sh
Performing root user operation.

The following environment variables are set as:
    ORACLE_OWNER= oracle
    ORACLE_HOME=  /u02/app/oracle/product/19.0.0/db_1

Enter the full pathname of the local bin directory: [/usr/local/bin]:
The contents of "dbhome" have not changed. No need to overwrite.
The contents of "oraenv" have not changed. No need to overwrite.
The contents of "coraenv" have not changed. No need to overwrite.

Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.

复制

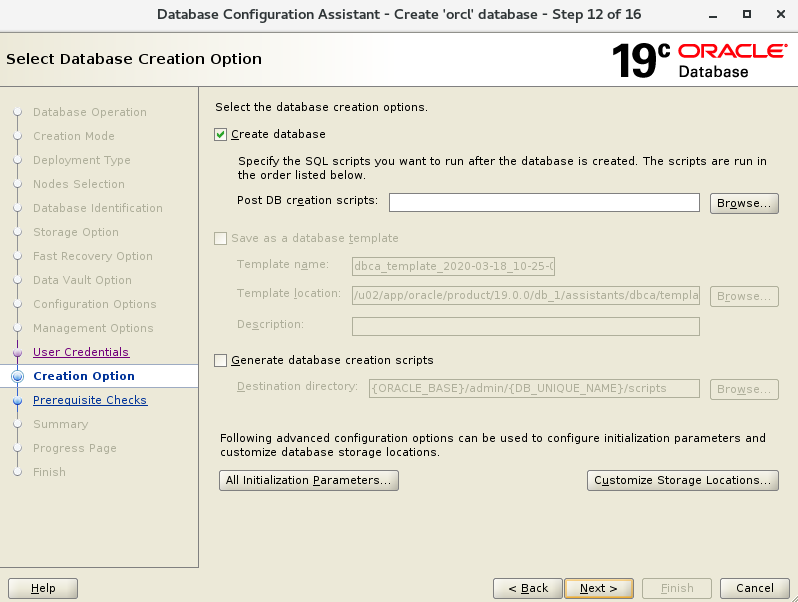

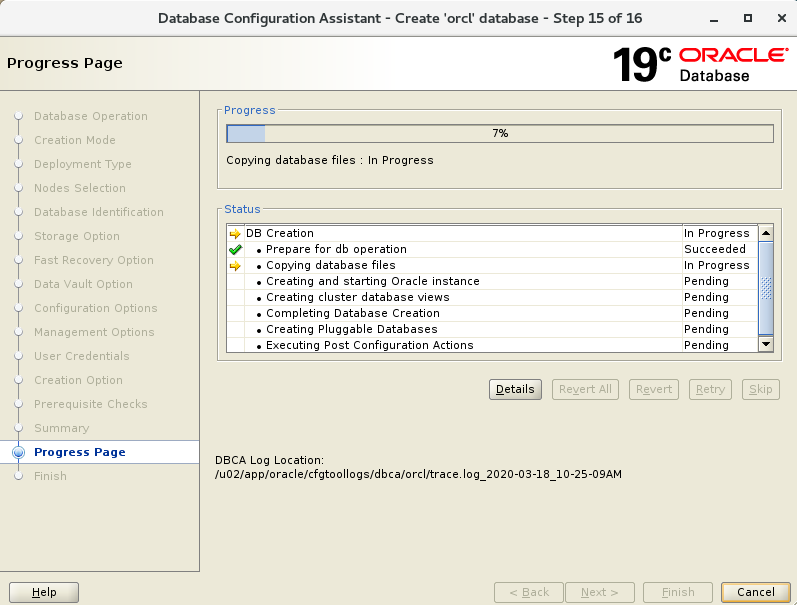

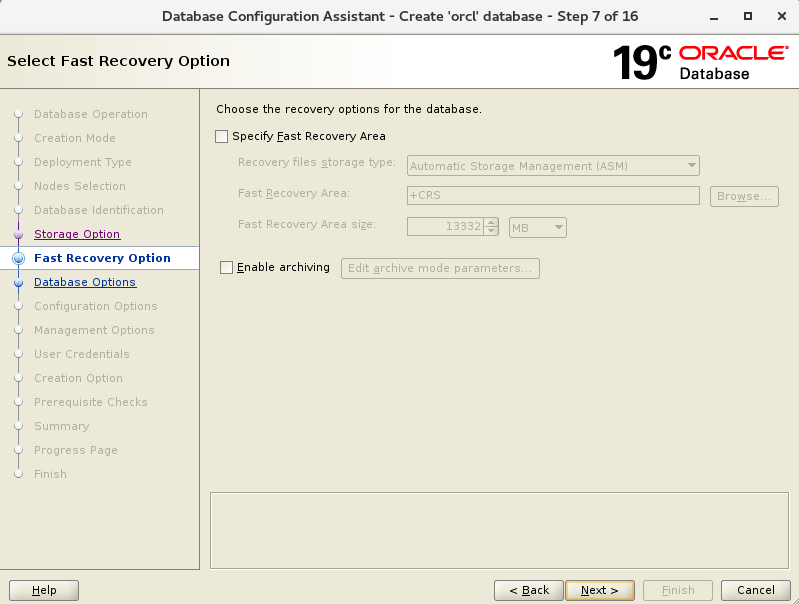

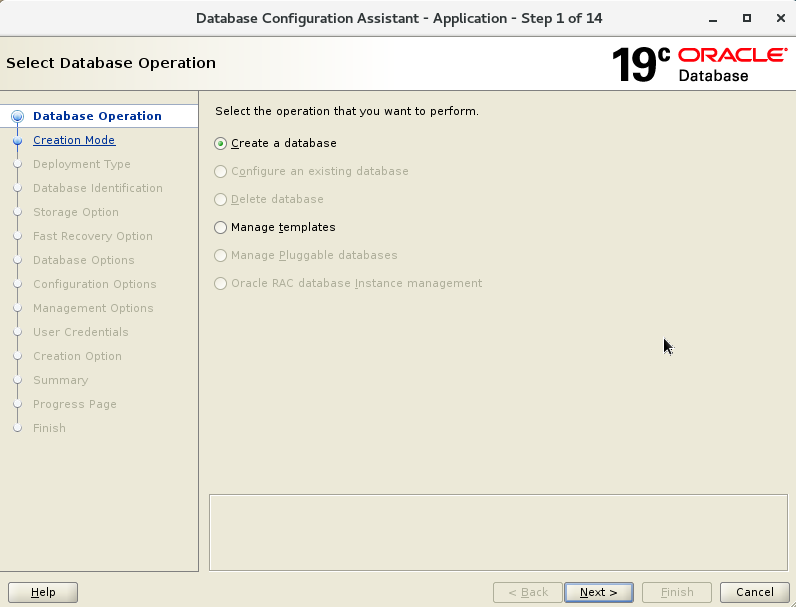

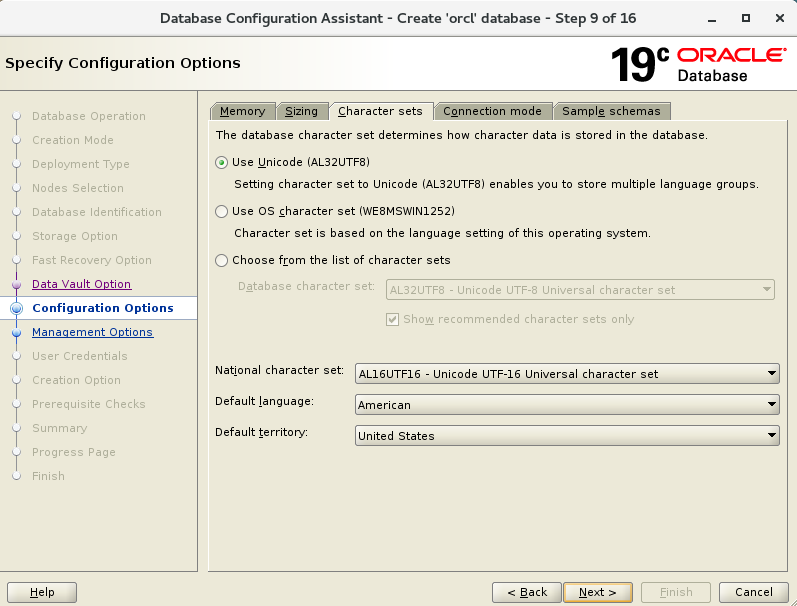

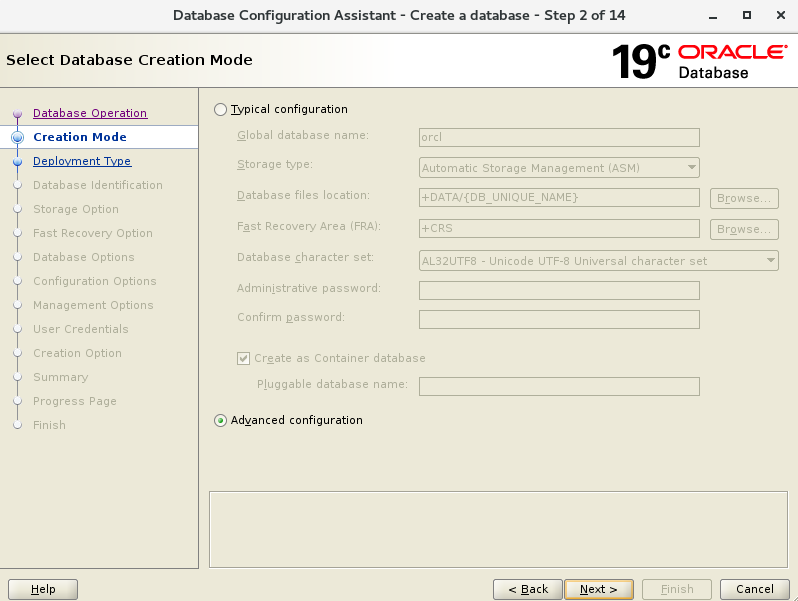

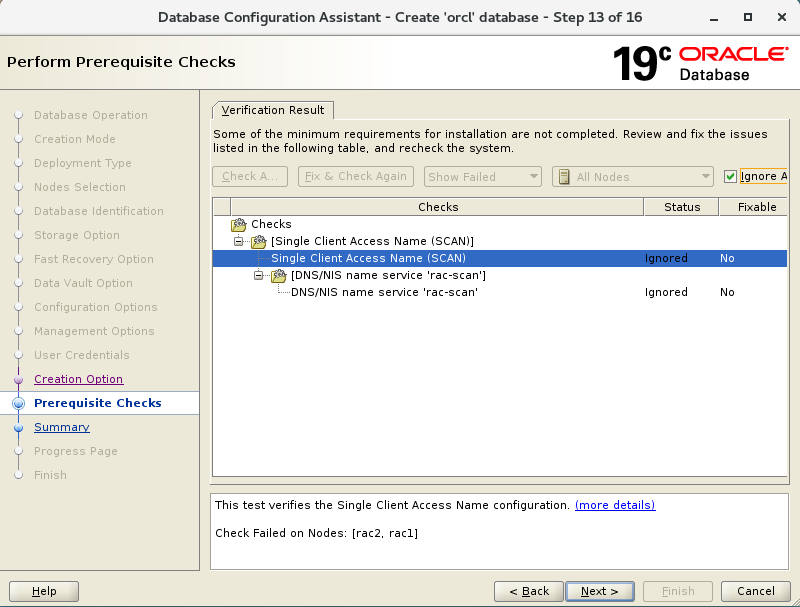

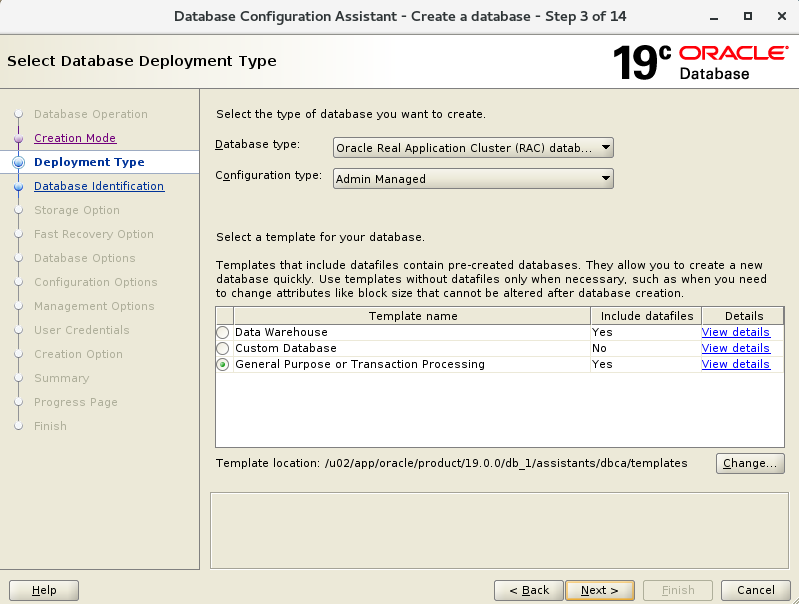

5、DBCA建库


[root@rac1 ~]# /u01/app/19.0.0/grid/bin/crsctl status res -t
-------------------------------------------------------------------------------
Name           Target  State        Server                   State details
-------------------------------------------------------------------------------
Local Resources
-------------------------------------------------------------------------------
ora.LISTENER.lsnr
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.chad
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.net1.network
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.ons
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.proxy_advm
               OFFLINE OFFLINE      rac1                     STABLE
               OFFLINE OFFLINE      rac2                     STABLE
-------------------------------------------------------------------------------
Cluster Resources
-------------------------------------------------------------------------------
ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.CRS.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.DATA.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        ONLINE  OFFLINE                               STABLE
ora.LISTENER_SCAN1.lsnr
      1        ONLINE  ONLINE       rac1                     STABLE
ora.asm(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     Started,STABLE
      2        ONLINE  ONLINE       rac2                     Started,STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.asmnet1.asmnetwork(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.cvu
      1        ONLINE  ONLINE       rac1                     STABLE
ora.orcl.db
      1        ONLINE  ONLINE       rac1                     Open,HOME=/u02/app/o
                                                             racle/product/19.0.0
                                                             /db_1,STABLE
      2        ONLINE  ONLINE       rac2                     Open,HOME=/u02/app/o
                                                             racle/product/19.0.0
                                                             /db_1,STABLE
ora.qosmserver
      1        ONLINE  ONLINE       rac1                     STABLE
ora.rac1.vip
      1        ONLINE  ONLINE       rac1                     STABLE
ora.rac2.vip
      1        ONLINE  ONLINE       rac2                     STABLE
ora.scan1.vip
      1        ONLINE  ONLINE       rac1                     STABLE
-------------------------------------------------------------------------------

复制

6、两个节点滚动安装RU 19.6.0.0.0

节点1
更新OPatch

[root@rac1 opt]# su - grid
[grid@rac1:/home/grid]$ cd $ORACLE_HOME
[grid@rac1:/u01/app/19.0.0/grid]$ unzip /opt/12.2.0.1.19_p6880880_190000_Linux-x86-64.zip -d ./
replace ./OPatch/emdpatch.pl? [y]es, [n]o, [A]ll, [N]one, [r]ename: A
[grid@rac1:/u01/app/19.0.0/grid]$ ./OPatch/opatch version
OPatch Version: 12.2.0.1.19

[root@rac1 opt]# su - oracle
Last login: Wed Mar 18 10:18:56 CST 2020
[oracle@rac1:/home/oracle]$ unzip /opt/12.2.0.1.19_p6880880_190000_Linux-x86-64.zip -d $ORACLE_HOME
replace /u02/app/oracle/product/19.0.0/db_1/OPatch/emdpatch.pl? [y]es, [n]o, [A]ll, [N]one, [r]ename: A

复制

解压补丁包

[root@rac1 ~]# mkdir /oraru
[root@rac1 ~]# chown -R grid:oinstall /oraru/
[root@rac1 ~]# su - grid
[grid@rac1:/home/grid]$ unzip /opt/GI_19.6.0.0.200114_p30501910_190000_Linux-x86-64.zip -d /oraru/

复制

开始打补丁

[root@rac1 ~]# export ORACLE_HOME=/u01/app/19.0.0/grid
[root@rac1 ~]# export PATH=$PATH:$ORACLE_HOME/bin:$ORACLE_HOME/OPatch
[root@rac1 ~]# opatch version
OPatch Version: 12.2.0.1.19

OPatch succeeded.
[root@rac1 ~]# opatchauto apply /oraru/30501910

OPatchauto session is initiated at Wed Mar 18 11:40:29 2020

System initialization log file is /u01/app/19.0.0/grid/cfgtoollogs/opatchautodb/systemconfig2020-03-18_11-40-34AM.log.

Session log file is /u01/app/19.0.0/grid/cfgtoollogs/opatchauto/opatchauto2020-03-18_11-41-48AM.log
The id for this session is GKFC

Executing OPatch prereq operations to verify patch applicability on home /u01/app/19.0.0/grid

Executing OPatch prereq operations to verify patch applicability on home /u02/app/oracle/product/19.0.0/db_1
Patch applicability verified successfully on home /u02/app/oracle/product/19.0.0/db_1

Patch applicability verified successfully on home /u01/app/19.0.0/grid


Verifying SQL patch applicability on home /u02/app/oracle/product/19.0.0/db_1
SQL patch applicability verified successfully on home /u02/app/oracle/product/19.0.0/db_1


Preparing to bring down database service on home /u02/app/oracle/product/19.0.0/db_1
Successfully prepared home /u02/app/oracle/product/19.0.0/db_1 to bring down database service


Bringing down CRS service on home /u01/app/19.0.0/grid
CRS service brought down successfully on home /u01/app/19.0.0/grid


Performing prepatch operation on home /u02/app/oracle/product/19.0.0/db_1
Perpatch operation completed successfully on home /u02/app/oracle/product/19.0.0/db_1


Start applying binary patch on home /u02/app/oracle/product/19.0.0/db_1
Binary patch applied successfully on home /u02/app/oracle/product/19.0.0/db_1


Performing postpatch operation on home /u02/app/oracle/product/19.0.0/db_1
Postpatch operation completed successfully on home /u02/app/oracle/product/19.0.0/db_1


Start applying binary patch on home /u01/app/19.0.0/grid
Binary patch applied successfully on home /u01/app/19.0.0/grid


Starting CRS service on home /u01/app/19.0.0/grid
CRS service started successfully on home /u01/app/19.0.0/grid


Preparing home /u02/app/oracle/product/19.0.0/db_1 after database service restarted
No step execution required.........


Trying to apply SQL patch on home /u02/app/oracle/product/19.0.0/db_1
SQL patch applied successfully on home /u02/app/oracle/product/19.0.0/db_1

OPatchAuto successful.

--------------------------------Summary--------------------------------

Patching is completed successfully. Please find the summary as follows:

Host:rac1
RAC Home:/u02/app/oracle/product/19.0.0/db_1
Version:19.0.0.0.0
Summary:

==Following patches were SKIPPED:

Patch: /oraru/30501910/30489632
Reason: This patch is not applicable to this specified target type - "rac_database"

Patch: /oraru/30501910/30655595
Reason: This patch is not applicable to this specified target type - "rac_database"


==Following patches were SUCCESSFULLY applied:

Patch: /oraru/30501910/30489227
Log: /u02/app/oracle/product/19.0.0/db_1/cfgtoollogs/opatchauto/core/opatch/opatch2020-03-18_11-47-00AM_1.log

Patch: /oraru/30501910/30557433
Log: /u02/app/oracle/product/19.0.0/db_1/cfgtoollogs/opatchauto/core/opatch/opatch2020-03-18_11-47-00AM_1.log


Host:rac1
CRS Home:/u01/app/19.0.0/grid
Version:19.0.0.0.0
Summary:

==Following patches were SUCCESSFULLY applied:

Patch: /oraru/30501910/30489227
Log: /u01/app/19.0.0/grid/cfgtoollogs/opatchauto/core/opatch/opatch2020-03-18_11-58-04AM_1.log

Patch: /oraru/30501910/30489632
Log: /u01/app/19.0.0/grid/cfgtoollogs/opatchauto/core/opatch/opatch2020-03-18_11-58-04AM_1.log

Patch: /oraru/30501910/30557433
Log: /u01/app/19.0.0/grid/cfgtoollogs/opatchauto/core/opatch/opatch2020-03-18_11-58-04AM_1.log

Patch: /oraru/30501910/30655595
Log: /u01/app/19.0.0/grid/cfgtoollogs/opatchauto/core/opatch/opatch2020-03-18_11-58-04AM_1.log



OPatchauto session completed at Wed Mar 18 12:16:56 2020
Time taken to complete the session 36 minutes, 28 seconds

复制

将节点1的oui-patch.xml文件复制到节点2

[root@rac1 ~]# ll /u01/app/oraInventory/ContentsXML/oui-patch.xml
-rw-rw---- 1 grid oinstall 174 Mar 18 12:08 /u01/app/oraInventory/ContentsXML/oui-patch.xml

[root@rac2 ~]# ll /u01/app/oraInventory/ContentsXML/oui-patch.xml
ls: cannot access /u01/app/oraInventory/ContentsXML/oui-patch.xml: No such file or directory

[root@rac1 ~]# scp -rp /u01/app/oraInventory/ContentsXML/oui-patch.xml rac2:/u01/app/oraInventory/ContentsXML
[root@rac2 ~]# chown grid:oinstall /u01/app/oraInventory/ContentsXML/oui-patch.xml
[root@rac2 ~]#  ll /u01/app/oraInventory/ContentsXML/oui-patch.xml
-rw-rw---- 1 grid oinstall 174 Mar 18 12:08 /u01/app/oraInventory/ContentsXML/oui-patch.xml

复制

节点2重复节点1的打补丁操作

[root@rac2 opt]# su - grid
[grid@rac2:/home/grid]$ cd $ORACLE_HOME
[grid@rac2:/u01/app/19.0.0/grid]$ unzip /opt/12.2.0.1.19_p6880880_190000_Linux-x86-64.zip -d ./
replace ./OPatch/emdpatch.pl? [y]es, [n]o, [A]ll, [N]one, [r]ename: A
[grid@rac2:/u01/app/19.0.0/grid]$ ./OPatch/opatch version
OPatch Version: 12.2.0.1.19

[root@rac2 opt]# su - oracle
Last login: Wed Mar 18 10:18:56 CST 2020
[oracle@rac2:/home/oracle]$ unzip /opt/12.2.0.1.19_p6880880_190000_Linux-x86-64.zip -d $ORACLE_HOME
replace /u02/app/oracle/product/19.0.0/db_1/OPatch/emdpatch.pl? [y]es, [n]o, [A]ll, [N]one, [r]ename: A

复制
[root@rac2 ~]# mkdir /oraru
[root@rac2 ~]# chown -R grid:oinstall /oraru/
[root@rac2 ~]# su - grid
[grid@rac2:/home/grid]$ unzip /opt/GI_19.6.0.0.200114_p30501910_190000_Linux-x86-64.zip -d /oraru/

复制
[root@rac2 ~]# export ORACLE_HOME=/u01/app/19.0.0/grid
[root@rac2 ~]# export PATH=$PATH:$ORACLE_HOME/bin:$ORACLE_HOME/OPatch
[root@rac2 ~]# opatch version
OPatch Version: 12.2.0.1.19

OPatch succeeded.
[root@rac2 ~]# opatchauto apply /oraru/30501910

OPatchauto session is initiated at Wed Mar 18 12:34:43 2020

System initialization log file is /u01/app/19.0.0/grid/cfgtoollogs/opatchautodb/systemconfig2020-03-18_12-34-54PM.log.

Session log file is /u01/app/19.0.0/grid/cfgtoollogs/opatchauto/opatchauto2020-03-18_12-37-53PM.log
The id for this session is GVVD

Executing OPatch prereq operations to verify patch applicability on home /u01/app/19.0.0/grid

Executing OPatch prereq operations to verify patch applicability on home /u02/app/oracle/product/19.0.0/db_1
Patch applicability verified successfully on home /u02/app/oracle/product/19.0.0/db_1

Patch applicability verified successfully on home /u01/app/19.0.0/grid


Verifying SQL patch applicability on home /u02/app/oracle/product/19.0.0/db_1
SQL patch applicability verified successfully on home /u02/app/oracle/product/19.0.0/db_1


Preparing to bring down database service on home /u02/app/oracle/product/19.0.0/db_1
Successfully prepared home /u02/app/oracle/product/19.0.0/db_1 to bring down database service


Bringing down CRS service on home /u01/app/19.0.0/grid
CRS service brought down successfully on home /u01/app/19.0.0/grid


Performing prepatch operation on home /u02/app/oracle/product/19.0.0/db_1
Perpatch operation completed successfully on home /u02/app/oracle/product/19.0.0/db_1


Start applying binary patch on home /u02/app/oracle/product/19.0.0/db_1
Binary patch applied successfully on home /u02/app/oracle/product/19.0.0/db_1


Performing postpatch operation on home /u02/app/oracle/product/19.0.0/db_1
Postpatch operation completed successfully on home /u02/app/oracle/product/19.0.0/db_1


Start applying binary patch on home /u01/app/19.0.0/grid
Binary patch applied successfully on home /u01/app/19.0.0/grid


Starting CRS service on home /u01/app/19.0.0/grid
CRS service started successfully on home /u01/app/19.0.0/grid


Preparing home /u02/app/oracle/product/19.0.0/db_1 after database service restarted
No step execution required.........


Trying to apply SQL patch on home /u02/app/oracle/product/19.0.0/db_1
SQL patch applied successfully on home /u02/app/oracle/product/19.0.0/db_1

OPatchAuto successful.

--------------------------------Summary--------------------------------

Patching is completed successfully. Please find the summary as follows:

Host:rac2
RAC Home:/u02/app/oracle/product/19.0.0/db_1
Version:19.0.0.0.0
Summary:

==Following patches were SKIPPED:

Patch: /oraru/30501910/30489632
Reason: This patch is not applicable to this specified target type - "rac_database"

Patch: /oraru/30501910/30655595
Reason: This patch is not applicable to this specified target type - "rac_database"


==Following patches were SUCCESSFULLY applied:

Patch: /oraru/30501910/30489227
Log: /u02/app/oracle/product/19.0.0/db_1/cfgtoollogs/opatchauto/core/opatch/opatch2020-03-18_12-49-03PM_1.log

Patch: /oraru/30501910/30557433
Log: /u02/app/oracle/product/19.0.0/db_1/cfgtoollogs/opatchauto/core/opatch/opatch2020-03-18_12-49-03PM_1.log


Host:rac2
CRS Home:/u01/app/19.0.0/grid
Version:19.0.0.0.0
Summary:

==Following patches were SUCCESSFULLY applied:

Patch: /oraru/30501910/30489227
Log: /u01/app/19.0.0/grid/cfgtoollogs/opatchauto/core/opatch/opatch2020-03-18_12-59-36PM_1.log

Patch: /oraru/30501910/30489632
Log: /u01/app/19.0.0/grid/cfgtoollogs/opatchauto/core/opatch/opatch2020-03-18_12-59-36PM_1.log

Patch: /oraru/30501910/30557433
Log: /u01/app/19.0.0/grid/cfgtoollogs/opatchauto/core/opatch/opatch2020-03-18_12-59-36PM_1.log

Patch: /oraru/30501910/30655595
Log: /u01/app/19.0.0/grid/cfgtoollogs/opatchauto/core/opatch/opatch2020-03-18_12-59-36PM_1.log



OPatchauto session completed at Wed Mar 18 13:35:07 2020
Time taken to complete the session 60 minutes, 25 seconds

复制

检查

[grid@rac1:/home/grid]$ $ORACLE_HOME/OPatch/opatch lsinventory
[grid@rac2:/home/grid]$ /u01/app/19.0.0/grid/OPatch/opatch lspatches
30655595;TOMCAT RELEASE UPDATE 19.0.0.0.0 (30655595)
30557433;Database Release Update : 19.6.0.0.200114 (30557433)
30489632;ACFS RELEASE UPDATE 19.6.0.0.0 (30489632)
30489227;OCW RELEASE UPDATE 19.6.0.0.0 (30489227)

OPatch succeeded.

SQL> select STATUS,DESCRIPTION from dba_registry_sqlpatch;

STATUS
-------------------------
DESCRIPTION
-------------------------------------------------------------------------------
SUCCESS
Database Release Update : 19.3.0.0.190416 (29517242)

SUCCESS
Database Release Update : 19.6.0.0.200114 (30557433)

复制
oracleoracle安装
最后修改时间：2022-02-12 16:30:41
「喜欢这篇文章，您的关注和赞赏是给作者最好的鼓励」
关注作者
2人已赞赏
【版权声明】本文为墨天轮用户原创内容，转载时必须标注文章的来源（墨天轮），文章链接，文章作者等基本信息，否则作者和墨天轮有权追究责任。如果您发现墨天轮中有涉嫌抄袭或者侵权的内容，欢迎发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

评论

肖雪松
暂无图片
4年前
评论
暂无图片 0
感谢分享
4年前
暂无图片 点赞
评论

相关阅读

【纯干货】Oracle 19C RU 19.27 发布，如何快速升级和安装？
Lucifer三思而后行
798次阅读
2025-04-18 14:18:38
Oracle RAC 一键安装翻车？手把手教你如何排错！
Lucifer三思而后行
666次阅读
2025-04-15 17:24:06
Oracle数据库一键巡检并生成HTML结果，免费脚本速来下载!
陈举超
600次阅读
2025-04-20 10:07:02
【ORACLE】你以为的真的是你以为的么?--ORA-38104: Columns referenced in the ON Clause cannot be updated
DarkAthena
551次阅读
2025-04-22 00:13:51
【活动】分享你的压箱底干货文档，三篇解锁进阶奖励！
墨天轮编辑部
536次阅读
2025-04-17 17:02:24
【ORACLE】记录一些ORACLE的merge into语句的BUG
DarkAthena
511次阅读
2025-04-22 00:20:37
一页概览：Oracle GoldenGate
甲骨文云技术
502次阅读
2025-04-30 12:17:56
火焰图--分析复杂SQL执行计划的利器
听见风的声音
472次阅读
2025-04-17 09:30:30
OR+DBLINK的关联SQL优化思路
布衣
384次阅读
2025-05-05 19:28:36
3月“墨力原创作者计划”获奖名单公布
墨天轮编辑部
383次阅读
2025-04-15 14:48:05
