OceanBase1.4 集群——节点宕机故障体验

一步一步学习OceanBase系列回顾：
第一篇：OceanBase 1.4 集群手动安装步骤
第二篇：obproxy的安装、配置和使用
第三篇：OceanBase 1.4 集群——租户的创建和使用
第四篇：OceanBase1.4 集群扩容
第五篇：OceanBase1.4 集群——租户的扩容

本篇是第六篇 ob1.4集群下，实操体验节点宕机故障，了解数据是怎样自动恢复和转移。。

oceanbase 1.4集群下，模拟节点宕机故障，分析数据分区变化情况

节点宕机，OB集群会经历两个阶段：一是leader主副本切换，二是节点下线副本补齐。

以下是实操体验：

1、宕机之前，查看业务租户my_test_tent下testdb库下，所有的表分区主备副本节点分布情况：
MySQL [oceanbase]> SELECT  t1.tenant_id,t1.tenant_name,t2.database_name,t3.table_id,t3.table_Name,t3.tablegroup_id,t3.part_num,t4.partition_Id,
    ->     t4.zone,t4.svr_ip,t4.role, round(t4.data_size/1024/1024) data_size_mb
    -> from `gv$tenant` t1
    ->     join `gv$database` t2 on (t1.tenant_id = t2.tenant_id)
    ->     join gv$table t3 on (t2.tenant_id = t3.tenant_id    and t2.database_id = t3.database_id and t3.index_type = 0)
    ->     left join `gv$partition` t4 on (t2.tenant_id = t4.tenant_id and ( t3.table_id = t4.table_id or t3.tablegroup_id = t4.table_id ) and t4.role in (1,2))
    -> where t1.tenant_id = 1001
    -> order by t3.tablegroup_id, t3.table_name,t4.partition_Id ;
+-----------+--------------+---------------+------------------+------------+---------------+----------+--------------+-------+---------------+------+--------------+
| tenant_id | tenant_name  | database_name | table_id         | table_Name | tablegroup_id | part_num | partition_Id | zone  | svr_ip        | role | data_size_mb |
+-----------+--------------+---------------+------------------+------------+---------------+----------+--------------+-------+---------------+------+--------------+
|      1001 | my_test_tent | testdb        | 1100611139453777 | test       |            -1 |        1 |            0 | zone2 | 192.168.0.89  |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453777 | test       |            -1 |        1 |            0 | zone3 | 192.168.0.143 |    1 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453777 | test       |            -1 |        1 |            0 | zone1 | 192.168.0.106 |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            0 | zone2 | 192.168.0.89  |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            0 | zone1 | 192.168.0.151 |    1 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            0 | zone3 | 192.168.0.143 |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            1 | zone2 | 192.168.0.43  |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            1 | zone3 | 192.168.0.41  |    1 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            1 | zone1 | 192.168.0.106 |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            2 | zone3 | 192.168.0.41  |    1 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            2 | zone1 | 192.168.0.106 |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            2 | zone2 | 192.168.0.43  |    2 |            0 |
+-----------+--------------+---------------+------------------+------------+---------------+----------+--------------+-------+---------------+------+--------------+
12 rows in set (0.06 sec)

MySQL [oceanbase]>


非分区表test的p0号分区，主副本在zone3下的143节点，两个备副本在zone1的106节点和zone2的89节点。

test_hash分区表的p0分区，主副本在zone1下的151节点，两个备副本在zone2的89节点和zone3的143节点。
test_hash分区表的p1分区，主副本在zone3下的41节点，两个备副本在zone1的106节点和zone2的43节点。
test_hash分区表的p2分区，主副本在zone3下的41节点，两个备副本在zone1的106节点和zone2的43节点。


2、模拟节点宕机，宕机zone3下的143节点，kill observer进程

MySQL [oceanbase]> select zone,svr_ip,svr_port,inner_port,with_rootserver,status,gmt_create from __all_server order by zone, svr_ip;
+-------+---------------+----------+------------+-----------------+----------+----------------------------+
| zone  | svr_ip        | svr_port | inner_port | with_rootserver | status   | gmt_create                 |
+-------+---------------+----------+------------+-----------------+----------+----------------------------+
| zone1 | 192.168.0.106 |     2882 |       2881 |               0 | active   | 2020-08-07 18:21:17.519966 |
| zone1 | 192.168.0.151 |     2882 |       2881 |               1 | active   | 2020-08-07 11:30:28.623847 |
| zone2 | 192.168.0.43  |     2882 |       2881 |               0 | active   | 2020-08-07 11:30:28.604907 |
| zone2 | 192.168.0.89  |     2882 |       2881 |               0 | active   | 2020-08-07 18:21:23.741350 |
| zone3 | 192.168.0.143 |     2882 |       2881 |               0 | inactive | 2020-08-07 18:21:29.227633 |
| zone3 | 192.168.0.41  |     2882 |       2881 |               0 | active   | 2020-08-07 11:30:28.613459 |
+-------+---------------+----------+------------+-----------------+----------+----------------------------+
6 rows in set (0.00 sec)

MySQL [oceanbase]>


3、节点宕机对业务操作的影响：

宕机之前，查询test表，会连接到test(p0)主副本所在的143节点
MySQL [testdb]> select * from test;
+------+---------+------+---------------------+
| id   | name    | age  | dt                  |
+------+---------+------+---------------------+
|    1 | ob1.4.6 |   20 | 2020-08-07 14:05:40 |
|    2 | 张三    |   26 | 1998-06-17 00:00:00 |
|    3 | 李四    |   32 | 1989-10-13 00:00:00 |
|    4 | Tom     |   30 | 1990-02-21 00:00:00 |
+------+---------+------+---------------------+
4 rows in set (0.00 sec)

宕机发生时，只会导致局部业务访问会中断，如：查询test表，会存在短暂的中断，因为主副本143节点宕机，ob内部会进行分区迁移，导致test(p0)此分区的业务会有短暂的中断或卡顿。
MySQL [testdb]> select * from test;
ERROR 4012 (HY000): Timeout
MySQL [testdb]>

当原143节点上的test主副本迁移到其它节点后，再次查询test表，数据正常。
MySQL [testdb]> select * from test;
+------+---------+------+---------------------+
| id   | name    | age  | dt                  |
+------+---------+------+---------------------+
|    1 | ob1.4.6 |   20 | 2020-08-07 14:05:40 |
|    2 | 张三    |   26 | 1998-06-17 00:00:00 |
|    3 | 李四    |   32 | 1989-10-13 00:00:00 |
|    4 | Tom     |   30 | 1990-02-21 00:00:00 |
+------+---------+------+---------------------+
4 rows in set (1.63 sec)

MySQL [testdb]>

4、宕机后，查看所有的表分区主备副本节点分布情况：
MySQL [oceanbase]> SELECT  t1.tenant_id,t1.tenant_name,t2.database_name,t3.table_id,t3.table_Name,t3.tablegroup_id,t3.part_num,t4.partition_Id,
    ->     t4.zone,t4.svr_ip,t4.role, round(t4.data_size/1024/1024) data_size_mb
    -> from `gv$tenant` t1
    ->     join `gv$database` t2 on (t1.tenant_id = t2.tenant_id)
    ->     join gv$table t3 on (t2.tenant_id = t3.tenant_id    and t2.database_id = t3.database_id and t3.index_type = 0)
    ->     left join `gv$partition` t4 on (t2.tenant_id = t4.tenant_id and ( t3.table_id = t4.table_id or t3.tablegroup_id = t4.table_id ) and t4.role in (1,2))
    -> where t1.tenant_id = 1001
    -> order by t3.tablegroup_id, t3.table_name,t4.partition_Id ;
+-----------+--------------+---------------+------------------+------------+---------------+----------+--------------+-------+---------------+------+--------------+
| tenant_id | tenant_name  | database_name | table_id         | table_Name | tablegroup_id | part_num | partition_Id | zone  | svr_ip        | role | data_size_mb |
+-----------+--------------+---------------+------------------+------------+---------------+----------+--------------+-------+---------------+------+--------------+
|      1001 | my_test_tent | testdb        | 1100611139453777 | test       |            -1 |        1 |            0 | zone2 | 192.168.0.89  |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453777 | test       |            -1 |        1 |            0 | zone3 | 192.168.0.143 |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453777 | test       |            -1 |        1 |            0 | zone1 | 192.168.0.106 |    1 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            0 | zone2 | 192.168.0.89  |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            0 | zone1 | 192.168.0.151 |    1 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            0 | zone3 | 192.168.0.143 |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            1 | zone2 | 192.168.0.43  |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            1 | zone3 | 192.168.0.41  |    1 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            1 | zone1 | 192.168.0.106 |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            2 | zone3 | 192.168.0.41  |    1 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            2 | zone1 | 192.168.0.106 |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            2 | zone2 | 192.168.0.43  |    2 |            0 |
+-----------+--------------+---------------+------------------+------------+---------------+----------+--------------+-------+---------------+------+--------------+
12 rows in set (0.06 sec)

MySQL [oceanbase]>

143节点宕机后，leader主副本进行切换，即：test表主副本由原zone3下143节点，转移到zone1下的106节点，两个备副本在zone2的89节点和zone3的143节点不变。

这里143 observer节点还未真正下线，当某个节点宕机后，OB集群会等待管理员去修复，如果1小时还未修复此节点，那么到时OB集群会剔除此节点，让该宕机节点下线，此时该节点下的所有分区备副本也将全部进行数据迁移到正常节点，即副本补齐策略。


5、节点下线，副本补齐。

MySQL [oceanbase]> SELECT  t1.tenant_id,t1.tenant_name,t2.database_name,t3.table_id,t3.table_Name,t3.tablegroup_id,t3.part_num,t4.partition_Id,
    ->     t4.zone,t4.svr_ip,t4.role, round(t4.data_size/1024/1024) data_size_mb
    -> from `gv$tenant` t1
    ->     join `gv$database` t2 on (t1.tenant_id = t2.tenant_id)
    ->     join gv$table t3 on (t2.tenant_id = t3.tenant_id    and t2.database_id = t3.database_id and t3.index_type = 0)
    ->     left join `gv$partition` t4 on (t2.tenant_id = t4.tenant_id and ( t3.table_id = t4.table_id or t3.tablegroup_id = t4.table_id ) and t4.role in (1,2))
    -> where t1.tenant_id = 1001
    -> order by t3.tablegroup_id, t3.table_name,t4.partition_Id ;
+-----------+--------------+---------------+------------------+------------+---------------+----------+--------------+-------+---------------+------+--------------+
| tenant_id | tenant_name  | database_name | table_id         | table_Name | tablegroup_id | part_num | partition_Id | zone  | svr_ip        | role | data_size_mb |
+-----------+--------------+---------------+------------------+------------+---------------+----------+--------------+-------+---------------+------+--------------+
|      1001 | my_test_tent | testdb        | 1100611139453777 | test       |            -1 |        1 |            0 | zone2 | 192.168.0.89  |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453777 | test       |            -1 |        1 |            0 | zone3 | 192.168.0.41  |    1 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453777 | test       |            -1 |        1 |            0 | zone1 | 192.168.0.106 |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            0 | zone2 | 192.168.0.89  |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            0 | zone3 | 192.168.0.41  |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            0 | zone1 | 192.168.0.151 |    1 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            1 | zone2 | 192.168.0.43  |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            1 | zone3 | 192.168.0.41  |    1 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            1 | zone1 | 192.168.0.106 |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            2 | zone3 | 192.168.0.41  |    1 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            2 | zone1 | 192.168.0.106 |    2 |            0 |
|      1001 | my_test_tent | testdb        | 1100611139453778 | test_hash  |            -1 |        3 |            2 | zone2 | 192.168.0.43  |    2 |            0 |
+-----------+--------------+---------------+------------------+------------+---------------+----------+--------------+-------+---------------+------+--------------+
12 rows in set (0.06 sec)

MySQL [oceanbase]>

这时再查看所有的表分区主备副本节点分布情况，已经没有143节点，原143节点上的副本都补齐到其它节点。

最终，143节点下线后，数据分布为：

非分区表test的p0号分区，宕机下线后，主副本从zone3下的143节点，转移到了zone3下的41节点，两个备副本在zone1的106节点和zone2的89节点。

test_hash分区表的p0分区，主副本在zone1下的151节点不变，原zone2下的89备副本不变，原zone3的143节点的备副本，转移到zone3下的41节点。
test_hash分区表的p1分区，主副本在zone3下的41节点不变，两个备副本在zone1的106节点和zone2的43节点不变。
test_hash分区表的p2分区，主副本在zone3下的41节点不变，两个备副本在zone1的106节点和zone2的43节点不变。

复制

6、以图的形式，展现143节点宕机前后数据的变化：

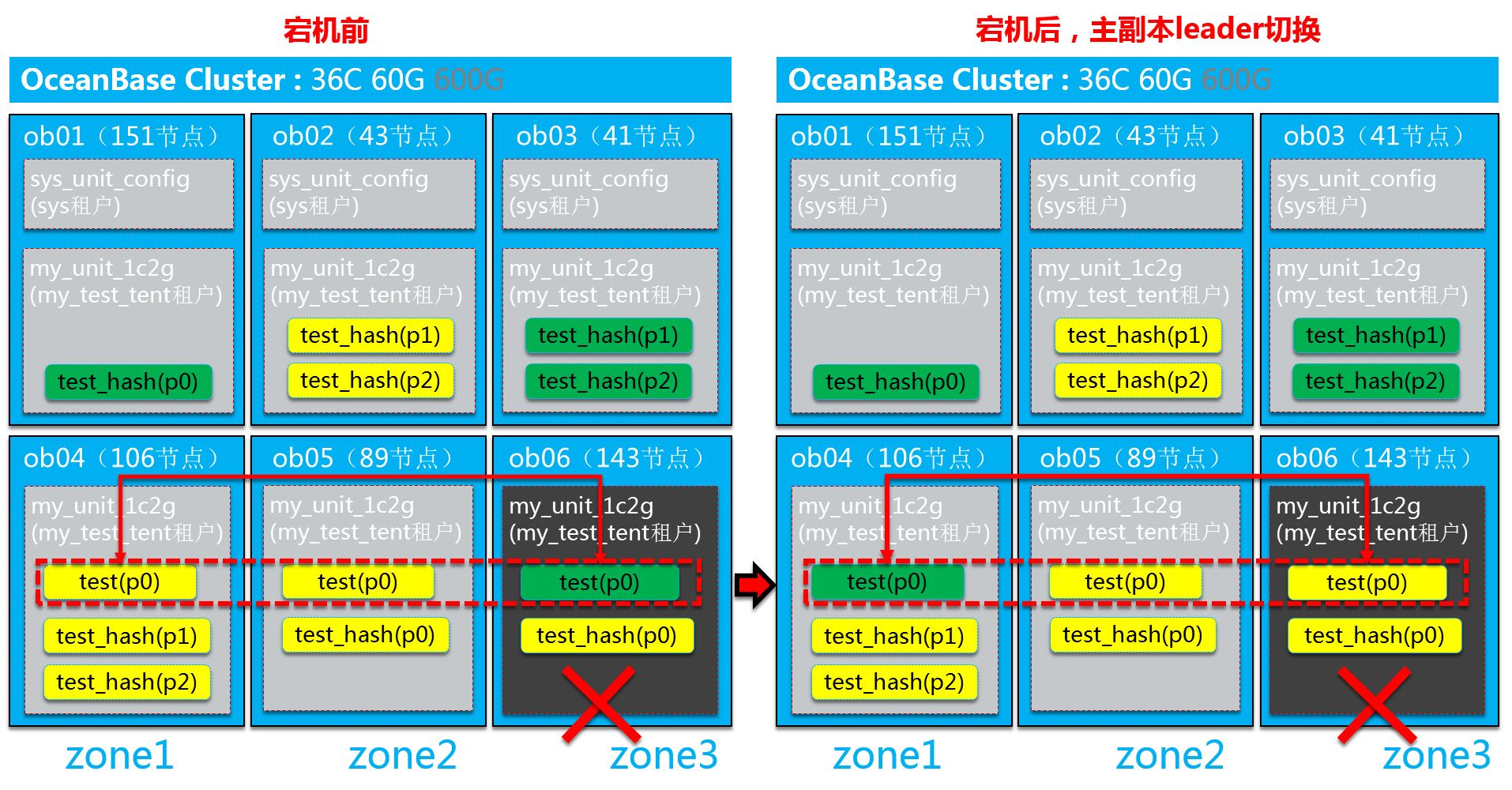

（1）、143节点宕机，leader主副本切换：

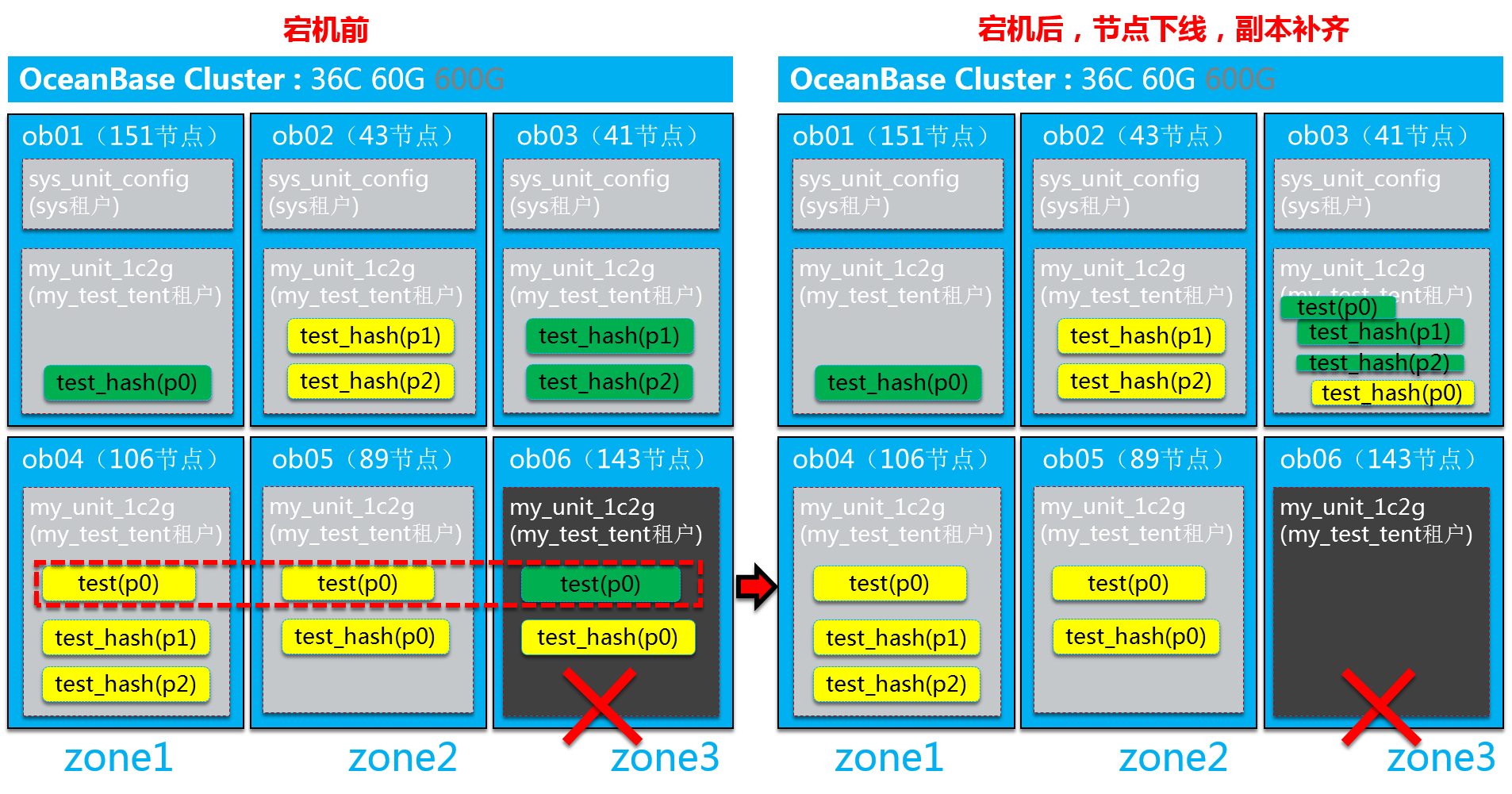

（2）、143节点宕机1小时后，节点下线，副本补齐

本次OceanBase 1.4集群节点宕机体验，到此结束。

一步一步学习OceanBase系列

下次实操继续更新~~~~~
