MySQL数据库SQL语句优化原理专题（三）

落叶说Mysql数据库运维 2020-11-02

471

需求

做过开发的同学，对分页肯定不会陌生，因为很多前台页面展示，为了更好的展示数据，就会用到分页，所以如何写一个高性能的分页SQL语句，是每一个开发人员需要掌握的技能。

分页SQL

这里给大家写一个分页SQL语句。

mysql> show create table sbtest1\G;
*************************** 1. row ***************************
       Table: sbtest1
Create Table: CREATE TABLE `sbtest1` (
  `id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  `k` int(10) unsigned NOT NULL DEFAULT '0',
  `c` char(120) NOT NULL DEFAULT '',
  `pad` char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (`id`),
  KEY `k_1` (`k`),
  KEY `idx_sbtest1_k_pad` (`k`,`pad`)
) ENGINE=InnoDB AUTO_INCREMENT=5000001 DEFAULT CHARSET=utf8 MAX_ROWS=1000000
1 row in set (0.00 sec)

这里准备了一张500W记录的测试表

mysql> select count(*) from sbtest1;
+----------+
| count(*) |
+----------+
|  5000000 |
+----------+
1 row in set (36.23 sec)

测试分页SQL语句

select a.* from sbtest1 a where k>=10 order by k limit 1000000,10;

DBA看一条SQL语句是否有性能问题，首先会看看SQL语句的执行计划，这里我们也一起先看看执行计划

mysql> explain select a.* from sbtest1 a where k>=10 order by k limit 1000000,10;
+----+-------------+-------+------------+------+-----------------------+------+---------+------+---------+----------+-----------------------------+
| id | select_type | table | partitions | type | possible_keys         | key  | key_len | ref  | rows    | filtered | Extra                       |
+----+-------------+-------+------------+------+-----------------------+------+---------+------+---------+----------+-----------------------------+
|  1 | SIMPLE      | a     | NULL       | ALL  | k_1,idx_sbtest1_k_pad | NULL | NULL    | NULL | 4804854 |    50.00 | Using where; Using filesort |
+----+-------------+-------+------------+------+-----------------------+------+---------+------+---------+----------+-----------------------------+
1 row in set, 1 warning (0.36 sec)

从执行计划上可以看到，possible_keys有k_1,idx_sbtest1_k_pad 两个，可是SQL语句真正执行的时候，并没有使用到索引，从key为NULL就可以知道，不走索引，性能基本会有问题，怎么办。

有的朋友会说，让SQL走索引啊，可是MySQL数据库的优化器，为什么不让SQL走索引呢。原来优化器会在索引存在的情况下，通过符合RANGE范围的条数和总数的比例来选择是使用索引还是进行全表遍历，当需要读取的数据超过一个临界值时，优化器会放弃从索引中读取而改为进行全表扫描。

有一定技术储备的朋友就会开始支招，强制走索引，那么来看看强制走索引的效果。

mysql> explain select a.* from sbtest1 a FORCE INDEX(k_1) where k>=10 order by k limit 1000000,10;
+----+-------------+-------+------------+-------+---------------+------+---------+------+---------+----------+-----------------------+
| id | select_type | table | partitions | type  | possible_keys | key  | key_len | ref  | rows    | filtered | Extra                 |
+----+-------------+-------+------------+-------+---------------+------+---------+------+---------+----------+-----------------------+
|  1 | SIMPLE      | a     | NULL       | range | k_1           | k_1  | 4       | NULL | 2402427 |   100.00 | Using index condition |
+----+-------------+-------+------------+-------+---------------+------+---------+------+---------+----------+-----------------------+
1 row in set, 1 warning (0.35 sec)

看执行计划，已经走了索引（k_1），那真实的执行时间来一起看看。

mysql> select a.* from sbtest1 a FORCE INDEX(k_1) where k>=10 order by k limit 1000000,10;
+---------+---------+-------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------+
| id      | k       | c                                                                                                                       | pad                                                         |
+---------+---------+-------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------+
|  625795 | 2491354 | 97204650565-29444916083-97115589676-40957844519-94449833558-65804998462-60532777657-14143069112-49633654712-45111409020 | 62512103246-48607606334-30155359433-33452555729-53895828100 |
|  699397 | 2491354 | 32339675223-04668542998-80231026645-48395677535-02765586559-55831506063-42378875097-54580937047-37599981559-17618207647 | 29107597440-02396388801-60803416516-20183514546-47217028215 |
|  710717 | 2491354 | 90067622196-22944775363-10477154003-65718440755-24111522288-05149673185-81902474191-32337446442-26659698531-19766723590 | 86804024266-77223258212-31659403967-01772860244-99013209389 |
|  743592 | 2491354 | 93848584940-19743659878-81447583142-56888444937-65254387827-69794611882-41783362491-17920606195-80837332876-61005171709 | 18905422789-64525703285-24594762685-66972415320-18032736842 |
|  857338 | 2491354 | 65447608668-53055131627-49484988592-56750024449-62428854104-09419771096-35386440425-85674387129-76043542898-38871555063 | 00988589677-01502672421-94556913009-28600249646-25815466940 |
|  865647 | 2491354 | 40627346200-31156486805-14979452789-43576795710-31471455633-50576965996-46658943363-33235956457-29071759844-01216446475 | 77768402076-66310138953-89244891269-40818622962-29528856272 |
|  867735 | 2491354 | 60189133283-00412480472-85765718780-99930014238-27634346893-05196495869-38494141485-78725336333-97665769760-66018168229 | 51330855469-21834479110-70983834788-18568325279-18729638102 |
|  911459 | 2491354 | 45484218970-22406621124-16181607460-87980700413-18848748487-38186811906-83866179899-48052521037-07022164880-32639610985 | 66781406596-73096831064-93546863231-94196105489-63929163328 |
|  936676 | 2491354 | 94497954531-98116538211-42837637393-90318550621-31404186605-85978752098-54751837452-40263829756-21584452095-09911571729 | 57946842290-70811751667-96407003836-80311371855-21528783577 |
| 1117598 | 2491354 | 01895171691-22358407775-28637603773-13518829168-90455880119-28672508798-65059848567-86474578422-79051749776-25498873626 | 19312889757-23713866145-22328278494-54535848675-44626652413 |
+---------+---------+-------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------+
10 rows in set (1 min 36.66 sec)

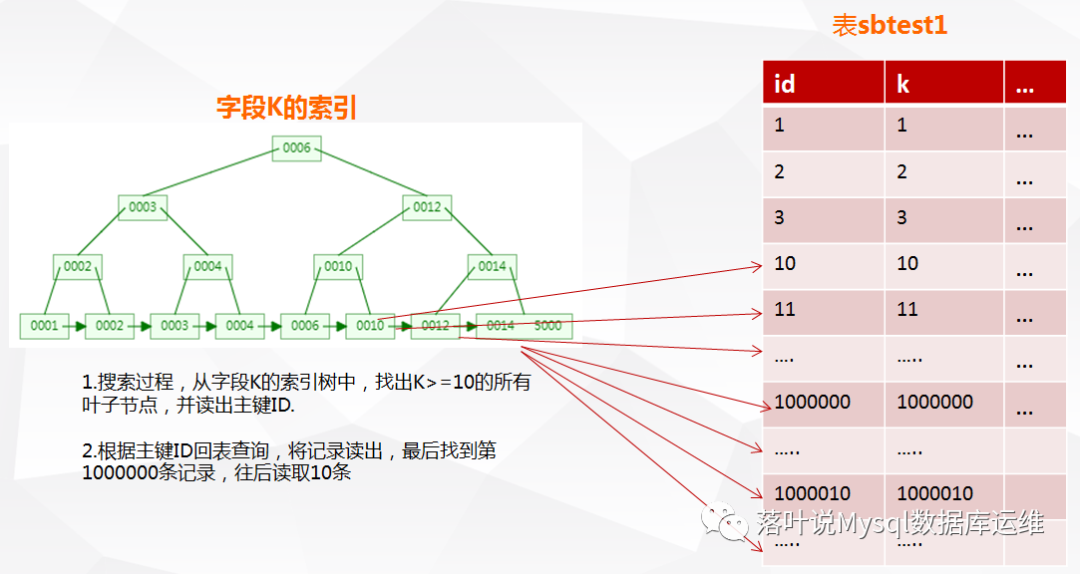

看到实际执行时间（1 min 36.66 sec)，是不是不敢相信，走索引了，怎么还会要1分36秒啊，简直不能接受。我来用一副图，来展示一下SQL语句执行过程，你就会明白，为什么执行时间长了。

从上图，可以很明显的看出，性能瓶颈在哪里了吧，是回表查询操作耗时，因为要回表查询大约500W次，所以怎么减少回表操作，就是优化的重点。

那可不可以只查询要返回的10条记录的ID，最后只做10次回表操作呢，答案，当然是可以的，优化之后的SQL如下所示。

mysql> explain select a.* from sbtest1 a inner join (select id from sbtest1 where k>=10 order by k limit 1000000,10) b using (id);
+----+-------------+------------+------------+--------+-----------------------+---------+---------+------+---------+----------+--------------------------+
| id | select_type | table      | partitions | type   | possible_keys         | key     | key_len | ref  | rows    | filtered | Extra                    |
+----+-------------+------------+------------+--------+-----------------------+---------+---------+------+---------+----------+--------------------------+
|  1 | PRIMARY     | <derived2> | NULL       | ALL    | NULL                  | NULL    | NULL    | NULL | 1000010 |   100.00 | NULL                     |
|  1 | PRIMARY     | a          | NULL       | eq_ref | PRIMARY               | PRIMARY | 4       | b.id |       1 |   100.00 | NULL                     |
|  2 | DERIVED     | sbtest1    | NULL       | range  | k_1,idx_sbtest1_k_pad | k_1     | 4       | NULL | 2402427 |   100.00 | Using where; Using index |
+----+-------------+------------+------------+--------+-----------------------+---------+---------+------+---------+----------+--------------------------+
3 rows in set, 1 warning (0.02 sec)

看执行计划，效果非常好，而且用的是覆盖索引，怎么看出是用了覆盖索引，因为Extra列同时出现了Using where和Using index。

来看看实际执行时间

mysql> select a.* from sbtest1 a inner join (select id from sbtest1 where k>=10 order by k limit 1000000,10) b using (id);
+---------+---------+-------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------+
| id      | k       | c                                                                                                                       | pad                                                         |
+---------+---------+-------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------+
|  625795 | 2491354 | 97204650565-29444916083-97115589676-40957844519-94449833558-65804998462-60532777657-14143069112-49633654712-45111409020 | 62512103246-48607606334-30155359433-33452555729-53895828100 |
|  699397 | 2491354 | 32339675223-04668542998-80231026645-48395677535-02765586559-55831506063-42378875097-54580937047-37599981559-17618207647 | 29107597440-02396388801-60803416516-20183514546-47217028215 |
|  710717 | 2491354 | 90067622196-22944775363-10477154003-65718440755-24111522288-05149673185-81902474191-32337446442-26659698531-19766723590 | 86804024266-77223258212-31659403967-01772860244-99013209389 |
|  743592 | 2491354 | 93848584940-19743659878-81447583142-56888444937-65254387827-69794611882-41783362491-17920606195-80837332876-61005171709 | 18905422789-64525703285-24594762685-66972415320-18032736842 |
|  857338 | 2491354 | 65447608668-53055131627-49484988592-56750024449-62428854104-09419771096-35386440425-85674387129-76043542898-38871555063 | 00988589677-01502672421-94556913009-28600249646-25815466940 |
|  865647 | 2491354 | 40627346200-31156486805-14979452789-43576795710-31471455633-50576965996-46658943363-33235956457-29071759844-01216446475 | 77768402076-66310138953-89244891269-40818622962-29528856272 |
|  867735 | 2491354 | 60189133283-00412480472-85765718780-99930014238-27634346893-05196495869-38494141485-78725336333-97665769760-66018168229 | 51330855469-21834479110-70983834788-18568325279-18729638102 |
|  911459 | 2491354 | 45484218970-22406621124-16181607460-87980700413-18848748487-38186811906-83866179899-48052521037-07022164880-32639610985 | 66781406596-73096831064-93546863231-94196105489-63929163328 |
|  936676 | 2491354 | 94497954531-98116538211-42837637393-90318550621-31404186605-85978752098-54751837452-40263829756-21584452095-09911571729 | 57946842290-70811751667-96407003836-80311371855-21528783577 |
| 1117598 | 2491354 | 01895171691-22358407775-28637603773-13518829168-90455880119-28672508798-65059848567-86474578422-79051749776-25498873626 | 19312889757-23713866145-22328278494-54535848675-44626652413 |
+---------+---------+-------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------+
10 rows in set (0.31 sec)

效果也是非常棒的，310毫秒就查询出了结果。

进阶

在这里优化之后的SQL语句如下所示

select a.* from sbtest1 a inner join (select id from sbtest1 where k>=10 order by k limit 1000000,10) b using (id);

如果order by后面需要加上pad列进行排序呢，变成如下所示

select a.* from sbtest1 a inner join (select id from sbtest1 where k>=10 order by k,pad limit 1000000,10) b using (id);

上述分页优化核心思想就是覆盖索引，很显然加pad列之后，就不能用覆盖索引解决问题了，因为不满足使用覆盖索引的条件。

mysql> explain select id from sbtest1 where k>=10 order by k,pad limit 1000000,10;
+----+-------------+---------+------------+------+---------------+------+---------+------+---------+----------+-----------------------------+
| id | select_type | table   | partitions | type | possible_keys | key  | key_len | ref  | rows    | filtered | Extra                       |
+----+-------------+---------+------------+------+---------------+------+---------+------+---------+----------+-----------------------------+
|  1 | SIMPLE      | sbtest1 | NULL       | ALL  | k_1           | NULL | NULL    | NULL | 4804854 |    50.00 | Using where; Using filesort |
+----+-------------+---------+------------+------+---------------+------+---------+------+---------+----------+-----------------------------+
1 row in set, 1 warning (0.01 sec)

这个时候要如何优化呢，需要在k和pad列上创建复合索引，就可以解决问题。

给大家留一个SQL，大家看看怎么优化。

select a.id from sbtest1 a where k>=10 order by k desc,pad asc limit 1000000,10;
