SCA兼容性分析工具（ORACLE/MySQL/DB2--->MogDB/openGauss/PostgreSQL）

原创阎书利 2022-08-03

1439

SCA 全称 SQL Compatibility Analyzer。用于评估源数据库中的实际业务 SQL 在目标库中是否能正常执行，以及评估异构数据库中 SQL 的实际性能差异。

本工具目前支持三种源端数据库，包括： Oracle, MySQL, DB2的数据库到MogDB（以及其他基于 openGauss 的数据库）的兼容性分析，PostgreSQL数据库也可以支持，但是效果不如MogDB/openGauss。

工具下载地址为：https://docs.mogdb.io/zh/sca/v5.1/release-notes
相关文档：https://docs.mogdb.io/zh/sca/v5.1/overview

1.license.json

获取软件license.json，填入邮箱后，会发送到邮箱，之后放到和sca的同级目录。

./sca_linux_x86_64 -T L
复制

2.初始化资料库

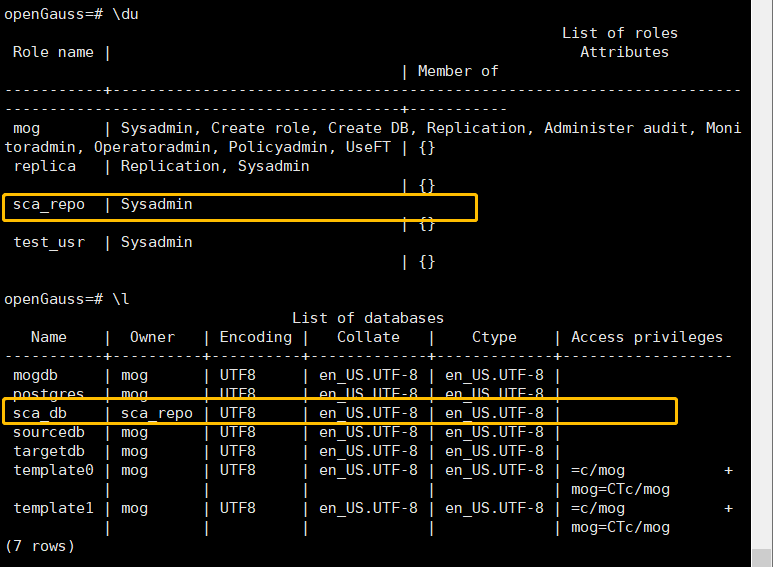

sca工具需要一个MogDB数据库做中间资料库，存放兼容性相关信息。这里test_usr 用户需要提前在MogDB数据库创建，其余的sca_db为在资料库初始化的库，sca_repo 是资料库里初始化的用户，这两个会自己创建。

[mog@node1 sca]$ ./sca_linux_x86_64 -T i -H 172.20.10.7 -P 29000 -N sca_db -U sca_repo -E 'SCA@password' --user test_usr --password test@123
2022-06-21 18:19:53.804247 INFO [runMe.py:337] Run steps from [1:load] to [7:excel_report]
2022-06-21 18:19:53.804304 INFO [runMe.py:381] Get license file [./license.json]
2022-06-21 18:19:53.820971 INFO [runMe.py:383] License verification succeed
2022-06-21 18:19:53.821015 INFO [runMe.py:391] Begin init repository
2022-06-21 18:19:54.028275 INFO [Repo.py:33] Create role/database
2022-06-21 18:19:55.731424 INFO [Repo.py:41] Switch to repository database
2022-06-21 18:19:55.837994 INFO [Repo.py:49] Init objects in repository
2022-06-21 18:19:56.617978 INFO [Repo.py:53] Init successfully
复制

3.oracle数据采集

oracle端用户授权，这个用户负责通过视图查询数据库里跑着的一些SQL，和相关表结构。

create user test_usr identified by "test123" ;
grant connect to test_usr;
grant SELECT ANY DICTIONARY to test_usr;
grant CREATE PROCEDURE to test_usr;
grant EXECUTE ON DBMS_LOB to test_usr;
grant SELECT ON GV_$SQL_PLAN to test_usr;
复制

采集一次用（测试）

这里172.20.10.9的IP为ORACLE端的IP，-s test_usr 为数据采集的schema，-n prod指定了ORACLE端的实例名，-u test_user为刚才的用户，-e test123为密码，-q 0.001 -Q 60表示采集一次。

[mog@node1 sca]$ ./sca_linux_x86_64 -T OC -s test_usr -h 172.20.10.9 -p1521 -n prod -u test_usr -e test123 -q 0.001 -Q 60  -m off -d data
2022-06-21 18:55:43.010240 INFO [runMe.py:337] Run steps from [1:load] to [7:excel_report]
2022-06-21 18:55:43.010305 INFO [runMe.py:381] Get license file [./license.json]
2022-06-21 18:55:43.029091 INFO [runMe.py:383] License verification succeed
2022-06-21 18:55:43.336589 INFO [OraCollector.py:50] Check DB privilege for [test_usr]
2022-06-21 18:55:44.114096 INFO [OraCollector.py:157] Get DB information
2022-06-21 18:55:44.132185 INFO [OraCollector.py:181] DB Info: [PROD (11.2.0.4)]
2022-06-21 18:55:44.132277 INFO [OraCollector.py:182] DB Charset: [AL32UTF8]
2022-06-21 18:55:44.132657 INFO [OraCollector.py:222] Parse schema filter
2022-06-21 18:55:44.196589 INFO [OraCollector.py:247] SCHEMA_NAME_LIST: ['TEST_USR']
2022-06-21 18:55:44.196903 INFO [OraCollector.py:343] Start collecting metadata information ...
2022-06-21 18:55:44.196945 INFO [OraCollector.py:345] Start meta collection for [COLUMN_DEFINITION]
2022-06-21 18:55:45.432740 INFO [OraCollector.py:373] Finish meta collection for [COLUMN_DEFINITION]
2022-06-21 18:55:45.433491 INFO [OraCollector.py:345] Start meta collection for [PLSQL_DEFINITION]
2022-06-21 18:55:47.771530 INFO [OraCollector.py:373] Finish meta collection for [PLSQL_DEFINITION]
2022-06-21 18:55:47.771690 INFO [OraCollector.py:375] All metadata information collected
2022-06-21 18:55:47.814902 INFO [OraCollector.py:302] Session query progress [1 of 1]
2022-06-21 18:55:47.841517 INFO [OraCollector.py:389] Start collecting sql information ...
2022-06-21 18:55:48.403803 INFO [OraCollector.py:486] Finish current SQL collection [All: 6, New: 6]
2022-06-21 18:55:48.408870 INFO [OraCollector.py:332] SQL collection all completed
2022-06-21 18:55:48.409912 INFO [runMe.py:511] +==================== [ Summary Information ] ====================+
2022-06-21 18:55:48.410011 INFO [runMe.py:512] | Task Name                                  File Name  File Size |
2022-06-21 18:55:48.410062 INFO [runMe.py:513] | --------------------- ------------------------------ ---------- |
2022-06-21 18:55:48.410118 INFO [runMe.py:515] | SCA_SESSION_SQL              sca_sql_information.dat    49.62KB |
2022-06-21 18:55:48.410164 INFO [runMe.py:515] | SCA_SESSION_SQL_PERF         sca_sql_performance.dat       530B |
2022-06-21 18:55:48.410206 INFO [runMe.py:515] | PLSQL_DEFINITION            sca_plsql_definition.dat       318B |
2022-06-21 18:55:48.410248 INFO [runMe.py:515] | SCA_DATABASE                        sca_database.dat       293B |
2022-06-21 18:55:48.410289 INFO [runMe.py:515] | COLUMN_DEFINITION          sca_column_definition.dat        70B |
2022-06-21 18:55:48.411887 INFO [runMe.py:516] +=================================================================+

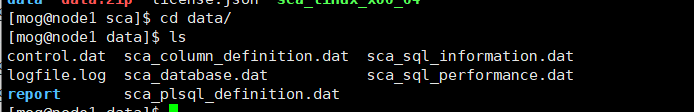

 >>> Final Result is:
 >>> ----------------------------------------------
 >>> data.zip

复制

采集一周用（不带-q -Q 默认采集一周）

./sca_linux_x86_64 -T OC -s test_usr -h 172.20.10.9 -p1521 -n prod -u test_usr -e test123   -m off -d data

复制

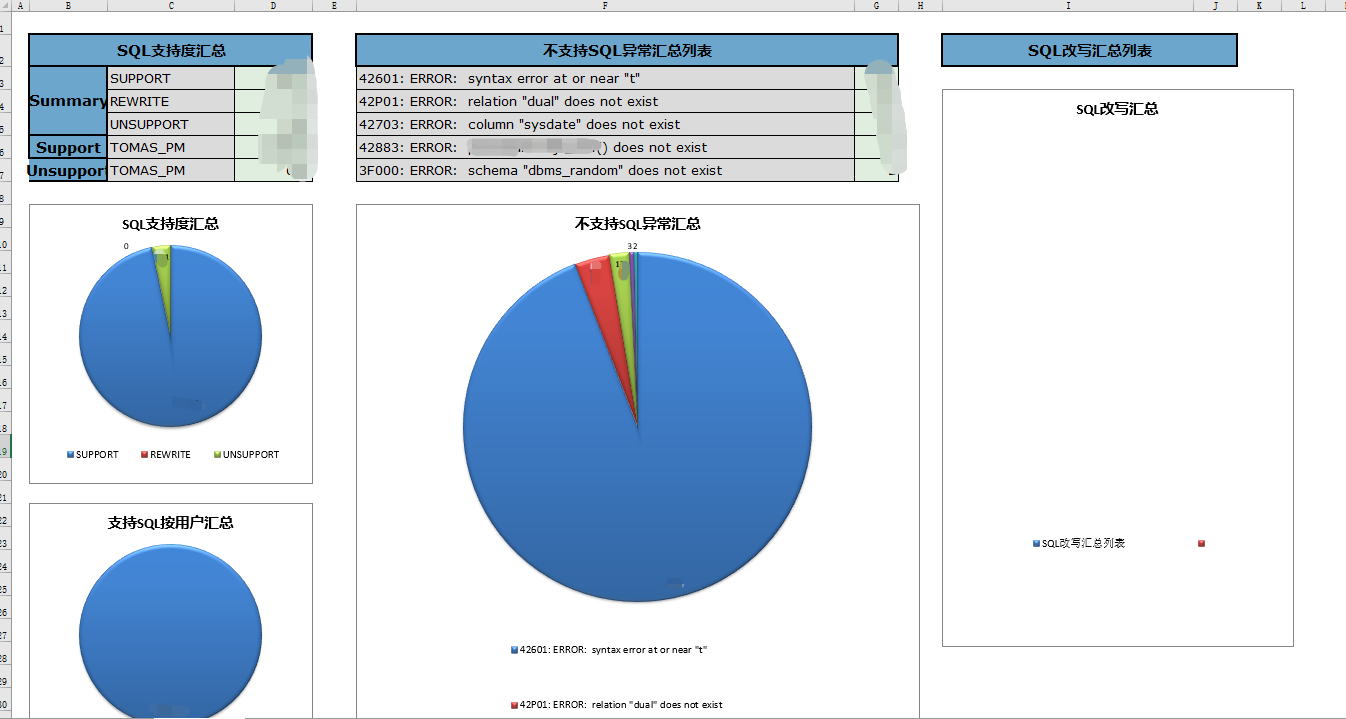

4.oracle数据分析

做兼容性分析时候，会从资料库里取表结构，如果怕取的表结构有问题，可以先同步一份表结构到目标库。（

其中OIS为同时进行SQL兼容度与性能评估 (资料库已初始化)，OI为只分析SQL兼容度，如果是PostgreSQL数据库，建议只使用OI（目前暂未完善PostgreSQL性能分析）。

（如果要做性能评估，需要把数据迁移到目标库。迁移数据和表结构均可以使用云和恩墨的MTK工具，或者其他迁移工具，否则没有数据，性能评估参考意义不大）

MTK的链接地址为：https://www.mogdb.io/mtk

MTK全称为 Database Migration Toolkit，是一个可以将Oracle/DB2/MySQL/openGauss数据库的数据结构，全量数据高速导入到MogDB的工具。最新版本同时支持对于Oracle数据库中存储过程，函数，触发器等程序段的MogDB兼容性改写和导入。

我这里的环境资料库和目标端都是一个数据库，因此没有额外指定-h。如果资料库和目标库非一个库，需要额外加上目标端和资料库相关参数。（可以适当参考附录中的PostgreSQL的兼容度分析的例子或者参考文章开头的SCA手册）

[mog@node1 sca]$ ./sca_linux_x86_64 -T OIS -H 172.20.10.7 -P 29000  -d data
2022-06-21 19:25:57.932652 INFO [runMe.py:337] Run steps from [1:load] to [7:excel_report]
2022-06-21 19:25:57.933019 INFO [runMe.py:381] Get license file [./license.json]
2022-06-21 19:25:58.003541 INFO [runMe.py:383] License verification succeed
2022-06-21 19:25:58.003663 INFO [runMe.py:569] Load data from [data]
2022-06-21 19:25:58.003688 INFO [Loader.py:122] Begin to load data from directory [data]
2022-06-21 19:25:58.418652 INFO [Loader.py:131] Get current data id [2]
2022-06-21 19:25:58.419511 INFO [Logger.py:142] Set task [File_Loader] [0 of 52025]
2022-06-21 19:25:58.775148 INFO [Loader.py:141] Loader order [['sca_sql_information.dat', 'sca_sql_performance.dat', 'sca_plsql_definition.dat', 'sca_database.dat', 'sca_column_definition.dat']]
2022-06-21 19:25:58.783417 INFO [Loader.py:142] Start loading with [10] workers
2022-06-21 19:25:59.453712 INFO [Loader.py:25] Begin to load file [data/sca_sql_information.dat] into table [sca_sql_information]
2022-06-21 19:25:59.461333 INFO [Loader.py:25] Begin to load file [data/sca_sql_performance.dat] into table [sca_sql_performance]
2022-06-21 19:25:59.476637 INFO [Loader.py:25] Begin to load file [data/sca_plsql_definition.dat] into table [sca_plsql_definition]
2022-06-21 19:25:59.492118 INFO [Loader.py:25] Begin to load file [data/sca_database.dat] into table [sca_database]
2022-06-21 19:25:59.515902 INFO [Loader.py:25] Begin to load file [data/sca_column_definition.dat] into table [sca_column_definition]
2022-06-21 19:25:59.524734 INFO [TaskFile.py:71] Prepared reading task file [data/sca_sql_information.dat]
2022-06-21 19:25:59.553503 INFO [TaskFile.py:71] Prepared reading task file [data/sca_column_definition.dat]
2022-06-21 19:25:59.531707 INFO [TaskFile.py:71] Prepared reading task file [data/sca_sql_performance.dat]
2022-06-21 19:25:59.535854 INFO [TaskFile.py:71] Prepared reading task file [data/sca_plsql_definition.dat]
2022-06-21 19:25:59.539683 INFO [TaskFile.py:71] Prepared reading task file [data/sca_database.dat]
2022-06-21 19:26:00.145376 INFO [TaskFile.py:105] Finished reading task file [data/sca_database.dat]
2022-06-21 19:26:00.156478 INFO [Loader.py:63] [2] lines processed in task file [data/sca_database.dat]
2022-06-21 19:26:00.144288 INFO [TaskFile.py:105] Finished reading task file [data/sca_sql_performance.dat]
2022-06-21 19:26:00.144253 INFO [TaskFile.py:105] Finished reading task file [data/sca_column_definition.dat]
2022-06-21 19:26:00.164056 INFO [Loader.py:63] [0] lines processed in task file [data/sca_column_definition.dat]
2022-06-21 19:26:00.244566 INFO [Loader.py:63] [7] lines processed in task file [data/sca_sql_performance.dat]
2022-06-21 19:26:00.422637 INFO [TaskFile.py:105] Finished reading task file [data/sca_sql_information.dat]
2022-06-21 19:26:00.479841 INFO [Loader.py:63] [7] lines processed in task file [data/sca_sql_information.dat]
2022-06-21 19:26:00.544617 INFO [TaskFile.py:105] Finished reading task file [data/sca_plsql_definition.dat]
2022-06-21 19:26:00.593738 INFO [Loader.py:63] [6] lines processed in task file [data/sca_plsql_definition.dat]
2022-06-21 19:26:00.765039 INFO [Logger.py:173] Task [File_Loader] has finished in [2] seconds
2022-06-21 19:26:00.765422 INFO [Loader.py:77] Begin clean data for [CLEAN_USER_TOOL_SQL]
2022-06-21 19:26:00.771727 INFO [Loader.py:77] Begin clean data for [UNIQUE_SQL]
2022-06-21 19:26:00.775367 INFO [Loader.py:77] Begin clean data for [UNIQUE_SQL_PERF]
2022-06-21 19:26:00.782209 INFO [runMe.py:571] Data loaded with data_id [2]
2022-06-21 19:26:00.782266 INFO [ObjectComplementor.py:156] Start object completion for data_id [2]
2022-06-21 19:26:00.795469 INFO [Logger.py:142] Set task [Object_Completion] [0 of 2]
2022-06-21 19:26:00.848748 INFO [ObjectComplementor.py:36] Table worker [30009] started
2022-06-21 19:26:00.884290 INFO [ObjectComplementor.py:36] Table worker [30014] started
2022-06-21 19:26:00.969517 INFO [ObjectComplementor.py:36] Table worker [30016] started
2022-06-21 19:26:01.204704 INFO [ObjectComplementor.py:36] Table worker [30010] started
2022-06-21 19:26:01.290228 INFO [ObjectComplementor.py:36] Table worker [30015] started
2022-06-21 19:26:01.238711 INFO [ObjectComplementor.py:36] Table worker [30012] started
2022-06-21 19:26:01.370189 INFO [ObjectComplementor.py:36] Table worker [30020] started
2022-06-21 19:26:01.450435 INFO [ObjectComplementor.py:36] Table worker [30022] started
2022-06-21 19:26:01.585807 INFO [ObjectComplementor.py:36] Table worker [30021] started
2022-06-21 19:26:01.918643 INFO [ObjectComplementor.py:36] Table worker [30024] started
2022-06-21 19:26:03.101054 INFO [ObjectComplementor.py:69] Table worker [30009] completed in [2.25] seconds
2022-06-21 19:26:04.546533 INFO [ObjectComplementor.py:69] Table worker [30014] completed in [3.66] seconds
2022-06-21 19:26:06.032098 INFO [ObjectComplementor.py:69] Table worker [30012] completed in [4.8] seconds
2022-06-21 19:26:06.168861 INFO [ObjectComplementor.py:69] Table worker [30010] completed in [4.97] seconds
2022-06-21 19:26:06.173421 INFO [ObjectComplementor.py:69] Table worker [30022] completed in [4.8] seconds
2022-06-21 19:26:06.208889 INFO [ObjectComplementor.py:69] Table worker [30021] completed in [4.63] seconds
2022-06-21 19:26:06.211021 INFO [ObjectComplementor.py:69] Table worker [30015] completed in [4.99] seconds
2022-06-21 19:26:06.226953 INFO [ObjectComplementor.py:69] Table worker [30024] completed in [4.31] seconds
2022-06-21 19:26:06.227171 INFO [ObjectComplementor.py:69] Table worker [30016] completed in [5.31] seconds
2022-06-21 19:26:06.229191 INFO [ObjectComplementor.py:69] Table worker [30020] completed in [4.86] seconds
2022-06-21 19:26:06.247634 INFO [ObjectComplementor.py:83] PLSQL worker [30075] started
2022-06-21 19:26:06.249767 INFO [ObjectComplementor.py:83] PLSQL worker [30076] started
2022-06-21 19:26:06.282853 INFO [ObjectComplementor.py:83] PLSQL worker [30082] started
2022-06-21 19:26:06.284555 INFO [ObjectComplementor.py:83] PLSQL worker [30085] started
2022-06-21 19:26:06.286866 INFO [ObjectComplementor.py:83] PLSQL worker [30080] started
2022-06-21 19:26:06.297060 INFO [ObjectComplementor.py:83] PLSQL worker [30078] started
2022-06-21 19:26:06.298153 INFO [ObjectComplementor.py:83] PLSQL worker [30087] started
2022-06-21 19:26:06.299673 INFO [ObjectComplementor.py:83] PLSQL worker [30083] started
2022-06-21 19:26:06.302537 INFO [ObjectComplementor.py:83] PLSQL worker [30090] started
2022-06-21 19:26:06.302717 INFO [ObjectComplementor.py:83] PLSQL worker [30091] started
2022-06-21 19:26:07.035553 INFO [ObjectComplementor.py:117] PLSQL worker [30075] completed in [0.79] seconds
2022-06-21 19:26:07.035937 INFO [ObjectComplementor.py:117] PLSQL worker [30076] completed in [0.79] seconds
2022-06-21 19:26:07.361186 INFO [ObjectComplementor.py:117] PLSQL worker [30082] completed in [1.08] seconds
2022-06-21 19:26:07.432812 INFO [ObjectComplementor.py:117] PLSQL worker [30085] completed in [1.15] seconds
2022-06-21 19:26:07.445819 INFO [ObjectComplementor.py:117] PLSQL worker [30087] completed in [1.15] seconds
2022-06-21 19:26:07.456366 INFO [ObjectComplementor.py:117] PLSQL worker [30078] completed in [1.16] seconds
2022-06-21 19:26:07.464116 INFO [ObjectComplementor.py:117] PLSQL worker [30080] completed in [1.18] seconds
2022-06-21 19:26:07.478522 INFO [ObjectComplementor.py:117] PLSQL worker [30091] completed in [1.18] seconds
2022-06-21 19:26:07.481261 INFO [ObjectComplementor.py:117] PLSQL worker [30083] completed in [1.18] seconds
2022-06-21 19:26:07.503265 INFO [ObjectComplementor.py:117] PLSQL worker [30090] completed in [1.2] seconds
2022-06-21 19:26:07.511723 INFO [Logger.py:173] Task [Object_Completion] has finished in [7] seconds
2022-06-21 19:26:07.529520 INFO [ObjectComplementor.py:348] Completed object completion
2022-06-21 19:26:07.534394 INFO [runMe.py:590] Start Oracle inspection
2022-06-21 19:26:07.534462 INFO [OraInspector.py:336] Start Oracle inspection
2022-06-21 19:26:07.546732 INFO [Logger.py:142] Set task [SQL Checker] [0 of 10]
2022-06-21 19:26:07.557477 INFO [OraInspector.py:213] Check session SQLs
2022-06-21 19:26:07.599083 INFO [OraInspector.py:247] Wait all session SQL finished
2022-06-21 19:26:07.739479 INFO [OraInspector.py:128] Process [30153] finished [5] SQL in 0.12 secs
2022-06-21 19:26:07.829312 INFO [OraInspector.py:272] Session SQL inspector finished
2022-06-21 19:26:07.829914 INFO [OraInspector.py:290] Check SQL complexity
2022-06-21 19:26:07.874672 INFO [OraInspector.py:318] Wait all SQL complexity inspector finished
2022-06-21 19:26:07.992392 INFO [OraInspector.py:187] Process [30190] finished [5] SQL in 0.11 secs
2022-06-21 19:26:08.100857 INFO [OraInspector.py:324] SQL complexity finished
2022-06-21 19:26:08.106156 INFO [Logger.py:173] Task [SQL Checker] has finished in [1] seconds
2022-06-21 19:26:08.108422 INFO [OraInspector.py:374] Complete Oracle inspection
2022-06-21 19:26:08.115237 INFO [runMe.py:592] Oracle inspection completed
2022-06-21 19:26:08.115295 INFO [ObjectComplementor.py:353] Start object rollback
2022-06-21 19:26:08.124641 INFO [Logger.py:142] Set task [Object_Rollback] [0 of 2]
2022-06-21 19:26:08.160659 INFO [ObjectComplementor.py:130] Rollback worker [30237] started
2022-06-21 19:26:08.173981 INFO [ObjectComplementor.py:130] Rollback worker [30246] started
2022-06-21 19:26:08.165355 INFO [ObjectComplementor.py:130] Rollback worker [30240] started
2022-06-21 19:26:08.165745 INFO [ObjectComplementor.py:130] Rollback worker [30241] started
2022-06-21 19:26:08.167172 INFO [ObjectComplementor.py:130] Rollback worker [30242] started
2022-06-21 19:26:08.167196 INFO [ObjectComplementor.py:130] Rollback worker [30244] started
2022-06-21 19:26:08.168604 INFO [ObjectComplementor.py:130] Rollback worker [30239] started
2022-06-21 19:26:08.169236 INFO [ObjectComplementor.py:130] Rollback worker [30245] started
2022-06-21 19:26:08.164513 INFO [ObjectComplementor.py:130] Rollback worker [30238] started
2022-06-21 19:26:08.175606 INFO [ObjectComplementor.py:130] Rollback worker [30247] started
2022-06-21 19:26:08.211168 INFO [ObjectComplementor.py:151] Rollback worker [30246] completed in [0.04] seconds
2022-06-21 19:26:08.216913 INFO [ObjectComplementor.py:151] Rollback worker [30240] completed in [0.05] seconds
2022-06-21 19:26:08.217640 INFO [ObjectComplementor.py:151] Rollback worker [30237] completed in [0.06] seconds
2022-06-21 19:26:08.278234 INFO [ObjectComplementor.py:151] Rollback worker [30241] completed in [0.11] seconds
2022-06-21 19:26:08.281896 INFO [ObjectComplementor.py:151] Rollback worker [30239] completed in [0.11] seconds
2022-06-21 19:26:08.297052 INFO [ObjectComplementor.py:151] Rollback worker [30245] completed in [0.13] seconds
2022-06-21 19:26:08.299565 INFO [ObjectComplementor.py:151] Rollback worker [30247] completed in [0.12] seconds
2022-06-21 19:26:08.304126 INFO [ObjectComplementor.py:151] Rollback worker [30242] completed in [0.14] seconds
2022-06-21 19:26:08.304123 INFO [ObjectComplementor.py:151] Rollback worker [30244] completed in [0.14] seconds
2022-06-21 19:26:08.306738 INFO [ObjectComplementor.py:151] Rollback worker [30238] completed in [0.14] seconds
2022-06-21 19:26:08.317492 INFO [Logger.py:173] Task [Object_Rollback] has finished in [0] seconds
2022-06-21 19:26:08.319323 INFO [ObjectComplementor.py:403] Completed object rollback
2022-06-21 19:26:08.324722 INFO [runMe.py:603] Start Oracle simulation
2022-06-21 19:26:08.324787 INFO [OraSimulator.py:174] Begin Oracle SQL simulation
2022-06-21 19:26:08.334735 INFO [OraSimulator.py:192] Begin run prepare SQL [analyze]
2022-06-21 19:26:09.141634 INFO [OraSimulator.py:194] SQL completed, elapsed [0.806840181350708]
2022-06-21 19:26:09.152574 INFO [Logger.py:142] Set task [SQL_Simulator] [0 of 6]
2022-06-21 19:26:09.186617 INFO [OraSimulator.py:38] Simulator worker [30302] started
2022-06-21 19:26:09.188600 INFO [OraSimulator.py:38] Simulator worker [30303] started
2022-06-21 19:26:09.190528 INFO [OraSimulator.py:38] Simulator worker [30305] started
2022-06-21 19:26:09.199252 INFO [OraSimulator.py:38] Simulator worker [30304] started
2022-06-21 19:26:09.216333 INFO [OraSimulator.py:38] Simulator worker [30314] started
2022-06-21 19:26:09.217835 INFO [OraSimulator.py:38] Simulator worker [30316] started
2022-06-21 19:26:09.219236 INFO [OraSimulator.py:38] Simulator worker [30318] started
2022-06-21 19:26:09.228844 INFO [OraSimulator.py:38] Simulator worker [30309] started
2022-06-21 19:26:09.229457 INFO [OraSimulator.py:38] Simulator worker [30307] started
2022-06-21 19:26:09.371060 INFO [OraSimulator.py:110] Simulator worker [30302] completed in [0.18] seconds
2022-06-21 19:26:09.231130 INFO [OraSimulator.py:38] Simulator worker [30311] started
2022-06-21 19:26:09.515480 INFO [OraSimulator.py:110] Simulator worker [30303] completed in [0.33] seconds
2022-06-21 19:26:09.622636 INFO [OraSimulator.py:110] Simulator worker [30316] completed in [0.4] seconds
2022-06-21 19:26:09.685642 INFO [OraSimulator.py:110] Simulator worker [30305] completed in [0.5] seconds
2022-06-21 19:26:09.709736 INFO [OraSimulator.py:110] Simulator worker [30304] completed in [0.51] seconds
2022-06-21 19:26:09.709760 INFO [OraSimulator.py:110] Simulator worker [30311] completed in [0.48] seconds
2022-06-21 19:26:09.713903 INFO [OraSimulator.py:110] Simulator worker [30314] completed in [0.5] seconds
2022-06-21 19:26:09.724144 INFO [OraSimulator.py:110] Simulator worker [30318] completed in [0.5] seconds
2022-06-21 19:26:09.726796 INFO [OraSimulator.py:110] Simulator worker [30307] completed in [0.5] seconds
2022-06-21 19:26:09.730246 INFO [OraSimulator.py:110] Simulator worker [30309] completed in [0.5] seconds
2022-06-21 19:26:09.759663 INFO [Logger.py:173] Task [SQL_Simulator] has finished in [1] seconds
2022-06-21 19:26:09.777052 INFO [OraSimulator.py:348] Completed Oracle SQL simulation
2022-06-21 19:26:09.781913 INFO [runMe.py:605] Oracle simulation completed
2022-06-21 19:26:09.839286 INFO [OraReportData.py:414] Generate JSON data file for [Report Summary]
2022-06-21 19:26:09.845098 INFO [OraReportData.py:439] Generate JSON data file for [SQL Compatibility]
2022-06-21 19:26:09.851460 INFO [OraReportData.py:492] Generate JSON data file for [SQL Complexity]
2022-06-21 19:26:09.859068 INFO [OraReportData.py:528] Generate JSON data file for [SQL Performance]
2022-06-21 19:26:10.156675 INFO [ExcelReport.py:27] Make [Cover] page for Excel report
2022-06-21 19:26:10.162849 INFO [ExcelReport.py:132] Make [Summary] page for Excel report
2022-06-21 19:26:10.174417 INFO [ExcelReport.py:433] Make [Detail SQL] page for Excel report
2022-06-21 19:26:10.179022 INFO [ExcelReport.py:491] Make [Rewrite SQL] page for Excel report
2022-06-21 19:26:10.194170 INFO [runMe.py:633]
2022-06-21 19:26:10.194260 INFO [runMe.py:634] >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
2022-06-21 19:26:10.194279 INFO [runMe.py:635] Summary:
2022-06-21 19:26:10.194294 INFO [runMe.py:636]            Data ID: 2
2022-06-21 19:26:10.197052 INFO [runMe.py:637]          SQL Count: 5
2022-06-21 19:26:10.197106 INFO [runMe.py:638]   Report Directory: data/report
2022-06-21 19:26:10.197121 INFO [runMe.py:639]
![image.png](https://oss-emcsprod-public.modb.pro/image/editor/20220627-6322b3e2-7b99-4a82-b462-ad95ef2a0275.png)

复制

tar -zcvf report.tar.gz report/
复制

拿到本地查看。其中index.html为兼容性报告，SCA_Data_Report***.xlsx里为具体抽取的SQL。

下边是sca生成的excel的内容

和下边所有分类的具体sql，可以做进一步分析

[附]下面为另一个PostgreSQL–>ORACLE库的SCA工具的相关使用语句

ORACLE端用户

create user ouser identified by 'Enmo@123';
grant connect to ouser;
grant SELECT ANY DICTIONARY to ouser;
grant CREATE PROCEDURE to ouser;
grant EXECUTE ON DBMS_LOB to ouser;
grant SELECT ON GV_$SQL_PLAN to ouser;
复制

mogdb端用户（资料库）

create user test_usr with password 'Enmo@123';
复制

pg端

create uer puser with password 'Enmo@123';
alter user puser with superuser;

create database pg14;
复制

//初始化资料库

./sca_linux_x86_64 -T i -H 172.16.0.176 -P 27000 -N sca_db -U sca_repo -E 'SCA@password' --user test_usr --password Enmo@123
复制

//只采集一次

./sca_linux_x86_64 -T OC -s OUSER -h 119.3.182.31 -p15221 -n ORACLE21C -u ouser -e Enmo@123 -q 0.001 -Q 60  -m off -d data
复制

如果太慢或者不收集绑定变量和执行计划，可以加上–ignore-bind-plan
通过–sql-config sql_config.json 可以自定制采集SQL的语句

//进行分析

./sca_linux_x86_64 -T OI -H 172.16.0.176  -P 27000 -N sca_db -U sca_repo -E 'SCA@password' -h 172.16.0.176 -p 5432 -n pg14 -u puser -e 'Enmo@123' --target-type=POSTGRESQL -d data
复制
