主流CPU性能摸底(Intel/AMD/鲲鹏/海光/飞腾)

原创阿里云数据库 2022-07-14

13191

本文在Sysbench、TPCC等实践场景下对多款CPU的性能进行对比，同时分析各款CPU的硬件指标，最后分析不同场景下的实际性能和核心参数的关系。最终会展示Intel和AMD到底谁厉害、ARM离X86还有多大的距离、国产CPU性能到底怎么样了。

本文的姊妹篇：十年后数据库还是不敢拥抱NUMA？主要讲述的是同一块CPU的不同NUMA结构配置带来的几倍性能差异，这些性能差异原因也可以从本文最后时延测试数据得到印证，一起阅读效果更好。

这几款CPU的核心参数如下表：

CPU型号	Hygon 7280	AMD EPYC 7H12	Intel 8163	鲲鹏920	飞腾2500
物理核数	32	32	24	48	64
超线程	2	2	2
路	2	2	2	2	2
NUMA Node	8	2	2	4	16
L1d	32K	32K	32K	64K	32K
L2	512K	512K	1024K	512K	2048K

性能定义

同一个平台下（X86、ARM是两个平台）编译好的程序可以认为他们的指令数是一样的，那么执行效率就是每个时钟周期所能执行的指令数量了。

执行指令数量第一取决的就是CPU主频了，但是目前主流CPU都是2.5G左右，另外就是单核下的并行度（多发射）以及多核，再就是分支预测等，这些基本归结到了访问内存的延时。

X86和ARM这两不同平台首先指令就不一样了，然后还有上面所说的主频、内存时延的差异

IPC的说明：

IPC: insns per cycle insn/cycles 也就是每个时钟周期能执行的指令数量，越大程序跑的越快
程序的执行时间 = 指令数/(主频*IPC) //单核下，多核的话再除以核数

参与比较的几款CPU参数

先来看看测试所用到的几款CPU的主要指标，大家关注下主频、各级cache大小、NUMA结构

Hygon 7280

Hygon 7280 就是AMD Zen架构，最大IPC能到5.

架构：                           x86_64
CPU 运行模式：                   32-bit, 64-bit
字节序：                         Little Endian
Address sizes:                  43 bits physical, 48 bits virtual
CPU:                            128
在线 CPU 列表：                   0-127
每个核的线程数：                   2
每个座的核数：                    32
座：                             2
NUMA 节点：                      8
厂商 ID：                        HygonGenuine
CPU 系列：                       24
型号：                           1
型号名称：                        Hygon C86 7280 32-core Processor
步进：                           1
CPU MHz：                       2194.586
BogoMIPS：                      3999.63
虚拟化：                         AMD-V
L1d 缓存：                       2 MiB
L1i 缓存：                       4 MiB
L2 缓存：                        32 MiB
L3 缓存：                        128 MiB
NUMA 节点0 CPU：                 0-7,64-71
NUMA 节点1 CPU：                 8-15,72-79
NUMA 节点2 CPU：                 16-23,80-87
NUMA 节点3 CPU：                 24-31,88-95
NUMA 节点4 CPU：                 32-39,96-103
NUMA 节点5 CPU：                 40-47,104-111
NUMA 节点6 CPU：                 48-55,112-119
NUMA 节点7 CPU：                 56-63,120-127复制

注意L1d显示为2MiB，实际是不可能有这么大的，L1、L2是每个core独享，从测试看到时延在32K有个跳跃，所以这里的L1d实际为32K。这里应该是OS展示考虑不周导致的，实际我们来看下：

[root@hygon3 15:56 /sys]
#cat ./devices/system/cpu/cpu0/cache/index0/size  --- L1d
32K

[root@hygon3 15:56 /sys]
#cat ./devices/system/cpu/cpu0/cache/index1/size  --- L1i
64K

[root@hygon3 15:57 /sys]
#cat ./devices/system/cpu/cpu0/cache/index2/size  --- L2
512K

[root@hygon3 15:57 /sys]
#cat ./devices/system/cpu/cpu0/cache/index3/size  --- L3
8192K
[root@hygon3 15:57 /sys]
#cat ./devices/system/cpu/cpu0/cache/index1/type
Instruction

[root@hygon3 16:00 /sys]
#cat ./devices/system/cpu/cpu0/cache/index0/type
Data

[root@hygon3 16:00 /sys]
#cat ./devices/system/cpu/cpu0/cache/index3/shared_cpu_map
00000000,0000000f,00000000,0000000f   ---- 4个物理core共享8M L3

[root@hygon3 16:00 /sys]
#cat devices/system/cpu/cpu0/cache/index3/shared_cpu_list
0-3,64-67

[root@hygon3 16:01 /sys]
#cat ./devices/system/cpu/cpu0/cache/index2/shared_cpu_map
00000000,00000001,00000000,00000001复制

AMD EPYC 7H12

AMD EPYC 7H12 64-Core（ECS，非物理机），最大IPC能到5.

# lscpu
Architecture:          x86_64
CPU op-mode(s):        32-bit, 64-bit
Byte Order:            Little Endian
CPU(s):                64
On-line CPU(s) list:   0-63
Thread(s) per core:    2
Core(s) per socket:    16
座：                    2
NUMA 节点：             2
厂商 ID：               AuthenticAMD
CPU 系列：              23
型号：                  49
型号名称：               AMD EPYC 7H12 64-Core Processor
步进：                  0
CPU MHz：              2595.124
BogoMIPS：             5190.24
虚拟化：                AMD-V
超管理器厂商：           KVM
虚拟化类型：             完全
L1d 缓存：              32K
L1i 缓存：              32K
L2 缓存：               512K
L3 缓存：               16384K
NUMA 节点0 CPU：        0-31
NUMA 节点1 CPU：        32-63复制

Intel

这次对比测试用到了两块Intel CPU，分别是 8163、8269 。他们的信息如下，最大IPC 是4：

#lscpu
Architecture:          x86_64
CPU op-mode(s):        32-bit, 64-bit
Byte Order:            Little Endian
CPU(s):                96
On-line CPU(s) list:   0-95
Thread(s) per core:    2
Core(s) per socket:    24
Socket(s):             2
NUMA node(s):          1
Vendor ID:             GenuineIntel
CPU family:            6
Model:                 85
Model name:            Intel(R) Xeon(R) Platinum 8163 CPU @ 2.50GHz
Stepping:              4
CPU MHz:               2499.121
CPU max MHz:           3100.0000
CPU min MHz:           1000.0000
BogoMIPS:              4998.90
Virtualization:        VT-x
L1d cache:             32K
L1i cache:             32K
L2 cache:              1024K
L3 cache:              33792K
NUMA node0 CPU(s):     0-95

-----8269CY
#lscpu
Architecture:          x86_64
CPU op-mode(s):        32-bit, 64-bit
Byte Order:            Little Endian
CPU(s):                104
On-line CPU(s) list:   0-103
Thread(s) per core:    2
Core(s) per socket:    26
Socket(s):             2
NUMA node(s):          2
Vendor ID:             GenuineIntel
CPU family:            6
Model:                 85
Model name:            Intel(R) Xeon(R) Platinum 8269CY CPU @ 2.50GHz
Stepping:              7
CPU MHz:               3200.000
CPU max MHz:           3800.0000
CPU min MHz:           1200.0000
BogoMIPS:              4998.89
Virtualization:        VT-x
L1d cache:             32K
L1i cache:             32K
L2 cache:              1024K
L3 cache:              36608K
NUMA node0 CPU(s):     0-25,52-77
NUMA node1 CPU(s):     26-51,78-103复制

鲲鹏920

[root@ARM 19:15 /root/lmbench3]
#numactl -H
available: 4 nodes (0-3)
node 0 cpus: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
node 0 size: 192832 MB
node 0 free: 146830 MB
node 1 cpus: 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47
node 1 size: 193533 MB
node 1 free: 175354 MB
node 2 cpus: 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71
node 2 size: 193533 MB
node 2 free: 175718 MB
node 3 cpus: 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95
node 3 size: 193532 MB
node 3 free: 183643 MB
node distances:
node   0   1   2   3
  0:  10  12  20  22
  1:  12  10  22  24
  2:  20  22  10  12
  3:  22  24  12  10

  #lscpu
Architecture:          aarch64
Byte Order:            Little Endian
CPU(s):                96
On-line CPU(s) list:   0-95
Thread(s) per core:    1
Core(s) per socket:    48
Socket(s):             2
NUMA node(s):          4
Model:                 0
CPU max MHz:           2600.0000
CPU min MHz:           200.0000
BogoMIPS:              200.00
L1d cache:             64K
L1i cache:             64K
L2 cache:              512K
L3 cache:              24576K
NUMA node0 CPU(s):     0-23
NUMA node1 CPU(s):     24-47
NUMA node2 CPU(s):     48-71
NUMA node3 CPU(s):     72-95
Flags:                 fp asimd evtstrm aes pmull sha1 sha2 crc32 atomics fphp asimdhp cpuid asimdrdm jscvt fcma dcpop asimddp asimdfhm复制

飞腾2500

飞腾2500用nop去跑IPC的话，只能到1，但是跑其它代码能到2.33，理论值据说也是4但是我没跑到过

#lscpu
Architecture:          aarch64
Byte Order:            Little Endian
CPU(s):                128
On-line CPU(s) list:   0-127
Thread(s) per core:    1
Core(s) per socket:    64
Socket(s):             2
NUMA node(s):          16
Model:                 3
BogoMIPS:              100.00
L1d cache:             32K
L1i cache:             32K
L2 cache:              2048K
L3 cache:              65536K
NUMA node0 CPU(s):     0-7
NUMA node1 CPU(s):     8-15
NUMA node2 CPU(s):     16-23
NUMA node3 CPU(s):     24-31
NUMA node4 CPU(s):     32-39
NUMA node5 CPU(s):     40-47
NUMA node6 CPU(s):     48-55
NUMA node7 CPU(s):     56-63
NUMA node8 CPU(s):     64-71
NUMA node9 CPU(s):     72-79
NUMA node10 CPU(s):    80-87
NUMA node11 CPU(s):    88-95
NUMA node12 CPU(s):    96-103
NUMA node13 CPU(s):    104-111
NUMA node14 CPU(s):    112-119
NUMA node15 CPU(s):    120-127
Flags:                 fp asimd evtstrm aes pmull sha1 sha2 crc32 cpuid复制

单核以及超线程计算Prime性能比较

测试命令，这个测试命令无论在哪个CPU下，用2个物理核用时都是一个物理核的一半，所以这个计算是可以完全并行的

taskset -c 1 /usr/bin/sysbench --num-threads=1 --test=cpu --cpu-max-prime=50000 run //单核绑一个core; 2个thread就绑一对HT复制

测试结果为耗时，单位秒

测试项	AMD EPYC 7H12 2.5G CentOS 7.9	Hygon 7280 2.1GHz CentOS	Hygon 7280 2.1GHz 麒麟	Intel 8269 2.50G	Intel 8163 CPU @ 2.50GHz	Intel E5-2682 v4 @ 2.50GHz
单核 prime 50000 耗时	59秒 IPC 0.56	77秒 IPC 0.55	89秒 IPC 0.56;	83秒 0.41	105秒 IPC 0.41	109秒 IPC 0.39
HT prime 50000 耗时	57秒 IPC 0.31	74秒 IPC 0.29	87秒 IPC 0.29	48秒 0.35	60秒 IPC 0.36	74秒 IPC 0.29

从上面的测试结果来看，简单纯计算场景下 AMD/海光的单核能力还是比较强的，但是超线程完全不给力（数据库场景超线程就给力了）；而Intel的超线程非常给力，一对超线程能达到单物理core的1.8倍，并且从E5到8269更是好了不少。 ARM基本都没有超线程所以没有测试鲲鹏、飞腾。

计算Prime毕竟太简单，让我们来看看他们在数据库下的真实能力吧

对比MySQL Sysbench和TPCC性能

MySQL 默认用5.7.34社区版，操作系统默认是centos，测试中所有mysqld都做了绑核，一样的压力配置尽量将CPU跑到100%， HT表示将mysqld绑定到一对HT核。

Sysbench点查

测试命令类似如下：

sysbench --test='/usr/share/doc/sysbench/tests/db/select.lua' --oltp_tables_count=1 --report-interval=1 --oltp-table-size=10000000  --mysql-port=3307 --mysql-db=sysbench_single --mysql-user=root --mysql-password='Bj6f9g96!@#'  --max-requests=0   --oltp_skip_trx=on --oltp_auto_inc=on  --oltp_range_size=5  --mysql-table-engine=innodb --rand-init=on   --max-time=300 --mysql-host=x86.51 --num-threads=4 run复制

测试结果分别取QPS/IPC两个数据(测试中的差异AMD、Hygon CPU跑在CentOS7.9， intel CPU、Kunpeng 920 跑在AliOS上, xdb表示用集团的xdb替换社区的MySQL Server，麒麟是国产OS)：

测试核数	AMD EPYC 7H12 2.5G	Hygon 7280 2.1G	Hygon 7280 2.1GHz 麒麟	Intel 8269 2.50G	Intel 8163 2.50G	Intel 8163 2.50G XDB5.7	鲲鹏 920-4826 2.6G	鲲鹏 920-4826 2.6G XDB8.0	FT2500 alisql 8.0 本地–socket
单核	24674 0.54	13441 0.46	10236 0.39	28208 0.75	25474 0.84	29376 0.89	9694 0.49	8301 0.46	3602 0.53
一对HT	36157 0.42	21747 0.38	19417 0.37	36754 0.49	35894 0.6	40601 0.65	无HT	无HT	无HT
4物理核	94132 0.52	49822 0.46	38033 0.37	90434 0.69 350%	87254 0.73	106472 0.83	34686 0.42	28407 0.39	14232 0.53
16物理核	325409 0.48	171630 0.38	134980 0.34	371718 0.69 1500%	332967 0.72	446290 0.85 //16核比4核好！	116122 0.35	94697 0.33	59199 0.6 8core:31210 0.59
32物理核	542192 0.43	298716 0.37	255586 0.33	642548 0.64 2700%	588318 0.67	598637 0.81 CPU 2400%	228601 0.36	177424 0.32	114020 0.65

说明：麒麟OS下CPU很难跑满，大致能跑到90%-95%左右，麒麟上装的社区版MySQL-5.7.29；飞腾要特别注意mysqld所在socket，同时以上飞腾数据都是走--socket压测锁的，32core走网络压测QPS为：99496（15%的网络损耗）

从上面的结果来看单物理核能力ARM 和 X86之间的差异还是很明显的

TPCC 1000仓

测试结果(测试中Hygon 7280分别跑在CentOS7.9和麒麟上，鲲鹏/intel CPU 跑在AliOS、麒麟是国产OS)：

TPCC测试数据，结果为1000仓，tpmC (NewOrders) ，未标注CPU 则为跑满了

测试核数	Intel 8269 2.50G	Intel 8163 2.50G	Hygon 7280 2.1GHz 麒麟	Hygon 7280 2.1G CentOS 7.9	鲲鹏 920-4826 2.6G	鲲鹏 920-4826 2.6G XDB8.0
1物理核	12392	9902	4706	7011	6619	4653
一对HT	17892	15324	8950	11778	无HT	无HT
4物理核	51525	40877	19387 380%	30046	23959	20101
8物理核	100792	81799	39664 750%	60086	42368	40572
16物理核	160798 抖动	140488 CPU抖动	75013 1400%	106419 1300-1550%	70581 1200%	79844
24物理核	188051	164757 1600-2100%	100841 1800-2000%	130815 1600-2100%	88204 1600%	115355
32物理核	195292	185171 2000-2500%	116071 1900-2400%	142746 1800-2400%	102089 1900%	143567
48物理核	19969l	195730 2100-2600%	128188 2100-2800%	149782 2000-2700%	116374 2500%	206055 4500%

测试过程CPU均跑满（未跑满的话会标注出来），IPC跑不起来性能就必然低，超线程虽然总性能好了但是会导致IPC降低(参考前面的公式)。可以看到对本来IPC比较低的场景，启用超线程后一般对性能会提升更大一些。

TPCC并发到一定程度后主要是锁导致性能上不去，所以超多核意义不大，可以做可以做类PolarDB-X部署(mysql原生分布式)

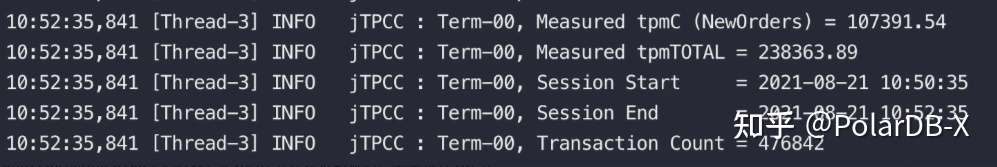

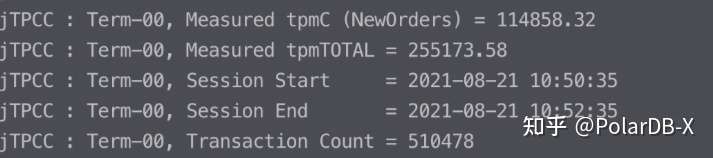

比如在Hygon 7280 2.1GHz 麒麟上起两个MySQLD实例，每个实例各绑定32物理core，性能刚好翻倍：

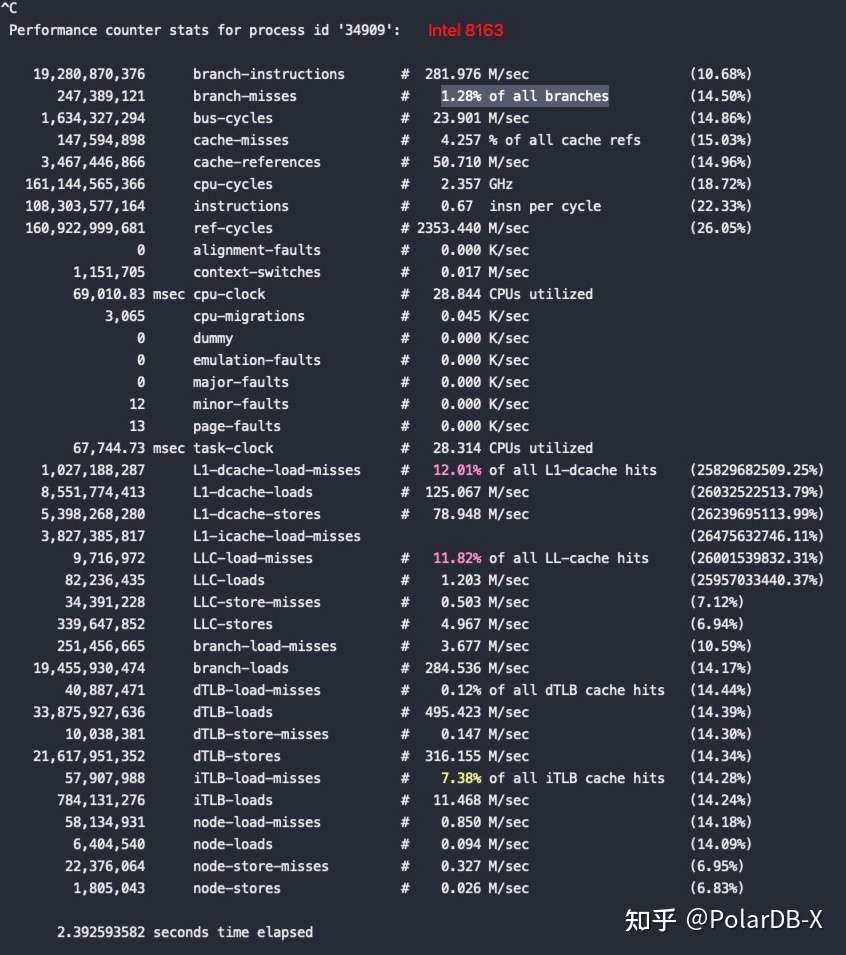

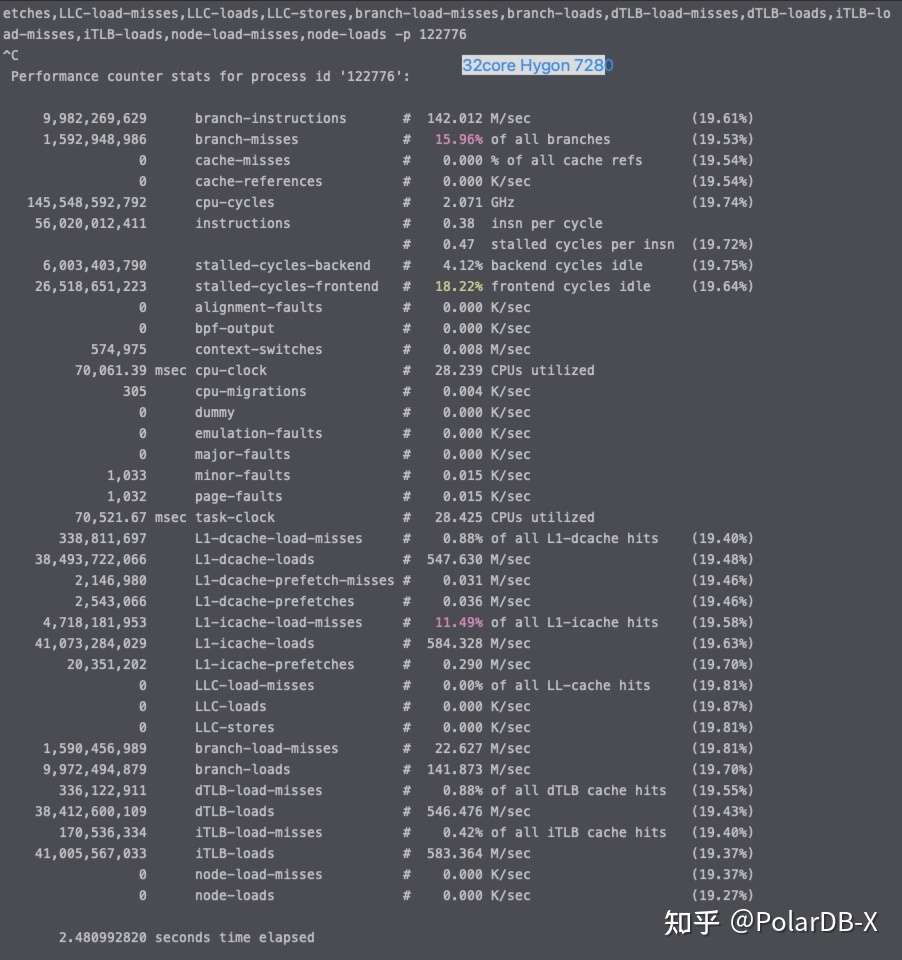

32核的时候对比下MySQL 社区版在Hygon7280和Intel 8163下的表现，IPC的差异还是很明显的，基本和TPS差异一致：

从Sysbench和TPCC测试结果来看AMD和Intel差异不大，ARM和X86差异比较大，国产CPU还有很大的进步空间。就像前面所说抛开指令集的差异，主频差不多，内存管够为什么还有这么大的性能差别呢？

三款CPU的性能指标

下面让我们回到硬件本身的数据来看这个问题

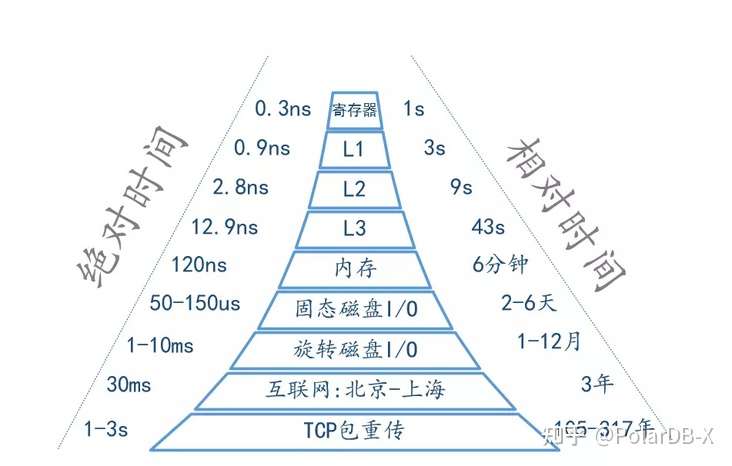

先记住这个图，描述的是CPU访问寄存器、L1 cache、L2 cache等延时，关键记住他们的差异

图中数据在不同CPU型号下会有差异，但是不会有数量级的差异。从图中可以看到L2是L1时延的三倍，一次L2读取相当于CPU耗时10 cycles；一次内存操作是L1时延的120倍，读取一次内存相当于CPU耗时400个 cycles 了。也就是读一次内存的时间如果用来做i++够你加上400次了。 从这里可以看到访问内存才是CPU的最大瓶颈，所以增加了一大堆Cache，Cache的成本占到了1块CPU的50%以上

另外注意L1、L2是每个core单独占用，L3是一个Socket下所有core共享；应用绑核的意思就是让L1、L2尽量少失效，1%的L1 cache miss可能导致10%以上(增加了10倍以上的平均延时）的性能劣化。

不同的core访问不同的内存，根据core和内存的距离关系（NUMA结构）性能也会有30%到200%以上的性能下降，接下来的大量测试都会测试不同的core访问不同内存的延时。

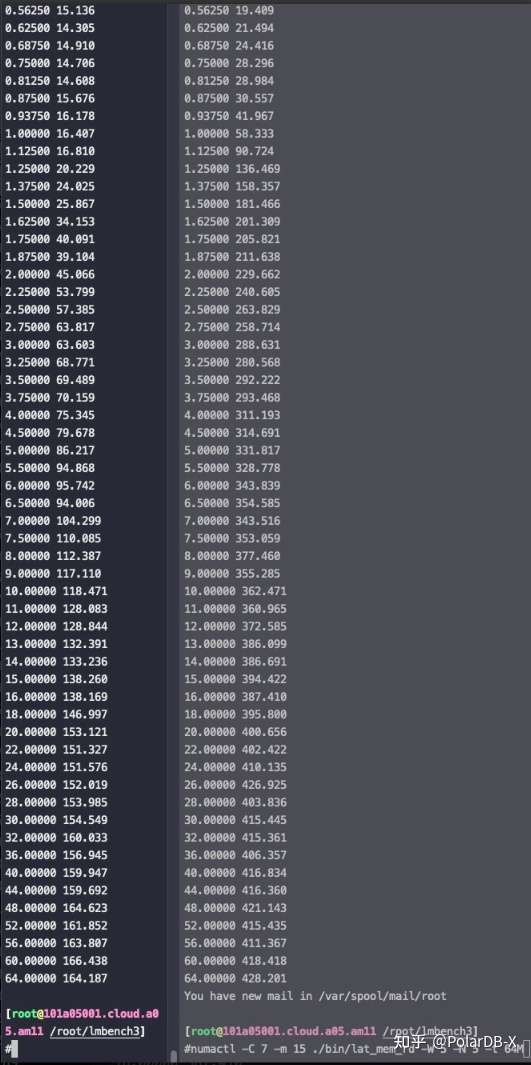

接下来用lmbench来测试各个CPU的内存延时，stream主要用于测试带宽，对应的时延是在带宽跑满情况下的带宽；lat_mem_rd用来测试操作不同数据大小的时延。

飞腾2500

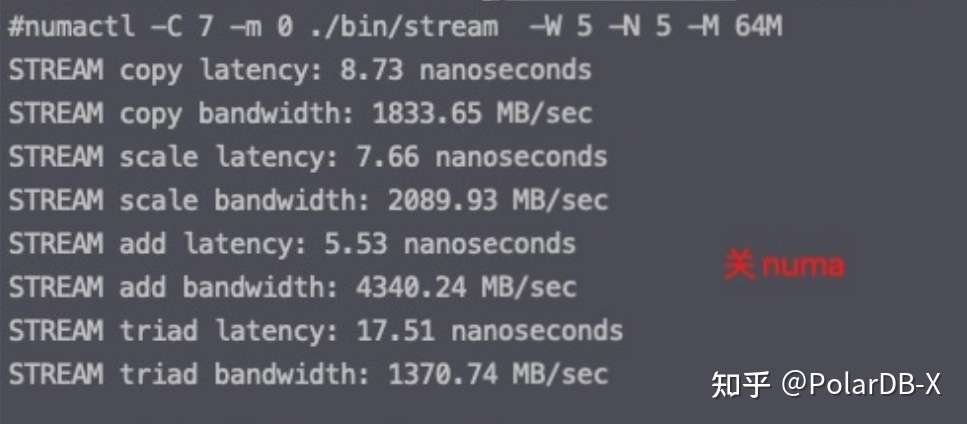

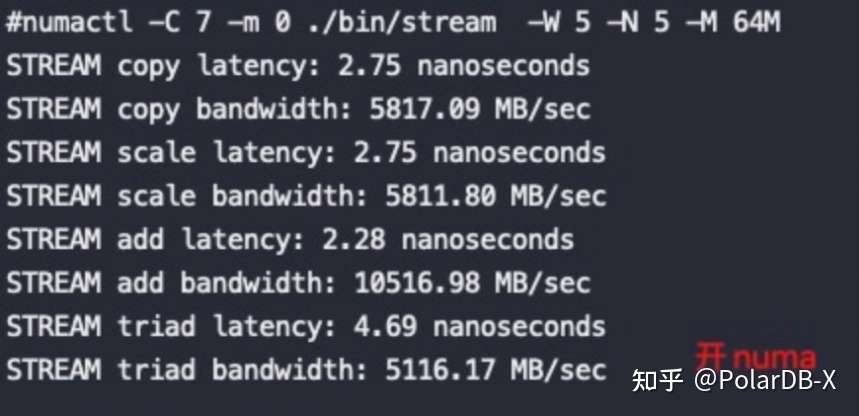

用stream测试带宽和latency，可以看到带宽随着NUMA距离增加而不断减少、同时对应的latency不断增加，到最近的NUMA Node有10%的损耗，这个损耗和numactl给出的距离完全一致。跨Socket访问内存latency是Node内的3倍，带宽是三分之一，但是Socket1性能和Socket0性能完全一致。从这个延时来看如果要是跑一个32core的实例性能一定不会太好，并且抖动剧烈

time for i in $(seq 7 8 128); do echo $i; numactl -C $i -m 0 ./bin/stream -W 5 -N 5 -M 64M; done

#numactl -C 7 -m 0 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 2.84 nanoseconds
STREAM copy bandwidth: 5638.21 MB/sec
STREAM scale latency: 2.72 nanoseconds
STREAM scale bandwidth: 5885.97 MB/sec
STREAM add latency: 2.26 nanoseconds
STREAM add bandwidth: 10615.13 MB/sec
STREAM triad latency: 4.53 nanoseconds
STREAM triad bandwidth: 5297.93 MB/sec

#numactl -C 7 -m 1 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 3.16 nanoseconds
STREAM copy bandwidth: 5058.71 MB/sec
STREAM scale latency: 3.15 nanoseconds
STREAM scale bandwidth: 5074.78 MB/sec
STREAM add latency: 2.35 nanoseconds
STREAM add bandwidth: 10197.36 MB/sec
STREAM triad latency: 5.12 nanoseconds
STREAM triad bandwidth: 4686.37 MB/sec

#numactl -C 7 -m 2 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 3.85 nanoseconds
STREAM copy bandwidth: 4150.98 MB/sec
STREAM scale latency: 3.95 nanoseconds
STREAM scale bandwidth: 4054.30 MB/sec
STREAM add latency: 2.64 nanoseconds
STREAM add bandwidth: 9100.12 MB/sec
STREAM triad latency: 6.39 nanoseconds
STREAM triad bandwidth: 3757.70 MB/sec

#numactl -C 7 -m 3 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 3.69 nanoseconds
STREAM copy bandwidth: 4340.24 MB/sec
STREAM scale latency: 3.62 nanoseconds
STREAM scale bandwidth: 4422.18 MB/sec
STREAM add latency: 2.47 nanoseconds
STREAM add bandwidth: 9704.82 MB/sec
STREAM triad latency: 5.74 nanoseconds
STREAM triad bandwidth: 4177.85 MB/sec

[root@101a05001 /root/lmbench3]
#numactl -C 7 -m 7 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 3.95 nanoseconds
STREAM copy bandwidth: 4051.51 MB/sec
STREAM scale latency: 3.94 nanoseconds
STREAM scale bandwidth: 4060.63 MB/sec
STREAM add latency: 2.54 nanoseconds
STREAM add bandwidth: 9434.51 MB/sec
STREAM triad latency: 6.13 nanoseconds
STREAM triad bandwidth: 3913.36 MB/sec

[root@101a05001 /root/lmbench3]
#numactl -C 7 -m 10 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 8.80 nanoseconds
STREAM copy bandwidth: 1817.78 MB/sec
STREAM scale latency: 8.59 nanoseconds
STREAM scale bandwidth: 1861.65 MB/sec
STREAM add latency: 5.55 nanoseconds
STREAM add bandwidth: 4320.68 MB/sec
STREAM triad latency: 13.94 nanoseconds
STREAM triad bandwidth: 1721.76 MB/sec

[root@101a05001 /root/lmbench3]
#numactl -C 7 -m 11 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 9.27 nanoseconds
STREAM copy bandwidth: 1726.52 MB/sec
STREAM scale latency: 9.31 nanoseconds
STREAM scale bandwidth: 1718.10 MB/sec
STREAM add latency: 5.65 nanoseconds
STREAM add bandwidth: 4250.89 MB/sec
STREAM triad latency: 14.09 nanoseconds
STREAM triad bandwidth: 1703.66 MB/sec

//在另外一个Socket上测试本NUMA，和Node0性能完全一致
[root@101a0500 /root/lmbench3]
#numactl -C 88 -m 11 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 2.93 nanoseconds
STREAM copy bandwidth: 5454.67 MB/sec
STREAM scale latency: 2.96 nanoseconds
STREAM scale bandwidth: 5400.03 MB/sec
STREAM add latency: 2.28 nanoseconds
STREAM add bandwidth: 10543.42 MB/sec
STREAM triad latency: 4.52 nanoseconds
STREAM triad bandwidth: 5308.40 MB/sec

[root@101a0500 /root/lmbench3]
#numactl -C 7 -m 15 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 8.73 nanoseconds
STREAM copy bandwidth: 1831.77 MB/sec
STREAM scale latency: 8.81 nanoseconds
STREAM scale bandwidth: 1815.13 MB/sec
STREAM add latency: 5.63 nanoseconds
STREAM add bandwidth: 4265.21 MB/sec
STREAM triad latency: 13.09 nanoseconds
STREAM triad bandwidth: 1833.68 MB/sec复制

Lat_mem_rd 用 core7 访问Node0和Node15对比结果，随着数据的加大，延时在加大，64M时能有3倍差距，和上面测试一致

下图第一列表示读写数据的大小（单位M），第二列表示访问延时（单位纳秒），一般可以看到在L1/L2/L3 cache大小的地方延时会有跳跃，远超过L3大小后，延时就是内存延时了

测试命令如下

numactl -C 7 -m 0 ./bin/lat_mem_rd -W 5 -N 5 -t 64M  //-C 7 cpu 7, -m 0 node0, -W 热身 -t stride复制

同样的机型，开 NUMA 比关 NUMA 时延降低了几倍，同时带宽提升了几倍，所以一定要开NUMA

鲲鹏920

#for i in $(seq 0 15); do echo core:$i; numactl -N $i -m 7 ./bin/stream  -W 5 -N 5 -M 64M; done
STREAM copy latency: 1.84 nanoseconds
STREAM copy bandwidth: 8700.75 MB/sec
STREAM scale latency: 1.86 nanoseconds
STREAM scale bandwidth: 8623.60 MB/sec
STREAM add latency: 2.18 nanoseconds
STREAM add bandwidth: 10987.04 MB/sec
STREAM triad latency: 3.03 nanoseconds
STREAM triad bandwidth: 7926.87 MB/sec

#numactl -C 7 -m 1 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 2.05 nanoseconds
STREAM copy bandwidth: 7802.45 MB/sec
STREAM scale latency: 2.08 nanoseconds
STREAM scale bandwidth: 7681.87 MB/sec
STREAM add latency: 2.19 nanoseconds
STREAM add bandwidth: 10954.76 MB/sec
STREAM triad latency: 3.17 nanoseconds
STREAM triad bandwidth: 7559.86 MB/sec

#numactl -C 7 -m 2 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 3.51 nanoseconds
STREAM copy bandwidth: 4556.86 MB/sec
STREAM scale latency: 3.58 nanoseconds
STREAM scale bandwidth: 4463.66 MB/sec
STREAM add latency: 2.71 nanoseconds
STREAM add bandwidth: 8869.79 MB/sec
STREAM triad latency: 5.92 nanoseconds
STREAM triad bandwidth: 4057.12 MB/sec

[root@ARM 19:14 /root/lmbench3]
#numactl -C 7 -m 3 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 3.94 nanoseconds
STREAM copy bandwidth: 4064.25 MB/sec
STREAM scale latency: 3.82 nanoseconds
STREAM scale bandwidth: 4188.67 MB/sec
STREAM add latency: 2.86 nanoseconds
STREAM add bandwidth: 8390.70 MB/sec
STREAM triad latency: 4.78 nanoseconds
STREAM triad bandwidth: 5024.25 MB/sec

#numactl -C 24 -m 3 ./bin/stream  -W 5 -N 5 -M 64M
STREAM copy latency: 4.10 nanoseconds
STREAM copy bandwidth: 3904.63 MB/sec
STREAM scale latency: 4.03 nanoseconds
STREAM scale bandwidth: 3969.41 MB/sec
STREAM add latency: 3.07 nanoseconds
STREAM add bandwidth: 7816.08 MB/sec
STREAM triad latency: 5.06 nanoseconds
STREAM triad bandwidth: 4738.66 MB/sec复制

海光7280

可以看到跨NUMA（这里设置的一个Socket为一个NUMA Node，等同于跨Socket）RT从1.5上升到2.5，这个数据比鲲鹏920要好很多。这里还会测试同一块CPU设置不同数量的NUMA Node对性能的影响，所以接下来的测试会列出NUMA Node数量

[root@hygon8 14:32 /root/lmbench-master]
#lscpu
架构：                           x86_64
CPU 运行模式：                   32-bit, 64-bit
字节序：                         Little Endian
Address sizes:                   43 bits physical, 48 bits virtual
CPU:                             128
在线 CPU 列表：                  0-127
每个核的线程数：                 2
每个座的核数：                   32
座：                             2
NUMA 节点：                      8
厂商 ID：                        HygonGenuine
CPU 系列：                       24
型号：                           1
型号名称：                       Hygon C86 7280 32-core Processor
步进：                           1
CPU MHz：                        2194.586
BogoMIPS：                       3999.63
虚拟化：                         AMD-V
L1d 缓存：                       2 MiB
L1i 缓存：                       4 MiB
L2 缓存：                        32 MiB
L3 缓存：                        128 MiB
NUMA 节点0 CPU：                 0-7,64-71
NUMA 节点1 CPU：                 8-15,72-79
NUMA 节点2 CPU：                 16-23,80-87
NUMA 节点3 CPU：                 24-31,88-95
NUMA 节点4 CPU：                 32-39,96-103
NUMA 节点5 CPU：                 40-47,104-111
NUMA 节点6 CPU：                 48-55,112-119
NUMA 节点7 CPU：                 56-63,120-127

//可以看到7号core比15、23、31号core明显要快，因为就近访问Node 0的内存，没有跨NUMA Node（跨Die）
[root@hygon8 14:32 /root/lmbench-master]
#time for i in $(seq 7 8 64); do echo $i; numactl -C $i -m 0 ./bin/stream -W 5 -N 5 -M 64M; done
7
STREAM copy latency: 1.38 nanoseconds
STREAM copy bandwidth: 11559.53 MB/sec
STREAM scale latency: 1.16 nanoseconds
STREAM scale bandwidth: 13815.87 MB/sec
STREAM add latency: 1.40 nanoseconds
STREAM add bandwidth: 17145.85 MB/sec
STREAM triad latency: 1.44 nanoseconds
STREAM triad bandwidth: 16637.18 MB/sec
15
STREAM copy latency: 1.67 nanoseconds
STREAM copy bandwidth: 9591.77 MB/sec
STREAM scale latency: 1.56 nanoseconds
STREAM scale bandwidth: 10242.50 MB/sec
STREAM add latency: 1.45 nanoseconds
STREAM add bandwidth: 16581.00 MB/sec
STREAM triad latency: 2.00 nanoseconds
STREAM triad bandwidth: 12028.83 MB/sec
23
STREAM copy latency: 1.65 nanoseconds
STREAM copy bandwidth: 9701.49 MB/sec
STREAM scale latency: 1.53 nanoseconds
STREAM scale bandwidth: 10427.98 MB/sec
STREAM add latency: 1.42 nanoseconds
STREAM add bandwidth: 16846.10 MB/sec
STREAM triad latency: 1.97 nanoseconds
STREAM triad bandwidth: 12189.72 MB/sec
31
STREAM copy latency: 1.64 nanoseconds
STREAM copy bandwidth: 9742.86 MB/sec
STREAM scale latency: 1.52 nanoseconds
STREAM scale bandwidth: 10510.80 MB/sec
STREAM add latency: 1.45 nanoseconds
STREAM add bandwidth: 16559.86 MB/sec
STREAM triad latency: 1.92 nanoseconds
STREAM triad bandwidth: 12490.01 MB/sec
39
STREAM copy latency: 2.55 nanoseconds
STREAM copy bandwidth: 6286.25 MB/sec
STREAM scale latency: 2.51 nanoseconds
STREAM scale bandwidth: 6383.11 MB/sec
STREAM add latency: 1.76 nanoseconds
STREAM add bandwidth: 13660.83 MB/sec
STREAM triad latency: 3.68 nanoseconds
STREAM triad bandwidth: 6523.02 MB/sec复制

如果这块芯片在BIOS里设置Die interleaving，那么4块Die当成一个NUMA Node吐出来给OS

#lscpu
架构：                           x86_64
CPU 运行模式：                   32-bit, 64-bit
字节序：                         Little Endian
Address sizes:                   43 bits physical, 48 bits virtual
CPU:                             128
在线 CPU 列表：                  0-127
每个核的线程数：                 2
每个座的核数：                   32
座：                             2
NUMA 节点：                      2
厂商 ID：                        HygonGenuine
CPU 系列：                       24
型号：                           1
型号名称：                       Hygon C86 7280 32-core Processor
步进：                           1
CPU MHz：                        2108.234
BogoMIPS：                       3999.45
虚拟化：                         AMD-V
L1d 缓存：                       2 MiB
L1i 缓存：                       4 MiB
L2 缓存：                        32 MiB
L3 缓存：                        128 MiB
//注意这里bios配置了Die Interleaving Enable
//表示每路内多个Die内存交织分配，这样整个一个socket就是一个大Die
NUMA 节点0 CPU：                 0-31,64-95
NUMA 节点1 CPU：                 32-63,96-127


//enable Die interleaving 后继续streaming测试
//最终测试结果表现就是7/15/23/31 core性能一致，因为他们属于同一个NUMA Node，内存交织分配
//可以看到同一路下的四个Die内存交织访问，所以4个Node内存延时一样了（被平均），都不如8Node就近快
[root@hygon3 16:09 /root/lmbench-master]
#time for i in $(seq 7 8 64); do echo $i; numactl -C $i -m 0 ./bin/stream -W 5 -N 5 -M 64M; done
7
STREAM copy latency: 1.48 nanoseconds
STREAM copy bandwidth: 10782.58 MB/sec
STREAM scale latency: 1.20 nanoseconds
STREAM scale bandwidth: 13364.38 MB/sec
STREAM add latency: 1.46 nanoseconds
STREAM add bandwidth: 16408.32 MB/sec
STREAM triad latency: 1.53 nanoseconds
STREAM triad bandwidth: 15696.00 MB/sec
15
STREAM copy latency: 1.51 nanoseconds
STREAM copy bandwidth: 10601.25 MB/sec
STREAM scale latency: 1.24 nanoseconds
STREAM scale bandwidth: 12855.87 MB/sec
STREAM add latency: 1.46 nanoseconds
STREAM add bandwidth: 16382.42 MB/sec
STREAM triad latency: 1.53 nanoseconds
STREAM triad bandwidth: 15691.48 MB/sec
23
STREAM copy latency: 1.50 nanoseconds
STREAM copy bandwidth: 10700.61 MB/sec
STREAM scale latency: 1.27 nanoseconds
STREAM scale bandwidth: 12634.63 MB/sec
STREAM add latency: 1.47 nanoseconds
STREAM add bandwidth: 16370.67 MB/sec
STREAM triad latency: 1.55 nanoseconds
STREAM triad bandwidth: 15455.75 MB/sec
31
STREAM copy latency: 1.50 nanoseconds
STREAM copy bandwidth: 10637.39 MB/sec
STREAM scale latency: 1.25 nanoseconds
STREAM scale bandwidth: 12778.99 MB/sec
STREAM add latency: 1.46 nanoseconds
STREAM add bandwidth: 16420.65 MB/sec
STREAM triad latency: 1.61 nanoseconds
STREAM triad bandwidth: 14946.80 MB/sec
39
STREAM copy latency: 2.35 nanoseconds
STREAM copy bandwidth: 6807.09 MB/sec
STREAM scale latency: 2.32 nanoseconds
STREAM scale bandwidth: 6906.93 MB/sec
STREAM add latency: 1.63 nanoseconds
STREAM add bandwidth: 14729.23 MB/sec
STREAM triad latency: 3.36 nanoseconds
STREAM triad bandwidth: 7151.67 MB/sec
47
STREAM copy latency: 2.31 nanoseconds
STREAM copy bandwidth: 6938.47 MB/sec复制

intel 8269CY

lscpu
Architecture:          x86_64
CPU op-mode(s):        32-bit, 64-bit
Byte Order:            Little Endian
CPU(s):                104
On-line CPU(s) list:   0-103
Thread(s) per core:    2
Core(s) per socket:    26
Socket(s):             2
NUMA node(s):          2
Vendor ID:             GenuineIntel
CPU family:            6
Model:                 85
Model name:            Intel(R) Xeon(R) Platinum 8269CY CPU @ 2.50GHz
Stepping:              7
CPU MHz:               3200.000
CPU max MHz:           3800.0000
CPU min MHz:           1200.0000
BogoMIPS:              4998.89
Virtualization:        VT-x
L1d cache:             32K
L1i cache:             32K
L2 cache:              1024K
L3 cache:              36608K
NUMA node0 CPU(s):     0-25,52-77
NUMA node1 CPU(s):     26-51,78-103

[root@numaopen /home/ren/lmbench3]
#time for i in $(seq 0 8 51); do echo $i; numactl -C $i -m 0 ./bin/stream -W 5 -N 5 -M 64M; done
0
STREAM copy latency: 1.15 nanoseconds
STREAM copy bandwidth: 13941.80 MB/sec
STREAM scale latency: 1.16 nanoseconds
STREAM scale bandwidth: 13799.89 MB/sec
STREAM add latency: 1.31 nanoseconds
STREAM add bandwidth: 18318.23 MB/sec
STREAM triad latency: 1.56 nanoseconds
STREAM triad bandwidth: 15356.72 MB/sec
16
STREAM copy latency: 1.12 nanoseconds
STREAM copy bandwidth: 14293.68 MB/sec
STREAM scale latency: 1.13 nanoseconds
STREAM scale bandwidth: 14162.47 MB/sec
STREAM add latency: 1.31 nanoseconds
STREAM add bandwidth: 18293.27 MB/sec
STREAM triad latency: 1.53 nanoseconds
STREAM triad bandwidth: 15692.47 MB/sec
32
STREAM copy latency: 1.52 nanoseconds
STREAM copy bandwidth: 10551.71 MB/sec
STREAM scale latency: 1.52 nanoseconds
STREAM scale bandwidth: 10508.33 MB/sec
STREAM add latency: 1.38 nanoseconds
STREAM add bandwidth: 17363.22 MB/sec
STREAM triad latency: 2.00 nanoseconds
STREAM triad bandwidth: 12024.52 MB/sec
40
STREAM copy latency: 1.49 nanoseconds
STREAM copy bandwidth: 10758.50 MB/sec
STREAM scale latency: 1.50 nanoseconds
STREAM scale bandwidth: 10680.17 MB/sec
STREAM add latency: 1.34 nanoseconds
STREAM add bandwidth: 17948.34 MB/sec
STREAM triad latency: 1.98 nanoseconds
STREAM triad bandwidth: 12133.22 MB/sec
48
STREAM copy latency: 1.49 nanoseconds
STREAM copy bandwidth: 10736.56 MB/sec
STREAM scale latency: 1.50 nanoseconds
STREAM scale bandwidth: 10692.93 MB/sec
STREAM add latency: 1.34 nanoseconds
STREAM add bandwidth: 17902.85 MB/sec
STREAM triad latency: 1.96 nanoseconds
STREAM triad bandwidth: 12239.44 MB/sec复制

Intel(R) Xeon(R) CPU E5-2682 v4

#time for i in $(seq 0 8 51); do echo $i; numactl -C $i -m 0 ./bin/stream -W 5 -N 5 -M 64M; done
0
STREAM copy latency: 1.59 nanoseconds
STREAM copy bandwidth: 10092.31 MB/sec
STREAM scale latency: 1.57 nanoseconds
STREAM scale bandwidth: 10169.16 MB/sec
STREAM add latency: 1.31 nanoseconds
STREAM add bandwidth: 18360.83 MB/sec
STREAM triad latency: 2.28 nanoseconds
STREAM triad bandwidth: 10503.81 MB/sec
8
STREAM copy latency: 1.55 nanoseconds
STREAM copy bandwidth: 10312.14 MB/sec
STREAM scale latency: 1.56 nanoseconds
STREAM scale bandwidth: 10283.70 MB/sec
STREAM add latency: 1.30 nanoseconds
STREAM add bandwidth: 18416.26 MB/sec
STREAM triad latency: 2.23 nanoseconds
STREAM triad bandwidth: 10777.08 MB/sec
16
STREAM copy latency: 2.02 nanoseconds
STREAM copy bandwidth: 7914.25 MB/sec
STREAM scale latency: 2.02 nanoseconds
STREAM scale bandwidth: 7919.85 MB/sec
STREAM add latency: 1.39 nanoseconds
STREAM add bandwidth: 17276.06 MB/sec
STREAM triad latency: 2.92 nanoseconds
STREAM triad bandwidth: 8231.18 MB/sec
24
STREAM copy latency: 1.99 nanoseconds
STREAM copy bandwidth: 8032.18 MB/sec
STREAM scale latency: 1.98 nanoseconds
STREAM scale bandwidth: 8061.12 MB/sec
STREAM add latency: 1.39 nanoseconds
STREAM add bandwidth: 17313.94 MB/sec
STREAM triad latency: 2.88 nanoseconds
STREAM triad bandwidth: 8318.93 MB/sec

#lscpu
Architecture:          x86_64
CPU op-mode(s):        32-bit, 64-bit
Byte Order:            Little Endian
CPU(s):                64
On-line CPU(s) list:   0-63
Thread(s) per core:    2
Core(s) per socket:    16
Socket(s):             2
NUMA node(s):          2
Vendor ID:             GenuineIntel
CPU family:            6
Model:                 79
Model name:            Intel(R) Xeon(R) CPU E5-2682 v4 @ 2.50GHz
Stepping:              1
CPU MHz:               2500.000
CPU max MHz:           3000.0000
CPU min MHz:           1200.0000
BogoMIPS:              5000.06
Virtualization:        VT-x
L1d cache:             32K
L1i cache:             32K
L2 cache:              256K
L3 cache:              40960K
NUMA node0 CPU(s):     0-15,32-47
NUMA node1 CPU(s):     16-31,48-63复制

stream对比数据

总结下几个CPU用stream测试访问内存的RT以及抖动和带宽对比数据

	最小RT	最大RT	最大copy bandwidth	最小copy bandwidth
申威3231(2NUMA Node)	7.09	8.75	2256.59 MB/sec	1827.88 MB/sec
飞腾2500(16 NUMA Node)	2.84	10.34	5638.21 MB/sec	1546.68 MB/sec
鲲鹏920(4 NUMA Node)	1.84	3.87	8700.75 MB/sec	4131.81 MB/sec
海光7280(8 NUMA Node)	1.38	2.58	11591.48 MB/sec	6206.99 MB/sec
海光5280(4 NUMA Node)	1.22	2.52	13166.34 MB/sec	6357.71 MB/sec
Intel8269CY(2 NUMA Node)	1.12	1.52	14293.68 MB/sec	10551.71 MB/sec
Intel E5-2682(2 NUMA Node)	1.58	2.02	10092.31 MB/sec	7914.25 MB/sec

从以上数据可以看出这5款CPU性能一款比一款好，飞腾2500慢的core上延时快到intel 8269的10倍了，平均延时5倍以上了。延时数据基本和单核上测试Sysbench TPS一致。

lat_mem_rd对比数据

用不同的NUMA Node上的core 跑lat_mem_rd测试访问Node0内存的RT，只取最大64M的时延，时延和Node距离完全一致，这里就不再列出测试原始数据了。

	RT变化
飞腾2500(16 NUMA Node)	core:0 149.976 core:8 168.805 core:16 191.415 core:24 178.283 core:32 170.814 core:40 185.699 core:48 212.281 core:56 202.479 core:64 426.176 core:72 444.367 core:80 465.894 core:88 452.245 core:96 448.352 core:104 460.603 core:112 485.989 core:120 490.402
鲲鹏920(4 NUMA Node)	core:0 117.323 core:24 135.337 core:48 197.782 core:72 219.416
海光7280(8 NUMA Node 和 2 NUMA Node)	core0 106.839 core8 168.583 core16 163.925 core24 163.690 core32 289.628 core40 288.632 core48 236.615 core56 291.880 分割行 enabled Die interleaving core:0 153.005 core:16 152.458 core:32 272.057 core:48 269.441
海光5280(4 NUMA Node)	core:0 102.574 core:8 160.989 core:16 286.850 core:24 231.197
Intel 8269CY(2 NUMA Node)	core:0 69.792 core:26 93.107
申威3231(2 NUMA Node)	core:0 215.146 core:32 282.443

测试命令：

for i in $(seq 0 8 127); do echo core:$i; numactl -C $i -m 0 ./bin/lat_mem_rd -W 5 -N 5 -t 64M; done >lat.log 2>&1复制

测试结果和numactl -H 看到的Node distance完全一致，芯片厂家应该就是这样测试然后把这个延迟当做距离写进去了

最后用一张实际测试Intel E5 的L1 、L2、L3 cache延时图来加深印象，可以看到在每级cache大小附近时延有个跳跃：

纵坐标是访问延时纳秒，横坐标是cache大小 M，为什么上图没放内存延时，因为延时太大，放出来就把L1、L2的跳跃台阶压平了

结论

X86比ARM性能要好
AMD和Intel单核基本差别不大，Intel适合核多的大实例，AMD适合云上拆分售卖
国产CPU还有比较大的进步空间
性能上的差异在数据库场景下归因下来主要在CPU访问内存的时延上
跨NUMA Node时延差异很大，一定要开 NUMA 让CPU就近访问内存，尤其是国产CPU
数据库场景下大实例因为锁导致CPU很难跑满，建议搞多个mysqld实例

如果你一定要知道一块CPU性能的话先看 内存延时 而不是主频，各种CPU自家打榜一般都是简单计算场景，内存访问不多，但是实际业务中大部分时候又是高频访问内存的。

文章来源：阿里云数据库

cpu polardb

「喜欢这篇文章，您的关注和赞赏是给作者最好的鼓励」

关注作者

主流CPU性能摸底(Intel/AMD/鲲鹏/海光/飞腾)

性能定义

参与比较的几款CPU参数

Hygon 7280

AMD EPYC 7H12

Intel

鲲鹏920

飞腾2500

单核以及超线程计算Prime性能比较

对比MySQL Sysbench和TPCC性能

Sysbench点查

TPCC 1000仓

三款CPU的性能指标

飞腾2500

鲲鹏920

海光7280

intel 8269CY

Intel(R) Xeon(R) CPU E5-2682 v4

stream对比数据

lat_mem_rd对比数据

结论

评论

相关阅读
