Oracle RAC实施方案详细说明-安装后的检查06

IT小Chen 2021-04-14
583

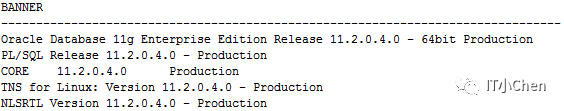

查看数据库版本

SQL> select * from v$version;

查看集群名称

[root@rac01 bin]# ./cemutlo --help

[root@rac01 bin]# ./cemutlo -n

rac-cluster

[root@rac01 bin]# ./cemutlo -w

2:1:

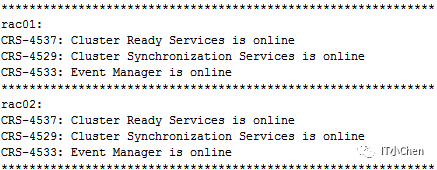

查看集群状态

[root@rac01 ~]# cd /u01/app/11.2.0/grid/bin/

[root@rac01 bin]# ./crsctl check cluster -all

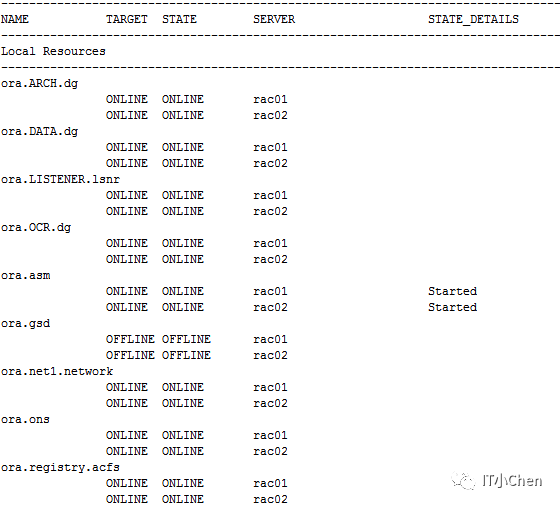

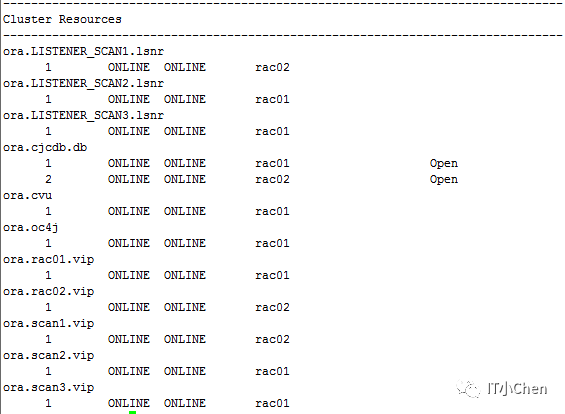

查看资源状态

[root@rac01 bin]# ./crsctl stat res -t

查看CRS状态

[root@rac01 bin]# ./crsctl check crs

CRS-4638: Oracle High Availability Services is online

CRS-4537: Cluster Ready Services is online

CRS-4529: Cluster Synchronization Services is online

CRS-4533: Event Manager is online

查看OHASD状态

[root@rac01 bin]# ./crsctl check has

CRS-4638: Oracle High Availability Services is online

禁用crs自启动

[root@rac01 bin]# ./crsctl disable crs

CRS-4621: Oracle High Availability Services autostart is disabled.

[root@rac02 bin]# ./crsctl disable crs

CRS-4621: Oracle High Availability Services autostart is disabled.

查看节点信息

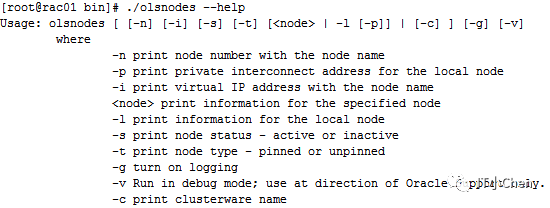

[root@rac01 bin]# ./olsnodes --help

[root@rac01 bin]# ./olsnodes

rac01

rac02

[root@rac01 bin]# ./olsnodes -c

rac-cluster

查看网络接口信息

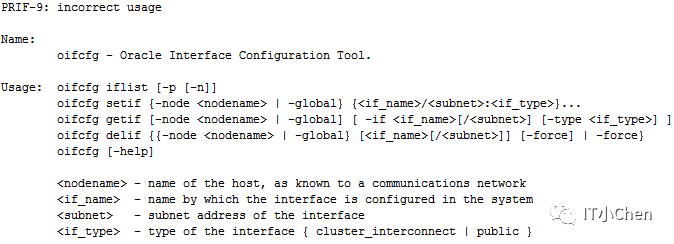

[root@rac01 bin]# ./oifcfg --help

[root@rac01 bin]# ./oifcfg getif

eth0  192.168.31.0  global  public

eth1  10.10.10.0  global  cluster_interconnect

查看OCR信息

[root@rac01 bin]# ./ocrcheck -config

Oracle Cluster Registry configuration is :

 Device/File Name         :       +OCR

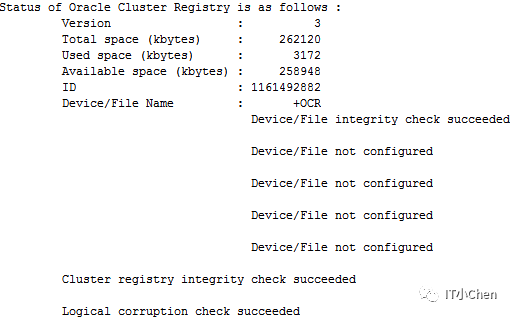

[root@rac01 bin]# ./ocrcheck

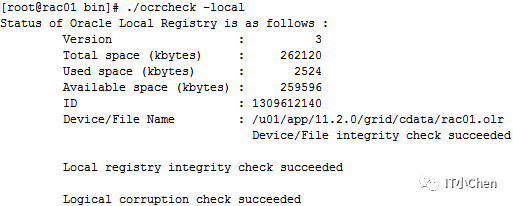

查看olr信息

[root@rac01 bin]# ./ocrcheck -local

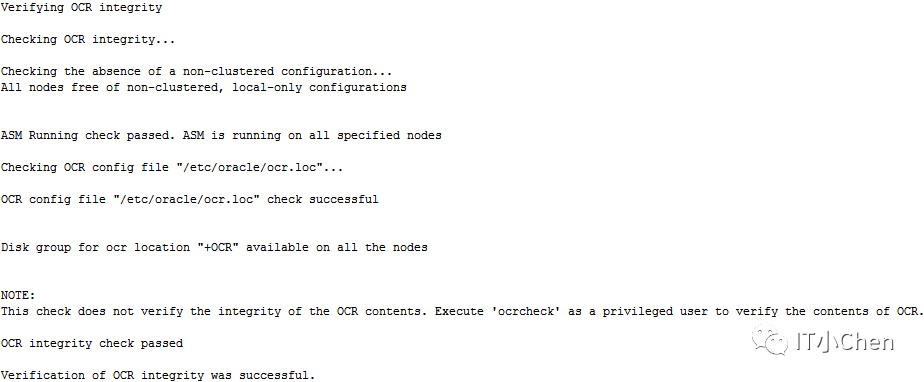

检查OCR完整性

[grid@rac01 ~]$ cluvfy comp ocr -n all -verbose

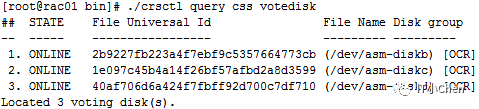

查看votedisk信息

[root@rac01 bin]# ./crsctl query css votedisk

查看数据库信息

[root@rac01 bin]# ./srvctl config database

cjcdb

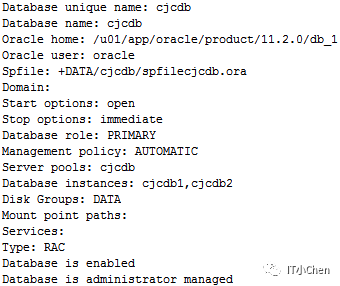

[root@rac01 bin]# ./srvctl config database -d cjcdb -a

[root@rac01 bin]# ./srvctl status database -d cjcdb

Instance cjcdb1 is running on node rac01

Instance cjcdb2 is running on node rac02

[root@rac01 bin]# ./srvctl status database -d cjcdb -v

Instance cjcdb1 is running on node rac01. Instance status: Open.

Instance cjcdb2 is running on node rac02. Instance status: Open.

查看SCAN配置

[root@rac01 bin]# ./srvctl config scan

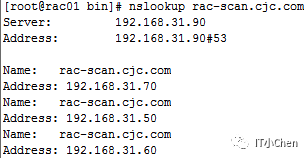

查看DNS解析

[root@rac01 bin]# nslookup rac-scan.cjc.com

查看SCAN VIP状态

[root@rac01 bin]# ./srvctl status scan

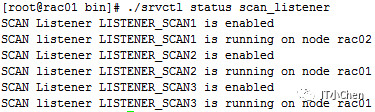

显示SCAN监听器的状态

[root@rac01 bin]# ./srvctl status scan_listener

查看服务器IP

[root@rac01 bin]# ifconfig

查看ASM配置

[root@rac01 bin]# ./srvctl config asm

ASM home: /u01/app/11.2.0/grid

ASM listener: LISTENER

查看监听配置

[root@rac01 bin]# ./srvctl config listener

Name: LISTENER

Network: 1, Owner: grid

Home: <CRS home>

End points: TCP:1521

查看节点状态

[root@rac01 bin]# ./srvctl status nodeapps -n rac01

VIP rac01-vip is enabled

VIP rac01-vip is running on node: rac01

Network is enabled

Network is running on node: rac01

GSD is disabled

GSD is not running on node: rac01

ONS is enabled

ONS daemon is running on node: rac01

[root@rac01 bin]# ./srvctl status nodeapps -n rac02

VIP rac02-vip is enabled

VIP rac02-vip is running on node: rac02

Network is enabled

Network is running on node: rac02

GSD is disabled

GSD is not running on node: rac02

ONS is enabled

ONS daemon is running on node: rac02
