k8s自动化运维十四

承接上文k8s自动化运维十三-国产麒麟操作系统安装minikube

基于麒麟系统做如下安装

安装docker-compose

# docker-compose-Linux-aarch64

sudo curl -L "https://github.com/docker/compose/releases/download/v2.2.2/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose

sudo chmod +x /usr/local/bin/docker-compose

复制

docker-compose安装nacos

# https://hub.docker.com/r/nacos/nacos-server

git clone --depth 1 https://github.com/nacos-group/nacos-docker.git

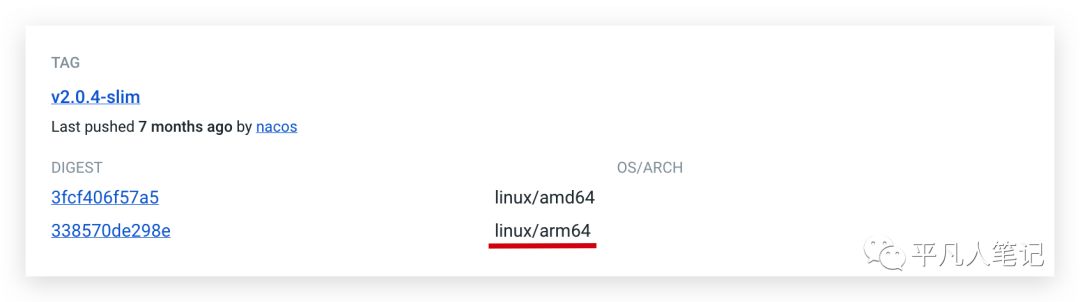

# 修改版本号 nacos/nacos-server:2.0.4-slim 支持arm64架构

# https://hub.docker.com/r/nacos/nacos-server/tags?page=1&ordering=name&name=2.0.4-slim

vim example/.env

NACOS_VERSION=2.0.4-slim

docker-compose -f example/standalone-derby.yaml up -d

复制

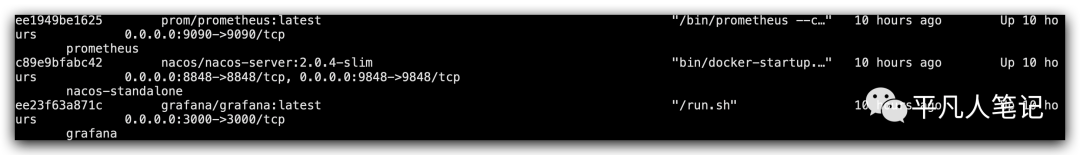

查看启动情况 docker ps

安装docker mysql 8

# mysql/mysql-server 该镜像支持aarch64架构

docker run --name mysql -e MYSQL_ROOT_PASSWORD=testDB! -v "/data/nfs-client/mysql/my.cnf":"/etc/mysql/my.cnf" -v "/data/nfs-client/mysql/data":/var/lib/mysql --restart=always -p 3306:3306 -d mysql/mysql-server

cat data/nfs-client/mysql/my.cnf
[mysqld]

# 表名不区分大小写 mysql8及以上仅支持初始化的时候配置，不支持启动好之后再更改，否则会报 ERROR] [MY-011087] [Server] Different lower_case_table_names settings for server ('1') and data dictionary ('0').

lower-case-table-names=1


# mysql:5.7 支持x86-64,不支持arm64

docker run --name mysql -e MYSQL_ROOT_PASSWORD=testDB! -v "/data/nfs-client/mysql/data":/var/lib/mysql -v "/data/nfs-client/mysql/conf.d":/etc/mysql/conf.d -v "/data/nfs-client/mysql/mysql.conf.d":/etc/mysql/mysql.conf.d --restart=always -p 3306:3306 -d mysql:5.7

cat data/nfs-client/mysql/mysql.conf.d/galaxy.cnf

[mysqld]
lower_case_table_names=1
max_connections = 1000
max_allowed_packet=50M
wait_timeout=288000
interactive_timeout = 288000

复制

mysql不允许连接异常

java.sql.SQLException: null,  message from server: "Host '172.18.0.1' is not allowed to connect to this MySQL server"

# 登录数据库实例

mysql -u root -p

use mysql;

select host from user where user='root';

update user set host = '%' where user ='root';

flush privileges;

复制

MySQL 8: Public Key Retrieval is not allowed

Caused by: com.mysql.cj.exceptions.UnableToConnectException: Public Key Retrieval is not allowed

数据库url中添加allowPublicKeyRetrieval=true&useSSL=false

# 完整url

jdbc:mysql://192.168.49.1:3306/xibaoxiao-galaxy?serverTimezone=Asia/Shanghai&characterEncoding=utf8&allowPublicKeyRetrieval=true&useSSL=false&zeroDateTimeBehavior=convertToNull

复制

清理磁盘空间

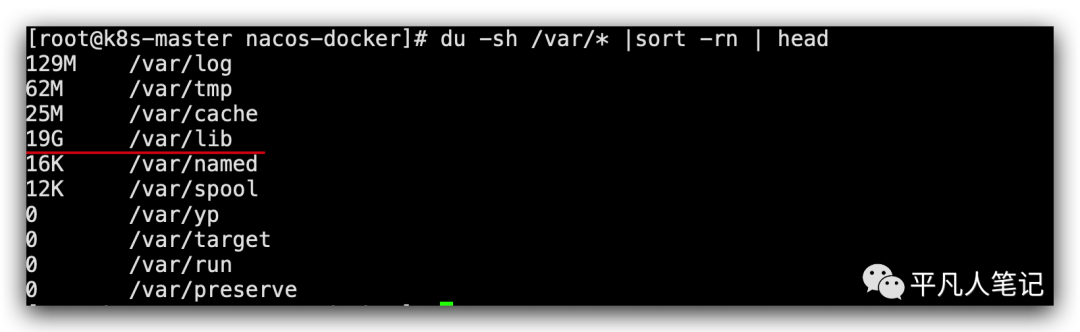

• 查看大目录

du -sh * |sort -rn | head

复制

• 进入大目录查看大文件

cd /var/lib

# 查看当前目录下大于100M的文件

find . -type f -size +100M -print0 | xargs -0 du -h | sort -nr

# 如果是日志文件

cat /dev/null > xxxx.log

复制

• 删除无用的docker镜像

docker image rm $(docker image ls  | grep "<none>" | awk -F " " '{print $3}')

# grep 筛选指定的镜像

# awk -F " " 以空格为分隔符 切分 获取镜像id值

复制

打通k8s service与pod之间的网络

• 创建一个service

cat gateway.yaml

apiVersion: v1
kind: Service
metadata:
  labels:
    app: xibao-gateway
  name: xibao-gateway
  namespace: xibao
spec:
  ports:
    - name: 2pdycx1111
      nodePort: 30002
      port: 8092
      protocol: TCP
      targetPort: 8092
  selector:
    app: xibao-gateway
  sessionAffinity: None
  type: NodePort
status:
  loadBalancer: {}

复制

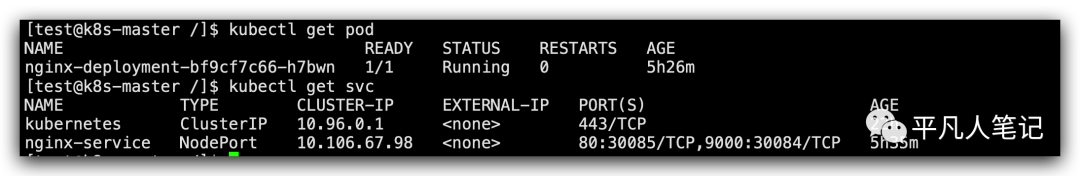

• 访问service的端口转发到pod内的进程上去

# service名称比如nginx-service，service的端口30084，对应pod内nginx服务中9000进程

kubectl port-forward --address 0.0.0.0 service/nginx-service 30084:9000

复制

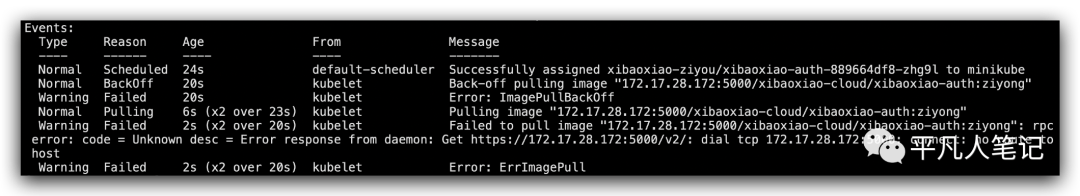

k8s下载镜像报错

connect: no route to host

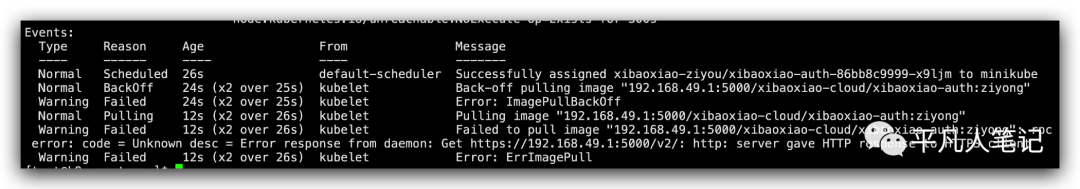

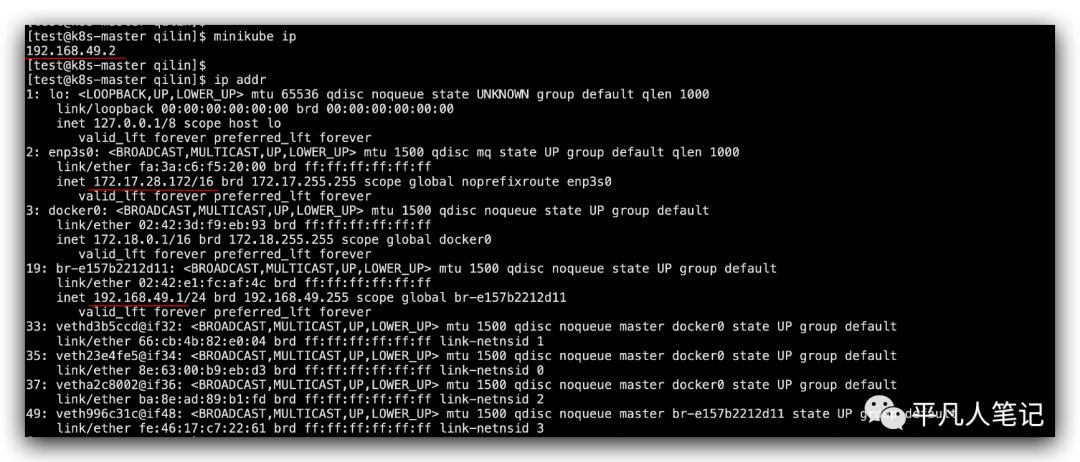

minikube的ip是192.168.49.2，与172.17.28.172不是同一网段，镜像换成192.148.49.1:5000/xxxxx就可以了。

k8s访问docker registry 安全限制问题

# 启动minikube的时候，添加insecure-registry，允许k8s http协议访问192.168.49.1:5000

minikube start --driver=docker --image-mirror-country=cn --registry-mirror=https://kaakiyao.mirror.aliyuncs.com --insecure-registry=192.168.49.1:5000

复制

查询git每天指定时间段内的提交记录

# 查询下午18点或早上9点之前代码提交记录 （获取每次提交记录中的小时，判断是否在指定范围内）

git log --author="mengfanxiao" --pretty=format:'%h %cn %cd %s' --date='format:%Y-%m-%d %H:%M:%S' | \
awk '{hour=0+substr($4,0,2); if(hour>18 || hour<9) printf "%-10s %-15s %-12s %-10s %-10s\n", $1, $2, $3, $4, $5 }'


# 指定日期范围

git log --committer="mengfanxiao" --after="2019/09/15 18:00:00" --before="2022/09/15 09:30:00" --pretty=format:"%an %ad : %s" --date=short --no-merges --reverse

复制

gitlab-runner

# 支持aarch64架构的二进制可执行文件

# 使用root权限，否则可能监听不到gitlab提交的job

sudo curl -L --output /usr/local/bin/gitlab-runner "https://gitlab-runner-downloads.s3.amazonaws.com/latest/binaries/gitlab-runner-linux-arm64"

复制

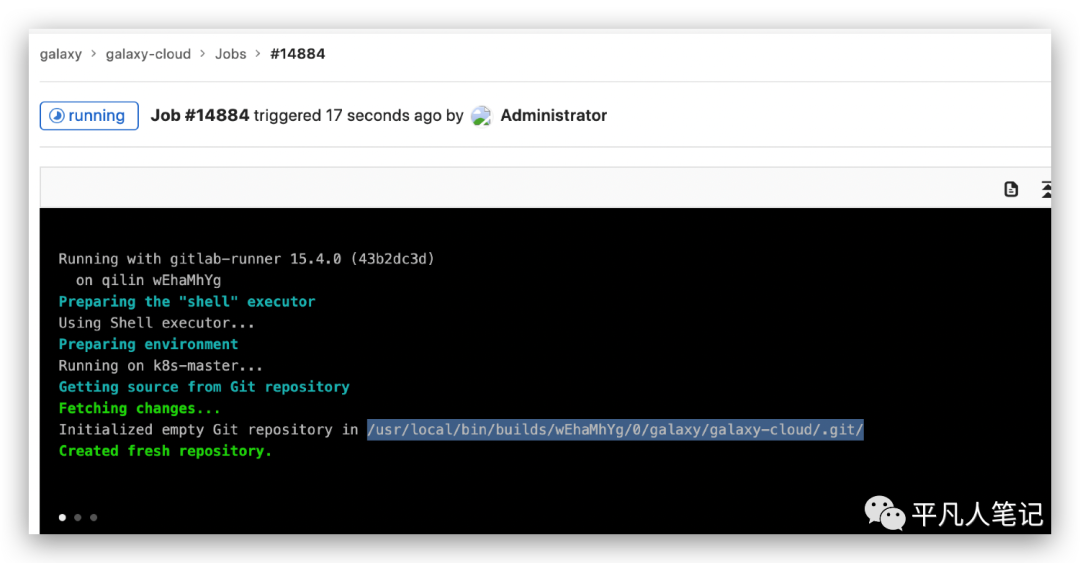

通过域名访问gitlab代码库下载代码慢的问题

可以手动将代码zip下载下来，然后上传到服务器的/usr/local/bin/builds/wEhaMhYg/0/galaxy/目录下。
