Apache DolphinScheduler 任务调度3.1.0版本源码剖析

海豚调度 2022-12-22

3368

目录（本文章基于3.1.0版本研究）

1、数据库表介绍

2、整体流程运行

3、源码剖析

3.1 apiserver任务执行入口

3.2 master调度任务

3.2.1 master启动
3.2.2 command扫描
3.2.3 workerFlowEvent消费
3.2.4 workerflow事件处理逻辑
3.2.5 workerflowRunnable运行逻辑
3.2.6 任务消费
3.2.7 任务分派

3.3. worker执行任务

3.3.1 Worker启动
3.3.2 Worker启动command
3.3.3 workerManager消费
3.3.4 任务运行

3.4 master接受任务反馈

3.4.1 master接受反馈消息
3.4.2 taskEventService处理taskevent
3.4.3 TaskResultEventHandler处理taskevent

3.5. master闭环提交下游任务

3.5.1 EventExecuteService处理stateEvent
3.5.2 workflowExecuteThread处理stateEvent事件
3.5.3 TaskStateEventHandler处理stateEvent事件
3.5.4 wokerflowExecuteThread调度下游任务

4、总结

4.1 各个组件的作用

4.2 线程的作用

数据库表介绍

t_ds_process_definition：工作流定义表

用于保存工作流，一个工作流一条数据；

t_ds_process_instance：工作流运行实例表，工作流根据crontab每调度一次则生成一条数据；

t_ds_task_definition：任务定义表

画布中节点信息表，多少个节点就有多少条数据；

t_ds_process_task_relation：任务关系表

任务与任务之间连了线，则会有一条数据；

t_ds_task_instance：task运行实例表

task每运行一次会生成一条数据；

t_ds_command：发起任务工作流运行，向apiserver发送http请求，然后接口往该表输出要运行工作流的信息；

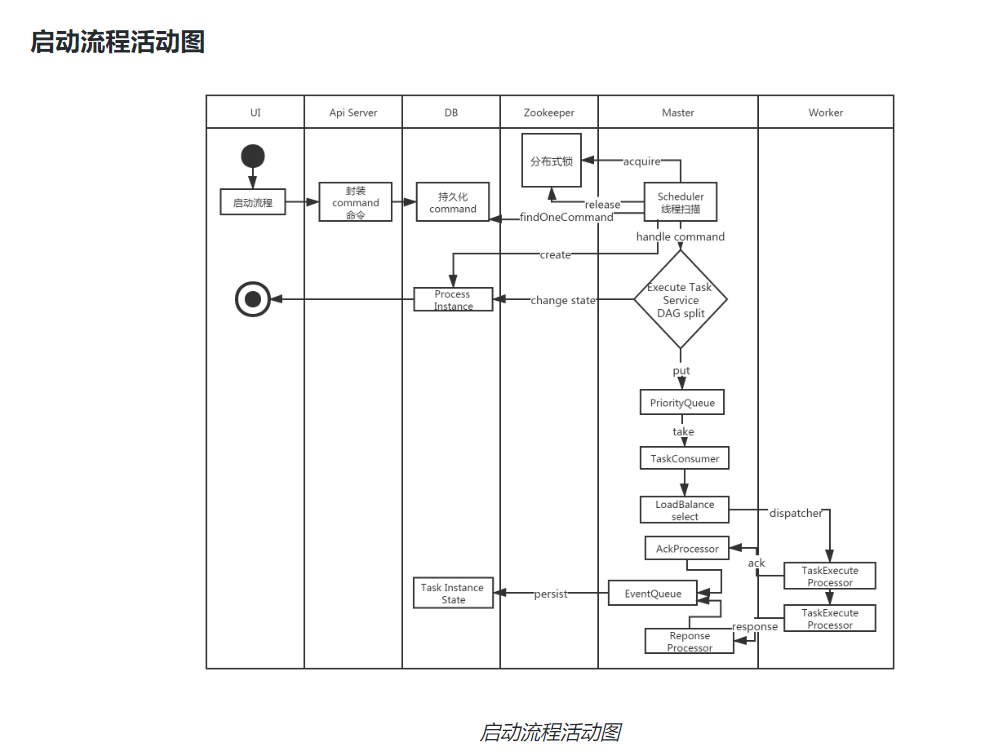

整体流程运行

用户点击WEB界面的启动工作流按钮。
apiserver 封装 commnd 到 db（往 t_ds_command 表中插入一条数据）。
master 扫描到 commad，进行 dga 构建，初始化，将源头 task 提交到 priority 队列中。
taskConsumer 消费队列数据得到 task，选择一台 worker 分配任务。
worker 接收到分配任务的消息启动任务。
worker 返回结果给 master，master 更新任务信息到 db 。

DolphinScheduler源码剖析

3.1 apiserver任务执行入口

当用户在前端点击执行任务，则会向海豚调度的接口发送请求，最终由 ExecutorController 的 startProcessInstance 方法来处理请求。

ExecutorController.startProcessInstance() 方法。

最终会往 mysql 表 t_ds_command 插入一条数据，将要运行的工作流信息写入该表。

@PostMapping(value = "start-process-instance")
@ResponseStatus(HttpStatus.OK)
@ApiException(START_PROCESS_INSTANCE_ERROR)
@AccessLogAnnotation(ignoreRequestArgs = "loginUser")
public Result startProcessInstance(@ApiIgnore @RequestAttribute(value = Constants.SESSION_USER) User loginUser,
                                   @ApiParam(name = "projectCode", value = "PROJECT_CODE", required = true) @PathVariable long projectCode,
                                   @RequestParam(value = "processDefinitionCode") long processDefinitionCode,
                                   @RequestParam(value = "scheduleTime") String scheduleTime,
                                   @RequestParam(value = "failureStrategy") FailureStrategy failureStrategy,
                                   @RequestParam(value = "startNodeList", required = false) String startNodeList,
                                   @RequestParam(value = "taskDependType", required = false) TaskDependType taskDependType,
                                   @RequestParam(value = "execType", required = false) CommandType execType,
                                   @RequestParam(value = "warningType") WarningType warningType,
                                   @RequestParam(value = "warningGroupId", required = false, defaultValue = "0") Integer warningGroupId,
                                   @RequestParam(value = "runMode", required = false) RunMode runMode,
                                   @RequestParam(value = "processInstancePriority", required = false) Priority processInstancePriority,
                                   @RequestParam(value = "workerGroup", required = false, defaultValue = "default") String workerGroup,
                                   @RequestParam(value = "environmentCode", required = false, defaultValue = "-1") Long environmentCode,
                                   @RequestParam(value = "timeout", required = false) Integer timeout,
                                   @RequestParam(value = "startParams", required = false) String startParams,
                                   @RequestParam(value = "expectedParallelismNumber", required = false) Integer expectedParallelismNumber,
                                   @RequestParam(value = "dryRun", defaultValue = "0", required = false) int dryRun,
                                   @RequestParam(value = "complementDependentMode", required = false) ComplementDependentMode complementDependentMode) {


    if (timeout == null) {
        timeout = Constants.MAX_TASK_TIMEOUT;
    }
    Map<String, String> startParamMap = null;
    if (startParams != null) {
        startParamMap = JSONUtils.toMap(startParams);
    }


    if (complementDependentMode == null) {
        complementDependentMode = ComplementDependentMode.OFF_MODE;
    }
    生成commnd信息入库
    Map<String, Object> result = execService.execProcessInstance(loginUser, projectCode, processDefinitionCode,
            scheduleTime, execType, failureStrategy,
            startNodeList, taskDependType, warningType, warningGroupId, runMode, processInstancePriority,
            workerGroup, environmentCode, timeout, startParamMap, expectedParallelismNumber, dryRun, complementDependentMode);
    return returnDataList(result);
}

3.2 master 调度任务

3.2.1 master启动

MasterServer.run() 方法

启动 master 的工作线程

public void run() throws SchedulerException {
     init rpc server
    this.masterRPCServer.start();//启动netty rpc服务，与worker通信使用


     install task plugin
    this.taskPluginManager.loadPlugin();//加载taskplugin


     self tolerant
    this.masterRegistryClient.init();//加载高可用的一些注册信息
    this.masterRegistryClient.start();
    this.masterRegistryClient.setRegistryStoppable(this);
    command扫描线程
    this.masterSchedulerBootstrap.init();
    this.masterSchedulerBootstrap.start();
    事件处理线程
    this.eventExecuteService.start();
    this.failoverExecuteThread.start();
    定时调度
    this.schedulerApi.start();


    Runtime.getRuntime().addShutdownHook(new Thread(() -> {
        if (Stopper.isRunning()) {
            close("MasterServer shutdownHook");
        }
    }));
}

3.2.2 command扫描

MasterSchedulerBootstrap.run()方法

该线程在3.2.1启动，启动之后，进入循环，一直扫描 command 表，查询出 command，然后封装成 processInstants 入库，创建 WorkflowExecuteRunnable (此对象后续很多地方用到) 写入到 workflowEventQueue 中。

public void run() {
    while (Stopper.isRunning()) {
        try {
             todo: if the workflow event queue is much, we need to handle the back pressure
            boolean isOverload =
                    OSUtils.isOverload(masterConfig.getMaxCpuLoadAvg(), masterConfig.getReservedMemory());
            if (isOverload) {
                MasterServerMetrics.incMasterOverload();
                Thread.sleep(Constants.SLEEP_TIME_MILLIS);
                continue;
            }
            List<Command> commands = findCommands();
            if (CollectionUtils.isEmpty(commands)) {
                 indicate that no command ,sleep for 1s
                Thread.sleep(Constants.SLEEP_TIME_MILLIS);
                continue;
            }
            将command转换成processInstance,并入库
            List<ProcessInstance> processInstances = command2ProcessInstance(commands);
            if (CollectionUtils.isEmpty(processInstances)) {
                 indicate that the command transform to processInstance error, sleep for 1s
                Thread.sleep(Constants.SLEEP_TIME_MILLIS);
                continue;
            }
            MasterServerMetrics.incMasterConsumeCommand(commands.size());


            processInstances.forEach(processInstance -> {
                try {
                    LoggerUtils.setWorkflowInstanceIdMDC(processInstance.getId());
                    if (processInstanceExecCacheManager.contains(processInstance.getId())) {
                        logger.error("The workflow instance is already been cached, this case shouldn't be happened");
                    }
                    WorkflowExecuteRunnable workflowRunnable = new WorkflowExecuteRunnable(processInstance,
                            processService,
                            nettyExecutorManager,
                            processAlertManager,
                            masterConfig,
                            stateWheelExecuteThread,
                            curingGlobalParamsService);
                    processInstanceExecCacheManager.cache(processInstance.getId(), workflowRunnable);//processInstanceExecCacheManager设置进cache 被  workflowEventLoop获取
                    workflowEventQueue.addEvent(new WorkflowEvent(WorkflowEventType.START_WORKFLOW,
                            processInstance.getId()));
                } finally {
                    LoggerUtils.removeWorkflowInstanceIdMDC();
                }
            });
        } catch (InterruptedException interruptedException) {
            logger.warn("Master schedule bootstrap interrupted, close the loop", interruptedException);
            Thread.currentThread().interrupt();
            break;
        } catch (Exception e) {
            logger.error("Master schedule workflow error", e);
             sleep for 1s here to avoid the database down cause the exception boom
            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);
        }
    }
}

3.2.3 workerFlowEvent消费

在 command 扫描线程中启动了 workflowEventLooper 线程用于消费 workerFlowEvent 。

MasterSchedulerBootstrap.start() 方法





@Override
public synchronized void start() {
    logger.info("Master schedule bootstrap starting..");
    super.start();
    workflowEventLooper.start();//工作流调度线程启动
    logger.info("Master schedule bootstrap started...");
}

从workflowEventQueue 拉取 workflowevent 事件，调用 workflowEventHandler 处理该事件。

WorkflowEventLooper.run()方法

public void run() {
    WorkflowEvent workflowEvent = null;
    while (Stopper.isRunning()) {
        try {
            workflowEvent = workflowEventQueue.poolEvent();//拉取workflowevent
            LoggerUtils.setWorkflowInstanceIdMDC(workflowEvent.getWorkflowInstanceId());
            logger.info("Workflow event looper receive a workflow event: {}, will handle this", workflowEvent);
            WorkflowEventHandler workflowEventHandler =
                workflowEventHandlerMap.get(workflowEvent.getWorkflowEventType());//获取workflowevent，处理workflowevent事件
            workflowEventHandler.handleWorkflowEvent(workflowEvent);
        } catch (InterruptedException e) {
            logger.warn("WorkflowEventLooper thread is interrupted, will close this loop", e);
            Thread.currentThread().interrupt();
            break;
        } catch (WorkflowEventHandleException workflowEventHandleException) {
            logger.error("Handle workflow event failed, will add this event to event queue again, event: {}",
                workflowEvent, workflowEventHandleException);
            workflowEventQueue.addEvent(workflowEvent);
            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);
        } catch (WorkflowEventHandleError workflowEventHandleError) {
            logger.error("Handle workflow event error, will drop this event, event: {}",
                         workflowEvent,
                         workflowEventHandleError);
        } catch (Exception unknownException) {
            logger.error(
                "Handle workflow event failed, get a unknown exception, will add this event to event queue again, event: {}",
                workflowEvent, unknownException);
            workflowEventQueue.addEvent(workflowEvent);
            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);
        } finally {
            LoggerUtils.removeWorkflowInstanceIdMDC();
        }
    }
}

3.2.4 workerflow事件处理逻辑

因为是START_WORKFLOW类型的所以获取到 WorkflowStartEventHandler.handleWorkflowEvent() 来处理该事件。

该方法中，获取 WorkflowExecuteRunnable ，运行异步任务调用 call 方法。

@Override
public void handleWorkflowEvent(WorkflowEvent workflowEvent) throws WorkflowEventHandleError {
    logger.info("Handle workflow start event, begin to start a workflow, event: {}", workflowEvent);
//获取WorkflowExecuteRunnable
    WorkflowExecuteRunnable workflowExecuteRunnable =
       processInstanceExecCacheManager.getByProcessInstanceId(workflowEvent.getWorkflowInstanceId());
    if (workflowExecuteRunnable == null) {
        throw new WorkflowEventHandleError(
            "The workflow start event is invalid, cannot find the workflow instance from cache");
    }
    ProcessInstance processInstance = workflowExecuteRunnable.getProcessInstance();


    ProcessInstanceMetrics.incProcessInstanceSubmit();
   //异步调用call方法执行workflowExecute运行逻辑。
 CompletableFuture<WorkflowSubmitStatue> workflowSubmitFuture =
        CompletableFuture.supplyAsync(workflowExecuteRunnable::call, workflowExecuteThreadPool);
    workflowSubmitFuture.thenAccept(workflowSubmitStatue -> {
        if (WorkflowSubmitStatue.SUCCESS == workflowSubmitStatue) {
            // submit failed will resend the event to workflow event queue
            logger.info("Success submit the workflow instance");//监听返回状态是否成功
            if (processInstance.getTimeout() > 0) {//是否超时
                stateWheelExecuteThread.addProcess4TimeoutCheck(processInstance);
            }
        } else {//出现异常，重试，重新进入队列，调用call方法
            logger.error("Failed to submit the workflow instance, will resend the workflow start event: {}",
                         workflowEvent);
            workflowEventQueue.addEvent(new WorkflowEvent(WorkflowEventType.START_WORKFLOW,
                                                          processInstance.getId()));
        }
    });
}

3.2.5 workerflowRunnable运行逻辑

WorkflowExecuteRunnable.call()

初始化workerflow的有向无环图。
初始化任务调度配置
提交源头任务到任务优先级队列中。

@Override
public WorkflowSubmitStatue call() {
    if (isStart()) {
        // This case should not been happened
        logger.warn("[WorkflowInstance-{}] The workflow has already been started", processInstance.getId());
        return WorkflowSubmitStatue.DUPLICATED_SUBMITTED;
    }


    try {
        LoggerUtils.setWorkflowInstanceIdMDC(processInstance.getId());
        if (workflowRunnableStatus == WorkflowRunnableStatus.CREATED) {
            buildFlowDag();//创建dag有向无环图
            workflowRunnableStatus = WorkflowRunnableStatus.INITIALIZE_DAG;
            logger.info("workflowStatue changed to :{}", workflowRunnableStatus);
        }
        if (workflowRunnableStatus == WorkflowRunnableStatus.INITIALIZE_DAG) {
            initTaskQueue();//初始化任务调度配置
            workflowRunnableStatus = WorkflowRunnableStatus.INITIALIZE_QUEUE;
            logger.info("workflowStatue changed to :{}", workflowRunnableStatus);
        }
        if (workflowRunnableStatus == WorkflowRunnableStatus.INITIALIZE_QUEUE) {
            submitPostNode(null);//提交任务到队列中，注意是先提交源头结点，源头结点运行万再提交源头结点的下有节点
            workflowRunnableStatus = WorkflowRunnableStatus.STARTED;
            logger.info("workflowStatue changed to :{}", workflowRunnableStatus);
        }
        return WorkflowSubmitStatue.SUCCESS;
    } catch (Exception e) {
        logger.error("Start workflow error", e);
        return WorkflowSubmitStatue.FAILED;
    } finally {
        LoggerUtils.removeWorkflowInstanceIdMDC();
    }
}

3.2.6 任务消费

TaskPriorityQueueConsumer.run方法，该线程通过注解启动。

//通过注解启动
@PostConstruct
public void init() {
    this.consumerThreadPoolExecutor = (ThreadPoolExecutor) ThreadUtils.newDaemonFixedThreadExecutor("TaskUpdateQueueConsumerThread", masterConfig.getDispatchTaskNumber());
    logger.info("Task priority queue consume thread staring");
    super.start();
    logger.info("Task priority queue consume thread started");
}


@Override
public void run() {
    int fetchTaskNum = masterConfig.getDispatchTaskNumber();
    while (Stopper.isRunning()) {
        try {
            List<TaskPriority> failedDispatchTasks = this.batchDispatch(fetchTaskNum);


            if (CollectionUtils.isNotEmpty(failedDispatchTasks)) {
                TaskMetrics.incTaskDispatchFailed(failedDispatchTasks.size());
                for (TaskPriority dispatchFailedTask : failedDispatchTasks) {
                    taskPriorityQueue.put(dispatchFailedTask);
                }
                // If the all task dispatch failed, will sleep for 1s to avoid the master cpu higher.
                if (fetchTaskNum == failedDispatchTasks.size()) {
                    TimeUnit.MILLISECONDS.sleep(Constants.SLEEP_TIME_MILLIS);
                }
            }
        } catch (Exception e) {
            TaskMetrics.incTaskDispatchError();
            logger.error("dispatcher task error", e);
        }
    }
}

批量调度任务

TaskPriorityQueueConsumer.batchDispatch()

/**
 * batch dispatch with thread pool
 */
public List<TaskPriority> batchDispatch(int fetchTaskNum) throws TaskPriorityQueueException, InterruptedException {
    List<TaskPriority> failedDispatchTasks = Collections.synchronizedList(new ArrayList<>());
    CountDownLatch latch = new CountDownLatch(fetchTaskNum);


    for (int i = 0; i < fetchTaskNum; i++) {//拉取任务
        TaskPriority taskPriority = taskPriorityQueue.poll(Constants.SLEEP_TIME_MILLIS, TimeUnit.MILLISECONDS);
        if (Objects.isNull(taskPriority)) {
            latch.countDown();
            continue;
        }
        consumerThreadPoolExecutor.submit(() -> {//创建异步线程分派任务
            try {
                boolean dispatchResult = this.dispatchTask(taskPriority);
                if (!dispatchResult) {
                    failedDispatchTasks.add(taskPriority);
                }
            } finally {
                // make sure the latch countDown
                latch.countDown();
            }
        });
    }
    latch.await();
    return failedDispatchTasks;
}

3.2.7 任务分派



/**
 * Dispatch task to worker.
 *
 * @param taskPriority taskPriority
 * @return dispatch result, return true if dispatch success, return false if dispatch failed.
 */
protected boolean dispatchTask(TaskPriority taskPriority) {
    TaskMetrics.incTaskDispatch();
    boolean result = false;
    try {
        WorkflowExecuteRunnable workflowExecuteRunnable =//获取workflowexecuteRunnable对象
                processInstanceExecCacheManager.getByProcessInstanceId(taskPriority.getProcessInstanceId());
        if (workflowExecuteRunnable == null) {
            logger.error("Cannot find the related processInstance of the task, taskPriority: {}", taskPriority);
            return true;
        }
        Optional<TaskInstance> taskInstanceOptional =//获取任务实例
                workflowExecuteRunnable.getTaskInstance(taskPriority.getTaskId());
        if (!taskInstanceOptional.isPresent()) {
            logger.error("Cannot find the task instance from related processInstance, taskPriority: {}",
                    taskPriority);
            // we return true, so that we will drop this task.
            return true;
        }
        TaskInstance taskInstance = taskInstanceOptional.get();
        TaskExecutionContext context = taskPriority.getTaskExecutionContext();
        ExecutionContext executionContext =//创建执行上下文
                new ExecutionContext(toCommand(context), ExecutorType.WORKER, context.getWorkerGroup(), taskInstance);


        if (isTaskNeedToCheck(taskPriority)) {
            if (taskInstanceIsFinalState(taskPriority.getTaskId())) {
                // when task finish, ignore this task, there is no need to dispatch anymore
                return true;
            }
        }
        //分派任务
        result = dispatcher.dispatch(executionContext);


        if (result) {
            logger.info("Master success dispatch task to worker, taskInstanceId: {}, worker: {}",
                    taskPriority.getTaskId(),
                    executionContext.getHost());
            addDispatchEvent(context, executionContext);
        } else {
            logger.info("Master failed to dispatch task to worker, taskInstanceId: {}, worker: {}",
                    taskPriority.getTaskId(),
                    executionContext.getHost());
        }
    } catch (RuntimeException | ExecuteException e) {
        logger.error("Master dispatch task to worker error, taskPriority: {}", taskPriority, e);
    }
    return result;
}

选出一台worker节点通过netty向worker发送command，让worker运行该任务。

/**
 * task dispatch
 *
 * @param context context
 * @return result
 * @throws ExecuteException if error throws ExecuteException
 */
public Boolean dispatch(final ExecutionContext context) throws ExecuteException {
    // get executor manager 获取
    ExecutorManager<Boolean> executorManager = this.executorManagers.get(context.getExecutorType());
    if (executorManager == null) {
        throw new ExecuteException("no ExecutorManager for type : " + context.getExecutorType());
    }


    // host select worke节点选择器，选择worker节点
    Host host = hostManager.select(context);
    if (StringUtils.isEmpty(host.getAddress())) {
        logger.warn("fail to execute : {} due to no suitable worker, current task needs worker group {} to execute",
            context.getCommand(), context.getWorkerGroup());
        return false;
    }
    context.setHost(host);//设置host进上下文
    executorManager.beforeExecute(context);
    try {
        // task execute 通过netty发送消息给worker，告知worker要执行该任务
        return executorManager.execute(context);
    } finally {
        executorManager.afterExecute(context);
    }
}

/**
 * execute logic
 *
 * @param context context
 * @return result
 * @throws ExecuteException if error throws ExecuteException
 */
@Override
public Boolean execute(ExecutionContext context) throws ExecuteException {
    // all nodes
    Set<String> allNodes = getAllNodes(context);
    // fail nodes
    Set<String> failNodeSet = new HashSet<>();
    // build command accord executeContext
    Command command = context.getCommand();
    // execute task host
    Host host = context.getHost();
    boolean success = false;
    while (!success) {
        try {
            doExecute(host, command);
            success = true;
            context.setHost(host);
            // We set the host to taskInstance to avoid when the worker down, this taskInstance may not be failovered, due to the taskInstance's host
            // is not belongs to the down worker ISSUE-10842.
            context.getTaskInstance().setHost(host.getAddress());
        } catch (ExecuteException ex) {
            logger.error(String.format("execute command : %s error", command), ex);
            try {
                failNodeSet.add(host.getAddress());
                Set<String> tmpAllIps = new HashSet<>(allNodes);
                Collection<String> remained = CollectionUtils.subtract(tmpAllIps, failNodeSet);
                if (remained != null && remained.size() > 0) {
                    host = Host.of(remained.iterator().next());
                    logger.error("retry execute command : {} host : {}", command, host);
                } else {
                    throw new ExecuteException("fail after try all nodes");
                }
            } catch (Throwable t) {
                throw new ExecuteException("fail after try all nodes");
            }
        }
    }


    return success;
}

3.3 worker执行任务

3.3.1 worker启动

WorkerServer.run()

public void run() {
    this.workerRpcServer.start();//启动rpc通信组件
    this.workerRpcClient.start();
    this.taskPluginManager.loadPlugin();


    this.workerRegistryClient.registry();
    this.workerRegistryClient.setRegistryStoppable(this);
    this.workerRegistryClient.handleDeadServer();
    //启动workermaanager线程，消费command执行任务。
    this.workerManagerThread.start();


    this.messageRetryRunner.start();


    /*
     * registry hooks, which are called before the process exits
     */
    Runtime.getRuntime().addShutdownHook(new Thread(() -> {
        if (Stopper.isRunning()) {
            close("WorkerServer shutdown hook");
        }
    }));
}

3.3.2 worker消费任务启动command

worker 通过接收到 master 发送过来的消息最终会调用TaskDispatchProcessor.process（在3.3.1启动netty rpc通信组件的时候注册的handler）方法处理 command 消息。

TaskDispatchProcessor.process()

提取 command 中的 task 上下文对象封装成 TaskExecuteThread ，提交到
workerManager 中。

@Counted(value = "ds.task.execution.count", description = "task execute total count")
@Timed(value = "ds.task.execution.duration", percentiles = {0.5, 0.75, 0.95, 0.99}, histogram = true)
@Override
public void process(Channel channel, Command command) {
    Preconditions.checkArgument(CommandType.TASK_DISPATCH_REQUEST == command.getType(),
                                String.format("invalid command type : %s", command.getType()));


    TaskDispatchCommand taskDispatchCommand = JSONUtils.parseObject(command.getBody(), TaskDispatchCommand.class);


    if (taskDispatchCommand == null) {
        logger.error("task execute request command content is null");
        return;
    }
    final String masterAddress = taskDispatchCommand.getMessageSenderAddress();
    logger.info("task execute request message: {}", taskDispatchCommand);


    TaskExecutionContext taskExecutionContext = taskDispatchCommand.getTaskExecutionContext();//获取上下文


    if (taskExecutionContext == null) {
        logger.error("task execution context is null");
        return;
    }
    try {
        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),
                                                    taskExecutionContext.getTaskInstanceId());


        TaskMetrics.incrTaskTypeExecuteCount(taskExecutionContext.getTaskType());


        // set cache, it will be used when kill task
        TaskExecutionContextCacheManager.cacheTaskExecutionContext(taskExecutionContext);


        // todo custom logger


        taskExecutionContext.setHost(workerConfig.getWorkerAddress());
        taskExecutionContext.setLogPath(LogUtils.getTaskLogPath(taskExecutionContext));


        if (Constants.DRY_RUN_FLAG_NO == taskExecutionContext.getDryRun()) {//不是测试运行
            boolean osUserExistFlag;
            //if Using distributed is true and Currently supported systems are linux,Should not let it automatically
            //create tenants,so TenantAutoCreate has no effect
            if (workerConfig.isTenantDistributedUser() && SystemUtils.IS_OS_LINUX) {
                //use the id command to judge in linux
                osUserExistFlag = OSUtils.existTenantCodeInLinux(taskExecutionContext.getTenantCode());
            } else if (CommonUtils.isSudoEnable() && workerConfig.isTenantAutoCreate()) {
                // if not exists this user, then create
                OSUtils.createUserIfAbsent(taskExecutionContext.getTenantCode());
                osUserExistFlag = OSUtils.getUserList().contains(taskExecutionContext.getTenantCode());
            } else {
                osUserExistFlag = OSUtils.getUserList().contains(taskExecutionContext.getTenantCode());
            }


            // check if the OS user exists
            if (!osUserExistFlag) {//校验操作系统用户是否存在
                logger.error("tenantCode: {} does not exist, taskInstanceId: {}",
                             taskExecutionContext.getTenantCode(),
                             taskExecutionContext.getTaskInstanceId());
                TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());
                taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.FAILURE);
                taskExecutionContext.setEndTime(new Date());
                workerMessageSender.sendMessageWithRetry(taskExecutionContext,//发送失败消息
                                                         masterAddress,
                                                         CommandType.TASK_EXECUTE_RESULT);
                return;
            }


            // local execute path
            String execLocalPath = getExecLocalPath(taskExecutionContext);
            logger.info("task instance local execute path : {}", execLocalPath);
            taskExecutionContext.setExecutePath(execLocalPath);


            try {
                FileUtils.createWorkDirIfAbsent(execLocalPath);
            } catch (Throwable ex) {//workerdir创建失败
                logger.error("create execLocalPath fail, path: {}, taskInstanceId: {}",
                             execLocalPath,
                             taskExecutionContext.getTaskInstanceId(),
                             ex);
                TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());
                taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.FAILURE);
                workerMessageSender.sendMessageWithRetry(taskExecutionContext,
                                                         masterAddress,
                                                         CommandType.TASK_EXECUTE_RESULT);
                return;
            }
        }


        // delay task process
        long remainTime = DateUtils.getRemainTime(taskExecutionContext.getFirstSubmitTime(),
                                                  taskExecutionContext.getDelayTime() * 60L);
        if (remainTime > 0) {
            logger.info("delay the execution of task instance {}, delay time: {} s",
                        taskExecutionContext.getTaskInstanceId(),
                        remainTime);
            taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.DELAY_EXECUTION);
            taskExecutionContext.setStartTime(null);
            workerMessageSender.sendMessage(taskExecutionContext, masterAddress, CommandType.TASK_EXECUTE_RESULT);
        }


        // submit task to manager//提交任务 workerManager 中
        boolean offer = workerManager.offer(new TaskExecuteThread(taskExecutionContext,
                                                                  masterAddress,
                                                                  workerMessageSender,
                                                                  alertClientService,
                                                                  taskPluginManager,
                                                                  storageOperate));
        if (!offer) {
            logger.warn("submit task to wait queue error, queue is full, queue size is {}, taskInstanceId: {}",
                        workerManager.getWaitSubmitQueueSize(),
                        taskExecutionContext.getTaskInstanceId());
            workerMessageSender.sendMessageWithRetry(taskExecutionContext, masterAddress, CommandType.TASK_REJECT);
        }
    } finally {
        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
    }
}

3.3.3 workerManager 消费任务

public void start() {
    logger.info("Worker manager thread starting");
    Thread thread = new Thread(this, this.getClass().getName());
    thread.setDaemon(true);
    thread.start();
    logger.info("Worker manager thread started");
}


public void submit(TaskExecuteThread taskExecuteThread) {
    taskExecuteThreadMap.put(taskExecuteThread.getTaskExecutionContext().getTaskInstanceId(), taskExecuteThread);//设置进正在运行task的map中。
    ListenableFuture future = this.listeningExecutorService.submit(taskExecuteThread);//提交任务到线程池中运行任务
    FutureCallback futureCallback = new FutureCallback() {
        @Override
        public void onSuccess(Object o) {//注册毁掉函数
            taskExecuteThreadMap.remove(taskExecuteThread.getTaskExecutionContext().getTaskInstanceId());
        }


        @Override
        public void onFailure(Throwable throwable) {
            logger.error("task execute failed, processInstanceId:{}, taskInstanceId:{}",
                    taskExecuteThread.getTaskExecutionContext().getProcessInstanceId(),
                    taskExecuteThread.getTaskExecutionContext().getTaskInstanceId(),
                    throwable);
            taskExecuteThreadMap.remove(taskExecuteThread.getTaskExecutionContext().getTaskInstanceId());//移除
        }
    };
    Futures.addCallback(future, futureCallback, this.listeningExecutorService);
}

3.3.4 任务运行

@Override
public void run() {
    try {
        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),
                taskExecutionContext.getTaskInstanceId());
        if (Constants.DRY_RUN_FLAG_YES == taskExecutionContext.getDryRun()) {//判断是不是测试运行
            taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.SUCCESS);
            taskExecutionContext.setStartTime(new Date());
            taskExecutionContext.setEndTime(new Date());
            TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());
            workerMessageSender.sendMessageWithRetry(taskExecutionContext,
                    masterAddress,
                    CommandType.TASK_EXECUTE_RESULT);
            logger.info("Task dry run success");
            return;
        }
    } finally {
        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
    }
    try {
        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),
                taskExecutionContext.getTaskInstanceId());
        logger.info("script path : {}", taskExecutionContext.getExecutePath());
        if (taskExecutionContext.getStartTime() == null) {
            taskExecutionContext.setStartTime(new Date());
        }
        logger.info("the task begins to execute. task instance id: {}", taskExecutionContext.getTaskInstanceId());


        // callback task execute running
        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.RUNNING_EXECUTION);
        workerMessageSender.sendMessageWithRetry(taskExecutionContext,
                masterAddress,
                CommandType.TASK_EXECUTE_RUNNING);


        // copy hdfs/minio file to local
        List<Pair<String, String>> fileDownloads = downloadCheck(taskExecutionContext.getExecutePath(),
                taskExecutionContext.getResources());
        if (!fileDownloads.isEmpty()) {
            downloadResource(taskExecutionContext.getExecutePath(), logger, fileDownloads);
        }


        taskExecutionContext.setEnvFile(CommonUtils.getSystemEnvPath());


        taskExecutionContext.setTaskAppId(String.format("%s_%s",
                taskExecutionContext.getProcessInstanceId(),
                taskExecutionContext.getTaskInstanceId()));


        TaskChannel taskChannel = taskPluginManager.getTaskChannelMap().get(taskExecutionContext.getTaskType());//获取task构造器
        if (null == taskChannel) {
            throw new ServiceException(String.format("%s Task Plugin Not Found,Please Check Config File.", taskExecutionContext.getTaskType()));
        }
        String taskLogName = LoggerUtils.buildTaskId(taskExecutionContext.getFirstSubmitTime(),
                taskExecutionContext.getProcessDefineCode(),
                taskExecutionContext.getProcessDefineVersion(),
                taskExecutionContext.getProcessInstanceId(),
                taskExecutionContext.getTaskInstanceId());
        taskExecutionContext.setTaskLogName(taskLogName);


        // set the name of the current thread
        Thread.currentThread().setName(taskLogName);


        task = taskChannel.createTask(taskExecutionContext);//创建task


        // task init
        this.task.init();//初始化task


        //init varPool
        this.task.getParameters().setVarPool(taskExecutionContext.getVarPool());


        // task handle
        this.task.handle();//task处理的真正逻辑，每一种task对应自己的handle逻辑


        // task result process
        if (this.task.getNeedAlert()) {
            sendAlert(this.task.getTaskAlertInfo(), this.task.getExitStatus().getCode());
        }


        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.of(this.task.getExitStatus().getCode()));//返回任务的返回信息
        taskExecutionContext.setEndTime(DateUtils.getCurrentDate());
        taskExecutionContext.setProcessId(this.task.getProcessId());
        taskExecutionContext.setAppIds(this.task.getAppIds());
        taskExecutionContext.setVarPool(JSONUtils.toJsonString(this.task.getParameters().getVarPool()));
        logger.info("task instance id : {},task final status : {}", taskExecutionContext.getTaskInstanceId(), this.task.getExitStatus());
    } catch (Throwable e) {
        logger.error("task scheduler failure", e);
        kill();
        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.FAILURE);//返回失败
        taskExecutionContext.setEndTime(DateUtils.getCurrentDate());
        taskExecutionContext.setProcessId(this.task.getProcessId());
        taskExecutionContext.setAppIds(this.task.getAppIds());
    } finally {
        TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());//返回任务运行结果
        workerMessageSender.sendMessageWithRetry(taskExecutionContext,
                masterAddress,
                CommandType.TASK_EXECUTE_RESULT);
        clearTaskExecPath();
        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
    }
}

3.4 master接受任务反馈

3.4.1 master接受反馈消息

Worker运行完任务通过netty向master汇报任务运行结果。Master在启动的时候也启动了netty，同时也注册了很多handler。一种消息类型是一个业务对应一个handler来处理业务。

Worker 反馈任务运行消息则是 Task_EXECUTE_RESULT 消息类型

MasterRPCServer.init()

@Override
public void run() {
    try {
        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),
                taskExecutionContext.getTaskInstanceId());
        if (Constants.DRY_RUN_FLAG_YES == taskExecutionContext.getDryRun()) {//判断是不是测试运行
            taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.SUCCESS);
            taskExecutionContext.setStartTime(new Date());
            taskExecutionContext.setEndTime(new Date());
            TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());
            workerMessageSender.sendMessageWithRetry(taskExecutionContext,
                    masterAddress,
                    CommandType.TASK_EXECUTE_RESULT);
            logger.info("Task dry run success");
            return;
        }
    } finally {
        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
    }
    try {
        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskExecutionContext.getProcessInstanceId(),
                taskExecutionContext.getTaskInstanceId());
        logger.info("script path : {}", taskExecutionContext.getExecutePath());
        if (taskExecutionContext.getStartTime() == null) {
            taskExecutionContext.setStartTime(new Date());
        }
        logger.info("the task begins to execute. task instance id: {}", taskExecutionContext.getTaskInstanceId());


        // callback task execute running
        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.RUNNING_EXECUTION);
        workerMessageSender.sendMessageWithRetry(taskExecutionContext,
                masterAddress,
                CommandType.TASK_EXECUTE_RUNNING);


        // copy hdfs/minio file to local
        List<Pair<String, String>> fileDownloads = downloadCheck(taskExecutionContext.getExecutePath(),
                taskExecutionContext.getResources());
        if (!fileDownloads.isEmpty()) {
            downloadResource(taskExecutionContext.getExecutePath(), logger, fileDownloads);
        }


        taskExecutionContext.setEnvFile(CommonUtils.getSystemEnvPath());


        taskExecutionContext.setTaskAppId(String.format("%s_%s",
                taskExecutionContext.getProcessInstanceId(),
                taskExecutionContext.getTaskInstanceId()));


        TaskChannel taskChannel = taskPluginManager.getTaskChannelMap().get(taskExecutionContext.getTaskType());//获取task构造器
        if (null == taskChannel) {
            throw new ServiceException(String.format("%s Task Plugin Not Found,Please Check Config File.", taskExecutionContext.getTaskType()));
        }
        String taskLogName = LoggerUtils.buildTaskId(taskExecutionContext.getFirstSubmitTime(),
                taskExecutionContext.getProcessDefineCode(),
                taskExecutionContext.getProcessDefineVersion(),
                taskExecutionContext.getProcessInstanceId(),
                taskExecutionContext.getTaskInstanceId());
        taskExecutionContext.setTaskLogName(taskLogName);


        // set the name of the current thread
        Thread.currentThread().setName(taskLogName);


        task = taskChannel.createTask(taskExecutionContext);//创建task


        // task init
        this.task.init();//初始化task


        //init varPool
        this.task.getParameters().setVarPool(taskExecutionContext.getVarPool());


        // task handle
        this.task.handle();//task处理的真正逻辑，每一种task对应自己的handle逻辑


        // task result process
        if (this.task.getNeedAlert()) {
            sendAlert(this.task.getTaskAlertInfo(), this.task.getExitStatus().getCode());
        }


        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.of(this.task.getExitStatus().getCode()));//返回任务的返回信息
        taskExecutionContext.setEndTime(DateUtils.getCurrentDate());
        taskExecutionContext.setProcessId(this.task.getProcessId());
        taskExecutionContext.setAppIds(this.task.getAppIds());
        taskExecutionContext.setVarPool(JSONUtils.toJsonString(this.task.getParameters().getVarPool()));
        logger.info("task instance id : {},task final status : {}", taskExecutionContext.getTaskInstanceId(), this.task.getExitStatus());
    } catch (Throwable e) {
        logger.error("task scheduler failure", e);
        kill();
        taskExecutionContext.setCurrentExecutionStatus(ExecutionStatus.FAILURE);//返回失败
        taskExecutionContext.setEndTime(DateUtils.getCurrentDate());
        taskExecutionContext.setProcessId(this.task.getProcessId());
        taskExecutionContext.setAppIds(this.task.getAppIds());
    } finally {
        TaskExecutionContextCacheManager.removeByTaskInstanceId(taskExecutionContext.getTaskInstanceId());//返回任务运行结果
        workerMessageSender.sendMessageWithRetry(taskExecutionContext,
                masterAddress,
                CommandType.TASK_EXECUTE_RESULT);
        clearTaskExecPath();
        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
    }
}

将消息封装成 taskResultEvent 提交给taskEventService

TaskExecuteResponseProcessor.run()

@Override
public void process(Channel channel, Command command) {
    Preconditions.checkArgument(CommandType.TASK_EXECUTE_RESULT == command.getType(),
                                String.format("invalid command type : %s", command.getType()));


    TaskExecuteResultCommand taskExecuteResultMessage = JSONUtils.parseObject(command.getBody(),
                                                                              TaskExecuteResultCommand.class);
    TaskEvent taskResultEvent = TaskEvent.newResultEvent(taskExecuteResultMessage,
                                                         channel,
                                                         taskExecuteResultMessage.getMessageSenderAddress());
    try {
        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskResultEvent.getProcessInstanceId(),
                                                    taskResultEvent.getTaskInstanceId());
        logger.info("Received task execute result, event: {}", taskResultEvent);
       //提交事件给taskEventService
        taskEventService.addEvent(taskResultEvent);
    } finally {
        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
    }
}

3.4.2 taskEventService处理taskevent

TaskEventService 启动源码，启动 taskeventdispacher 和 taskeventhandler 。

Eventservice 由这两个组件组成。

TaskEventService.start() 方法

@Override
public void process(Channel channel, Command command) {
    Preconditions.checkArgument(CommandType.TASK_EXECUTE_RESULT == command.getType(),
                                String.format("invalid command type : %s", command.getType()));


    TaskExecuteResultCommand taskExecuteResultMessage = JSONUtils.parseObject(command.getBody(),
                                                                              TaskExecuteResultCommand.class);
    TaskEvent taskResultEvent = TaskEvent.newResultEvent(taskExecuteResultMessage,
                                                         channel,
                                                         taskExecuteResultMessage.getMessageSenderAddress());
    try {
        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskResultEvent.getProcessInstanceId(),
                                                    taskResultEvent.getTaskInstanceId());
        logger.info("Received task execute result, event: {}", taskResultEvent);
       //提交事件给taskEventService
        taskEventService.addEvent(taskResultEvent);
    } finally {
        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
    }
}

接3.4.1 处理

@Override
public void process(Channel channel, Command command) {
    Preconditions.checkArgument(CommandType.TASK_EXECUTE_RESULT == command.getType(),
                                String.format("invalid command type : %s", command.getType()));


    TaskExecuteResultCommand taskExecuteResultMessage = JSONUtils.parseObject(command.getBody(),
                                                                              TaskExecuteResultCommand.class);
    TaskEvent taskResultEvent = TaskEvent.newResultEvent(taskExecuteResultMessage,
                                                         channel,
                                                         taskExecuteResultMessage.getMessageSenderAddress());
    try {
        LoggerUtils.setWorkflowAndTaskInstanceIDMDC(taskResultEvent.getProcessInstanceId(),
                                                    taskResultEvent.getTaskInstanceId());
        logger.info("Received task execute result, event: {}", taskResultEvent);
       //提交事件给taskEventService
        taskEventService.addEvent(taskResultEvent);
    } finally {
        LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
    }
}

进入submitTaskEvent方法

public void submitTaskEvent(TaskEvent taskEvent) {
    if (!processInstanceExecCacheManager.contains(taskEvent.getProcessInstanceId())) {
        logger.warn("Cannot find workflowExecuteThread from cacheManager, event: {}", taskEvent);
        return;
    } //创建taskExecuteRunnable，并且将事件提交到taskEventRunnable,后续该对象负责处理该process的所有提交过来的TaskEvent
    TaskExecuteRunnable taskExecuteRunnable = taskExecuteThreadMap.computeIfAbsent(taskEvent.getProcessInstanceId(),
        (processInstanceId) -> new TaskExecuteRunnable(processInstanceId, taskEventHandlerMap));
    taskExecuteRunnable.addEvent(taskEvent);
}

处理 taskevent ,最终调用 taskExecuteThread.run 方法处理 taskevent。

class TaskEventHandlerThread extends BaseDaemonThread {


    protected TaskEventHandlerThread() {
        super("TaskEventHandlerThread");
    }


    @Override
    public void run() {
        logger.info("event handler thread started");
        while (Stopper.isRunning()) {
            try {//处理事件
                taskExecuteThreadPool.eventHandler();
                TimeUnit.MILLISECONDS.sleep(Constants.SLEEP_TIME_MILLIS);
            } catch (InterruptedException e) {
                Thread.currentThread().interrupt();
                logger.warn("TaskEvent handle thread interrupted, will return this loop");
                break;
            } catch (Exception e) {
                logger.error("event handler thread error", e);
            }
        }
    }
}




//进入eventHandler方法
public void eventHandler() {
    for (TaskExecuteRunnable taskExecuteThread : taskExecuteThreadMap.values()) {
        executeEvent(taskExecuteThread);
    }
}




//执行事件
public void executeEvent(TaskExecuteRunnable taskExecuteThread) {
    if (taskExecuteThread.isEmpty()) {
        return;
    }
    if (multiThreadFilterMap.containsKey(taskExecuteThread.getKey())) {
        return;
}
//获取对应task的事件处理线程
    multiThreadFilterMap.put(taskExecuteThread.getKey(), taskExecuteThread);
    ListenableFuture future = this.submitListenable(taskExecuteThread::run);
    future.addCallback(new ListenableFutureCallback() {//注册毁掉
        @Override
        public void onFailure(Throwable ex) {
            Integer processInstanceId = taskExecuteThread.getProcessInstanceId();
            logger.error("[WorkflowInstance-{}] persist event failed", processInstanceId, ex);
            if (!processInstanceExecCacheManager.contains(processInstanceId)) {
                taskExecuteThreadMap.remove(processInstanceId);
                logger.info("[WorkflowInstance-{}] Cannot find processInstance from cacheManager, remove process instance from threadMap",
                    processInstanceId);
            }
            multiThreadFilterMap.remove(taskExecuteThread.getKey());
        }


        @Override
        public void onSuccess(Object result) {
            Integer processInstanceId = taskExecuteThread.getProcessInstanceId();
            logger.info("[WorkflowInstance-{}] persist events succeeded", processInstanceId);
            if (!processInstanceExecCacheManager.contains(processInstanceId)) {
                taskExecuteThreadMap.remove(processInstanceId);
                logger.info("[WorkflowInstance-{}] Cannot find processInstance from cacheManager, remove process instance from threadMap",
                    processInstanceId);
            }
            multiThreadFilterMap.remove(taskExecuteThread.getKey());
        }
    });
}






//最终提交异步任务TaskExecuteRunnable调用run方法


TaskExecuteRunnable.run()


public void run() {
    while (!this.events.isEmpty()) {
        // we handle the task event belongs to one task serial, so if the event comes in wrong order,
        TaskEvent event = this.events.peek();
        try {
            LoggerUtils.setWorkflowAndTaskInstanceIDMDC(event.getProcessInstanceId(), event.getTaskInstanceId());
            logger.info("Handle task event begin: {}", event);
//根据事件类型获取handler，处理事件
            taskEventHandlerMap.get(event.getEvent()).handleTaskEvent(event);
            events.remove(event);
            logger.info("Handle task event finished: {}", event);
        } catch (TaskEventHandleException taskEventHandleException) {
            // we don't need to resubmit this event, since the worker will resubmit this event
            logger.error("Handle task event failed, this event will be retry later, event: {}", event,
                taskEventHandleException);
        } catch (TaskEventHandleError taskEventHandleError) {
            logger.error("Handle task event error, this event will be removed, event: {}", event,
                taskEventHandleError);
            events.remove(event);
        } catch (Exception unknownException) {
            logger.error("Handle task event error, get a unknown exception, this event will be removed, event: {}",
                event, unknownException);
            events.remove(event);
        } finally {
            LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
        }
    }
}

3.4.3 TaskResultEventHandler 处理 taskevent

TaskResultEventHandler.handlerTaskEvent()

class TaskEventHandlerThread extends BaseDaemonThread {


    protected TaskEventHandlerThread() {
        super("TaskEventHandlerThread");
    }


    @Override
    public void run() {
        logger.info("event handler thread started");
        while (Stopper.isRunning()) {
            try {//处理事件
                taskExecuteThreadPool.eventHandler();
                TimeUnit.MILLISECONDS.sleep(Constants.SLEEP_TIME_MILLIS);
            } catch (InterruptedException e) {
                Thread.currentThread().interrupt();
                logger.warn("TaskEvent handle thread interrupted, will return this loop");
                break;
            } catch (Exception e) {
                logger.error("event handler thread error", e);
            }
        }
    }
}




//进入eventHandler方法
public void eventHandler() {
    for (TaskExecuteRunnable taskExecuteThread : taskExecuteThreadMap.values()) {
        executeEvent(taskExecuteThread);
    }
}




//执行事件
public void executeEvent(TaskExecuteRunnable taskExecuteThread) {
    if (taskExecuteThread.isEmpty()) {
        return;
    }
    if (multiThreadFilterMap.containsKey(taskExecuteThread.getKey())) {
        return;
}
//获取对应task的事件处理线程
    multiThreadFilterMap.put(taskExecuteThread.getKey(), taskExecuteThread);
    ListenableFuture future = this.submitListenable(taskExecuteThread::run);
    future.addCallback(new ListenableFutureCallback() {//注册毁掉
        @Override
        public void onFailure(Throwable ex) {
            Integer processInstanceId = taskExecuteThread.getProcessInstanceId();
            logger.error("[WorkflowInstance-{}] persist event failed", processInstanceId, ex);
            if (!processInstanceExecCacheManager.contains(processInstanceId)) {
                taskExecuteThreadMap.remove(processInstanceId);
                logger.info("[WorkflowInstance-{}] Cannot find processInstance from cacheManager, remove process instance from threadMap",
                    processInstanceId);
            }
            multiThreadFilterMap.remove(taskExecuteThread.getKey());
        }


        @Override
        public void onSuccess(Object result) {
            Integer processInstanceId = taskExecuteThread.getProcessInstanceId();
            logger.info("[WorkflowInstance-{}] persist events succeeded", processInstanceId);
            if (!processInstanceExecCacheManager.contains(processInstanceId)) {
                taskExecuteThreadMap.remove(processInstanceId);
                logger.info("[WorkflowInstance-{}] Cannot find processInstance from cacheManager, remove process instance from threadMap",
                    processInstanceId);
            }
            multiThreadFilterMap.remove(taskExecuteThread.getKey());
        }
    });
}






//最终提交异步任务TaskExecuteRunnable调用run方法


TaskExecuteRunnable.run()


public void run() {
    while (!this.events.isEmpty()) {
        // we handle the task event belongs to one task serial, so if the event comes in wrong order,
        TaskEvent event = this.events.peek();
        try {
            LoggerUtils.setWorkflowAndTaskInstanceIDMDC(event.getProcessInstanceId(), event.getTaskInstanceId());
            logger.info("Handle task event begin: {}", event);
//根据事件类型获取handler，处理事件
            taskEventHandlerMap.get(event.getEvent()).handleTaskEvent(event);
            events.remove(event);
            logger.info("Handle task event finished: {}", event);
        } catch (TaskEventHandleException taskEventHandleException) {
            // we don't need to resubmit this event, since the worker will resubmit this event
            logger.error("Handle task event failed, this event will be retry later, event: {}", event,
                taskEventHandleException);
        } catch (TaskEventHandleError taskEventHandleError) {
            logger.error("Handle task event error, this event will be removed, event: {}", event,
                taskEventHandleError);
            events.remove(event);
        } catch (Exception unknownException) {
            logger.error("Handle task event error, get a unknown exception, this event will be removed, event: {}",
                event, unknownException);
            events.remove(event);
        } finally {
            LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
        }
    }
}

3.5 master闭环提交下游任务

3.5.1 EventExecuteService 处理 stateEvent

EventExecuteService.run()

该service线程由3.2.1启动

@Override
public void run() {
    while (Stopper.isRunning()) {
        try {
          //处理事件
            eventHandler();
            TimeUnit.MILLISECONDS.sleep(Constants.SLEEP_TIME_MILLIS_SHORT);
        } catch (InterruptedException interruptedException) {
            logger.warn("Master event service interrupted, will exit this loop", interruptedException);
            Thread.currentThread().interrupt();
            break;
        } catch (Exception e) {
            logger.error("Master event execute service error", e);
        }
    }
}


进入eventHnnder方法
private void eventHandler() {
    for (WorkflowExecuteRunnable workflowExecuteThread : this.processInstanceExecCacheManager.getAll()) {
        try {
            LoggerUtils.setWorkflowInstanceIdMDC(workflowExecuteThread.getProcessInstance().getId());
            workflowExecuteThreadPool.executeEvent(workflowExecuteThread);
        } finally {
            LoggerUtils.removeWorkflowInstanceIdMDC();
        }
    }
}

最终调用 workflowExecuteThread 的 handlerEvents 处理事件。

/**
 * Handle the events belong to the given workflow.
 */
public void executeEvent(final WorkflowExecuteRunnable workflowExecuteThread) {
    if (!workflowExecuteThread.isStart() || workflowExecuteThread.eventSize() == 0) {
        return;
    }
    if (multiThreadFilterMap.containsKey(workflowExecuteThread.getKey())) {
        logger.warn("The workflow has been executed by another thread");
        return;
    }
    multiThreadFilterMap.put(workflowExecuteThread.getKey(), workflowExecuteThread);
    int processInstanceId = workflowExecuteThread.getProcessInstance().getId();
    ListenableFuture<?> future = this.submitListenable(workflowExecuteThread::handleEvents);//
    future.addCallback(new ListenableFutureCallback() {
        @Override
        public void onFailure(Throwable ex) {
            LoggerUtils.setWorkflowInstanceIdMDC(processInstanceId);
            try {
                logger.error("Workflow instance events handle failed", ex);
                multiThreadFilterMap.remove(workflowExecuteThread.getKey());
            } finally {
                LoggerUtils.removeWorkflowInstanceIdMDC();
            }
        }


        @Override
        public void onSuccess(Object result) {
            try {
                LoggerUtils.setWorkflowInstanceIdMDC(workflowExecuteThread.getProcessInstance().getId());
                if (workflowExecuteThread.workFlowFinish()) {
                    stateWheelExecuteThread.removeProcess4TimeoutCheck(workflowExecuteThread.getProcessInstance().getId());
                    processInstanceExecCacheManager.removeByProcessInstanceId(processInstanceId);
                    notifyProcessChanged(workflowExecuteThread.getProcessInstance());
                    logger.info("Workflow instance is finished.");
                }
            } catch (Exception e) {
                logger.error("Workflow instance is finished, but notify changed error", e);
            } finally {
                // make sure the process has been removed from multiThreadFilterMap
                multiThreadFilterMap.remove(workflowExecuteThread.getKey());
                LoggerUtils.removeWorkflowInstanceIdMDC();
            }
        }
    });
}

3.5.2 workflowExecuteThread 处理 stateEvent 事件

WorkflowExecuteRunnable.handlerEvents()

/**
 * handle event
 */
public void handleEvents() {
    if (!isStart()) {
        logger.info(
                "The workflow instance is not started, will not handle its state event, current state event size: {}",
                stateEvents);
        return;
    }
    StateEvent stateEvent = null;
    while (!this.stateEvents.isEmpty()) {
        try {
            stateEvent = this.stateEvents.peek();
            LoggerUtils.setWorkflowAndTaskInstanceIDMDC(stateEvent.getProcessInstanceId(),
                    stateEvent.getTaskInstanceId());
            // if state handle success then will remove this state, otherwise will retry this state next time.
            // The state should always handle success except database error.
            checkProcessInstance(stateEvent);


            StateEventHandler stateEventHandler =
                    StateEventHandlerManager.getStateEventHandler(stateEvent.getType())
                            .orElseThrow(() -> new StateEventHandleError("Cannot find handler for the given state event"));
            logger.info("Begin to handle state event, {}", stateEvent);
            if (stateEventHandler.handleStateEvent(this, stateEvent)) {//调用stateEventHandler处理事件
                this.stateEvents.remove(stateEvent);
            }
        } catch (StateEventHandleError stateEventHandleError) {
            logger.error("State event handle error, will remove this event: {}", stateEvent, stateEventHandleError);
            this.stateEvents.remove(stateEvent);
            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);
        } catch (StateEventHandleException stateEventHandleException) {
            logger.error("State event handle error, will retry this event: {}",
                    stateEvent,
                    stateEventHandleException);
            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);
        } catch (Exception e) {
            // we catch the exception here, since if the state event handle failed, the state event will still keep in the stateEvents queue.
            logger.error("State event handle error, get a unknown exception, will retry this event: {}",
                    stateEvent,
                    e);
            ThreadUtils.sleep(Constants.SLEEP_TIME_MILLIS);
        } finally {
            LoggerUtils.removeWorkflowAndTaskInstanceIdMDC();
        }


    }
}

3.5.3 TaskStateEventHandler处理stateEvent事件

判断是否是任务完成事件如果是完成事件，调用 workflowExecuteThread 的 taskFinished 方法，提交下游任务。

TaskStateEventHandler.handlerStateEvent()

@Override
public boolean handleStateEvent(WorkflowExecuteRunnable workflowExecuteRunnable, StateEvent stateEvent)
    throws StateEventHandleException, StateEventHandleError {
    measureTaskState(stateEvent);
    workflowExecuteRunnable.checkTaskInstanceByStateEvent(stateEvent);


    Optional<TaskInstance> taskInstanceOptional =
        workflowExecuteRunnable.getTaskInstance(stateEvent.getTaskInstanceId());


    TaskInstance task = taskInstanceOptional.orElseThrow(() -> new StateEventHandleError(
        "Cannot find task instance from taskMap by task instance id: " + stateEvent.getTaskInstanceId()));


    if (task.getState() == null) {
        throw new StateEventHandleError("Task state event handle error due to task state is null");
    }


    Map<Long, Integer> completeTaskMap = workflowExecuteRunnable.getCompleteTaskMap();


    if (task.getState().typeIsFinished()) {
        if (completeTaskMap.containsKey(task.getTaskCode())
            && completeTaskMap.get(task.getTaskCode()) == task.getId()) {
            logger.warn("The task instance is already complete, stateEvent: {}", stateEvent);
            return true;
        }
//调用workflowexecuteRunnabletaskFinished方法。
        workflowExecuteRunnable.taskFinished(task);
        if (task.getTaskGroupId() > 0) {
            workflowExecuteRunnable.releaseTaskGroup(task);
        }
        return true;
    }
    Map<Long, ITaskProcessor> activeTaskProcessMap = workflowExecuteRunnable.getActiveTaskProcessMap();
    if (activeTaskProcessMap.containsKey(task.getTaskCode())) {
        ITaskProcessor iTaskProcessor = activeTaskProcessMap.get(task.getTaskCode());
        iTaskProcessor.action(TaskAction.RUN);


        if (iTaskProcessor.taskInstance().getState().typeIsFinished()) {
            if (iTaskProcessor.taskInstance().getState() != task.getState()) {
                task.setState(iTaskProcessor.taskInstance().getState());
            }
            workflowExecuteRunnable.taskFinished(task);
        }
        return true;
    }
    throw new StateEventHandleException(
        "Task state event handle error, due to the task is not in activeTaskProcessorMaps");
}

3.5.4 wokerflowExecuteThread调度下游任务

WorkflowExecuteRunnable.taskFinished方法

public void taskFinished(TaskInstance taskInstance) throws StateEventHandleException {
    logger.info("TaskInstance finished task code:{} state:{}", taskInstance.getTaskCode(), taskInstance.getState());
    try {


        activeTaskProcessorMaps.remove(taskInstance.getTaskCode());
        stateWheelExecuteThread.removeTask4TimeoutCheck(processInstance, taskInstance);
        stateWheelExecuteThread.removeTask4RetryCheck(processInstance, taskInstance);
        stateWheelExecuteThread.removeTask4StateCheck(processInstance, taskInstance);


        if (taskInstance.getState().typeIsSuccess()) {
            completeTaskMap.put(taskInstance.getTaskCode(), taskInstance.getId());
            // todo: merge the last taskInstance
            processInstance.setVarPool(taskInstance.getVarPool());
            processService.saveProcessInstance(processInstance);
            if (!processInstance.isBlocked()) {
                submitPostNode(Long.toString(taskInstance.getTaskCode()));
            }
        } else if (taskInstance.taskCanRetry() && processInstance.getState() != ExecutionStatus.READY_STOP) {
            // retry task
            logger.info("Retry taskInstance taskInstance state: {}", taskInstance.getState());
            retryTaskInstance(taskInstance);
        } else if (taskInstance.getState().typeIsFailure()) {
            completeTaskMap.put(taskInstance.getTaskCode(), taskInstance.getId());
            // There are child nodes and the failure policy is: CONTINUE
            if (processInstance.getFailureStrategy() == FailureStrategy.CONTINUE && DagHelper.haveAllNodeAfterNode(
                    Long.toString(taskInstance.getTaskCode()),
                    dag)) {
                submitPostNode(Long.toString(taskInstance.getTaskCode()));
            } else {
                errorTaskMap.put(taskInstance.getTaskCode(), taskInstance.getId());
                if (processInstance.getFailureStrategy() == FailureStrategy.END) {
                    killAllTasks();
                }
            }
        } else if (taskInstance.getState().typeIsFinished()) {
            // todo: when the task instance type is pause, then it should not in completeTaskMap
            completeTaskMap.put(taskInstance.getTaskCode(), taskInstance.getId());
        }
        logger.info("TaskInstance finished will try to update the workflow instance state, task code:{} state:{}",
                taskInstance.getTaskCode(),
                taskInstance.getState());
        this.updateProcessInstanceState();
    } catch (Exception ex) {
        logger.error("Task finish failed, get a exception, will remove this taskInstance from completeTaskMap", ex);
        // remove the task from complete map, so that we can finish in the next time.
        completeTaskMap.remove(taskInstance.getTaskCode());
        throw ex;
    }
}

总结

4.1 各个组件的使用

ApiServer负责前端的接口请求。
Master负责工作流的任务调度，根据策略选择一台合适的worker执行任务，并更新任务状态到db。
Worker负责接受到master的任务，然后运行，并报告运行结果给master

4.2 线程作用

MasterSchedulerBootstrap：command扫描线程，负责扫描apiserver写入的command信息，并创建processInstants入库。
WorkflowEventLooper：WorkflowEvent处理线程，负责处理MasterSchedulerBootstrap写入的WorkflowEvent
WorkflowExecuteRunnable：负责工作流的启动逻辑，构建dag有向无环图，初始化调度配置，提交任务到任务队列中。
TaskPriorityQueueConsumer：负责消费优先级队列的任务，异步通过dispacher选择wokrer，向worker发送启动任务的command。
TaskDispatchProcessor：worker节点负责处理 master的command信息。
WorkerManagerThread:worker节点负责管理当前正则运行的task信息
TaskExecuteThread：task的执行线程，负责执行task的逻辑，并返回执行结果给master。
TaskExecuteResponseProcessor:负责处理worker返回的任务结果，并包装成taskEvent
TaskEventService：负责处理taskEvent TaskResultEventHandler：被taskEventService调用，负责task结果处理。
EventExecuteService:负责处理工作流产生的事件。
TaskStateEventHandler：负责处理workflowExecute的event，event类型为TaskStateEvent 并且如果是taskstate是运行完成信息，还要提交调度下游任务。
