基于AWS EKS的K8S实践 - 如何打通云企业网集群内外服务调用

集群内服务的暴露方式？

1. service

2. ingress

service 通常用作集群内服务之前的通信，ingress 通常用于暴露给集群外的服务使用。

由于我们这里的需求是将集群内的服务暴露给集群外的服务使用，所以我们这里选择 ingress 。

ingress controller 如何选择？

单纯的 ingress 是没有任何实际作用的，ingress 需要搭配 ingress controller 才会有意义，我们这里的需求是将集群内的服务暴露给我们其他的服务使用，本质上这里还是要通过内网进行访问，我们这里选择的是 ingress alb controller，并且 ALB 的类型是 internal，也就是不面向互联网的类型。

安装 ingress controller

1. 创建身份提供商，这里需要填入EKS的提供商URL（该URL可以从EKS控制台拿到），然后获取指纹，受众固定填写sts.amazonaws.com，如下图：

2. 创建一个role，假设名字为aws-test-eks-alb-controller-role，信任实体填写以下内容：

{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"Federated": "arn:aws:iam::xxxxxx:oidc-provider/oidc.eks.ap-southeast-3.amazonaws.com/idxxxxxx"
},
"Action": "sts:AssumeRoleWithWebIdentity",
"Condition": {
"StringEquals": {
"oidc.eks.ap-southeast-3.amazonaws.com/id/xxxxx:sub": "system:serviceaccount:kube-system:aws-load-balancer-controller",
"oidc.eks.ap-southeast-3.amazonaws.com/id/xxxxx:aud": "sts.amazonaws.com"
}
}
}
]
}

3. 创建一个Policy，Policy内容如下，Policy创建成功以后附加到上面的role上：

{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"iam:CreateServiceLinkedRole"
],
"Resource": "*",
"Condition": {
"StringEquals": {
"iam:AWSServiceName": "elasticloadbalancing.amazonaws.com"
}
}
},
{
"Effect": "Allow",
"Action": [
"ec2:DescribeAccountAttributes",
"ec2:DescribeAddresses",
"ec2:DescribeAvailabilityZones",
"ec2:DescribeInternetGateways",
"ec2:DescribeVpcs",
"ec2:DescribeVpcPeeringConnections",
"ec2:DescribeSubnets",
"ec2:DescribeSecurityGroups",
"ec2:DescribeInstances",
"ec2:DescribeNetworkInterfaces",
"ec2:DescribeTags",
"ec2:GetCoipPoolUsage",
"ec2:DescribeCoipPools",
"elasticloadbalancing:DescribeLoadBalancers",
"elasticloadbalancing:DescribeLoadBalancerAttributes",
"elasticloadbalancing:DescribeListeners",
"elasticloadbalancing:DescribeListenerCertificates",
"elasticloadbalancing:DescribeSSLPolicies",
"elasticloadbalancing:DescribeRules",
"elasticloadbalancing:DescribeTargetGroups",
"elasticloadbalancing:DescribeTargetGroupAttributes",
"elasticloadbalancing:DescribeTargetHealth",
"elasticloadbalancing:DescribeTags"
],
"Resource": "*"
},
{
"Effect": "Allow",
"Action": [
"cognito-idp:DescribeUserPoolClient",
"acm:ListCertificates",
"acm:DescribeCertificate",
"iam:ListServerCertificates",
"iam:GetServerCertificate",
"waf-regional:GetWebACL",
"waf-regional:GetWebACLForResource",
"waf-regional:AssociateWebACL",
"waf-regional:DisassociateWebACL",
"wafv2:GetWebACL",
"wafv2:GetWebACLForResource",
"wafv2:AssociateWebACL",
"wafv2:DisassociateWebACL",
"shield:GetSubscriptionState",
"shield:DescribeProtection",
"shield:CreateProtection",
"shield:DeleteProtection"
],
"Resource": "*"
},
{
"Effect": "Allow",
"Action": [
"ec2:AuthorizeSecurityGroupIngress",
"ec2:RevokeSecurityGroupIngress"
],
"Resource": "*"
},
{
"Effect": "Allow",
"Action": [
"ec2:CreateSecurityGroup"
],
"Resource": "*"
},
{
"Effect": "Allow",
"Action": [
"ec2:CreateTags"
],
"Resource": "arn:aws:ec2:*:*:security-group/*",
"Condition": {
"StringEquals": {
"ec2:CreateAction": "CreateSecurityGroup"
},
"Null": {
"aws:RequestTag/elbv2.k8s.aws/cluster": "false"
}
}
},
{
"Effect": "Allow",
"Action": [
"ec2:CreateTags",
"ec2:DeleteTags"
],
"Resource": "arn:aws:ec2:*:*:security-group/*",
"Condition": {
"Null": {
"aws:RequestTag/elbv2.k8s.aws/cluster": "true",
"aws:ResourceTag/elbv2.k8s.aws/cluster": "false"
}
}
},
{
"Effect": "Allow",
"Action": [
"ec2:AuthorizeSecurityGroupIngress",
"ec2:RevokeSecurityGroupIngress",
"ec2:DeleteSecurityGroup"
],
"Resource": "*",
"Condition": {
"Null": {
"aws:ResourceTag/elbv2.k8s.aws/cluster": "false"
}
}
},
{
"Effect": "Allow",
"Action": [
"elasticloadbalancing:CreateLoadBalancer",
"elasticloadbalancing:CreateTargetGroup"
],
"Resource": "*",
"Condition": {
"Null": {
"aws:RequestTag/elbv2.k8s.aws/cluster": "false"
}
}
},
{
"Effect": "Allow",
"Action": [
"elasticloadbalancing:CreateListener",
"elasticloadbalancing:DeleteListener",
"elasticloadbalancing:CreateRule",
"elasticloadbalancing:DeleteRule"
],
"Resource": "*"
},
{
"Effect": "Allow",
"Action": [
"elasticloadbalancing:AddTags",
"elasticloadbalancing:RemoveTags"
],
"Resource": [
"arn:aws:elasticloadbalancing:*:*:targetgroup/*/*",
"arn:aws:elasticloadbalancing:*:*:loadbalancer/net/*/*",
"arn:aws:elasticloadbalancing:*:*:loadbalancer/app/*/*"
],
"Condition": {
"Null": {
"aws:RequestTag/elbv2.k8s.aws/cluster": "true",
"aws:ResourceTag/elbv2.k8s.aws/cluster": "false"
}
}
},
{
"Effect": "Allow",
"Action": [
"elasticloadbalancing:AddTags",
"elasticloadbalancing:RemoveTags"
],
"Resource": [
"arn:aws:elasticloadbalancing:*:*:listener/net/*/*/*",
"arn:aws:elasticloadbalancing:*:*:listener/app/*/*/*",
"arn:aws:elasticloadbalancing:*:*:listener-rule/net/*/*/*",
"arn:aws:elasticloadbalancing:*:*:listener-rule/app/*/*/*"
]
},
{
"Effect": "Allow",
"Action": [
"elasticloadbalancing:ModifyLoadBalancerAttributes",
"elasticloadbalancing:SetIpAddressType",
"elasticloadbalancing:SetSecurityGroups",
"elasticloadbalancing:SetSubnets",
"elasticloadbalancing:DeleteLoadBalancer",
"elasticloadbalancing:ModifyTargetGroup",
"elasticloadbalancing:ModifyTargetGroupAttributes",
"elasticloadbalancing:DeleteTargetGroup"
],
"Resource": "*",
"Condition": {
"Null": {
"aws:ResourceTag/elbv2.k8s.aws/cluster": "false"
}
}
},
{
"Effect": "Allow",
"Action": [
"elasticloadbalancing:AddTags"
],
"Resource": [
"arn:aws:elasticloadbalancing:*:*:targetgroup/*/*",
"arn:aws:elasticloadbalancing:*:*:loadbalancer/net/*/*",
"arn:aws:elasticloadbalancing:*:*:loadbalancer/app/*/*"
],
"Condition": {
"StringEquals": {
"elasticloadbalancing:CreateAction": [
"CreateTargetGroup",
"CreateLoadBalancer"
]
},
"Null": {
"aws:RequestTag/elbv2.k8s.aws/cluster": "false"
}
}
},
{
"Effect": "Allow",
"Action": [
"elasticloadbalancing:RegisterTargets",
"elasticloadbalancing:DeregisterTargets"
],
"Resource": "arn:aws:elasticloadbalancing:*:*:targetgroup/*/*"
},
{
"Effect": "Allow",
"Action": [
"elasticloadbalancing:SetWebAcl",
"elasticloadbalancing:ModifyListener",
"elasticloadbalancing:AddListenerCertificates",
"elasticloadbalancing:RemoveListenerCertificates",
"elasticloadbalancing:ModifyRule"
],
"Resource": "*"
}
]
}

4. 在kube-system的namespace下创建一个SA，SA的名称是aws-load-balancer-controller，SA的YAML文件定义如下：

apiVersion: v1
kind: ServiceAccount
metadata:
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::xxxxx:role/aws-test-eks-alb-controller-role
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/name: aws-load-balancer-controller
  name: aws-load-balancer-controller
namespace: kube-system

5. 获取ingress aws alb contorller的资源清单文件，修改后进行应用

wget https://github.com/kubernetes-sigs/aws-load-balancer-controller/releases/download/v2.5.1/v2_5_1_full.yaml

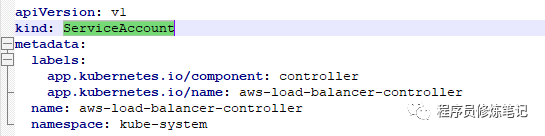

对资源文件中的内容进行修改，首先删除ServiceAccount（内容如下图），第三步我们已经创建过了。

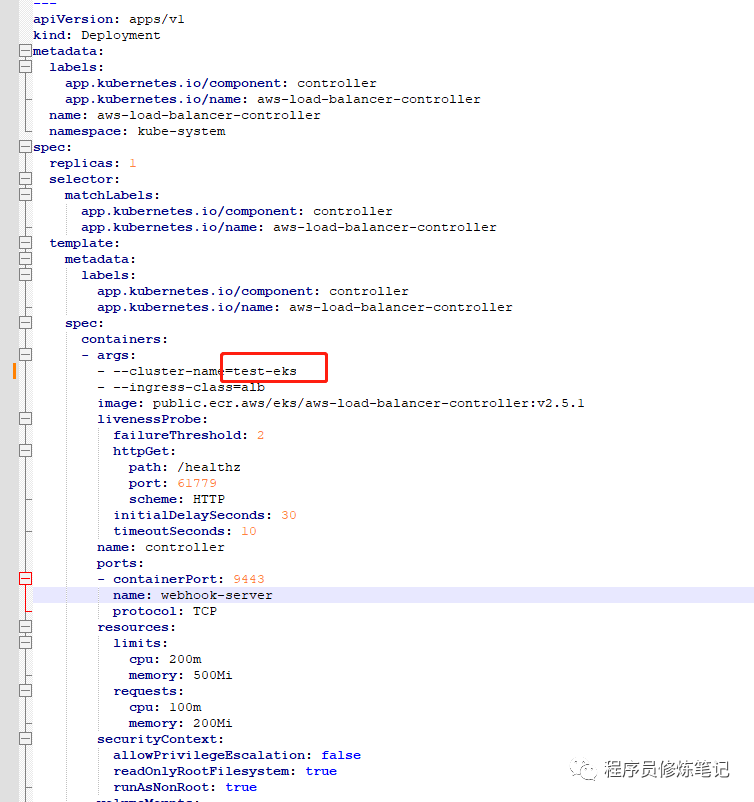

其次我们需要修改Deployment中cluster-name变成我们的ESK集群名称，我的集群名称是test-eks，所以修改后的信息如下图：

最后应用我们的资源清单文件：

kubectl apply -f v2_5_1_full.yaml

6. 获取ingress class类文件，并应用该资源文件

wget https://github.com/kubernetes-sigs/aws-load-balancer-controller/releases/download/v2.5.1/v2_5_1_ingclass.yaml

kubectl apply -f v2_5_1_ingclass.yaml

ingress原理

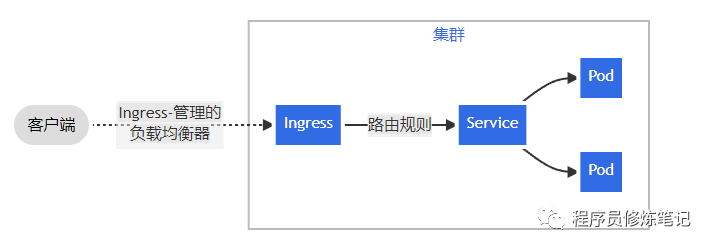

通过ingress让集群外的服务访问我们集群内的服务，通过上图可以看出大约需要4个组件

• Ingress Controller：这里我们选用的是aws的alb

• Ingress：具体的ingress，这里面会配置路由规则，我这里是按照环境建立ingress

• Service：服务，用来对Pod做负载均衡

• Pod：具体的服务，这里的Pod我们通常不单独部署，一般通过Deployment组件进行维护

Service配置

假设我们的Pod已经配置好了，这里我们看一下Service的资源清单文件配置，如下：

kind: Service
apiVersion: v1
metadata:
  name: test
namespace: application-test
  annotations:
    alb.ingress.kubernetes.io/healthcheck-interval-seconds: '8'
    alb.ingress.kubernetes.io/healthcheck-path: /sys/health/check
    alb.ingress.kubernetes.io/healthcheck-timeout-seconds: '5'
    alb.ingress.kubernetes.io/healthy-threshold-count: '3'
    alb.ingress.kubernetes.io/unhealthy-threshold-count: '2'
spec:
  ports:
- protocol: TCP
      port: 80
      targetPort: 8009
  selector:
    app: xxxxx
  type: ClusterIP

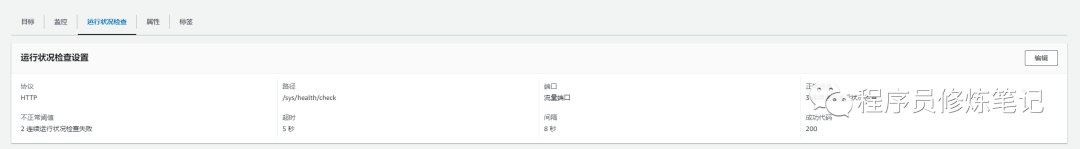

关于Service我们这里不再赘述，我们主要关心和AWS相关的配置，也就是annotation的信息，anntation这里我们主要配置的是目标组里的健康监测信息，当我们对上述资源文件进行应用以后，目标组上健康检测信息配置和上图将会对齐，如下图：

Ingress配置

这里我们将会定义我们的ingress资源文件，推荐按照环境进行区分（毕竟我们的Service以及Pod都是和环境对应的），一个ingress资源文件将会建立一个ALB负责均衡器，ingress资源文件示例如下:

kind: Ingress
apiVersion: networking.k8s.io/v1
metadata:
  name: alb-internal-ingress-backend
namespace: application-test
  annotations:
    alb.ingress.kubernetes.io/load-balancer-name: test-k8s-application
    alb.ingress.kubernetes.io/scheme: internal
    alb.ingress.kubernetes.io/security-groups: sg-xxxx
    alb.ingress.kubernetes.io/subnets: 'subnet-xxxx,subnet-xxxx'
    alb.ingress.kubernetes.io/target-type: ip
spec:
  ingressClassName: alb
  rules:
- host: test.xxx.example.com
      http:
        paths:
- path:
            pathType: Prefix
            backend:
              service:
                name: test
                port:
                  number: 80

首先这里的ingressClassName必须指定为alb，这表明我们要使用alb controller对他进行控制，其次我们关注一下ingress的annotations：

• alb.ingress.kubernetes.io/scheme：我们指定为internal，表明我们的alb不面向互联网，是面向内部网络的

• alb.ingress.kubernetes.io/security-groups：指定alb上的安全组

• alb.ingress.kubernetes.io/subnets：指定alb的子网

• alb.ingress.kubernetes.io/target-type：指定目标组的注册类型，默认是实例，这里我们修改为IP，这个annotation也可以用在Service上

下面的rule表示域名test.xxx.example.com的请求将会被转发到test service的80端口，进而通过Service后端Pod负载上。

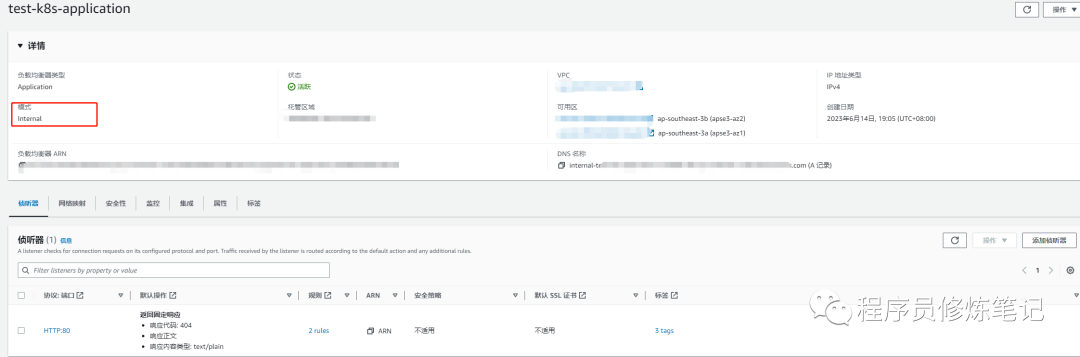

上述资源清单文件安装完成以后，会在AWS负载均衡器上创建一个alb，如下图：

我们通过nslookup命令接卸DNS名称，会发现他是个内网地址，说明和我们的ALB模式(面向内部)匹配如下图：

Route53配置

最后我们在Route53上增加一条test.xxx.example.com CNAME到AWS ALB DNS名称记录，这样我们其他的服务通过test.xxx.example.com这个域名即可调用到我们集群内部的服务。
