openGauss psycopg2 批量操作性能测试

测试版本

本测试基于 openGauss 版本的 psycopg2 驱动

import psycopg2 as pg
>>> pg.__libpq_version__
90204
>>> pg.__version__
'2.8.6 (dt dec pq3 ext)'
复制

测试环境

测试接口

性能对比

INSERT

测试数据

INSERT耗时对比图

INSERT 去除 executemany 对比

UPDATE

测试数据

UPDATE 耗时对比图

DELETE

测试数据

(100000 条数据组耗时太久不做展示)

DELETE 耗时对比图

性能分析

从耗时对比来看，插入、更新、删除在不同的数据量情况下性能是不同的，用户应该根据自己的业务场景来选择使用哪一种操作接口。

插入性能从低到高依次为：

executemany < execute_batch < prepare+execute_batch < execute_values

更新性能从低到高依次为：

executemany < execute_values < execute_batch < prepare+execute_batch

删除性能从低到高依次为：

executemany < execute_batch < execute_values < prepare+execute_batch

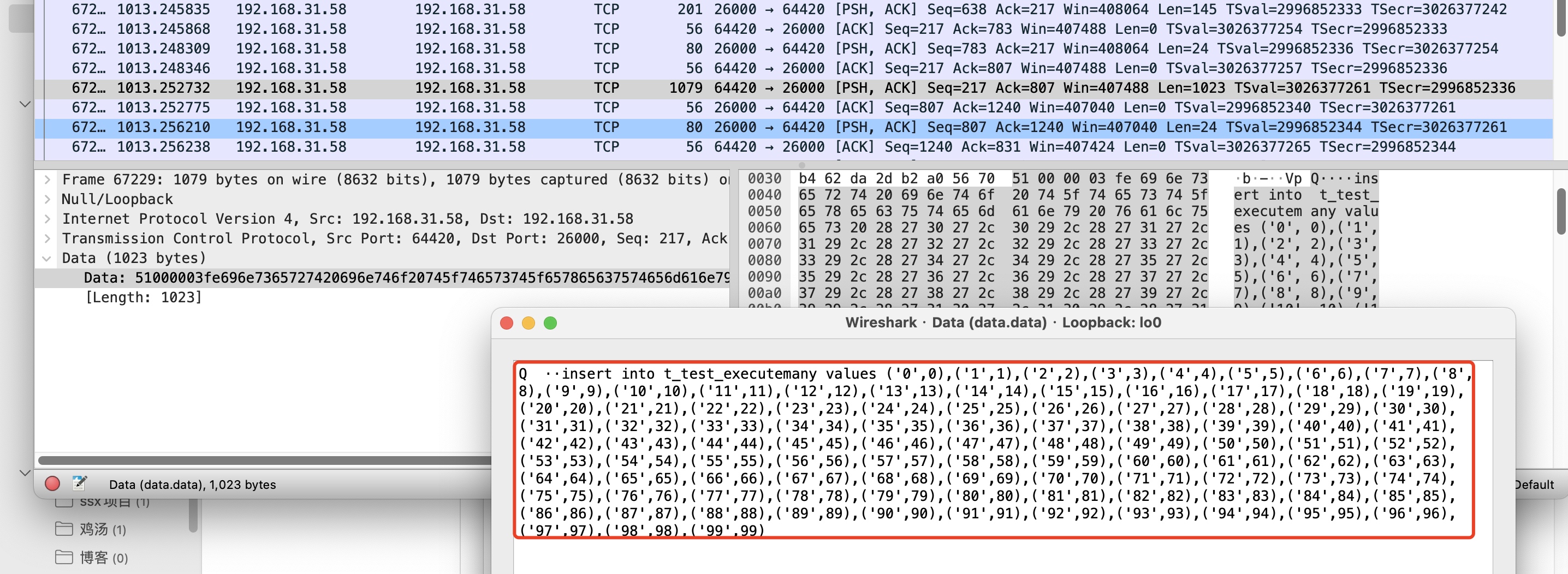

性能的高低主要是由于在向服务端发送数据包时的方式不同导致，下面以插入的SQL为例，通过 wireshark 进行抓包可以看出 psycopg2 在通信过程中不同批处理接口的封包情况。

executemany

executemany 提交SQL的时候是逐个应用给的参数，每个SQL都单独发送给服务端

execute_batch

execute_batch 接口区别于 executemany 的是，在发送给后端的单个请求包里的数据会一次性提交一批的SQL，这样可以减少和服务器之间通信的往返次数

prepare+execute_batch

prepare 可以提前在数据库里面创建一个预备语句对象，在执行 prepare 语句的时候，指定的SQL已经经了解析、分析、重写，这样在后续执行 EXECUTE 时就避免了重复解析分析的工作，从而起到优化性能的作用。

execute_values

前面的三个接口，不管是单个提交还是批量提交，最终都是一行数据一个SQL发送到服务端的，所以服务端需要逐个执行，而 execute_values 接口是会按照 page_size 分组参数后，每组参数一次性组成一个SQL进行提交。

测试代码

执行方式：python test.py <api> <row> <operation>

• <api> 支持： executemany, execute_batch, prepare, execute_values
• <operation> 支持 insert, update, delete

# coding: utf-8

# Usage: python test.py <api> <count> <operation>

import time
import sys
import psycopg2 as pg
from psycopg2.extras import execute_batch, execute_values
from contextlib import contextmanager

if sys.argv[3] == "insert":
    args = [[str(i), i] for i in range(int(sys.argv[2]))]
elif sys.argv[3] == "update":
    args = [[i, str(i)] for i in range(int(sys.argv[2]))]
elif sys.argv[3] == "delete":
    args = [[i] for i in range(int(sys.argv[2]))]
'''
- *dbname*: the database name
- *database*: the database name (only as keyword argument)
- *user*: user name used to authenticate
- *password*: password used to authenticate
- *host*: database host address (defaults to UNIX socket if not provided)
- *port*: connection port number (defaults to 5432 if not provided)
'''
conf = {
    'dbname': "postgres",
    'user': 'gaussdb',
    'password': '',
    'host': '',
    'port': 26000,
    'sslmode': 'disable'
}


@contextmanager
def calc_time(s):
    start = time.time()
    yield
    end = time.time()
    print(f"{s} of '{sys.argv[3]}' cost: ", end - start)


sql_map = {
    "insert": {
        1: "INSERT INTO t_psycopg2_benchmark VALUES (%s, %s)",
        2: "INSERT INTO t_psycopg2_benchmark VALUES ($1, $2)",
        3: "INSERT INTO t_psycopg2_benchmark VALUES %s",
    },
    "update": {
        1: "UPDATE t_psycopg2_benchmark as t SET f_value = %s WHERE t.f_key = %s",
        2: "UPDATE t_psycopg2_benchmark as t SET f_value = $1 WHERE t.f_key = $2",
        3: "UPDATE t_psycopg2_benchmark as t SET f_value = data.v1 FROM (VALUES %s) AS data (id, v1) WHERE t.f_key = data.id",
    },
    "delete": {
        1: "DELETE FROM t_psycopg2_benchmark as t WHERE t.f_key=%s",
        2: "DELETE FROM t_psycopg2_benchmark as t WHERE t.f_key=$1",
        3: "DELETE FROM t_psycopg2_benchmark as t WHERE t.f_key IN (%s)",
    }
}

def insert_data(conn):
    print("* preparing data ...")
    args = [[str(i), i] for i in range(int(sys.argv[2]))]
    cursor = conn.cursor()
    sql = "insert into t_psycopg2_benchmark values %s"
    execute_values(cursor, sql, args)
    conn.commit()


def main():
    try:
        conn = pg.connect(**conf)
        print("* connect success")
    except Exception as e:
        print(f"connect failed: {e}")
        return

    cursor = conn.cursor()

    sql = "drop table if exists t_psycopg2_benchmark"
    cursor.execute(sql)
    sql = "create table t_psycopg2_benchmark (f_key text primary key, f_value numeric)"
    cursor.execute(sql)

    api = sys.argv[1]
    if sys.argv[3] != "insert":
        insert_data(conn)

    print("* benchmarking ...")
    if api == "executemany":
        with calc_time("executemany"):
            sql = sql_map[sys.argv[3]][1]
            cursor.executemany(sql, args)
            conn.commit()
    elif api == "execute_batch":
        with calc_time("execute_batch"):
            sql = sql_map[sys.argv[3]][1]
            execute_batch(cursor, sql, args)
            conn.commit()
    elif api == "prepare":
        with calc_time("execute_values"):
            cursor.execute(f"PREPARE test_stmt AS {sql_map[sys.argv[3]][2]}")
            if sys.argv[3] == "delete":
                execute_batch(cursor, "EXECUTE test_stmt (%s)", args)
            else:
                execute_batch(cursor, "EXECUTE test_stmt (%s, %s)", args)
            cursor.execute("DEALLOCATE test_stmt")
            conn.commit()
    elif api == "execute_values":
        with calc_time("execute_values"):
            sql = sql_map[sys.argv[3]][3]
            execute_values(cursor, sql, args)
            conn.commit()
    else:
        print(f"unknow api: {api}")

    if sys.argv[3] != "delete":
        cursor.execute("delete from t_psycopg2_benchmark")
        conn.commit()


if __name__ == "__main__":
    main()
复制
