patroni安装，PostgreSQL + Patroni HA部署

开源喵 2021-06-23

2887

安装Patroni

前提条件1

升级python2.7到3.x

前提条件2

升级Pip到pip3：yum -y install python3-pip

前提条件3

后续的pip install 修改为pip3 install

1 主要软件

CentOS 7.8
PostgreSQL 13

Patroni 2.0
etcd 3.3.11

2 机器和VIP资源

PostgreSQL

node1：172.16.1.4
node2：172.16.1.5

etcd

node3：172.16.1.6

3 etcd部署

安装需要的包

yum install -y gcc python-devel epel-release

安装etcd

yum install -y etcd

编辑etcd配置文件/etc/etcd/etcd.conf, 参考配置如下

ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="http://172.16.1.6:2380"
ETCD_LISTEN_CLIENT_URLS="http://localhost:2379,http://172.16.1.6:2379"
ETCD_NAME="etcd0"
#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://172.16.1.6:2380"
ETCD_ADVERTISE_CLIENT_URLS="http://172.16.1.6:2379"
ETCD_INITIAL_CLUSTER="etcd0=http://172.16.1.6:2380"
ETCD_INITIAL_CLUSTER_TOKEN="cluster1"
ETCD_INITIAL_CLUSTER_STATE="new"
复制

启动etcd

systemctl start etcd

设置etcd自启动

systemctl enable etcd

4 PostgreSQL + Patroni HA部署

在需要运行PostgreSQL的实例上安装相关软件

安装PostgreSQL 13

此处省略

安装patroni

yum install -y gcc epel-release
yum install -y python3-pip python3-psycopg2 python3-devel

pip3 install --upgrade pip
pip3 install --upgrade setuptools
pip3 install patroni[etcd]复制

创建PostgreSQL数据目录

参考:

mkdir -p pgsql/data

chown postgres:postgres -R pgsql

chmod -R700 pgsql/data

创建Partoni service配置文件/etc/systemd/system/patroni.service

[Unit]Description=Runners to orchestrate a high-availability PostgreSQL
After=syslog.target network.target


[Service]
Type=simple
User=postgres
Group=postgres
#StandardOutput=syslog
ExecStart=/usr/local/bin/patroni etc/patroni.yml
ExecReload=/bin/kill -s HUP $MAINPID
KillMode=process
TimeoutSec=30
Restart=no


[Install]
WantedBy=multi-user.target
复制

创建Patroni配置文件/etc/patroni.yml，以下是node1

scope: pgsql2  #这里为cluster的名字，所有节点一致
namespace: service/
name: pg1




restapi:
 listen: 0.0.0.0:8008
 connect_address: 172.16.1.4:8008




etcd:
 host: 172.16.1.6:2379




bootstrap:
 dcs:
   ttl: 30
   loop_wait: 10
   retry_timeout: 10
   maximum_lag_on_failover: 1048576
   master_start_timeout: 300
   synchronous_mode: false
   postgresql:
     use_pg_rewind: true
     use_slots: true
     parameters:
       listen_addresses: "0.0.0.0"
       port: 5432
       wal_level: logical
       hot_standby: "on"
       wal_keep_segments: 100
       max_wal_senders: 10
       max_replication_slots: 10
       wal_log_hints: "on"




 initdb:
 - encoding: UTF8
 - locale: C
 - lc-ctype: zh_CN.UTF-8
 - data-checksums




 pg_hba:
 - host replication repl 0.0.0.0/0 md5
 - host all all 0.0.0.0/0 md5




postgresql:
 listen: 0.0.0.0:5432
 connect_address: 172.16.1.4:5432
 data_dir: var/lib/pgsql/13/data
 bin_dir: usr/pgsql-13/bin




 authentication:
   replication:
     username: repl
     password: "123456"
   superuser:
     username: postgres
     password: "123456"




 basebackup:
   max-rate: 100M
   checkpoint: fast




tags:
   nofailover: false
   noloadbalance: false
   clonefrom: false
   nosync: false
复制

其他PG节点的patroni.yml需要相应修改下面3个参数

name

node1~node2分别设置pg1~pg2

restapi.connect_address

根据各自节点IP设置

postgresql.connect_address

根据各自节点IP设置

启动Patroni

node1上启动Patroni

systemctl start patroni

初次启动Patroni时，Patroni会初始创建PostgreSQL实例和用户。这里要注意

[postgres@mdw ~]$ systemctl status patroni
● patroni.service - Runners to orchestrate a high-availability PostgreSQL
  Loaded: loaded (/etc/systemd/system/patroni.service; disabled; vendor preset: disabled)
  Active: active (running) since Mon 2021-06-21 15:46:35 CST; 1h 10min ago
Main PID: 42203 (patroni)
   Tasks: 15
  CGroup: system.slice/patroni.service
          ├─42203 /usr/bin/python3 /usr/local/bin/patroni /etc/patroni.yml
          ├─42262 /usr/pgsql-13/bin/postgres -D /var/lib/pgsql/13/data --config-file=/var/lib/pgsql/13/data/postgresql.conf --listen_addresses=0.0.0.0 --port=5432 --cluster_nam...
          ├─42263 postgres: pgsql2: logger
          ├─42268 postgres: pgsql2: checkpointer
          ├─42269 postgres: pgsql2: background writer
          ├─42270 postgres: pgsql2: stats collector
          ├─42274 postgres: pgsql2: postgres postgres 127.0.0.1(53198) idle
          ├─82780 postgres: pgsql2: walwriter
          ├─82781 postgres: pgsql2: autovacuum launcher
          ├─82782 postgres: pgsql2: logical replication launcher
          └─83615 postgres: pgsql2: walsender repl 172.16.1.5(12810) streaming 0/30BC730
复制

node2上启动Patroni

node2将作为replica加入集群，自动从leader拷贝数据并建立复制。

[postgres@sdw1 ~]$ systemctl status patroni
● patroni.service - Runners to orchestrate a high-availability PostgreSQL
  Loaded: loaded (/etc/systemd/system/patroni.service; disabled; vendor preset: disabled)
  Active: active (running) since Mon 2021-06-21 16:19:09 CST; 39min ago
Main PID: 105100 (patroni)
   Tasks: 13
  CGroup: /system.slice/patroni.service
          ├─105100 /usr/bin/python3 /usr/local/bin/patroni /etc/patroni.yml
          ├─105135 /usr/pgsql-13/bin/postgres -D /var/lib/pgsql/13/data --config-file=/var/lib/pgsql/13/data/postgresql.conf --listen_addresses=0.0.0.0 --port=5432 --cluster_na...
          ├─105136 postgres: pgsql2: logger
          ├─105137 postgres: pgsql2: startup recovering 000000050000000000000003
          ├─105139 postgres: pgsql2: checkpointer
          ├─105140 postgres: pgsql2: background writer
          ├─105141 postgres: pgsql2: stats collector
          ├─105147 postgres: pgsql2: postgres postgres 127.0.0.1(63424) idle
          └─105278 postgres: pgsql2: walreceiver streaming 0/30BC730
复制

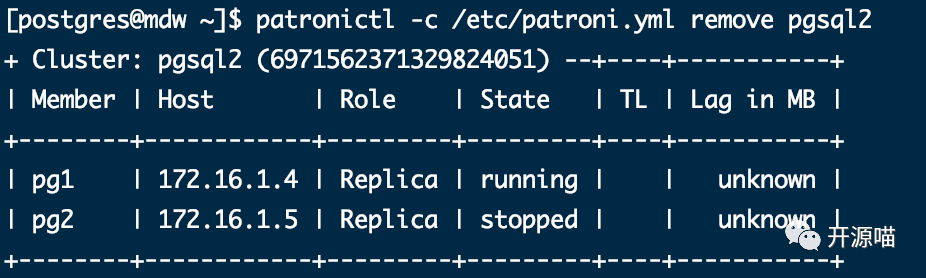

查看集群状态

[postgres@sdw1  ~]$ patronictl -c /etc/patroni.yml list




Cluster: pgsql2 (6976148972338622213) --+----+-----------+
| Member | Host       | Role    | State   | TL | Lag in MB |
+--------+------------+---------+---------+----+-----------+
| pg1    | 172.16.1.4 | Leader  | running |  5 |           |
| pg2    | 172.16.1.5 | Replica | running |  5 |         0 |
+--------+------------+---------+---------+----+-----------+
复制

设置patronictl环境变量

echo'export PATRONICTL_CONFIG_FILE=/etc/patroni.yml' >/etc/profile.d/patroni.sh
复制

将 . /etc/profile.d/patroni.sh写入postgres的.bash_profile

成功完成！

报错处理

pip3 install patroni[etcd]的时候报错

psutil/_psutil_common.c:9:20: fatal error: Python.h:
No such file or directory compilation termi复制

需要安装依赖

yum install python3-devel复制

启动patronni报错：waiting for leader to bootstrap

Jun 21 15:35:35 sdw1 patroni: 2021-06-21 15:35:35,366 INFO: Lock owner: None; I am pg2
Jun 21 15:35:35 sdw1 patroni: 2021-06-21 15:35:35,372 INFO: waiting for leader to bootstrap复制

因为pg1 pg2这两个库我以前有搭建postgres13，上面有数据。所以需要把$PGDATA目录下的文件删除。

依次删除data目录，然后依次启动则正常。

数据库 postgresql

最后修改时间：2021-06-23 12:02:03
