MySQL Group Replication（MGR）组复制在5.1.17版本中开始引入，基于”paxos”协议实现的数据一致性和高可用的集群方案，用于解决异步或者半同步复制可能产生的不一致性。它是mysql自带的插件(group_replication.so)，支持节点的故障自动检测、弹性扩展等功能，同时还支持单主或多主写，自动检测冲突，保证数据的最终一致性。
与MHA相比，MGR通过“paxos”协议进行自动选举主节点，保证多数派原则集群就可以正常服务，自动切换，减少了人工介入成本；在选举前，MGR会一直感知节点的状态，对于异常节点不会参与选举过程。
在MGR中,每一个组会有多个节点，彼此之间进行状态和数据交互；组内每个节点的状态有:ONLINE,OFFLINE,IN_RECOVER,ERROR和UNREACHABL；ONLINE状态代表节点正常服务。

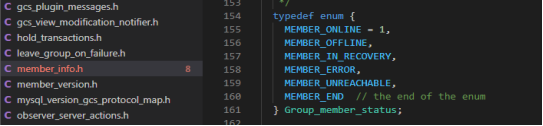

节点状态定义头文件在
plugin/group_replication/include/member_info.h中，使用枚举类型，列出了组内成员的状态。
节点的角色包括PRIMARY和SECONDARY两种；PRIMARY为主节点，SECONDARY为从节点，在单主模式下，只有主节点提供写请求，多主模式下，没有此限制。
typedef enum {
MEMBER_ROLE_PRIMARY = 1,
MEMBER_ROLE_SECONDARY,
MEMBER_ROLE_END
} Group_member_role;
节点本身自带的属性信息有：HOSTNAME,PORT,UUID,GCSID,STATUS,VERSION,WRITE_SET_EXTRACTION_ALGORITHMEXECUTED_GTID,RETRIEVED_GTID,GTID_ASSIGNMENT_BLOCK_SIZE,MEMBER_ROLE,CONFIGURATION_FLAGS,CONFLICT_DETECTION_ENABLE,MEMBER_WEIGHT,LOWER_CASE_TABLE_NAME,GROUP_ACTION_RUNNING,PRIMARY_ELECTION_RUNNING,DEFAULT_TABLE_ENCRYPTION,PURGED_GTID,RECOVERY_ENDPOINTS。节点信息会在组内传播，从节点信息内容看mgr必须开启GTID，它是基于GTID进行一致性保证。

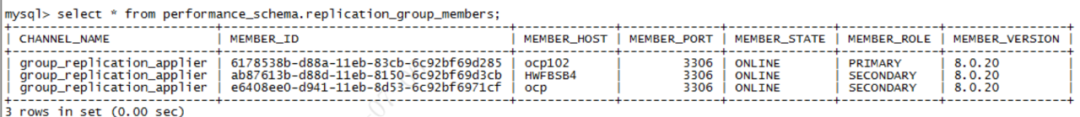

查看组内成员角色、状态、id等信息，可通过执行sql语句select * from performance_schema.replication_group_members 查看
节点之间通信通过GCS模块进行数据和信息交换，该模块承载着节点所有的通信内容，设计复杂；节点信息交换会有产生一个视图(gcs_view)，主要记录此刻的节点信息，新加入组节点信息，离开组节点信息，以当前视图版本号；视图变化会引起组内节点状态的变化。
Gcs_view(const std::vector<Gcs_member_identifier> &members,
const Gcs_view_identifier &view_id,
const std::vector<Gcs_member_identifier> &leaving,
const std::vector<Gcs_member_identifier> &joined,
const Gcs_group_identifier &group_id,
Gcs_view::Gcs_view_error_code error_code);

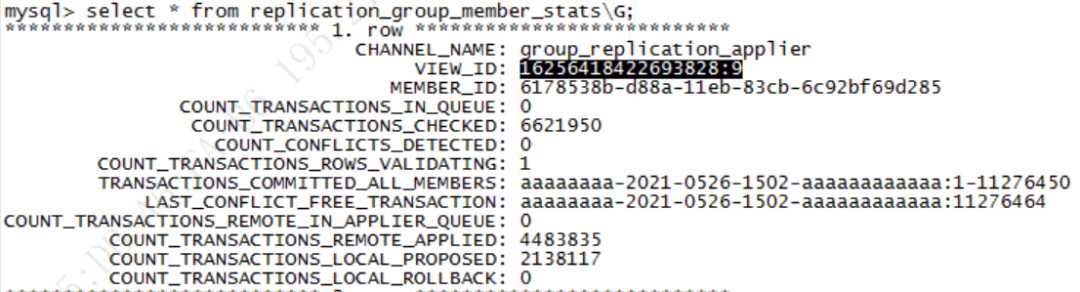

视图版本信息号可以通过sql语句查看
select * from replication_group_member_stats \G
除了节点之间交换状态信息外，GCS还有其他十几种信息交换类型，如数据恢复、数据交易等，从头文件gcs_plugin_messages.h中可找到定义
enum enum_cargo_type {
// This type should not be used anywhere.
CT_UNKNOWN = 0,
// This cargo type is used for certification events, GTID_EXECUTED
// broadcast.
CT_CERTIFICATION_MESSAGE = 1,
// This cargo type is used for transaction data.
CT_TRANSACTION_MESSAGE = 2,
// This cargo type is used for recovery events, signal when a given member
// becomes online.
CT_RECOVERY_MESSAGE = 3,
// This cargo type is used for messaging related to stage exchanges,
// on which it represents one member.
CT_MEMBER_INFO_MESSAGE = 4,
// This cargo type is used for messaging related to stage exchanges,
// on which it represents a set of members.
CT_MEMBER_INFO_MANAGER_MESSAGE = 5,
// This cargo type is used for messaging related to members pipeline
// stats.
CT_PIPELINE_STATS_MEMBER_MESSAGE = 6,
// This cargo type is used for messaging related to single primary
// mode.
CT_SINGLE_PRIMARY_MESSAGE = 7,
// This cargo type is used for messaging related to group coordinated
// actions.
CT_GROUP_ACTION_MESSAGE = 8,
// This cargo type is used for messaging when checking if a group is valid
// for some task
CT_GROUP_VALIDATION_MESSAGE = 9,
// This cargo type is used for synchronization before executing a
// transation.
CT_SYNC_BEFORE_EXECUTION_MESSAGE = 10,
// This cargo type is used for transaction data with guarantee.
CT_TRANSACTION_WITH_GUARANTEE_MESSAGE = 11,
// This cargo type is used to inform about prepared transactions.
CT_TRANSACTION_PREPARED_MESSAGE = 12,
// This cargo type is used for messages that are for
// senders/consumers outside the GR plugin.
CT_MESSAGE_SERVICE_MESSAGE = 13,
// No valid type codes can appear after this one.
CT_MAX = 14
};
GCS不同消息的处理都按照event类型进行处理，在gcs_event_handlers头文件定义了不同event的事件处理函数，如交易数据消息处理、组内成员信息变化处理等
/*
Individual handling methods for all possible message types
received via on_message_received(...)
*/
void handle_transactional_message(const Gcs_message &message) const;
void handle_transactional_with_guarantee_message(
const Gcs_message &message) const;
void handle_transaction_prepared_message(const Gcs_message &message) const;
void handle_sync_before_execution_message(const Gcs_message &message) const;
void handle_certifier_message(const Gcs_message &message) const;
void handle_recovery_message(Plugin_gcs_message *message) const;
void handle_stats_message(const Gcs_message &message) const;
void handle_single_primary_message(
Plugin_gcs_message *processed_message) const;
void handle_group_action_message(const Gcs_message &message) const;
/**
This method passes the message to message listeners
@param plugin_message A pointer to the processed plugin gcs message
@param message_origin A id of the message originating member
@return true if the message should be skipped, false otherwise
*/
bool pre_process_message(Plugin_gcs_message *plugin_message,
const std::string &message_origin) const;
/*
Methods to act upon members after a on_view_change(...) is called
*/
int update_group_info_manager(const Gcs_view &new_view,
const Exchanged_data &exchanged_data,
bool is_joining, bool is_leaving) const;
void handle_joining_members(const Gcs_view &new_view, bool is_joining,
bool is_leaving) const;
void handle_leaving_members(const Gcs_view &new_view, bool is_joining,
bool is_leaving) const;

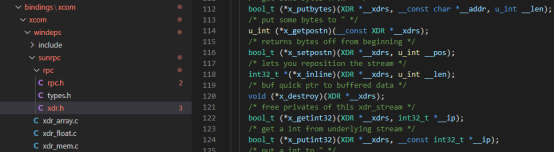

GCS消息在发送、传输、接收时，使用了xcom框架sunrpc协议，进行序列化和反序列化；上层各种消息封装后，通过sunrpc传给接收端，在接收端按照协议规定从数据流中读取消息内容，在经过层层传递与解析，调用handler进行相应的消息处理。
MGR根据“paxos”协议自动选主，但ip地址会发生变化，客户端无法自动感知，需要配合 msyql router或者vip等机制配合使用，实现业务零影响。
MGR内部实现机制相当复杂，自己也只是刚开始接触，理解比较片面，后续会继续深入研究节点选举、binlog transaction数据传输、节点数据恢复等比较详细的机制和流程。
