hadoop集群安装(以192.168.51.191为例)
1. 安装
创建安装目录
`//已创建可忽略`
mkdir -p opt/hadoop/
cd /opt/hadoop/复制
下载压缩包
hadoop-2.7.2.tar.gz
apache其他及历史版本解压缩文件
tar -zxvf hadoop-2.7.2.tar.gz
2. 配置
配置文件一共包括6个，分别是hadoop-env.sh、core-site.xml、hdfs-site.xml、mapred-site.xml、yarn-site.xml和slaves。除了hdfs-site.xml文件在不同集群配置不同外，其余文件在四个节点的配置是完全一样的，可以复制。
(备注：mapred-site.xml.template修改或复制为mapred-site.xml)
添加环境变量
export HADOOP_HOME=/opt/hadoop/hadoop-2.7.2
export PATH=$JAVA_HOME/bin:$ZK_HOME/bin:$HADOOP_HOME/sbin:$HADOOP_HOME/bin:$PATH复制
文件hadoop-env.sh
就是修改这一行内容，修改后的结果如下
export JAVA_HOME=/usr/java/jdk1.8.0_45
【这里的JAVA_HOME的值是jdk的安装路径。如果你那里不一样，请修改为自己的地址】文件core-site.xml
<configuration>
<property>
<name>fs.defaultFS</name>
<value>hdfs://cluster1</value>
</property>
【这里的值指的是默认的HDFS路径。当有多个HDFS集群同时工作时，用户如果不写集群名称，那么默认使用哪个哪？在这里指定！该值来自于hdfs-site.xml中的配置】
<property>
<name>hadoop.tmp.dir</name>
<value>/opt/hadoop/hadoop-2.7.2/tmp</value>
</property>
【这里的路径默认是NameNode、DataNode、JournalNode等存放数据的公共目录。用户也可以自己单独指定这三类节点的目录。】
<property>
<name>ha.zookeeper.quorum</name>
<value>hadoop101:2181,hadoop102:2181,hadoop103:2181</value>
</property>
【这里是ZooKeeper集群的地址和端口。注意，数量一定是奇数，且不少于三个节点】
</configuration>复制
文件hdfs-site.xml
<configuration>
<property>
<name>dfs.replication</name>
<value>2</value>
</property>
【指定DataNode存储block的副本数量。默认值是3个，我们现在有6个DataNode，该值不大于6即可。】
<property>
<name>dfs.nameservices</name>
<value>cluster1</value>
</property>
【使用federation时，使用了2个HDFS集群。这里抽象出两个NameService实际上就是给这1个HDFS集群起了个别名。名字可以随便起，相互不重复即可。这里是一个集群】
<property>
<name>dfs.ha.namenodes.cluster1</name>
<value>bidev191,bidev192</value>
</property>
【指定NameService是cluster1时的namenode有哪些，这里的值也是逻辑名称，名字随便起，相互不重复即可】
<property>
<name>dfs.namenode.rpc-address.cluster1.bidev191</name>
<value>bidev191:9000</value>
</property>
【指定bidev191的RPC地址】
<property>
<name>dfs.namenode.http-address.cluster1.bidev191</name>
<value>bidev191:50070</value>
</property>
【指定bidev191的http地址】
<property>
<name>dfs.namenode.rpc-address.cluster1.bidev192</name>
<value>bidev192:9000</value>
</property>
【指定bidev192的RPC地址】
<property>
<name>dfs.namenode.http-address.cluster1.bidev192</name>
<value>bidev192:50070</value>
</property>
【指定bidev192的http地址】
<property>
<name>dfs.namenode.shared.edits.dir</name>
<value>qjournal://bidev191:8485;bidev192:8485;bidev193:8485/cluster1</value>
</property>
【指定cluster1的两个NameNode共享edits文件目录时，使用的JournalNode集群信息】
<property>
<name>dfs.ha.automatic-failover.enabled.cluster1</name>
<value>true</value>
</property>
【指定cluster1是否启动自动故障恢复，即当NameNode出故障时，是否自动切换到另一台NameNode】
<property>
<name>dfs.client.failover.proxy.provider.cluster1</name>
<value>org.apache.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider</value>
</property>
【指定cluster1出故障时，哪个实现类负责执行故障切换】
<!--
<property>
<name>dfs.namenode.shared.edits.dir</name>
<value>qjournal://bidev191:8485;bidev192:8485;bidev193:8485/cluster2</value>
</property>
【这段代码是注释掉的，不要打开】
-->
<property>
<name>dfs.journalnode.edits.dir</name>
<value>/opt/hadoop/hadoop-2.7.2/tmp/journal</value>
</property>
【指定JournalNode集群在对NameNode的目录进行共享时，自己存储数据的磁盘路径】
<property>
<name>dfs.ha.fencing.methods</name>
<value>sshfence</value>
</property>
【一旦需要NameNode切换，使用ssh方式进行操作】
<property>
<name>dfs.ha.fencing.ssh.private-key-files</name>
<value>/root/.ssh/id_rsa</value>
</property>
【如果使用ssh进行故障切换，使用ssh通信时用的密钥存储的位置】
<property>
<name>dfs.namenode.shared.edits.dir</name>
<value>qjournal://bidev191:8485;bidev192:8485;bidev193:8485/hadoop-journal</value>
</property>
【设置一组 journalNode 的 URI 地址，active NN 将 edit log 写入这些JournalNode，
而 standby NameNode 读取这些 edit log，并作用在内存中的目录树中。如果journalNode有多个节点则使用分号分割。
该属性值应符合以下格式qjournal://host1:port1;host2:port2;host3:port3/journalId】
</configuration>复制
文件mapred-site.xml
<configuration>
<property>
<name>mapreduce.framework.name</name>
<value>yarn</value>
</property>
【指定运行mapreduce的环境是yarn，与hadoop1截然不同的地方】
</configuration>复制
文件yarn-site.xml yarn和mr配置参考地址
<configuration>
<property>
<name>yarn.resourcemanager.hostname</name>
<value>bidev191</value>
</property>
【自定ResourceManager的地址，还是单点，这是隐患】
<property>
<name>yarn.nodemanager.aux-services</name>
<value>mapreduce_shuffle</value>
</property>
</configuration>复制
文件slaves
bidev192
bidev193
bidev197
biqa160
biqa161
biqa162
【指定所有的DataNode节点列表，每行一个节点名称】复制
注意：以上配置在各个节点都相同。
将/opt/hadoop/hadoop-2.7.2
拷贝到其他节点。例：scp -r opt/hadoop/hadoop-2.7.2/ bidev192:/opt/hadoop/
3. 启动过程
1. 首先检查各个节点的配置文件是否正确
2. 启动ZooKeeper集群
关于ZooKeeper的集群配置和启动
在bidev191、bidev192、bidev193上分别执行命令：zkServer.sh start
三个节点都执行完启动命令后，在hadoop101执行以下验证。
验证：
[root@bidev191 ~]# zkCli.sh
Connecting to localhost:2181
2017-07-28 23:14:33,722 [myid:] - INFO [main:Environment@100] - Client environment:zookeeper.version=3.4.6-1569965, built on 02/20/2014 09:09 GMT
2017-07-28 23:14:33,729 [myid:] - INFO [main:Environment@100] - Client environment:host.name=bidev191
2017-07-28 23:14:33,729 [myid:] - INFO [main:Environment@100] - Client environment:java.version=1.8.0_45
2017-07-28 23:14:33,734 [myid:] - INFO [main:Environment@100] - Client environment:java.vendor=Oracle Corporation
2017-07-28 23:14:33,734 [myid:] - INFO [main:Environment@100] - Client environment:java.home=/usr/java/jdk1.8.0_45/jre
2017-07-28 23:14:33,734 [myid:] - INFO [main:Environment@100] - Client environment:java.class.path=/opt/hadoop/zookeeper-3.4.6/bin/../build/classes:/opt/hadoop/zookeeper-3.4.6/bin/../build/lib/*.jar:/opt/hadoop/zookeeper-3.4.6/bin/../lib/slf4j-log4j12-1.6.1.jar:/opt/hadoop/zookeeper-3.4.6/bin/../lib/slf4j-api-1.6.1.jar:/opt/hadoop/zookeeper-3.4.6/bin/../lib/netty-3.7.0.Final.jar:/opt/hadoop/zookeeper-3.4.6/bin/../lib/log4j-1.2.16.jar:/opt/hadoop/zookeeper-3.4.6/bin/../lib/jline-0.9.94.jar:/opt/hadoop/zookeeper-3.4.6/bin/../zookeeper-3.4.6.jar:/opt/hadoop/zookeeper-3.4.6/bin/../src/java/lib/*.jar:/opt/hadoop/zookeeper-3.4.6/bin/../conf:.:/usr/java/jdk1.8.0_45/lib/dt.jar:/usr/java/jdk1.8.0_45/lib/tools.jar
2017-07-28 23:14:33,734 [myid:] - INFO [main:Environment@100] - Client environment:java.library.path=/usr/java/packages/lib/amd64:/usr/lib64:/lib64:/lib:/usr/lib
2017-07-28 23:14:33,735 [myid:] - INFO [main:Environment@100] - Client environment:java.io.tmpdir=/tmp
2017-07-28 23:14:33,735 [myid:] - INFO [main:Environment@100] - Client environment:java.compiler=<NA>
2017-07-28 23:14:33,735 [myid:] - INFO [main:Environment@100] - Client environment:os.name=Linux
2017-07-28 23:14:33,735 [myid:] - INFO [main:Environment@100] - Client environment:os.arch=amd64
2017-07-28 23:14:33,735 [myid:] - INFO [main:Environment@100] - Client environment:os.version=2.6.32-431.el6.x86_64
2017-07-28 23:14:33,736 [myid:] - INFO [main:Environment@100] - Client environment:user.name=root
2017-07-28 23:14:33,736 [myid:] - INFO [main:Environment@100] - Client environment:user.home=/root
2017-07-28 23:14:33,736 [myid:] - INFO [main:Environment@100] - Client environment:user.dir=/root
2017-07-28 23:14:33,738 [myid:] - INFO [main:ZooKeeper@438] - Initiating client connection, connectString=localhost:2181 sessionTimeout=30000 watcher=org.apache.zookeeper.ZooKeeperMain$MyWatcher@446cdf90
Welcome to ZooKeeper!
2017-07-28 23:14:33,790 [myid:] - INFO [main-SendThread(localhost:2181):ClientCnxn$SendThread@975] - Opening socket connection to server localhost/127.0.0.1:2181. Will not attempt to authenticate using SASL (unknown error)
JLine support is enabled
2017-07-28 23:14:33,914 [myid:] - INFO [main-SendThread(localhost:2181):ClientCnxn$SendThread@852] - Socket connection established to localhost/127.0.0.1:2181, initiating session
2017-07-28 23:14:33,948 [myid:] - INFO [main-SendThread(localhost:2181):ClientCnxn$SendThread@1235] - Session establishment complete on server localhost/127.0.0.1:2181, sessionid = 0x15d8311f2b90012, negotiated timeout = 30000
WATCHER::
WatchedEvent state:SyncConnected type:None path:null
[zk: localhost:2181(CONNECTED) 0] ls /
[zookeeper]
[zk: localhost:2181(CONNECTED) 1]复制
【可以看到ZK集群 中只有一个节点zookeeper。稍后格式化会多一个hadoop-ha】
3. 格式化ZooKeeper集群，目的是在ZooKeeper集群上建立HA的相应节点
在bidev191上执行命令：hdfs zkfc –formatZK
命令输出:_例子_
命令输出：
[root@hadoop101 hadoop]# usr/local/hadoop/bin/hdfs zkfc -formatZK
14/02/12 07:28:56 INFO tools.DFSZKFailoverController: Failover controller configured for NameNode NameNode at hadoop101/192.168.80.101:9000
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:zookeeper.version=3.4.5-1392090, built on 09/30/2012 17:52 GMT
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:host.name=hadoop101
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:java.version=1.7.0_45
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:java.vendor=Oracle Corporation
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:java.home=/usr/local/jdk/jre
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:java.class.path=/usr/local/hadoop/etc/hadoop:/usr/local/hadoop/share/hadoop/common/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/common/lib/snappy-java-1.0.4.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jsch-0.1.42.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-server-1.9.jar:/usr/local/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.5.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-digester-1.8.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-cli-1.2.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-core-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-el-1.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jets3t-0.6.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-core-1.9.jar:/usr/local/hadoop/share/hadoop/common/lib/slf4j-api-1.7.5.jar:/usr/local/hadoop/share/hadoop/common/lib/xz-1.0.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-lang-2.5.jar:/usr/local/hadoop/share/hadoop/common/lib/jasper-runtime-5.5.23.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-xc-1.8.8.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-codec-1.4.jar:/usr/local/hadoop/share/hadoop/common/lib/activation-1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/avro-1.7.4.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-httpclient-3.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-beanutils-1.7.0.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-annotations-2.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jsp-api-2.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-compress-1.4.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-beanutils-core-1.8.0.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-configuration-1.6.jar:/usr/local/hadoop/share/hadoop/common/lib/jaxb-impl-2.2.3-1.jar:/usr/local/hadoop/share/hadoop/common/lib/zookeeper-3.4.5.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-auth-2.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-io-2.1.jar:/usr/local/hadoop/share/hadoop/common/lib/netty-3.6.2.Final.jar:/usr/local/hadoop/share/hadoop/common/lib/stax-api-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-collections-3.2.1.jar:/usr/local/hadoop/share/hadoop/common/lib/servlet-api-2.5.jar:/usr/local/hadoop/share/hadoop/common/lib/junit-4.8.2.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-util-6.1.26.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-mapper-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/common/lib/jsr305-1.3.9.jar:/usr/local/hadoop/share/hadoop/common/lib/mockito-all-1.8.5.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-logging-1.1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-math-2.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jaxb-api-2.2.2.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-json-1.9.jar:/usr/local/hadoop/share/hadoop/common/lib/asm-3.2.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-net-3.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-6.1.26.jar:/usr/local/hadoop/share/hadoop/common/lib/jasper-compiler-5.5.23.jar:/usr/local/hadoop/share/hadoop/common/lib/guava-11.0.2.jar:/usr/local/hadoop/share/hadoop/common/lib/xmlenc-0.52.jar:/usr/local/hadoop/share/hadoop/common/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/common/lib/paranamer-2.3.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-jaxrs-1.8.8.jar:/usr/local/hadoop/share/hadoop/common/lib/jettison-1.1.jar:/usr/local/hadoop/share/hadoop/common/hadoop-common-2.2.0-tests.jar:/usr/local/hadoop/share/hadoop/common/hadoop-common-2.2.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-nfs-2.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs:/usr/local/hadoop/share/hadoop/hdfs/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-server-1.9.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-cli-1.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-core-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-el-1.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-core-1.9.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-daemon-1.0.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-lang-2.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jasper-runtime-5.5.23.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-codec-1.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsp-api-2.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-io-2.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/netty-3.6.2.Final.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/servlet-api-2.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-util-6.1.26.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-mapper-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsr305-1.3.9.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-logging-1.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/asm-3.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-6.1.26.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/guava-11.0.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/xmlenc-0.52.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-nfs-2.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-2.2.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/snappy-java-1.0.4.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jersey-server-1.9.jar:/usr/local/hadoop/share/hadoop/yarn/lib/guice-3.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-core-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jersey-core-1.9.jar:/usr/local/hadoop/share/hadoop/yarn/lib/xz-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/hamcrest-core-1.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/avro-1.7.4.jar:/usr/local/hadoop/share/hadoop/yarn/lib/aopalliance-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/hadoop-annotations-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/commons-compress-1.4.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax.inject-1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/guice-servlet-3.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/commons-io-2.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/netty-3.6.2.Final.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-mapper-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/yarn/lib/asm-3.2.jar:/usr/local/hadoop/share/hadoop/yarn/lib/junit-4.10.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jersey-guice-1.9.jar:/usr/local/hadoop/share/hadoop/yarn/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/yarn/lib/paranamer-2.3.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-api-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-tests-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-site-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-client-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-nodemanager-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-distributedshell-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-resourcemanager-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-web-proxy-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-unmanaged-am-launcher-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-common-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-common-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/snappy-java-1.0.4.1.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/jersey-server-1.9.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/guice-3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/jackson-core-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/jersey-core-1.9.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/xz-1.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/hamcrest-core-1.1.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/avro-1.7.4.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/aopalliance-1.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/hadoop-annotations-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/commons-compress-1.4.1.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/javax.inject-1.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/guice-servlet-3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/commons-io-2.1.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/netty-3.6.2.Final.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/jackson-mapper-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/asm-3.2.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/junit-4.10.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/jersey-guice-1.9.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/paranamer-2.3.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-hs-plugins-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-2.2.0-tests.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-app-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-core-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-shuffle-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-hs-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-common-2.2.0.jar:/usr/local/hadoop/contrib/capacity-scheduler/*.jar
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:java.library.path=/usr/local/hadoop/lib/native
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:java.io.tmpdir=/tmp
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:java.compiler=<NA>
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:os.name=Linux
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:os.arch=amd64
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:os.version=2.6.32-431.el6.x86_64
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:user.name=root
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:user.home=/root
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Client environment:user.dir=/usr/local/hadoop
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Initiating client connection, connectString=hadoop101:2181,hadoop102:2181,hadoop103:2181 sessionTimeout=5000 watcher=org.apache.hadoop.ha.ActiveStandbyElector$WatcherWithClientRef@3e9c00ea
14/02/12 07:28:57 INFO zookeeper.ClientCnxn: Opening socket connection to server hadoop102/192.168.80.102:2181. Will not attempt to authenticate using SASL (unknown error)
14/02/12 07:28:57 INFO zookeeper.ClientCnxn: Socket connection established to hadoop102/192.168.80.102:2181, initiating session
14/02/12 07:28:57 INFO zookeeper.ClientCnxn: Session establishment complete on server hadoop102/192.168.80.102:2181, sessionid = 0x6644234039710000, negotiated timeout = 5000
14/02/12 07:28:57 INFO ha.ActiveStandbyElector: Session connected.
14/02/12 07:28:57 INFO ha.ActiveStandbyElector: Successfully created hadoop-ha/cluster1 in ZK.
14/02/12 07:28:57 INFO zookeeper.ZooKeeper: Session: 0x6644234039710000 closed
14/02/12 07:28:57 INFO zookeeper.ClientCnxn: EventThread shut down
[root@hadoop101 hadoop]#复制
验证:
[root@bidev191 ~]# zkCli.sh
Connecting to localhost:2181
2017-07-28 23:14:33,722 [myid:] - INFO [main:Environment@100] - Client environment:zookeeper.version=3.4.6-1569965, built on 02/20/2014 09:09 GMT
2017-07-28 23:14:33,729 [myid:] - INFO [main:Environment@100] - Client environment:host.name=bidev191
2017-07-28 23:14:33,729 [myid:] - INFO [main:Environment@100] - Client environment:java.version=1.8.0_45
2017-07-28 23:14:33,734 [myid:] - INFO [main:Environment@100] - Client environment:java.vendor=Oracle Corporation
2017-07-28 23:14:33,734 [myid:] - INFO [main:Environment@100] - Client environment:java.home=/usr/java/jdk1.8.0_45/jre
2017-07-28 23:14:33,734 [myid:] - INFO [main:Environment@100] - Client environment:java.class.path=/opt/hadoop/zookeeper-3.4.6/bin/../build/classes:/opt/hadoop/zookeeper-3.4.6/bin/../build/lib/*.jar:/opt/hadoop/zookeeper-3.4.6/bin/../lib/slf4j-log4j12-1.6.1.jar:/opt/hadoop/zookeeper-3.4.6/bin/../lib/slf4j-api-1.6.1.jar:/opt/hadoop/zookeeper-3.4.6/bin/../lib/netty-3.7.0.Final.jar:/opt/hadoop/zookeeper-3.4.6/bin/../lib/log4j-1.2.16.jar:/opt/hadoop/zookeeper-3.4.6/bin/../lib/jline-0.9.94.jar:/opt/hadoop/zookeeper-3.4.6/bin/../zookeeper-3.4.6.jar:/opt/hadoop/zookeeper-3.4.6/bin/../src/java/lib/*.jar:/opt/hadoop/zookeeper-3.4.6/bin/../conf:.:/usr/java/jdk1.8.0_45/lib/dt.jar:/usr/java/jdk1.8.0_45/lib/tools.jar
2017-07-28 23:14:33,734 [myid:] - INFO [main:Environment@100] - Client environment:java.library.path=/usr/java/packages/lib/amd64:/usr/lib64:/lib64:/lib:/usr/lib
2017-07-28 23:14:33,735 [myid:] - INFO [main:Environment@100] - Client environment:java.io.tmpdir=/tmp
2017-07-28 23:14:33,735 [myid:] - INFO [main:Environment@100] - Client environment:java.compiler=<NA>
2017-07-28 23:14:33,735 [myid:] - INFO [main:Environment@100] - Client environment:os.name=Linux
2017-07-28 23:14:33,735 [myid:] - INFO [main:Environment@100] - Client environment:os.arch=amd64
2017-07-28 23:14:33,735 [myid:] - INFO [main:Environment@100] - Client environment:os.version=2.6.32-431.el6.x86_64
2017-07-28 23:14:33,736 [myid:] - INFO [main:Environment@100] - Client environment:user.name=root
2017-07-28 23:14:33,736 [myid:] - INFO [main:Environment@100] - Client environment:user.home=/root
2017-07-28 23:14:33,736 [myid:] - INFO [main:Environment@100] - Client environment:user.dir=/root
2017-07-28 23:14:33,738 [myid:] - INFO [main:ZooKeeper@438] - Initiating client connection, connectString=localhost:2181 sessionTimeout=30000 watcher=org.apache.zookeeper.ZooKeeperMain$MyWatcher@446cdf90
Welcome to ZooKeeper!
2017-07-28 23:14:33,790 [myid:] - INFO [main-SendThread(localhost:2181):ClientCnxn$SendThread@975] - Opening socket connection to server localhost/127.0.0.1:2181. Will not attempt to authenticate using SASL (unknown error)
JLine support is enabled
2017-07-28 23:14:33,914 [myid:] - INFO [main-SendThread(localhost:2181):ClientCnxn$SendThread@852] - Socket connection established to localhost/127.0.0.1:2181, initiating session
2017-07-28 23:14:33,948 [myid:] - INFO [main-SendThread(localhost:2181):ClientCnxn$SendThread@1235] - Session establishment complete on server localhost/127.0.0.1:2181, sessionid = 0x15d8311f2b90012, negotiated timeout = 30000
WATCHER::
WatchedEvent state:SyncConnected type:None path:null
[zk: localhost:2181(CONNECTED) 0] ls /
[zookeeper,hadoop-ha]
[zk: localhost:2181(CONNECTED) 1] ls /hadoop-ha
[cluster1]
[zk: localhost:2181(CONNECTED) 2]复制
【格式化操作的目的是在ZK集群中建立一个节点，用于保存集群c1中NameNode的状态数据】
4. 启动JournalNode集群
在bidev191、bidev192、bidev193上分别执行命令：hadoop-daemon.sh start journalnode
命令输出(以bidev191为例)：
[root@bidev191 hadoop]# opt/hadoop/hadoop-2.7.2/sbin/hadoop-daemon.sh start journalnode
starting journalnode, logging to opt/hadoop/hadoop-2.7.2/logs/hadoop-root-journalnode-bidev191.out
[root@bidev191 hadoop]#复制
在每个节点执行完启动命令后，每个节点都执行以下验证。
验证(以hadoop101为例)：
[root@bidev191 ~]# jps
5381 QuorumPeerMain
9324 JournalNode
30767 Jps复制
【产生一个java进程JournalNode】
查看一下目录结构
[root@bidev191 ~]# ls opt/hadoop/hadoop-2.7.2/tmp/
journal
[root@bidev191 ~]#复制
【启动JournalNode后，会在本地磁盘产生一个目录，用户保存NameNode的edits文件的数据】
5. 格式化集群c1的一个NameNode
从bidev191和bidev192中任选一个即可，这里选择的是bidev191
在bidev191执行以下命令：hdfs namenode -format -clusterId c1
命令输出：例子
[root@hadoop101 hadoop]# usr/local/hadoop/bin/hdfs namenode -format -clusterId c1
14/02/12 08:07:59 INFO namenode.NameNode: STARTUP_MSG:
/************************************************************
STARTUP_MSG: Starting NameNode
STARTUP_MSG: host = hadoop101/192.168.80.101
STARTUP_MSG: args = [-format, -clusterId, c1]
STARTUP_MSG: version = 2.2.0
STARTUP_MSG: classpath = usr/local/hadoop/etc/hadoop:/usr/local/hadoop/share/hadoop/common/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/common/lib/snappy-java-1.0.4.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jsch-0.1.42.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-server-1.9.jar:/usr/local/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.5.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-digester-1.8.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-cli-1.2.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-core-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-el-1.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jets3t-0.6.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-core-1.9.jar:/usr/local/hadoop/share/hadoop/common/lib/slf4j-api-1.7.5.jar:/usr/local/hadoop/share/hadoop/common/lib/xz-1.0.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-lang-2.5.jar:/usr/local/hadoop/share/hadoop/common/lib/jasper-runtime-5.5.23.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-xc-1.8.8.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-codec-1.4.jar:/usr/local/hadoop/share/hadoop/common/lib/activation-1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/avro-1.7.4.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-httpclient-3.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-beanutils-1.7.0.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-annotations-2.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/jsp-api-2.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-compress-1.4.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-beanutils-core-1.8.0.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-configuration-1.6.jar:/usr/local/hadoop/share/hadoop/common/lib/jaxb-impl-2.2.3-1.jar:/usr/local/hadoop/share/hadoop/common/lib/zookeeper-3.4.5.jar:/usr/local/hadoop/share/hadoop/common/lib/hadoop-auth-2.2.0.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-io-2.1.jar:/usr/local/hadoop/share/hadoop/common/lib/netty-3.6.2.Final.jar:/usr/local/hadoop/share/hadoop/common/lib/stax-api-1.0.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-collections-3.2.1.jar:/usr/local/hadoop/share/hadoop/common/lib/servlet-api-2.5.jar:/usr/local/hadoop/share/hadoop/common/lib/junit-4.8.2.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-util-6.1.26.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-mapper-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/common/lib/jsr305-1.3.9.jar:/usr/local/hadoop/share/hadoop/common/lib/mockito-all-1.8.5.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-logging-1.1.1.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-math-2.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jaxb-api-2.2.2.jar:/usr/local/hadoop/share/hadoop/common/lib/jersey-json-1.9.jar:/usr/local/hadoop/share/hadoop/common/lib/asm-3.2.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-net-3.1.jar:/usr/local/hadoop/share/hadoop/common/lib/jetty-6.1.26.jar:/usr/local/hadoop/share/hadoop/common/lib/jasper-compiler-5.5.23.jar:/usr/local/hadoop/share/hadoop/common/lib/guava-11.0.2.jar:/usr/local/hadoop/share/hadoop/common/lib/xmlenc-0.52.jar:/usr/local/hadoop/share/hadoop/common/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/common/lib/paranamer-2.3.jar:/usr/local/hadoop/share/hadoop/common/lib/jackson-jaxrs-1.8.8.jar:/usr/local/hadoop/share/hadoop/common/lib/jettison-1.1.jar:/usr/local/hadoop/share/hadoop/common/hadoop-common-2.2.0-tests.jar:/usr/local/hadoop/share/hadoop/common/hadoop-common-2.2.0.jar:/usr/local/hadoop/share/hadoop/common/hadoop-nfs-2.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs:/usr/local/hadoop/share/hadoop/hdfs/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-server-1.9.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-cli-1.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-core-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-el-1.0.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jersey-core-1.9.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-daemon-1.0.13.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-lang-2.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jasper-runtime-5.5.23.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-codec-1.4.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsp-api-2.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-io-2.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/netty-3.6.2.Final.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/servlet-api-2.5.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-util-6.1.26.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jackson-mapper-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jsr305-1.3.9.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/commons-logging-1.1.1.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/asm-3.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/jetty-6.1.26.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/guava-11.0.2.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/xmlenc-0.52.jar:/usr/local/hadoop/share/hadoop/hdfs/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-nfs-2.2.0.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-2.2.0-tests.jar:/usr/local/hadoop/share/hadoop/hdfs/hadoop-hdfs-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/snappy-java-1.0.4.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jersey-server-1.9.jar:/usr/local/hadoop/share/hadoop/yarn/lib/guice-3.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-core-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jersey-core-1.9.jar:/usr/local/hadoop/share/hadoop/yarn/lib/xz-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/hamcrest-core-1.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/avro-1.7.4.jar:/usr/local/hadoop/share/hadoop/yarn/lib/aopalliance-1.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/hadoop-annotations-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/commons-compress-1.4.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/javax.inject-1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/guice-servlet-3.0.jar:/usr/local/hadoop/share/hadoop/yarn/lib/commons-io-2.1.jar:/usr/local/hadoop/share/hadoop/yarn/lib/netty-3.6.2.Final.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jackson-mapper-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/yarn/lib/asm-3.2.jar:/usr/local/hadoop/share/hadoop/yarn/lib/junit-4.10.jar:/usr/local/hadoop/share/hadoop/yarn/lib/jersey-guice-1.9.jar:/usr/local/hadoop/share/hadoop/yarn/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/yarn/lib/paranamer-2.3.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-api-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-tests-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-site-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-client-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-nodemanager-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-distributedshell-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-resourcemanager-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-web-proxy-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-applications-unmanaged-am-launcher-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-server-common-2.2.0.jar:/usr/local/hadoop/share/hadoop/yarn/hadoop-yarn-common-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/protobuf-java-2.5.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/snappy-java-1.0.4.1.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/jersey-server-1.9.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/guice-3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/jackson-core-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/jersey-core-1.9.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/xz-1.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/hamcrest-core-1.1.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/avro-1.7.4.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/aopalliance-1.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/hadoop-annotations-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/commons-compress-1.4.1.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/javax.inject-1.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/guice-servlet-3.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/commons-io-2.1.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/netty-3.6.2.Final.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/jackson-mapper-asl-1.8.8.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/asm-3.2.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/junit-4.10.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/jersey-guice-1.9.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/log4j-1.2.17.jar:/usr/local/hadoop/share/hadoop/mapreduce/lib/paranamer-2.3.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-hs-plugins-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-2.2.0-tests.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-app-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-core-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-shuffle-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-hs-2.2.0.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-common-2.2.0.jar:/contrib/capacity-scheduler/*.jar
STARTUP_MSG: build = Unknown -r Unknown; compiled by 'root' on 2013-12-26T08:50Z
STARTUP_MSG: java = 1.7.0_45
************************************************************/
14/02/12 08:07:59 INFO namenode.NameNode: registered UNIX signal handlers for [TERM, HUP, INT]
Formatting using clusterid: c1
14/02/12 08:08:01 INFO namenode.HostFileManager: read includes:
HostSet(
)
14/02/12 08:08:01 INFO namenode.HostFileManager: read excludes:
HostSet(
)
14/02/12 08:08:01 INFO blockmanagement.DatanodeManager: dfs.block.invalidate.limit=1000
14/02/12 08:08:01 INFO util.GSet: Computing capacity for map BlocksMap
14/02/12 08:08:01 INFO util.GSet: VM type = 64-bit
14/02/12 08:08:01 INFO util.GSet: 2.0% max memory = 966.7 MB
14/02/12 08:08:01 INFO util.GSet: capacity = 2^21 = 2097152 entries
14/02/12 08:08:01 INFO blockmanagement.BlockManager: dfs.block.access.token.enable=false
14/02/12 08:08:01 INFO blockmanagement.BlockManager: defaultReplication = 2
14/02/12 08:08:01 INFO blockmanagement.BlockManager: maxReplication = 512
14/02/12 08:08:01 INFO blockmanagement.BlockManager: minReplication = 1
14/02/12 08:08:01 INFO blockmanagement.BlockManager: maxReplicationStreams = 2
14/02/12 08:08:01 INFO blockmanagement.BlockManager: shouldCheckForEnoughRacks = false
14/02/12 08:08:01 INFO blockmanagement.BlockManager: replicationRecheckInterval = 3000
14/02/12 08:08:01 INFO blockmanagement.BlockManager: encryptDataTransfer = false
14/02/12 08:08:01 INFO namenode.FSNamesystem: fsOwner = root (auth:SIMPLE)
14/02/12 08:08:01 INFO namenode.FSNamesystem: supergroup = supergroup
14/02/12 08:08:01 INFO namenode.FSNamesystem: isPermissionEnabled = true
14/02/12 08:08:01 INFO namenode.FSNamesystem: Determined nameservice ID: cluster1
14/02/12 08:08:01 INFO namenode.FSNamesystem: HA Enabled: true
14/02/12 08:08:01 INFO namenode.FSNamesystem: Append Enabled: true
14/02/12 08:08:01 INFO util.GSet: Computing capacity for map INodeMap
14/02/12 08:08:01 INFO util.GSet: VM type = 64-bit
14/02/12 08:08:01 INFO util.GSet: 1.0% max memory = 966.7 MB
14/02/12 08:08:01 INFO util.GSet: capacity = 2^20 = 1048576 entries
14/02/12 08:08:01 INFO namenode.NameNode: Caching file names occuring more than 10 times
14/02/12 08:08:01 INFO namenode.FSNamesystem: dfs.namenode.safemode.threshold-pct = 0.9990000128746033
14/02/12 08:08:01 INFO namenode.FSNamesystem: dfs.namenode.safemode.min.datanodes = 0
14/02/12 08:08:01 INFO namenode.FSNamesystem: dfs.namenode.safemode.extension = 30000
14/02/12 08:08:01 INFO namenode.FSNamesystem: Retry cache on namenode is enabled
14/02/12 08:08:01 INFO namenode.FSNamesystem: Retry cache will use 0.03 of total heap and retry cache entry expiry time is 600000 millis
14/02/12 08:08:01 INFO util.GSet: Computing capacity for map Namenode Retry Cache
14/02/12 08:08:01 INFO util.GSet: VM type = 64-bit
14/02/12 08:08:01 INFO util.GSet: 0.029999999329447746% max memory = 966.7 MB
14/02/12 08:08:01 INFO util.GSet: capacity = 2^15 = 32768 entries
14/02/12 08:08:03 INFO common.Storage: Storage directory usr/local/hadoop/tmp/dfs/name has been successfully formatted.
14/02/12 08:08:04 INFO namenode.FSImage: Saving image file usr/local/hadoop/tmp/dfs/name/current/fsimage.ckpt_0000000000000000000 using no compression
14/02/12 08:08:04 INFO namenode.FSImage: Image file usr/local/hadoop/tmp/dfs/name/current/fsimage.ckpt_0000000000000000000 of size 196 bytes saved in 0 seconds.
14/02/12 08:08:04 INFO namenode.NNStorageRetentionManager: Going to retain 1 images with txid >= 0
14/02/12 08:08:04 INFO util.ExitUtil: Exiting with status 0
14/02/12 08:08:04 INFO namenode.NameNode: SHUTDOWN_MSG:
/************************************************************
SHUTDOWN_MSG: Shutting down NameNode at hadoop101/192.168.80.101
************************************************************/
[root@hadoop101 hadoop]#复制
验证：
[root@bidev191 ~]# ls opt/hadoop/hadoop-2.7.2/tmp/
dfs journal
[root@bidev191 ~]# ls opt/hadoop/hadoop-2.7.2/tmp/dfs/
name
[root@bidev191 ~]#复制
【格式化NameNode会在磁盘产生一个目录，用于保存NameNode的fsimage、edits等文件】
6. 启动c1中刚才格式化的NameNode
在bidev191上执行命令：hadoop-daemon.sh start namenode
命令输出：
[root@bidev191 hadoop]# hadoop-daemon.sh start namenode
starting namenode, logging to opt/hadoop/hadoop-2.7.2/logs/hadoop-root-namenode-bidev191.out
验证：
[root@bidev191 hadoop]# jps
31827 Jps
5381 QuorumPeerMain
14485 NameNode
9324 JournalNode
[root@bidev191 hadoop]#复制
【启动后，产生一个新的java进程NameNode】

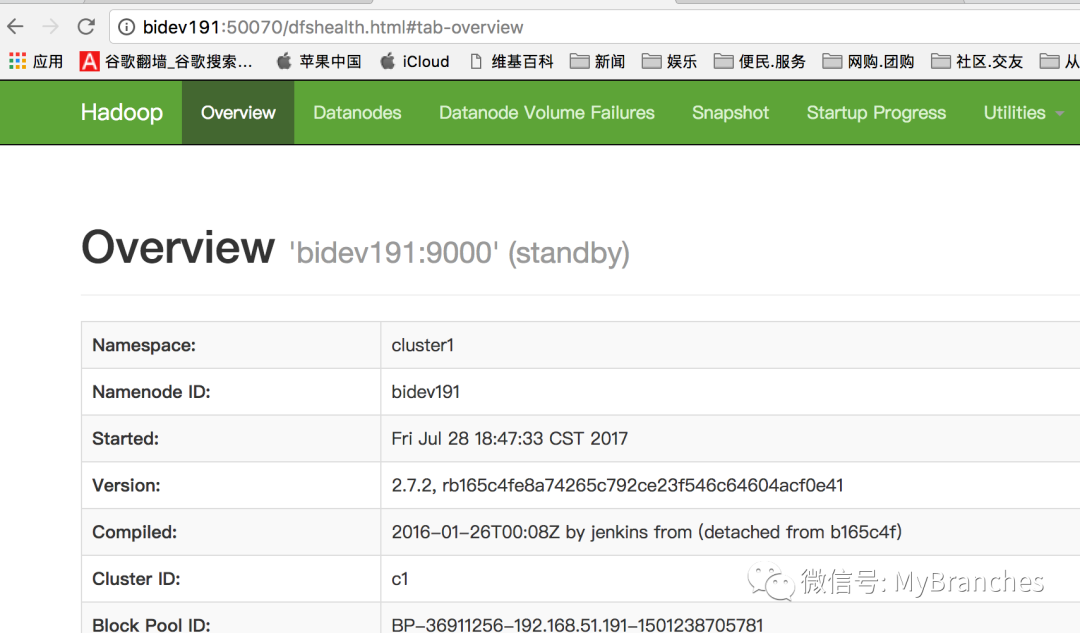

通过浏览器访问，也可以看到下图所示
7. 把NameNode的数据从bidev191同步到bidev192中
在bidev192上执行命令：hdfs namenode –bootstrapStandby
命令输出：
[root@bidev192 ~]# hdfs namenode -bootstrapStandby
17/07/29 09:44:19 INFO namenode.NameNode: STARTUP_MSG:
/************************************************************
STARTUP_MSG: Starting NameNode
STARTUP_MSG: host = bidev192/192.168.51.192
STARTUP_MSG: args = [-bootstrapStandby]
STARTUP_MSG: version = 2.7.2
STARTUP_MSG: classpath = opt/hadoop/hadoop-2.7.2/etc/hadoop:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jsch-0.1.42.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/hamcrest-core-1.3.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/curator-framework-2.7.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/hadoop-annotations-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-collections-3.2.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jetty-6.1.26.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jsp-api-2.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jackson-jaxrs-1.9.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/htrace-core-3.1.0-incubating.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/servlet-api-2.5.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/hadoop-auth-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-io-2.4.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/snappy-java-1.0.4.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jackson-xc-1.9.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jackson-mapper-asl-1.9.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/guava-11.0.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/netty-3.6.2.Final.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jettison-1.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/stax-api-1.0-2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-math3-3.1.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/mockito-all-1.8.5.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/log4j-1.2.17.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jackson-core-asl-1.9.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jersey-json-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-lang-2.6.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jaxb-impl-2.2.3-1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/api-util-1.0.0-M20.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jersey-core-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-logging-1.1.3.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/httpclient-4.2.5.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/junit-4.11.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/asm-3.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/httpcore-4.2.5.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/xz-1.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/curator-client-2.7.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-net-3.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/protobuf-java-2.5.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-configuration-1.6.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/apacheds-kerberos-codec-2.0.0-M15.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/xmlenc-0.52.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jersey-server-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jets3t-0.9.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/api-asn1-api-1.0.0-M20.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/activation-1.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/curator-recipes-2.7.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jetty-util-6.1.26.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jaxb-api-2.2.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/apacheds-i18n-2.0.0-M15.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-digester-1.8.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/jsr305-3.0.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/avro-1.7.4.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/zookeeper-3.4.6.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/java-xmlbuilder-0.4.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-beanutils-core-1.8.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-beanutils-1.7.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/paranamer-2.3.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-codec-1.4.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-compress-1.4.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/slf4j-api-1.7.10.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-cli-1.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/gson-2.2.4.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/commons-httpclient-3.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/hadoop-nfs-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/hadoop-common-2.7.2-tests.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/common/hadoop-common-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/jetty-6.1.26.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/xml-apis-1.3.04.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/htrace-core-3.1.0-incubating.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/servlet-api-2.5.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/commons-io-2.4.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/jackson-mapper-asl-1.9.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/guava-11.0.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/netty-3.6.2.Final.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/log4j-1.2.17.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/jackson-core-asl-1.9.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/commons-lang-2.6.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/jersey-core-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/netty-all-4.0.23.Final.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/commons-logging-1.1.3.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/asm-3.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/xercesImpl-2.9.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/protobuf-java-2.5.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/xmlenc-0.52.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/jersey-server-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/leveldbjni-all-1.8.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/jetty-util-6.1.26.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/jsr305-3.0.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/commons-codec-1.4.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/commons-cli-1.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/lib/commons-daemon-1.0.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/hadoop-hdfs-2.7.2-tests.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/hadoop-hdfs-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/hdfs/hadoop-hdfs-nfs-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/javax.inject-1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/commons-collections-3.2.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jetty-6.1.26.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jackson-jaxrs-1.9.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/servlet-api-2.5.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/zookeeper-3.4.6-tests.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/commons-io-2.4.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jackson-xc-1.9.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jackson-mapper-asl-1.9.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jersey-guice-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/guava-11.0.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/netty-3.6.2.Final.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jettison-1.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/stax-api-1.0-2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/log4j-1.2.17.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jersey-client-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jackson-core-asl-1.9.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jersey-json-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/commons-lang-2.6.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jaxb-impl-2.2.3-1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jersey-core-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/commons-logging-1.1.3.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/asm-3.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/xz-1.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/protobuf-java-2.5.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/guice-3.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jersey-server-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/guice-servlet-3.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/activation-1.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/leveldbjni-all-1.8.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jetty-util-6.1.26.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jaxb-api-2.2.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/aopalliance-1.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/jsr305-3.0.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/zookeeper-3.4.6.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/commons-codec-1.4.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/commons-compress-1.4.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/lib/commons-cli-1.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-server-sharedcachemanager-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-registry-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-server-tests-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-api-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-server-nodemanager-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-client-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-applications-distributedshell-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-applications-unmanaged-am-launcher-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-server-resourcemanager-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-server-applicationhistoryservice-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-server-web-proxy-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-server-common-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/yarn/hadoop-yarn-common-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/javax.inject-1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/hamcrest-core-1.3.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/hadoop-annotations-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/commons-io-2.4.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/snappy-java-1.0.4.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/jackson-mapper-asl-1.9.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/jersey-guice-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/netty-3.6.2.Final.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/log4j-1.2.17.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/jackson-core-asl-1.9.13.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/jersey-core-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/junit-4.11.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/asm-3.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/xz-1.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/protobuf-java-2.5.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/guice-3.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/jersey-server-1.9.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/guice-servlet-3.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/leveldbjni-all-1.8.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/aopalliance-1.0.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/avro-1.7.4.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/paranamer-2.3.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/lib/commons-compress-1.4.1.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/hadoop-mapreduce-client-hs-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-2.7.2-tests.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/hadoop-mapreduce-client-hs-plugins-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/hadoop-mapreduce-client-app-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/hadoop-mapreduce-examples-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/hadoop-mapreduce-client-shuffle-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/hadoop-mapreduce-client-common-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/hadoop-mapreduce-client-core-2.7.2.jar:/opt/hadoop/hadoop-2.7.2/contrib/capacity-scheduler/*.jar
STARTUP_MSG: build = https://git-wip-us.apache.org/repos/asf/hadoop.git -r b165c4fe8a74265c792ce23f546c64604acf0e41; compiled by 'jenkins' on 2016-01-26T00:08Z
STARTUP_MSG: java = 1.8.0_45
************************************************************/
17/07/29 09:44:19 INFO namenode.NameNode: registered UNIX signal handlers for [TERM, HUP, INT]
17/07/29 09:44:19 INFO namenode.NameNode: createNameNode [-bootstrapStandby]
17/07/29 09:44:20 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
=====================================================
About to bootstrap Standby ID bidev192 from:
Nameservice ID: cluster1
Other Namenode ID: bidev191
Other NN's HTTP address: http://bidev191:50070
Other NN's IPC address: bidev191/192.168.51.191:9000
Namespace ID: 1573565526
Block pool ID: BP-36911256-192.168.51.191-1501238705781
Cluster ID: c1
Layout version: -63
isUpgradeFinalized: true
=====================================================
Re-format filesystem in Storage Directory opt/hadoop/hadoop-2.7.2/tmp/dfs/name ? (Y or N) y
17/07/29 09:44:27 INFO common.Storage: Storage directory opt/hadoop/hadoop-2.7.2/tmp/dfs/name has been successfully formatted.
17/07/29 09:44:28 INFO namenode.TransferFsImage: Opening connection to http://bidev191:50070/imagetransfer?getimage=1&txid=837&storageInfo=-63:1573565526:0:c1
17/07/29 09:44:28 INFO namenode.TransferFsImage: Image Transfer timeout configured to 60000 milliseconds
17/07/29 09:44:28 INFO namenode.TransferFsImage: Transfer took 0.03s at 0.00 KB/s
17/07/29 09:44:28 INFO namenode.TransferFsImage: Downloaded file fsimage.ckpt_0000000000000000837 size 352 bytes.
17/07/29 09:44:28 INFO util.ExitUtil: Exiting with status 0
17/07/29 09:44:28 INFO namenode.NameNode: SHUTDOWN_MSG:
/************************************************************
SHUTDOWN_MSG: Shutting down NameNode at bidev192/192.168.51.192
************************************************************/
[root@bidev192 ~]#复制
验证：
[root@bidev192 ~]# ls opt/hadoop/hadoop-2.7.2/tmp/
dfs journal
[root@bidev192 ~]# ls opt/hadoop/hadoop-2.7.2/tmp/dfs/
name
[root@bidev192 ~]#复制
【在tmp目录下产生一个目录name】
8. 启动c1中另一个Namenode
在bidev192上执行命令：hadoop-daemon.sh start namenode
命令输出：
[root@bidev191 hadoop]# hadoop-daemon.sh start namenode
starting namenode, logging to opt/hadoop/hadoop-2.7.2/logs/hadoop-root-namenode-bidev192.out复制
验证：
[root@bidev192 ~]# jps
12752 NameNode
7684 JournalNode
23366 Jps
5416 QuorumPeerMain
[root@bidev192 ~]#复制
【产生java进程NameNode】

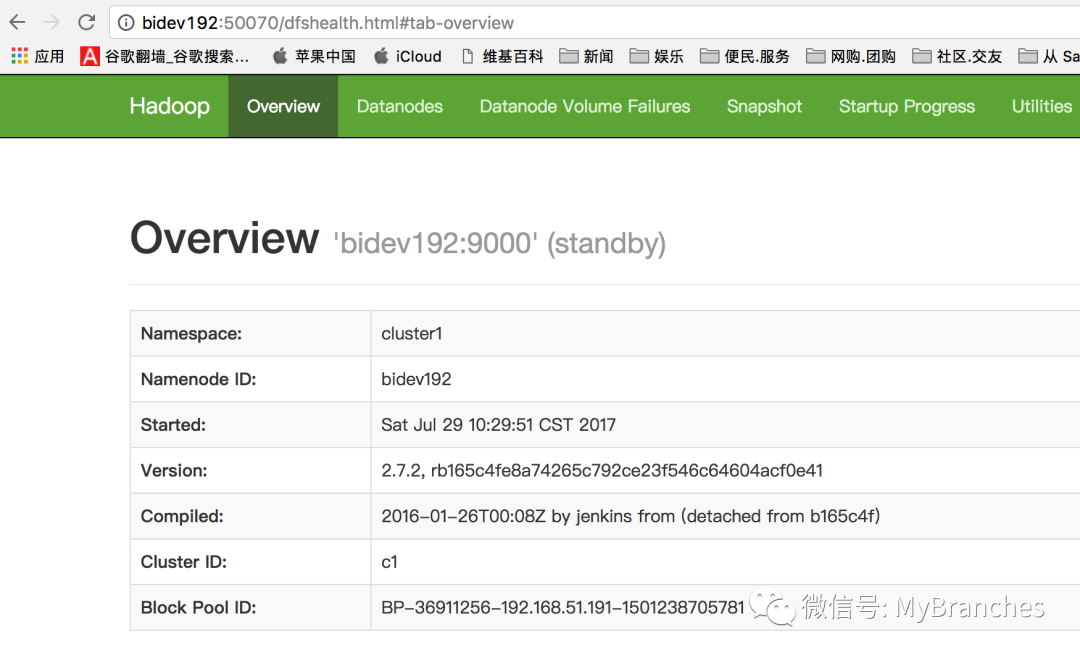

通过浏览器访问，
9. 启动所有的DataNode
在bidev191上执行命令：hadoop-daemons.sh start datanode
命令输出：
[root@bidev191 hadoop]# hadoop-daemons.sh start datanode
bidev192: starting datanode, logging to opt/hadoop/hadoop-2.7.2/logs/hadoop-root-datanode-bidev192.out
bidev193: starting datanode, logging to opt/hadoop/hadoop-2.7.2/logs/hadoop-root-datanode-bidev193.out
bidev197: starting datanode, logging to opt/hadoop/hadoop-2.7.2/logs/hadoop-root-datanode-bidev197.out
biqa160: starting datanode, logging to opt/hadoop/hadoop-2.7.2/logs/hadoop-root-datanode-biqa160.out
biqa161: starting datanode, logging to opt/hadoop/hadoop-2.7.2/logs/hadoop-root-datanode-biqa161.out
biqa162: starting datanode, logging to opt/hadoop/hadoop-2.7.2/logs/hadoop-root-datanode-biqa162.out
[root@bidev191 hadoop]#复制
【上述命令会在六个节点分别启动DataNode进程】
验证（以bidev192为例）：
[root@bidev192 ~]# jps
12752 NameNode
23986 Jps
7684 JournalNode
5416 QuorumPeerMain
23897 DataNode
[root@bidev192 ~]#复制
【可以看到java进程DataNode】
10. 启动Yarn
在bidev191上执行命令：start-yarn.sh
[root@bidev191 ~]# start-yarn.sh
starting yarn daemons
starting resourcemanager, logging to opt/hadoop/hadoop-2.7.2/logs/yarn-root-resourcemanager-bidev191.out
biqa160: starting nodemanager, logging to home/opt/hadoop/hadoop-2.7.2/logs/yarn-root-nodemanager-biqa160.out
biqa161: starting nodemanager, logging to home/opt/hadoop/hadoop-2.7.2/logs/yarn-root-nodemanager-biqa161.out
biqa162: starting nodemanager, logging to home/opt/hadoop/hadoop-2.7.2/logs/yarn-root-nodemanager-biqa162.out
bidev193: starting nodemanager, logging to opt/hadoop/hadoop-2.7.2/logs/yarn-root-nodemanager-bidev193.out
bidev197: starting nodemanager, logging to home/opt/hadoop/hadoop-2.7.2/logs/yarn-root-nodemanager-bidev197.out
bidev192: starting nodemanager, logging to opt/hadoop/hadoop-2.7.2/logs/yarn-root-nodemanager-bidev192.out
[root@bidev191 ~]#复制
验证：
[root@bidev191 ~]# jps
32720 ResourceManager
5381 QuorumPeerMain
14485 NameNode
9324 JournalNode
749 Jps
[root@bidev191 ~]#
[root@bidev192 ~]# jps
12752 NameNode
7684 JournalNode
24470 NodeManager
5416 QuorumPeerMain
23897 DataNode
24846 Jps
[root@bidev192 ~]#复制
【产生java进程ResourceManager和NodeManager】

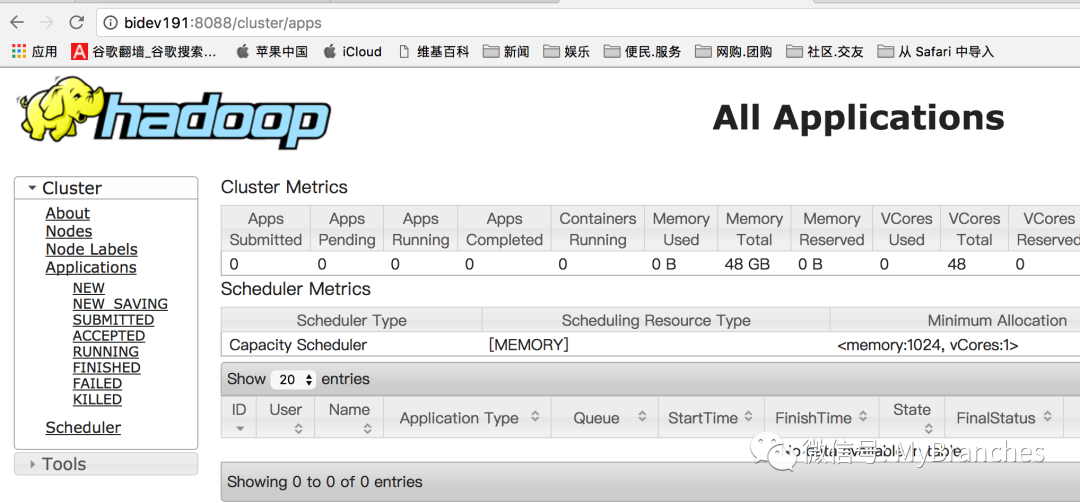

也可以通过浏览器访问，如下图
11. 启动ZooKeeperFailoverController
在bidev191、bidev192(即namenode主备节点)分别执行命令：hadoop-daemon.sh start zkfc
命令输出（以bidev191为例）：
[root@bidev191 hadoop]# hadoop-daemon.sh start zkfc
starting zkfc, logging to opt/hadoop/hadoop-2.7.2/logs/hadoop-root-zkfc-bidev191.out
[root@bidev191 hadoop]#复制
验证（以bidev191为例）：
[root@bidev191 ~]# jps
32720 ResourceManager
1586 Jps
11284 DFSZKFailoverController
5381 QuorumPeerMain
14485 NameNode
9324 JournalNode
[root@bidev191 ~]#复制
【产生java进程DFSZKFailoverController】
12. 验证HDFS是否好用
在任意一个节点上执行以下命令（这里以bidev191为例），把数据上传到HDFS集群中
[root@bidev191 hadoop]# pwd
/opt/hadoop/hadoop-2.7.2/etc/hadoop
[root@bidev191 hadoop]# ls
capacity-scheduler.xml hadoop-policy.xml kms-log4j.properties slaves
configuration.xsl hdfs-site.xml kms-site.xml ssl-client.xml.example
container-executor.cfg httpfs-env.sh log4j.properties ssl-server.xml.example
core-site.xml httpfs-log4j.properties mapred-env.cmd yarn-env.cmd
hadoop-env.cmd httpfs-signature.secret mapred-env.sh yarn-env.sh
hadoop-env.sh httpfs-site.xml mapred-queues.xml.template yarn-site.xml
hadoop-metrics2.properties kms-acls.xml mapred-site.xml
hadoop-metrics.properties kms-env.sh mapred-site.xml.template
[root@bidev191 hadoop]# hadoop fs -put core-site.xml复制
【上传到集群中，默认是上传到HDFS的c1集群中】
验证：
[root@bidev191 hadoop]# hadoop fs -ls
17/07/29 10:52:03 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Found 1 items
-rw-r--r-- 2 root supergroup 1062 2017-07-29 10:51 core-site.xml
[root@bidev191 hadoop]#复制

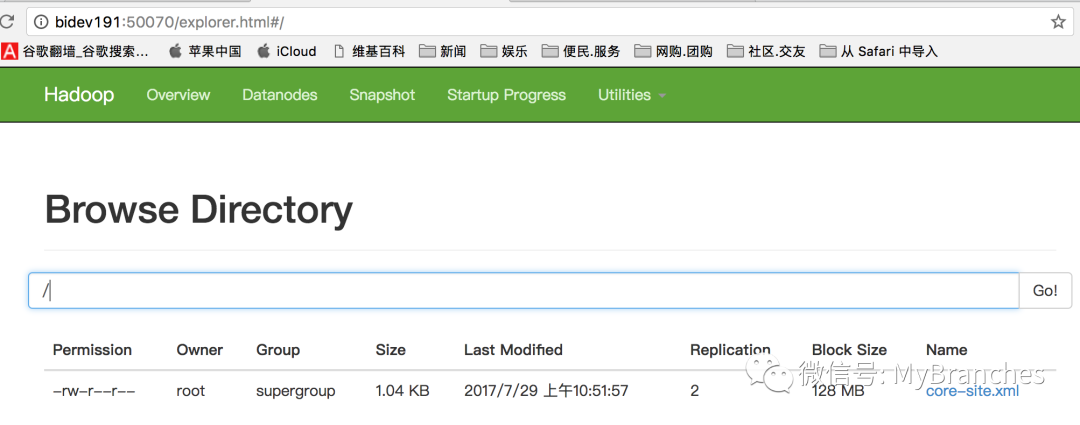

也可以通过浏览器查看
查看tmp目录报错Permission denied: user=dr.who, access=READ_EXECUTE, inode="/tmp":root:supergroup:drwx------
`
解决：$HADOOP_HOME/bin/hdfs dfs -chmod -R 777 tmp #chmode要有-
13. 验证Yarn是否好用
在bidev191上执行以下命令 hadoop jar opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/hadoop-mapreduce-examples-2.7.2.jar wordcount core-site.xml out
命令输出：
[root@bidev191 hadoop]# hadoop jar opt/hadoop/hadoop-2.7.2/share/hadoop/mapreduce/hadoop-mapreduce-examples-2.7.2.jar wordcount core-site.xml out
17/07/29 10:56:30 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
17/07/29 10:56:36 INFO client.RMProxy: Connecting to ResourceManager at bidev191/192.168.51.191:8032
17/07/29 10:56:38 INFO input.FileInputFormat: Total input paths to process : 1
17/07/29 10:56:39 INFO mapreduce.JobSubmitter: number of splits:1
17/07/29 10:56:39 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1501294816434_0001
17/07/29 10:56:39 INFO impl.YarnClientImpl: Submitted application application_1501294816434_0001
17/07/29 10:56:40 INFO mapreduce.Job: The url to track the job: http://bidev191:8088/proxy/application_1501294816434_0001/
17/07/29 10:56:40 INFO mapreduce.Job: Running job: job_1501294816434_0001
17/07/29 10:56:52 INFO mapreduce.Job: Job job_1501294816434_0001 running in uber mode : false
17/07/29 10:56:52 INFO mapreduce.Job: map 0% reduce 0%
17/07/29 10:57:01 INFO mapreduce.Job: map 100% reduce 0%
17/07/29 10:57:09 INFO mapreduce.Job: map 100% reduce 100%
17/07/29 10:57:10 INFO mapreduce.Job: Job job_1501294816434_0001 completed successfully
17/07/29 10:57:10 INFO mapreduce.Job: Counters: 49
File System Counters
FILE: Number of bytes read=1416
FILE: Number of bytes written=241451
FILE: Number of read operations=0
FILE: Number of large read operations=0
FILE: Number of write operations=0
HDFS: Number of bytes read=1156
HDFS: Number of bytes written=1058
HDFS: Number of read operations=6
HDFS: Number of large read operations=0
HDFS: Number of write operations=2
Job Counters
Launched map tasks=1
Launched reduce tasks=1
Rack-local map tasks=1
Total time spent by all maps in occupied slots (ms)=6329
Total time spent by all reduces in occupied slots (ms)=5033
Total time spent by all map tasks (ms)=6329
Total time spent by all reduce tasks (ms)=5033
Total vcore-milliseconds taken by all map tasks=6329
Total vcore-milliseconds taken by all reduce tasks=5033
Total megabyte-milliseconds taken by all map tasks=6480896
Total megabyte-milliseconds taken by all reduce tasks=5153792
Map-Reduce Framework
Map input records=32
Map output records=113
Map output bytes=1490
Map output materialized bytes=1416
Input split bytes=94
Combine input records=113
Combine output records=88
Reduce input groups=88
Reduce shuffle bytes=1416
Reduce input records=88
Reduce output records=88
Spilled Records=176
Shuffled Maps =1
Failed Shuffles=0
Merged Map outputs=1
GC time elapsed (ms)=220
CPU time spent (ms)=2640
Physical memory (bytes) snapshot=428560384
Virtual memory (bytes) snapshot=4239855616
Total committed heap usage (bytes)=350224384
Shuffle Errors
BAD_ID=0
CONNECTION=0
IO_ERROR=0
WRONG_LENGTH=0
WRONG_MAP=0
WRONG_REDUCE=0
File Input Format Counters
Bytes Read=1062
File Output Format Counters
Bytes Written=1058
[root@bidev191 hadoop]#复制
验证：
[root@bidev191 hadoop]# hadoop fs -ls /out
17/07/29 10:59:35 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Found 2 items
-rw-r--r-- 2 root supergroup 0 2017-07-29 10:57 /out/_SUCCESS
-rw-r--r-- 2 root supergroup 1058 2017-07-29 10:57 /out/part-r-00000
[root@bidev191 hadoop]# hadoop fs -text /out/part-r-00000
17/07/29 10:59:48 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
"AS 1
"License"); 1
(the 1
--> 2
2.0 1
<!-- 2
</configuration> 1
</property> 3
<?xml 1
<?xml-stylesheet 1
<configuration> 1
<name>fs.defaultFS</name> 1
<name>ha.zookeeper.quorum</name> 1
<name>hadoop.tmp.dir</name> 1
<property> 3
<value>/opt/hadoop/hadoop-2.7.2/tmp</value> 1
<value>bidev191:2181,bidev192:2181,bidev193:2181</value> 1
<value>hdfs://cluster1</value> 1
ANY 1
Apache 1
BASIS, 1
CONDITIONS 1
IS" 1
KIND, 1
LICENSE 1
License 3
License, 1
License. 2
Licensed 1
OF 1
OR 1
Put 1
See 2
Unless 1
Version 1
WARRANTIES 1
WITHOUT 1
You 1
a 1
accompanying 1
agreed 1
an 1
and 1
applicable 1
at 1
by 1
compliance 1
copy 1
distributed 2
either 1
encoding="UTF-8"?> 1
except 1
express 1
file 1
file. 2
for 1
governing 1
href="configuration.xsl"?> 1
http://www.apache.org/licenses/LICENSE-2.0 1
implied. 1
in 3
is 1
language 1
law 1
limitations 1
may 2
not 1
obtain 1
of 1
on 1
or 2
overrides 1
permissions 1
property 1
required 1
site-specific 1
software 1
specific 1
the 7
this 2
to 1
type="text/xsl" 1
under 3
use 1
version="1.0" 1
with 1
writing, 1
you 1
[root@bidev191 hadoop]#复制
14. 在所有的节点上启动yarn的history server查看作业的历史
[root@bidev191 hadoop]# mr-jobhistory-daemon.sh start historyserver复制
15. 验证HA的故障自动转移是否好用

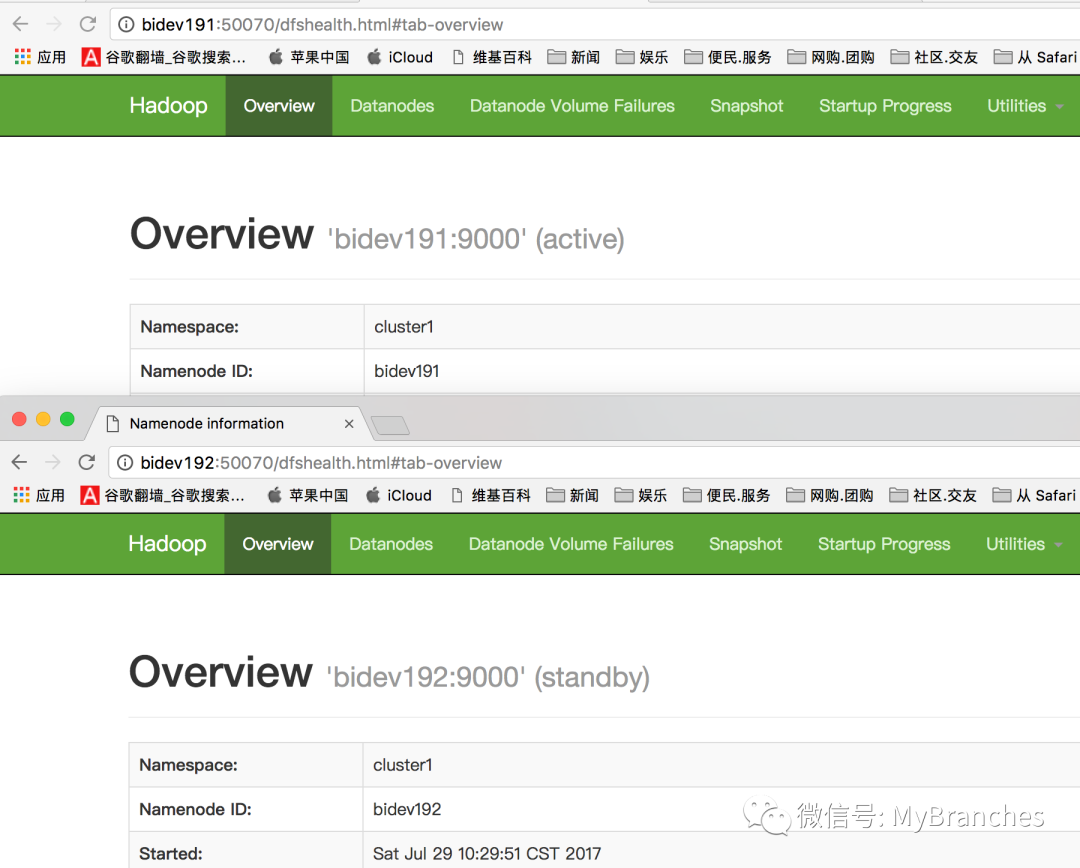

观察cluster1的两个NameNode的状态，bidev191的状态是active，bidev192的状态是standby，如下图。
下面我们杀死bidev191的NameNode进程，观察bidev192的状态是否会自动切换成active。证明HDFS的高可靠是可用的。
4. 结语
以上是hadoop2.7.2的HDFS集群HA配置和自动切换、HDFS federation配置、Yarn配置的详细过程。在搭建过程中，一定要注意命令的执行顺序和每一步的验证工作。
文章转载自我的小树枝，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。
评论
相关阅读
国产数据库需要扩大场景覆盖面才能在竞争中更有优势
白鳝的洞穴
556次阅读
2025-04-14 09:40:20
Hologres x 函数计算 x Qwen3，对接MCP构建企业级数据分析 Agent
阿里云大数据AI技术
515次阅读
2025-05-06 17:24:44
一页概览：Oracle GoldenGate
甲骨文云技术
465次阅读
2025-04-30 12:17:56
GoldenDB数据库v7.2焕新发布，助力全行业数据库平滑替代
GoldenDB分布式数据库
458次阅读
2025-04-30 12:17:50
优炫数据库成功入围新疆维吾尔自治区行政事业单位数据库2025年框架协议采购！
优炫软件
352次阅读
2025-04-18 10:01:22
千万级数据秒级响应！碧桂园基于 EMR Serverless StarRocks 升级存算分离架构实践
阿里云大数据AI技术
294次阅读
2025-04-27 15:28:51
国产数据库时代，一些20年前的数据库设计小技巧又可以拿出来用了
白鳝的洞穴
282次阅读
2025-04-10 11:52:51
Coco AI 入驻 GitCode：打破数据孤岛，解锁智能协作新可能
极限实验室
242次阅读
2025-05-04 23:53:06
关于征集数据库标准体系更新意见和数据库标准化需求的通知
数据库标准工作组
239次阅读
2025-04-11 11:30:08
优炫数据库成功应用于晋江市发展和改革局！
优炫软件
198次阅读
2025-04-25 10:10:31
热门文章
Spark安装教程
2021-07-08 3312浏览
Zookeeper安装图文教程
2021-07-20 353浏览
【MySQL 30周年庆】MySQL 8.0 OCP考试限时免费！教你免费领考券
2025-04-25 2905浏览
2025年4月国产数据库大事记：4个千万级中标项目诞生！2024年达梦净利3.6亿、金仓净利8006.6万……
2025-04-30 1814浏览
外国CTO也感兴趣的开源数据库项目——openHalo
2025-04-21 1540浏览
最新文章
Zookeeper安装图文教程
2021-07-20 353浏览
Spark安装教程
2021-07-08 3312浏览
可观测性方案怎么选？SelectDB vs Elasticsearch vs ClickHouse
18小时前 24浏览
GoldenDB 数据库跨租户数据访问技术深度解析
1天前 23浏览
MySQL 8.4.5 在 CentOS 7.9上的二进制安装
1天前 53浏览
