深入浅出PostgreSQL B-Tree索引结构

digoal 2016-05-28
490

作者

digoal

日期

2016-05-28

标签

PostgreSQL , b-tree , 索引结构

背景

PostgreSQL B-Tree是一种变种(high-concurrency B-tree management algorithm)，算法详情请参考

src/backend/access/nbtree/README

PostgreSQL 的B-Tree索引页分为几种类别

```
meta page
root page # btpo_flags=2
branch page # btpo_flags=0
leaf page # btpo_flags=1

如果即是leaf又是root则 btpo_flags=3。
```

其中meta page和root page是必须有的，meta page需要一个页来存储，表示指向root page的page id。

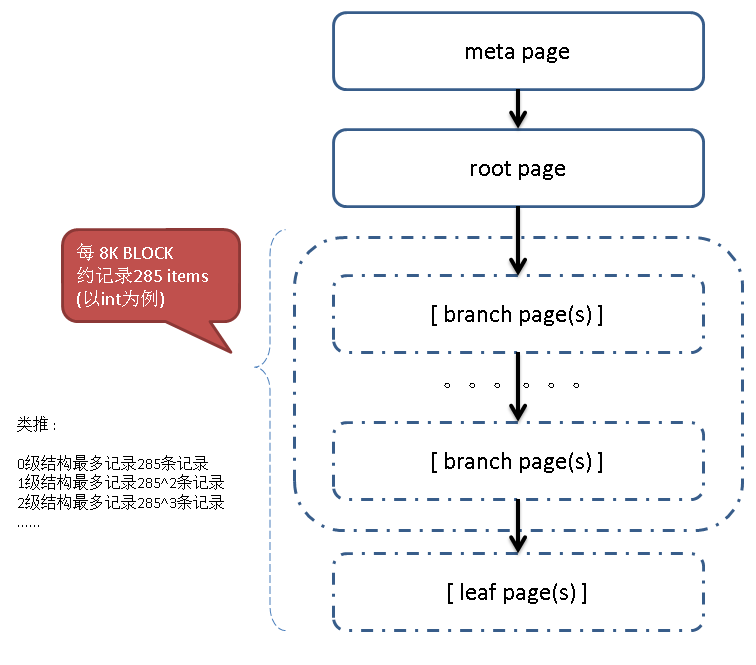

随着记录数的增加，一个root page可能存不下所有的heap item，就会有leaf page，甚至branch page，甚至多层的branch page。

一共有几层branch 和 leaf，就用btree page元数据的 level 来表示。

4

我们可以使用pageinspect插件，内窥B-Tree的结构。

层次可以从bt_page_stats的btpo得到，代表当前index page所处的层级。

注意层级并不是唯一的，例如btpo=3的层级，可能有分几个档。

打个比喻，腾讯的技术岗位级别T3，对应T3这个级别又有几个小的档位。和这里的含义差不多，只是没有区分小档位的值，但是后面我们能看到它的存在。

btpo=0级表示最底层，处于这个层级的index pages存储的items(ctid)是指向heap page的。

类别和层级不挂钩，类别里面又可以有多个层级，但是只有层级=0的index page存储的ctid内容才是指向heap page的; 其他层级index page存储的ctid内容都是指向同层级其他index page(双向链表)，或者指下级的index page。

1.

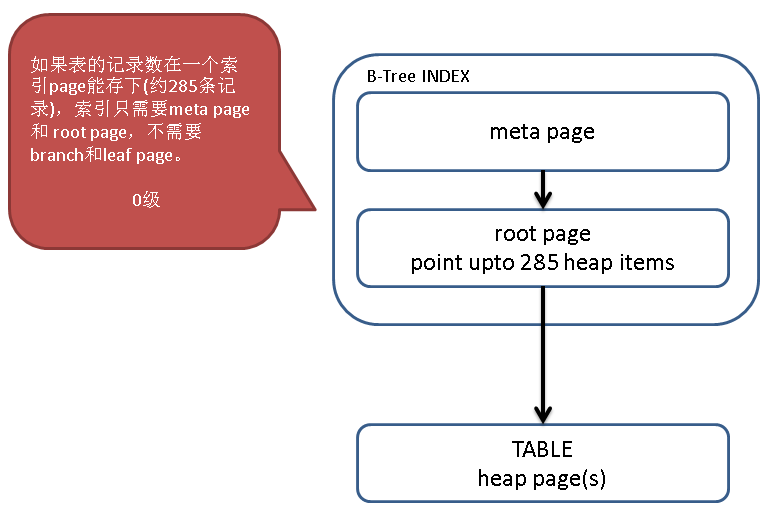

0层结构，只有meta和root页。

root页最多可以存储的item数，取决于索引字段数据的长度、以及索引页的大小。

1

例子

```
postgres=# create extension pageinspect;

postgres=# create table tab1(id int primary key, info text);
CREATE TABLE
postgres=# insert into tab1 select generate_series(1,100), md5(random()::text);
INSERT 0 100
postgres=# vacuum analyze tab1;
VACUUM
```

查看meta page，可以看到root page id = 1 。

索引的level = 0， 说明没有branch和leaf page。

postgres=# select * from bt_metap('tab1_pkey'); magic | version | root | level | fastroot | fastlevel --------+---------+------+-------+----------+----------- 340322 | 2 | 1 | 0 | 1 | 0 (1 row)

根据root page id = 1查看root page的stats

btpo=0 说明已经到了最底层

btpo_flags=3，说明它既是leaf又是root页。

postgres=# select * from bt_page_stats('tab1_pkey',1); blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags -------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------ 1 | l | 100 | 0 | 16 | 8192 | 6148 | 0 | 0 | 0 | 3 (1 row)

btpo_prev和btpo_next分别表示该页的相邻页（branch page是双向链表）。

btpo_flags 可以在代码中查看(src/include/access/nbtree.h)，一共有几个

```
/ Bits defined in btpo_flags /

define BTP_LEAF (1 << 0) / leaf page, i.e. not internal page /

define BTP_ROOT (1 << 1) / root page (has no parent) /

define BTP_DELETED (1 << 2) / page has been deleted from tree /

define BTP_META (1 << 3) / meta-page /

define BTP_HALF_DEAD (1 << 4) / empty, but still in tree /

define BTP_SPLIT_END (1 << 5) / rightmost page of split group /

define BTP_HAS_GARBAGE (1 << 6) / page has LP_DEAD tuples /

define BTP_INCOMPLETE_SPLIT (1 << 7) / right sibling's downlink is missing /

```

查看0级 page存储的ctid (即items)

0级ctid 表示存储的是 heap页的寻址。 （如果是多层结构，那么branch page中的ctid， 它表示的是同级btree页(链条项ctid)或者下级btree页的寻址） 。

当ctid指向heap时， data是对应的列值。(多级结构的data意义不一样，后面会讲)

postgres=# select * from bt_page_items('tab1_pkey',1); itemoffset | ctid | itemlen | nulls | vars | data ------------+---------+---------+-------+------+------------------------- 1 | (0,1) | 16 | f | f | 01 00 00 00 00 00 00 00 2 | (0,2) | 16 | f | f | 02 00 00 00 00 00 00 00 ... 99 | (0,99) | 16 | f | f | 63 00 00 00 00 00 00 00 100 | (0,100) | 16 | f | f | 64 00 00 00 00 00 00 00 (100 rows)

根据ctid 查看heap记录

postgres=# select * from tab1 where ctid='(0,100)'; id | info -----+---------------------------------- 100 | 68b63c269ee8cc2d99fe204f04d0ffcb (1 row)

2.

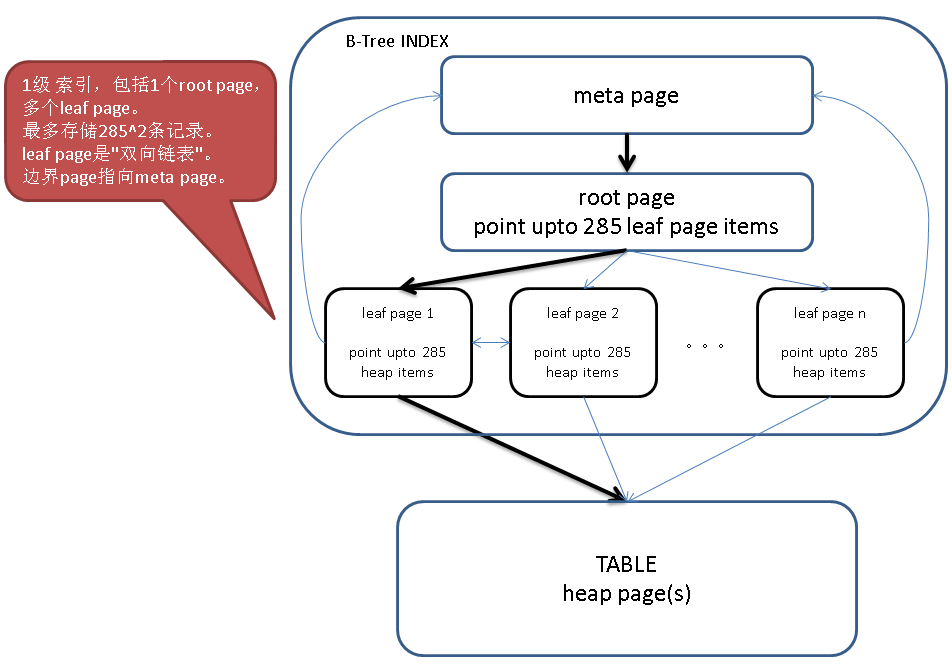

1层结构，包括meta page, root page, leaf page.

2

例子

postgres=# truncate tab1; TRUNCATE TABLE postgres=# insert into tab1 select generate_series(1,1000), md5(random()::text); INSERT 0 1000 postgres=# vacuum analyze tab1; VACUUM

查看meta page，可以看到root page id = 3, 索引的level = 1。

level = 1 表示包含了leaf page。

postgres=# select * from bt_metap('tab1_pkey'); magic | version | root | level | fastroot | fastlevel --------+---------+------+-------+----------+----------- 340322 | 2 | 3 | 1 | 3 | 1 (1 row)

根据root page id 查看root page的stats

btpo = 1 说明还没有到最底层（最底层btpo=0, 这种页里面存储的ctid才代表指向heap page的地址）

btpo_flags=2 说明这个页是root page

postgres=# select * from bt_page_stats('tab1_pkey',3); blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags -------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------ 3 | r | 3 | 0 | 13 | 8192 | 8096 | 0 | 0 | 1 | 2 (1 row)

查看root page存储的 leaf page items (指向leaf page)

一共3个leaf pages, data存储的是这个leaf page存储的最小值。

postgres=# select * from bt_page_items('tab1_pkey',3); itemoffset | ctid | itemlen | nulls | vars | data ------------+-------+---------+-------+------+------------------------- 1 | (1,1) | 8 | f | f | 2 | (2,1) | 16 | f | f | 6f 01 00 00 00 00 00 00 3 | (4,1) | 16 | f | f | dd 02 00 00 00 00 00 00 (3 rows)

第一条为空，是因为这个leaf page是最左边的PAGE，不存最小值。

对于有右leaf page的leaf page，第一条存储的heap item为该页的右链路。

第二条才是起始ITEM。

另外需要注意，虽然在item里面只存储右链，leaf page还是双向链表，在stats能看到它的prev 和next page。

根据leaf page id查看stats

最左leaf page = 1

prev btpo 指向meta page

可以看到btpo = 0了，说明这个页是底层页。 btpo_flags=1 说明是leaf page postgres=# select * from bt_page_stats('tab1_pkey',1); blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags -------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------ 1 | l | 367 | 0 | 16 | 8192 | 808 | 0 | 2 | 0 | 1 (1 row)

next btpo 指向meta page

最右leaf page = 4

btpo_flags=1 说明是leaf page

postgres=# select * from bt_page_stats('tab1_pkey',4); blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags -------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------ 4 | l | 268 | 0 | 16 | 8192 | 2788 | 2 | 0 | 0 | 1 (1 row)

中间leaf page = 2

btpo_flags=1 说明是leaf page

postgres=# select * from bt_page_stats('tab1_pkey',2); blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags -------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------ 2 | l | 367 | 0 | 16 | 8192 | 808 | 1 | 4 | 0 | 1 (1 row)

查看leaf page存储的 heap ctid (即heap items)

含右页的例子, index page 1

第一条为右链表的第一条item, 第二条才是起始item

postgres=# select * from bt_page_items('tab1_pkey',1); itemoffset | ctid | itemlen | nulls | vars | data ------------+---------+---------+-------+------+------------------------- 1 | (3,7) | 16 | f | f | 6f 01 00 00 00 00 00 00 2 | (0,1) | 16 | f | f | 01 00 00 00 00 00 00 00 3 | (0,2) | 16 | f | f | 02 00 00 00 00 00 00 00 ... 367 | (3,6) | 16 | f | f | 6e 01 00 00 00 00 00 00 (367 rows)

不含右页的例子, index page 4

第一条就是起始ctid (即items)

postgres=# select * from bt_page_items('tab1_pkey',4); itemoffset | ctid | itemlen | nulls | vars | data ------------+---------+---------+-------+------+------------------------- 1 | (6,13) | 16 | f | f | dd 02 00 00 00 00 00 00 2 | (6,14) | 16 | f | f | de 02 00 00 00 00 00 00 ... 268 | (8,40) | 16 | f | f | e8 03 00 00 00 00 00 00 (268 rows)

根据ctid 查看heap记录

postgres=# select * from tab1 where ctid='(0,1)'; id | info ----+---------------------------------- 1 | 6ebc6b77aebf5dd11621a2ed846c08c4 (1 row)

3.

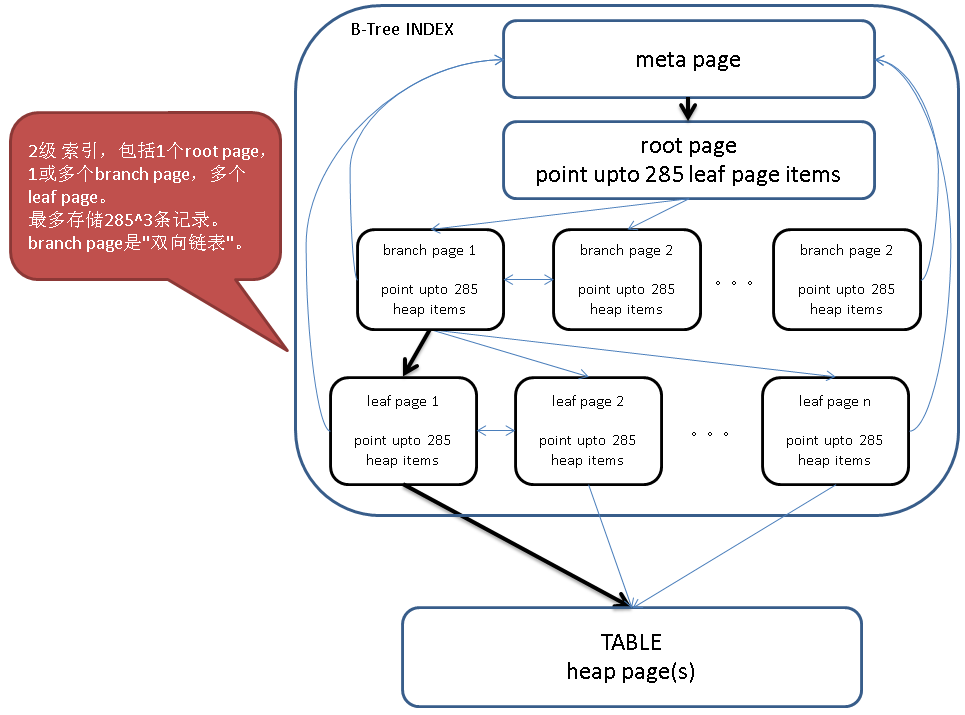

记录数超过1层结构的索引可以存储的记录数时，会分裂为2层结构，除了meta page和root page，还可能包含1层branch page以及1层leaf page。

如果是边界页(branch or leaf)，那么其中一个方向没有PAGE，这个方向的链表信息都统一指向meta page。

3

例子

```
create table tbl1(id int primary key, info text);
postgres=# select 285^2;
?column?

81225

(1 row)
postgres=# insert into tab2 select trunc(random()*10000000), md5(random()::text) from generate_series(1,1000000) on conflict on constraint tab2_pkey do nothing;
INSERT 0 951379
postgres=# vacuum analyze tab2;
VACUUM
```

查看meta page，可以看到root page id = 412, 索引的level=2，即包括1级 branch 和 1级 leaf。

postgres=# select * from bt_metap('tab2_pkey'); magic | version | root | level | fastroot | fastlevel --------+---------+------+-------+----------+----------- 340322 | 2 | 412 | 2 | 412 | 2 (1 row)

根据root page id 查看root page的stats

btpo = 2 当前在第二层，另外还表示下层是1

btpo_flags = 2 说明是root page

postgres=# select * from bt_page_stats('tab2_pkey', 412); blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags -------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------ 412 | r | 11 | 0 | 15 | 8192 | 7936 | 0 | 0 | 2 | 2 (1 row)

查看root page存储的 branch page items (指向branch page)

postgres=# select * from bt_page_items('tab2_pkey', 412); itemoffset | ctid | itemlen | nulls | vars | data ------------+----------+---------+-------+------+------------------------- 1 | (3,1) | 8 | f | f | 2 | (2577,1) | 16 | f | f | e1 78 0b 00 00 00 00 00 3 | (1210,1) | 16 | f | f | ec 3a 18 00 00 00 00 00 4 | (2316,1) | 16 | f | f | de 09 25 00 00 00 00 00 5 | (574,1) | 16 | f | f | aa e8 33 00 00 00 00 00 6 | (2278,1) | 16 | f | f | 85 90 40 00 00 00 00 00 7 | (1093,1) | 16 | f | f | f6 e9 4e 00 00 00 00 00 8 | (2112,1) | 16 | f | f | a3 60 5c 00 00 00 00 00 9 | (411,1) | 16 | f | f | b2 ea 6b 00 00 00 00 00 10 | (2073,1) | 16 | f | f | db de 79 00 00 00 00 00 11 | (1392,1) | 16 | f | f | df b0 8a 00 00 00 00 00 (11 rows)

根据branch page id查看stats

btpo = 1 当前在第一层 ，另外还表示下层是0

btpo_flags = 0 说明是branch page

postgres=# select * from bt_page_stats('tab2_pkey', 3); blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags -------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------ 3 | i | 254 | 0 | 15 | 8192 | 3076 | 0 | 2577 | 1 | 0 (1 row)

查看branch page存储的 leaf page ctid (指向leaf page)

只要不是最右边的页，第一条都代表右页的起始item。

第二条才是当前页的起始ctid

注意所有branch page的起始item对应的data都是空的。

也就是说它不存储当前branch page包含的所有leaf pages的索引字段内容的最小值。

postgres=# select * from bt_page_items('tab2_pkey', 3); itemoffset | ctid | itemlen | nulls | vars | data ------------+----------+---------+-------+------+------------------------- 1 | (735,1) | 16 | f | f | e1 78 0b 00 00 00 00 00 2 | (1,1) | 8 | f | f | 3 | (2581,1) | 16 | f | f | a8 09 00 00 00 00 00 00 4 | (1202,1) | 16 | f | f | f8 13 00 00 00 00 00 00 ... 254 | (3322,1) | 16 | f | f | ee 6f 0b 00 00 00 00 00 (254 rows)

根据ctid 查看leaf page

btpo = 0 当前在第0层，即最底层，这里存储的是heap ctid

btpo_flags = 1 说明是leaf page

```
postgres=# select * from bt_page_stats('tab2_pkey', 1);
blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
1 | l | 242 | 0 | 16 | 8192 | 3308 | 0 | 2581 | 0 | 1
(1 row)

postgres=# select * from bt_page_items('tab2_pkey', 1);
itemoffset | ctid | itemlen | nulls | vars | data
------------+------------+---------+-------+------+-------------------------
1 | (4985,16) | 16 | f | f | a8 09 00 00 00 00 00 00
2 | (7305,79) | 16 | f | f | 01 00 00 00 00 00 00 00
3 | (2757,120) | 16 | f | f | 09 00 00 00 00 00 00 00
...
242 | (1329,101) | 16 | f | f | a0 09 00 00 00 00 00 00
(242 rows)
```

查看leaf page中包含的heap page items。

如果我们根据索引页结构的原理，能推算出来(7305,79)是最小值，取它就没错了。

```
postgres=# select * from tab2 where ctid='(7305,79)';
id | info
----+----------------------------------
1 | 18aaeb74c359355311ac825ae2aeb22a
(1 row)

postgres=# select min(id) from tab2;
min

1
(1 row)
```

4.

多层结构，除了meta page，还可能包含多层branch page，以及一层leaf page。

4

例子

postgres=# create table tab3(id int primary key, info text); CREATE TABLE postgres=# insert into tab3 select generate_series(1, 100000000), md5(random()::text);

查看meta page, 注意level，已经是3级了。

meta page postgres=# select * from bt_metap('tab3_pkey'); magic | version | root | level | fastroot | fastlevel --------+---------+--------+-------+----------+----------- 340322 | 2 | 116816 | 3 | 116816 | 3 (1 row)

btpo_flags=2 代表 root page

btpo = 3 代表第3层

```
postgres=# select * from bt_page_stats('tab3_pkey', 116816);
blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
--------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
116816 | r | 3 | 0 | 13 | 8192 | 8096 | 0 | 0 | 3 | 2
(1 row)

postgres=# select * from bt_page_items('tab3_pkey', 116816);
itemoffset | ctid | itemlen | nulls | vars | data
------------+------------+---------+-------+------+-------------------------
1 | (412,1) | 8 | f | f |
2 | (116815,1) | 16 | f | f | 5f 9e c5 01 00 00 00 00
3 | (198327,1) | 16 | f | f | bd 3c 8b 03 00 00 00 00
(3 rows)
```

btpo_flags=0 代表 branch page

btpo = 2 代表第2层

```
postgres=# select * from bt_page_stats('tab3_pkey', 412);
blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
412 | i | 286 | 0 | 15 | 8192 | 2436 | 0 | 116815 | 2 | 0
(1 row)

postgres=# select * from bt_page_items('tab3_pkey', 412);
itemoffset | ctid | itemlen | nulls | vars | data
------------+-----------+---------+-------+------+-------------------------
1 | (81636,1) | 16 | f | f | 5f 9e c5 01 00 00 00 00 -- 这是指向当前层级右页的ctid
2 | (3,1) | 8 | f | f | -- 注意第一条初始值是这
3 | (411,1) | 16 | f | f | 77 97 01 00 00 00 00 00
4 | (698,1) | 16 | f | f | ed 2e 03 00 00 00 00 00
...
286 | (81350,1) | 16 | f | f | e9 06 c4 01 00 00 00 00
(286 rows)
```

btpo_flags=0 代表 branch page

btpo = 1 代表第1层

```
postgres=# select * from bt_page_stats('tab3_pkey', 3);
blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
3 | i | 286 | 0 | 15 | 8192 | 2436 | 0 | 411 | 1 | 0
(1 row)

postgres=# select * from bt_page_items('tab3_pkey', 3);
itemoffset | ctid | itemlen | nulls | vars | data
------------+---------+---------+-------+------+-------------------------
1 | (287,1) | 16 | f | f | 77 97 01 00 00 00 00 00
2 | (1,1) | 8 | f | f |
3 | (2,1) | 16 | f | f | 6f 01 00 00 00 00 00 00
4 | (4,1) | 16 | f | f | dd 02 00 00 00 00 00 00
...
286 | (286,1) | 16 | f | f | 09 96 01 00 00 00 00 00
(286 rows)
```

btpo_flags=1 代表 leaf page

btpo = 0 代表第0层

```
postgres=# select * from bt_page_stats('tab3_pkey', 1);
blkno | type | live_items | dead_items | avg_item_size | page_size | free_size | btpo_prev | btpo_next | btpo | btpo_flags
-------+------+------------+------------+---------------+-----------+-----------+-----------+-----------+------+------------
1 | l | 367 | 0 | 16 | 8192 | 808 | 0 | 2 | 0 | 1
(1 row)

postgres=# select * from bt_page_items('tab3_pkey', 1);
itemoffset | ctid | itemlen | nulls | vars | data
------------+---------+---------+-------+------+-------------------------
1 | (3,7) | 16 | f | f | 6f 01 00 00 00 00 00 00
2 | (0,1) | 16 | f | f | 01 00 00 00 00 00 00 00
3 | (0,2) | 16 | f | f | 02 00 00 00 00 00 00 00
...
367 | (3,6) | 16 | f | f | 6e 01 00 00 00 00 00 00
(367 rows)
```

通过第0层的ctid就可以获取到heap了.

heap tuple例子

postgres=# select * from tab3 where ctid='(0,1)'; id | info ----+---------------------------------- 1 | 370ee1989a2b7f5d8a5b43243596d91f (1 row)

如何解释explain analyze中的扫描了多少个btree page

实战例子1

postgres=# create table tbl1(id int primary key, info text); CREATE TABLE postgres=# insert into tbl1 select trunc(random()*10000000), md5(random()::text) from generate_series(1,5000000) on conflict on constraint tbl1_pkey do nothing; INSERT 0 3934875 postgres=# select ctid,* from tbl1 limit 10; ctid | id | info --------+---------+---------------------------------- (0,1) | 2458061 | 5c91812b54bdcae602321dceaf22e276 (0,2) | 8577271 | fe8e7a8be0d71a94e13b1b5a7786010b (0,3) | 4612744 | 56983e47f044b5a4655300e1868d2850 (0,4) | 3690167 | 4a5ec8abf67bc018dcc113be829a59da (0,5) | 2646638 | 7686b47dcb94e56c11d69ec04d6017f3 (0,6) | 6023272 | 4779d9a849c8287490be9d37a27b4637 (0,7) | 7163674 | 35af37f479f48caa65033a5ef56cd75e (0,8) | 4049257 | 12fa110d927c88dce0773b546cc600c6 (0,9) | 5815903 | 69ed9770ede59917d15ac2373ca8c797 (0,10) | 4068194 | 738595f73670da7ede40aefa8cb3d00c (10 rows) postgres=# vacuum analyze tbl1; VACUUM

首先我们需要了解索引的level，才能正确的判断需要扫描多少个index page才能取出1条记录。

postgres=# select * from bt_metap('tbl1_pkey'); magic | version | root | level | fastroot | fastlevel --------+---------+------+-------+----------+----------- 340322 | 2 | 412 | 2 | 412 | 2 (1 row)

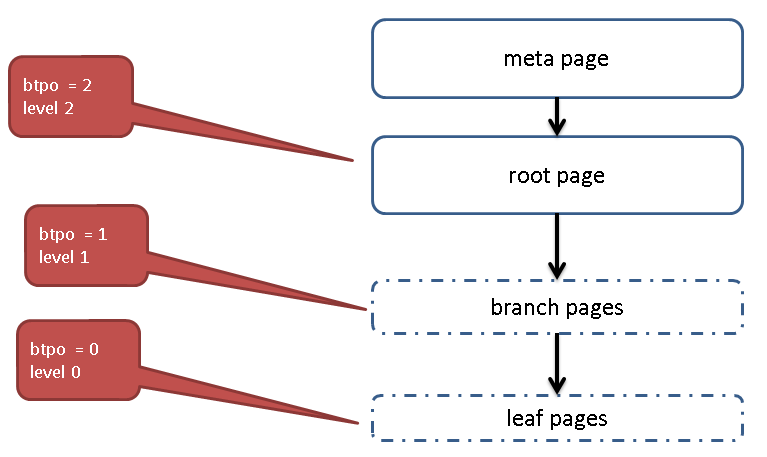

level = 2的btree应该长这样

6

1. 以下查询，命中了1条记录，并且走的是index only scan。

读了4个INDEX PAGE, 包括1 meta page, 1 root page, 1 branch page, 1 leaf page. 1个heap visibility map page

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id = 1;
QUERY PLAN

Index Only Scan using tbl1_pkey on public.tbl1 (cost=0.42..1.44 rows=1 width=4) (actual time=0.019..0.020 rows=1 loops=1)
Output: id
Index Cond: (tbl1.id = 1)
Heap Fetches: 0
Buffers: shared hit=4
Planning time: 0.072 ms
Execution time: 0.072 ms
(7 rows)
```
2. 以下查询，命中了0条记录，并且走的是index only scan。

读了4个INDEX PAGE, 包括1 meta page, 1 root page, 1 branch page, 1 leaf page. 0个heap visibility map page

但是explain只算了3个，因为rows=0, 没有匹配的行。不需要查询visibility map文件。

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id in (3);
QUERY PLAN

Index Only Scan using tbl1_pkey on public.tbl1 (cost=0.43..1.45 rows=1 width=4) (actual time=0.010..0.010 rows=0 loops=1)
Output: id
Index Cond: (tbl1.id = 3)
Heap Fetches: 0
Buffers: shared hit=3
Planning time: 0.073 ms
Execution time: 0.031 ms
(7 rows)
```

3. 以下查询，命中了7条记录，并且走的是index only scan。

读了22个INDEX PAGE,

1 meta page + 7 * (1 root + 1 branch + 1 leaf) = 22

也就是说，每个value都扫了root,branch,leaf。

x个heap visibility map page

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id in (1,2,3,4,100,1000,10000);
QUERY PLAN

Index Only Scan using tbl1_pkey on public.tbl1 (cost=0.42..10.10 rows=7 width=4) (actual time=0.018..0.033 rows=7 loops=1)
Output: id
Index Cond: (tbl1.id = ANY ('{1,2,3,4,100,1000,10000}'::integer[]))
Heap Fetches: 0
Buffers: shared hit=22
Planning time: 0.083 ms
Execution time: 0.056 ms
(7 rows)
```

4. 以下查询，命中了2条记录，并且走的是index only scan。

读了22个INDEX PAGE,

1 meta page + 7 * (1 root + 1 branch + 1 leaf) = 22

也就是说，每个value都扫了root,branch,leaf。

x个heap visibility map page

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id in (1,2,3,4,5,6,7);
QUERY PLAN

Index Only Scan using tbl1_pkey on public.tbl1 (cost=0.43..10.13 rows=7 width=4) (actual time=0.039..0.046 rows=2 loops=1)
Output: id
Index Cond: (tbl1.id = ANY ('{1,2,3,4,5,6,7}'::integer[]))
Heap Fetches: 0
Buffers: shared hit=22
Planning time: 0.232 ms
Execution time: 0.086 ms
(7 rows)
```

5. 以下查询结果和以上查询一样，也命中了3条记录，并且走的是index only scan。

但是只读了4个INDEX PAGE,

1 meta page + 1 root + 1 branch + 1 leaf

x个heap visibility map page

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id>0 and id <=7;
QUERY PLAN

Index Only Scan using tbl1_pkey on public.tbl1 (cost=0.43..1.49 rows=3 width=4) (actual time=0.008..0.009 rows=2 loops=1)
Output: id
Index Cond: ((tbl1.id > 0) AND (tbl1.id <= 7))
Heap Fetches: 0
Buffers: shared hit=4
Planning time: 0.127 ms
Execution time: 0.028 ms
(7 rows)
```

对于第四个查询，扫描了22个块，这个查询，优化器有优化的空间，比如找到1和7作为边界值，在查询到第一个值时，就可以取到leaf page的下一个page的最小值，从而得到1,2,3,4,5,6,7的值在当前page就可以完全取到，不需要去重复扫描。

hit计数为什么感觉不正确?: 算上visibility map时.

src/include/common/relpath.h

```
/
* Stuff for fork names.

* The physical storage of a relation consists of one or more forks.
* The main fork is always created, but in addition to that there can be
* additional forks for storing various metadata. ForkNumber is used when
* we need to refer to a specific fork in a relation.
*/
typedef enum ForkNumber
{
InvalidForkNumber = -1,
MAIN_FORKNUM = 0,
FSM_FORKNUM,
VISIBILITYMAP_FORKNUM,
INIT_FORKNUM

    /*
     * NOTE: if you add a new fork, change MAX_FORKNUM and possibly
     * FORKNAMECHARS below, and update the forkNames array in
     * src/common/relpath.c
     */

} ForkNumber;

define MAX_FORKNUM INIT_FORKNUM

```

src/backend/storage/buffer/bufmgr.c

```
/
* ReadBuffer_common -- common logic for all ReadBuffer variants

* hit is set to true if the request was satisfied from shared buffer cache.
/
static Buffer
ReadBuffer_common(SMgrRelation smgr, char relpersistence, ForkNumber forkNum,
BlockNumber blockNum, ReadBufferMode mode,
BufferAccessStrategy strategy, bool hit)
{
BufferDesc bufHdr;
Block bufBlock;
bool found;
bool isExtend;
bool isLocalBuf = SmgrIsTemp(smgr);

    *hit = false;

... ...
/ Substitute proper block number if caller asked for P_NEW /
if (isExtend)
blockNum = smgrnblocks(smgr, forkNum);

    if (isLocalBuf)
    {
            bufHdr = LocalBufferAlloc(smgr, forkNum, blockNum, &found);
            if (found)
                    pgBufferUsage.local_blks_hit++;
            else if (isExtend)
                    pgBufferUsage.local_blks_written++;
            else if (mode == RBM_NORMAL || mode == RBM_NORMAL_NO_LOG ||
                             mode == RBM_ZERO_ON_ERROR)
                    pgBufferUsage.local_blks_read++;
    }
    else
    {
            /*
             * lookup the buffer.  IO_IN_PROGRESS is set if the requested block is
             * not currently in memory.
             */
            bufHdr = BufferAlloc(smgr, relpersistence, forkNum, blockNum,
                                                     strategy, &found);
            if (found)
                    pgBufferUsage.shared_blks_hit++;
            else if (isExtend)
                    pgBufferUsage.shared_blks_written++;
            else if (mode == RBM_NORMAL || mode == RBM_NORMAL_NO_LOG ||
                             mode == RBM_ZERO_ON_ERROR)
                    pgBufferUsage.shared_blks_read++;
    }

```

src/backend/commands/explain.c

```
/
* Show buffer usage details.
/
static void
show_buffer_usage(ExplainState es, const BufferUsage usage, bool planning)
{

...
/ Show only positive counter values. /
if (has_shared || has_local || has_temp)
{
ExplainIndentText(es);
appendStringInfoString(es->str, "Buffers:");

                    if (has_shared)
                    {
                            appendStringInfoString(es->str, " shared");
                            if (usage->shared_blks_hit > 0)
                                    appendStringInfo(es->str, " hit=%ld",
                                                                     usage->shared_blks_hit);

```

create extension pageinspect; create extension pg_buffercache;

创建解析page data的函数. 倒转, 二进制转int

create or replace function idx2int(text) returns int as $$ declare res text := ''; res1 int8; x text := ''; begin for x in select regexp_split_to_table($1,' ') loop res := x||res; end loop; execute format($_$ select x'%s'::int8 $_$, res) into res1; return res1::int; end; $$ language plpgsql strict;

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id = 5;
QUERY PLAN

Index Only Scan using tbl1_pkey on public.tbl1 (cost=0.43..1.55 rows=1 width=4) (actual time=0.027..0.029 rows=1 loops=1)
Output: id
Index Cond: (tbl1.id = 5)
Heap Fetches: 0
Buffers: shared hit=4
Planning Time: 0.071 ms
Execution Time: 0.046 ms
(7 rows)

postgres=# SELECT * FROM bt_metap('tbl1_pkey'); -- meta
magic | version | root | level | fastroot | fastlevel | oldest_xact | last_cleanup_num_tuples | allequalimage
--------+---------+------+-------+----------+-----------+-------------+-------------------------+---------------
340322 | 4 | 412 | 2 | 412 | 2 | 0 | 3934241 | t
(1 row)

postgres=# select *,idx2int(data) from bt_page_items('tbl1_pkey', 412); -- root
itemoffset | ctid | itemlen | nulls | vars | data | dead | htid | tids | idx2int
------------+----------+---------+-------+------+-------------------------+------+------+------+---------
1 | (3,0) | 8 | f | f | | | | | 0
2 | (9202,1) | 16 | f | f | 2b 5e 03 00 00 00 00 00 | | | | 220715
3 | (4616,1) | 16 | f | f | ac b1 06 00 00 00 00 00 | | | | 438700
4 | (9227,1) | 16 | f | f | 7a 4c 0a 00 00 00 00 00 | | | | 674938
...

postgres=# select *,idx2int(data) from bt_page_items('tbl1_pkey', 3); -- branch
itemoffset | ctid | itemlen | nulls | vars | data | dead | htid | tids | idx2int
------------+-----------+---------+-------+------+-------------------------+------+------+------+---------
1 | (4521,1) | 16 | f | f | 2b 5e 03 00 00 00 00 00 | | | | 220715
2 | (1,0) | 8 | f | f | | | | | 0
3 | (10555,1) | 16 | f | f | 56 02 00 00 00 00 00 00 | | | | 598
4 | (5423,1) | 16 | f | f | 05 05 00 00 00 00 00 00 | | | | 1285
...

postgres=# select *,idx2int(data) from bt_page_items('tbl1_pkey', 1); -- leaf
itemoffset | ctid | itemlen | nulls | vars | data | dead | htid | tids | idx2int
------------+-------------+---------+-------+------+-------------------------+------+-------------+------+---------
1 | (25828,1) | 16 | f | f | 56 02 00 00 00 00 00 00 | | | | 598
2 | (594,78) | 16 | f | f | 00 00 00 00 00 00 00 00 | f | (594,78) | | 0
3 | (19518,66) | 16 | f | f | 05 00 00 00 00 00 00 00 | f | (19518,66) | | 5
4 | (32751,68) | 16 | f | f | 06 00 00 00 00 00 00 00 | f | (32751,68) | | 6
5 | (20678,31) | 16 | f | f | 07 00 00 00 00 00 00 00 | f | (20678,31) | | 7
...

postgres=# select ctid,* from tbl1 where ctid='(19518,66)'; -- heap
ctid | id | info
------------+----+----------------------------------
(19518,66) | 5 | 01113e164911cf0eaf5db51b4c6e086b
(1 row)
```

计算heap page 19518 的2 bit位属于那个vm page num

```
postgres=# show block_size ;
block_size

8192
(1 row)

postgres=# select 2*19518/8.0;
?column?

4879.5000000000000000 -- bytes
(1 row)
```

访问了第1个vm数据块, 0号块

postgres=# select * from pg_buffercache where relfilenode=pg_relation_filenode('tbl1'::regclass) and relforknumber=2 ; -- table vm form bufferid | relfilenode | reltablespace | reldatabase | relforknumber | relblocknumber | isdirty | usagecount | pinning_backends ----------+-------------+---------------+-------------+---------------+----------------+---------+------------+------------------ 402016 | 1093455 | 1663 | 14174 | 2 | 0 | f | 5 | 0 -- 访问这个 402017 | 1093455 | 1663 | 14174 | 2 | 1 | f | 4 | 0 (2 rows)

存在的值, Buffers: shared hit=4 -- (meta+root+branch+leaf) + vm

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id = 5;
QUERY PLAN

Index Only Scan using tbl1_pkey on public.tbl1 (cost=0.43..1.55 rows=1 width=4) (actual time=0.027..0.029 rows=1 loops=1)
Output: id
Index Cond: (tbl1.id = 5)
Heap Fetches: 0
Buffers: shared hit=4
Planning Time: 0.071 ms
Execution Time: 0.046 ms
(7 rows)
```

不存在的值, Buffers: shared hit=3 -- (meta+root+branch+leaf)

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select id from tbl1 where id = 1;
QUERY PLAN

Index Only Scan using tbl1_pkey on public.tbl1 (cost=0.43..1.55 rows=1 width=4) (actual time=0.025..0.066 rows=0 loops=1)
Output: id
Index Cond: (tbl1.id = 1)
Heap Fetches: 0
Buffers: shared hit=3
Planning Time: 0.086 ms
Execution Time: 0.082 ms
(7 rows)
```

存在、不存在唯一的差别是: 不存在时不需要访问vm.

所以从现象看, shared hit统计不准确: 可能的解释是 bt index meta page 没有被count? 有兴趣的同学可以从代码侧再分析一下。

还有访问多次时vm page是否被重复计算?

此前有对比过bitmap index scan和index scan, 在离散扫描上index sacn会重复算每次的heap page扫描, 二bitmap index scan只算一次heap scan.

PostgreSQL 许愿链接

您的愿望将传达给PG kernel hacker、数据库厂商等, 帮助提高数据库产品质量和功能, 说不定下一个PG版本就有您提出的功能点. 针对非常好的提议，奖励限量版PG文化衫、纪念品、贴纸、PG热门书籍等，奖品丰富，快来许愿。开不开森.

9.9元购买3个月阿里云RDS PostgreSQL实例

PostgreSQL 解决方案集合

德哥 / digoal's github - 公益是一辈子的事.

digoal's wechat

postgresqldigoal
文章转载自digoal，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

评论
