背景
pgafis是一个插件，支持存储指纹特征值，同时将指纹特征比对算法作为UDF编写到了数据库中，安装这个插件依赖指纹比对算法库。
https://www.nist.gov/services-resources/software/nist-biometric-image-software-nbis
https://github.com/lessandro/nbis
pgafis插件代码地址
https://github.com/hjort/pgafis
pgafis
pgAFIS - Automated Fingerprint Identification System support for PostgreSQL

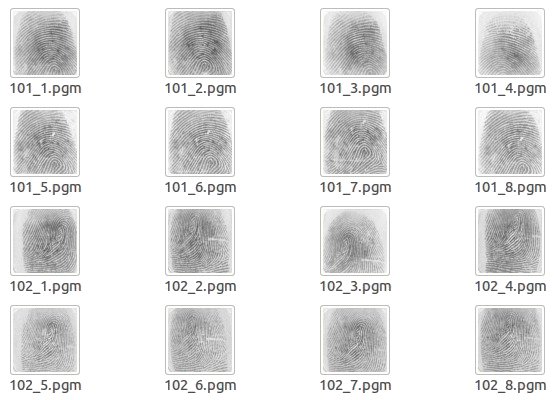

Sample fingerprints data
sql
Table "public.fingerprints"
Column | Type | Modifiers
--------+--------------+-----------
id | character(5) | not null
pgm | bytea |
wsq | bytea |
mdt | bytea |
xyt | text |
Indexes:
"fingerprints_pkey" PRIMARY KEY, btree (id)
- "pgm" stores original raw fingerprint images (PGM)
- "wsq" stores compressed fingerprint images (WSQ)
- "mdt" stores fingerprint templates in XYTQ own binary format (MDT)
- "xyt" stores fingerprint minutiae data in text format
```sql afis=> SELECT id, length(pgm) AS raw_bytes, length(wsq) AS wsq_bytes, length(mdt) AS mdt_bytes, length(xyt) AS xyt_chars FROM fingerprints LIMIT 5;
id | pgm_bytes | wsq_bytes | mdt_bytes | xyt_chars -------+-----------+-----------+-----------+----------- 101_1 | 90015 | 27895 | 162 | 274 101_2 | 90015 | 27602 | 186 | 312 101_3 | 90015 | 27856 | 146 | 237 101_4 | 90015 | 28784 | 154 | 262 101_5 | 90015 | 27653 | 194 | 324 (5 rows) ```
Acquisition
Image Compression (WSQ)
sql
afis=>
UPDATE fingerprints
SET wsq = cwsq(pgm, 2.25, 300, 300, 8, null)
WHERE wsq IS NULL;
- compressed image in WSQ format can be generated from original fingerprint raw image (PGM format)
Feature Extraction (XYT)
sql
afis=>
UPDATE fingerprints
SET mdt = mindt(wsq, true)
WHERE mdt IS NULL;
- minutiae data (features) can be extracted from compressed WSQ image and stored in own binary format (MDT)
Verification (1:1)
```sql afis=> SELECT (bz_match(a.mdt, b.mdt) >= 20) AS match FROM fingerprints a, fingerprints b WHERE a.id = '101_1' AND b.id = '101_6';
match
t (1 row) ``` - given two fingerprint templates, they can be considered the same according to a threshold value (e.g., 20) defined by the application
Identification (1:N)
```sql afis=> SELECT a.id AS probe, b.id AS sample, bz_match(a.mdt, b.mdt) AS score FROM fingerprints a, fingerprints b WHERE a.id = '101_1' AND b.id != a.id AND bz_match(a.mdt, b.mdt) >= 23 LIMIT 3;
probe | sample | score -------+--------+------- 101_1 | 101_2 | 23 101_1 | 101_4 | 24 101_1 | 101_5 | 27 (3 rows) ``` - sequential scan is performed on the table, but so far as a given number of templates (e.g., 3) having a match score above the defined threshold (e.g., 23)
```sql afis=> SELECT a.id AS probe, b.id AS sample, bz_match(a.xyt, b.xyt) AS score FROM fingerprints a, fingerprints b WHERE a.id = '101_1' AND b.id != a.id AND bz_match(a.mdt, b.mdt) >= 20 ORDER BY score DESC;
probe | sample | score -------+--------+------- 101_1 | 101_6 | 28 101_1 | 101_5 | 27 101_1 | 101_8 | 26 101_1 | 101_2 | 23 101_1 | 101_4 | 23 (5 rows) ``` - "xyt" text field can be used for matching as well
