PostgreSQL 空间st_contains,st_within空间包含搜索优化 - 降IO和降CPU(bound box) (多边形GiST优化)

digoal 2017-10-04
776

作者

digoal

日期

2017-10-04

标签

PostgreSQL , st_contains , st_within , 空间包含 , 空间bound box , GiST索引 , 空间索引结构 , IO放大 , BOUND BOX放大


背景

点面判断、按面圈选点或其他对象,是GIS几何应用中非常典型的需求。

在PostgreSQL中通过建立GiST索引可以加速这类判断,然而,建立索引就够了吗?

很多时候建立索引是不够的,性能没有到达巅峰,如果要更低的延迟,更少的CPU开销,还有什么优化手段呢?

实际上我以前写过一篇类似的文章,讲的是BTree索引访问的优化,当数据存放与索引顺序的线性相关性很差时,引入了一个问题,访问时IO放大:

《索引顺序扫描引发的堆扫描IO放大背后的统计学原理与解决办法 - PostgreSQL index scan enlarge heap page scans when index and column correlation small.》

原理和解决办法上面的文档已经讲得很清楚了。对于空间索引也有类似的问题和优化方法。但是首先你需要了解空间索引的构造:

《通过空间思想理解GiST索引的构造》

然后你可以通过空间聚集,来降低空间扫描的IO。

《PostgreSQL 黑科技 - 空间聚集存储》

下面以一个搜索为例,讲解空间包含搜索的优化方法:

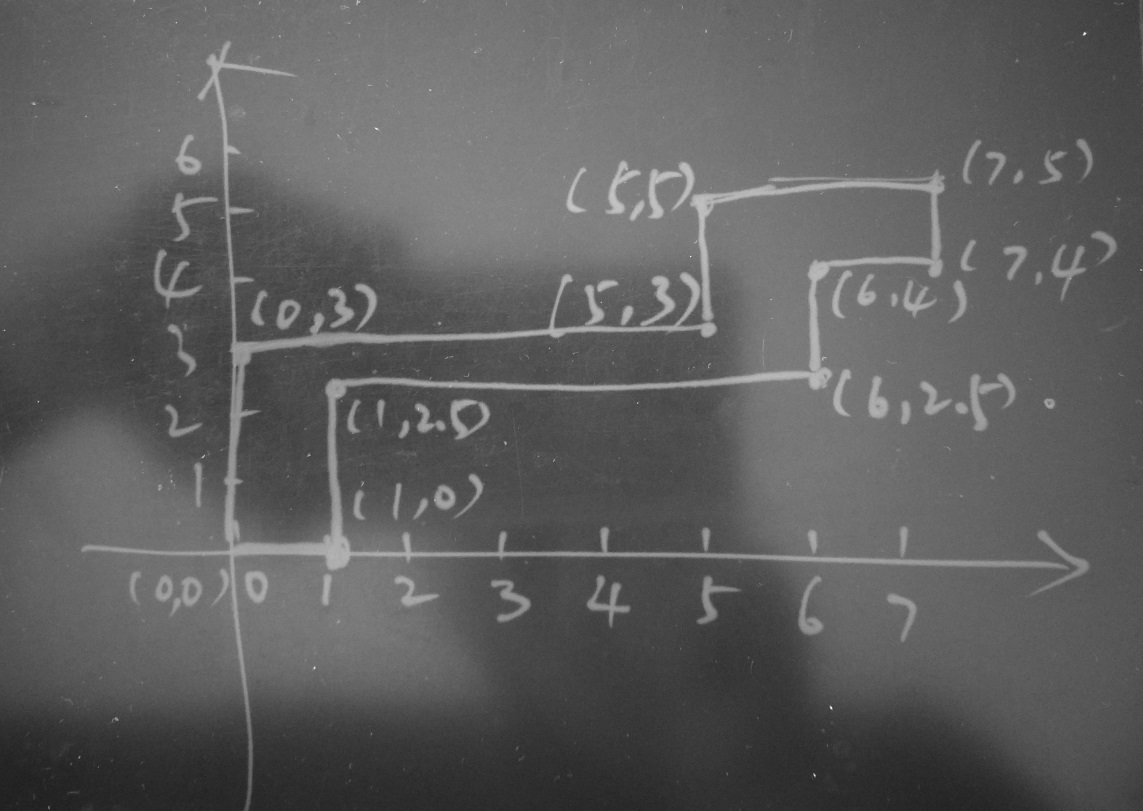

在表中有1000万空间对象数据,查询某个多边形覆盖到的空间对象。这个查询有一个特点,这个多边形是一个长条条的多边形,包含这个多边形的BOUND BOX是比较大的。

pic

构建这个多边形的方法

```
postgres=# select st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326);
st_setsrid


0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000
(1 row)
```

优化手段1 - 空间聚集

1、建表

postgres=# create table e(id int8, pos geometry); CREATE TABLE

2、写入空间测试数据(1000万个随机点,覆盖 +-50 的经纬度区间)

postgres=# insert into e select id, st_setsrid(st_makepoint(50-random()*100, 50-random()*100), 4326) from generate_series(1,10000000) t(id); INSERT 0 10000000

3、创建空间索引

postgres=# create index idx_e on e using gist(pos); CREATE INDEX

4、查询满足这个多边形的BOUND BOX覆盖的对象的BOUND BOX条件的对象。

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select * from e where pos @ st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326);
QUERY PLAN


Index Scan using idx_e on public.e (cost=0.42..12526.72 rows=10000 width=40) (actual time=0.091..39.449 rows=35081 loops=1)
Output: id, pos
Index Cond: (e.pos @ '0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry)
Buffers: shared hit=35323
Planning time: 0.108 ms
Execution time: 41.222 ms
(6 rows)
```

搜索了35323个数据块,返回了35081条记录。

5、查询被这个多边形包含的对象。

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select * from e where st_contains(st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326), pos);
QUERY PLAN


Index Scan using idx_e on public.e (cost=0.42..15026.72 rows=3333 width=40) (actual time=0.077..49.015 rows=8491 loops=1)
Output: id, pos
Index Cond: ('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry ~ e.pos)
Filter: _st_contains('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry, e.pos)
Rows Removed by Filter: 26590
Buffers: shared hit=35323
Planning time: 0.085 ms
Execution time: 49.460 ms
(8 rows)
```

搜索了35323个数据块,搜索了35081条记录,返回了8491条记录,过滤了26590条不满足条件的记录。

5和4的查询差异是BOUND BOX包含、实际的轮廓包含。索引的基础是bound box。在以下文档中我们也可以学习到这个原理。

《通过空间思想理解GiST索引的构造》

我们看到,复合条件的记录并不多,但是搜索了很多数据块,通过空间聚集可以减少数据块的扫描。

6、创建另一张表,按空间聚集,调整数据存储顺序。并建立空间索引。

```
postgres=# create table f(like e);
CREATE TABLE

postgres=# insert into f select * from e order by st_geohash(pos,15);
INSERT 0 10000000

postgres=# create index idx_f on f using gist(pos);
CREATE INDEX
```

7、优化后:

查询满足这个多边形的BOUND BOX覆盖的对象的BOUND BOX条件的对象。从扫描35323个数据块降低到了访问1648个数据块。质的飞跃。

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select * from f where pos @ st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326);
QUERY PLAN


Index Scan using idx_f on public.f (cost=0.42..12526.72 rows=10000 width=40) (actual time=0.081..9.702 rows=35081 loops=1)
Output: id, pos
Index Cond: (f.pos @ '0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry)
Buffers: shared hit=1648
Planning time: 0.096 ms
Execution time: 11.404 ms
(6 rows)
```

8、优化后:

查询被这个多边形包含的对象。从扫描35323个数据块降低到了访问1648个数据块。质的飞跃。

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select * from f where st_contains(st_setsrid(st_makepolygon(ST_GeomFromText('LINESTRING(0 0,1 0,1 2.5,6 2.5,6 4,7 4,7 5,5 5,5 3,0 3,0 0)')), 4326), pos);
QUERY PLAN


Index Scan using idx_f on public.f (cost=0.42..15026.72 rows=3333 width=40) (actual time=1.216..32.398 rows=8491 loops=1)
Output: id, pos
Index Cond: ('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry ~ f.pos)
Filter: _st_contains('0103000020E6100000010000000B00000000000000000000000000000000000000000000000000F03F0000000000000000000000000000F03F000000000000044000000000000018400000000000000440000000000000184000000000000010400000000000001C4000000000000010400000000000001C40000000000000144000000000000014400000000000001440000000000000144000000000000008400000000000000000000000000000084000000000000000000000000000000000'::geometry, f.pos)
Rows Removed by Filter: 26590
Buffers: shared hit=1648
Planning time: 0.101 ms
Execution time: 32.837 ms
(8 rows)
```

使用空间聚集,从扫描35323个数据块降低到了访问1648个数据块。质的飞跃。

优化手段2 - 空间分裂查询

空间聚集的优化手段,解决了IO放大的问题,另一个优化点和空间索引的结构有关,是BOUND BOX放大的问题。

从本文的例子中,我们也看到了,空间索引实际上是针对bound box的,所以在有效面积占比较低时,可能圈选到多数无效数据,导致IO和CPU同时放大,我们就来解决它。

pic

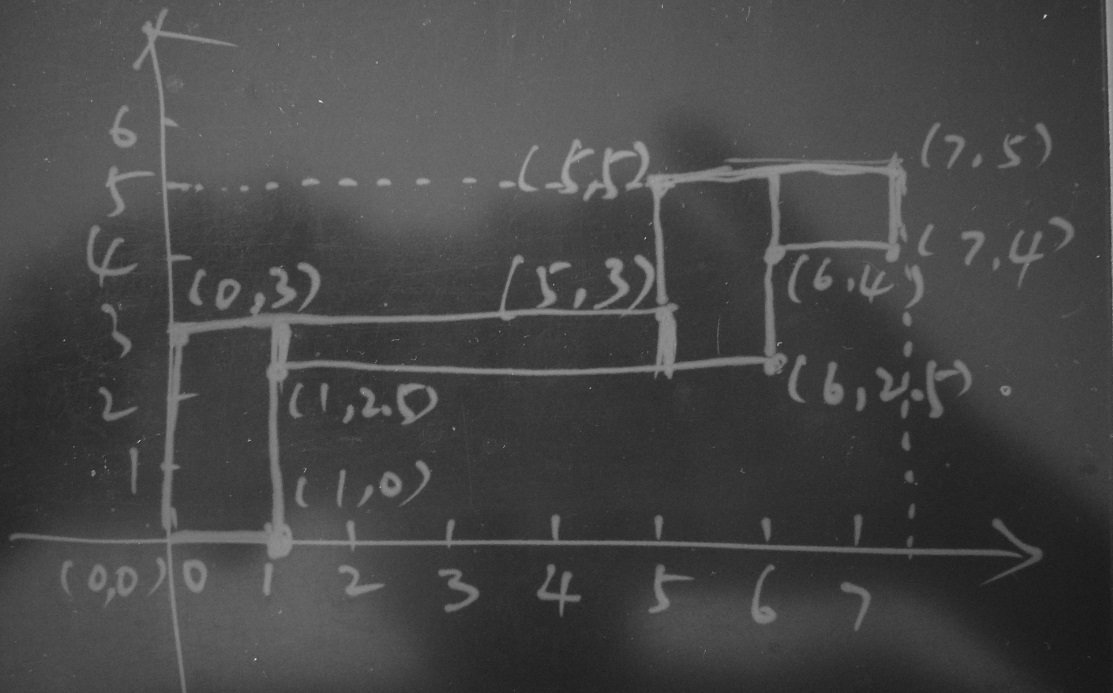

下图虚线部分包含的区间就是这个长条条的BOUND BOX。目前数据库在使用GiST索引查询满足这个多边形包含的POS的条件时,会将落在这个BOUND BOX中的对象都弄出来。

pic

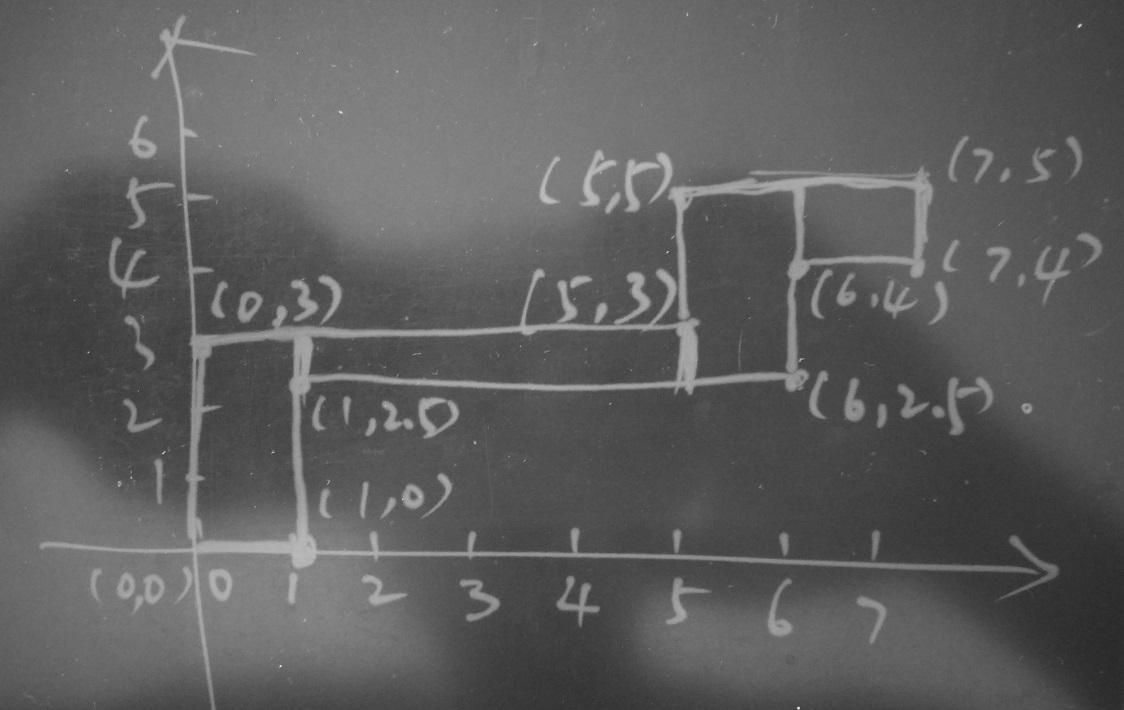

优化思路:

将这个多边形,拆成4个BOX,完全杜绝bound box放大的问题。

```
explain (analyze,verbose,timing,costs,buffers) select * from f where
st_contains(st_setsrid(st_makebox2d(st_makepoint(0,0), st_makepoint(1,3)), 4326), pos)
or
st_contains(st_setsrid(st_makebox2d(st_makepoint(1,2.5), st_makepoint(5,3)), 4326), pos)
or
st_contains(st_setsrid(st_makebox2d(st_makepoint(5,2.5), st_makepoint(6,5)), 4326), pos)
or
st_contains(st_setsrid(st_makebox2d(st_makepoint(6,4), st_makepoint(7,5)), 4326), pos);

explain (analyze,verbose,timing,costs,buffers) select * from f where
pos @ st_setsrid(st_makebox2d(st_makepoint(0,0), st_makepoint(1,3)), 4326)
or
pos @ st_setsrid(st_makebox2d(st_makepoint(1,2.5), st_makepoint(5,3)), 4326)
or
pos @ st_setsrid(st_makebox2d(st_makepoint(5,2.5), st_makepoint(6,5)), 4326)
or
pos @ st_setsrid(st_makebox2d(st_makepoint(6,4), st_makepoint(7,5)), 4326);
```

1、组合1和2的优化手段后:

查询满足这个多边形的BOUND BOX覆盖的对象的BOUND BOX条件的对象。从扫描1648个数据块降低到了访问243个数据块。质的飞跃。

```
explain (analyze,verbose,timing,costs,buffers) select * from f where
pos @ st_setsrid(st_makebox2d(st_makepoint(0,0), st_makepoint(1,3)), 4326)
or
pos @ st_setsrid(st_makebox2d(st_makepoint(1,2.5), st_makepoint(5,3)), 4326)
or
pos @ st_setsrid(st_makebox2d(st_makepoint(5,2.5), st_makepoint(6,5)), 4326)
or
pos @ st_setsrid(st_makebox2d(st_makepoint(6,4), st_makepoint(7,5)), 4326);
QUERY PLAN


Bitmap Heap Scan on public.f (cost=10000000690.01..10000037405.46 rows=39940 width=40) (actual time=1.502..2.329 rows=8491 loops=1)
Output: id, pos
Recheck Cond: ((f.pos @ '0103000020E610000001000000050000000000000000000000000000000000000000000000000000000000000000000840000000000000F03F0000000000000840000000000000F03F000000000000000000000000000000000000000000000000'::geometry) OR (f.pos @ '0103000020E61000000100000005000000000000000000F03F0000000000000440000000000000F03F00000000000008400000000000001440000000000000084000000000000014400000000000000440000000000000F03F0000000000000440'::geometry) OR (f.pos @ '0103000020E610000001000000050000000000000000001440000000000000044000000000000014400000000000001440000000000000184000000000000014400000000000001840000000000000044000000000000014400000000000000440'::geometry) OR (f.pos @ '0103000020E6100000010000000500000000000000000018400000000000001040000000000000184000000000000014400000000000001C4000000000000014400000000000001C40000000000000104000000000000018400000000000001040'::geometry))
Heap Blocks: exact=119
Buffers: shared hit=243
-> BitmapOr (cost=690.01..690.01 rows=40000 width=0) (actual time=1.483..1.483 rows=0 loops=1)
Buffers: shared hit=124
-> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.461..0.461 rows=3077 loops=1)
Index Cond: (f.pos @ '0103000020E610000001000000050000000000000000000000000000000000000000000000000000000000000000000840000000000000F03F0000000000000840000000000000F03F000000000000000000000000000000000000000000000000'::geometry)
Buffers: shared hit=37
-> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.423..0.423 rows=1991 loops=1)
Index Cond: (f.pos @ '0103000020E61000000100000005000000000000000000F03F0000000000000440000000000000F03F00000000000008400000000000001440000000000000084000000000000014400000000000000440000000000000F03F0000000000000440'::geometry)
Buffers: shared hit=33
-> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.366..0.366 rows=2435 loops=1)
Index Cond: (f.pos @ '0103000020E610000001000000050000000000000000001440000000000000044000000000000014400000000000001440000000000000184000000000000014400000000000001840000000000000044000000000000014400000000000000440'::geometry)
Buffers: shared hit=31
-> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.232..0.232 rows=988 loops=1)
Index Cond: (f.pos @ '0103000020E6100000010000000500000000000000000018400000000000001040000000000000184000000000000014400000000000001C4000000000000014400000000000001C40000000000000104000000000000018400000000000001040'::geometry)
Buffers: shared hit=23
Planning time: 0.104 ms
Execution time: 2.751 ms
(21 rows)
```

2、组合1和2的优化手段后:

查询被这个多边形包含的对象。从扫描1648个数据块降低到了访问243个数据块。质的飞跃。

```
postgres=# explain (analyze,verbose,timing,costs,buffers) select * from f where
st_contains(st_setsrid(st_makebox2d(st_makepoint(0,0), st_makepoint(1,3)), 4326), pos)
or
st_contains(st_setsrid(st_makebox2d(st_makepoint(1,2.5), st_makepoint(5,3)), 4326), pos)
or
st_contains(st_setsrid(st_makebox2d(st_makepoint(5,2.5), st_makepoint(6,5)), 4326), pos)
or
st_contains(st_setsrid(st_makebox2d(st_makepoint(6,4), st_makepoint(7,5)), 4326), pos);
QUERY PLAN


Bitmap Heap Scan on public.f (cost=663.40..77378.85 rows=13327 width=40) (actual time=1.496..11.038 rows=8491 loops=1)
Output: id, pos
Recheck Cond: (('0103000020E610000001000000050000000000000000000000000000000000000000000000000000000000000000000840000000000000F03F0000000000000840000000000000F03F000000000000000000000000000000000000000000000000'::geometry ~ f.pos) OR
('0103000020E61000000100000005000000000000000000F03F0000000000000440000000000000F03F00000000000008400000000000001440000000000000084000000000000014400000000000000440000000000000F03F0000000000000440'::geometry ~ f.pos) OR ('0103000020E610000001000000050000000000000000001440000000000000044000000000000014400000000000001440000000000000184000000000000014400000000000001840000000000000044000000000000014400000000000000440'::geometry ~ f.pos) OR ('0103000020E6100000010000000500000000000000000018400000000000001040000000000000184000000000000014400000000000001C4000000000000014400000000000001C40000000000000104000000000000018400000000000001040'::geometry ~ f.pos))
Filter: ((('0103000020E610000001000000050000000000000000000000000000000000000000000000000000000000000000000840000000000000F03F0000000000000840000000000000F03F000000000000000000000000000000000000000000000000'::geometry ~ f.pos) AND _st_contains('0103000020E610000001000000050000000000000000000000000000000000000000000000000000000000000000000840000000000000F03F0000000000000840000000000000F03F000000000000000000000000000000000000000000000000'::geometry, f.pos)) OR (('0103000020E61000000100000005000000000000000000F03F0000000000000440000000000000F03F00000000000008400000000000001440000000000000084000000000000014400000000000000440000000000000F03F0000000000000440'::geometry ~ f.pos) AND _st_contains('0103000020E61000000100000005000000000000000000F03F0000000000000440000000000000F03F00000000000008400000000000001440000000000000084000000000000014400000000000000440000000000000F03F0000000000000440'::geometry, f.pos)) OR (('0103000020E610000001000000050000000000000000001440000000000000044000000000000014400000000000001440000000000000184000000000000014400000000000001840000000000000044000000000000014400000000000000440'::geometry ~ f.pos) AND _st_contains('0103000020E610000001000000050000000000000000001440000000000000044000000000000014400000000000001440000000000000184000000000000014400000000000001840000000000000044000000000000014400000000000000440'::geometry, f.pos)) OR (('0103000020E6100000010000000500000000000000000018400000000000001040000000000000184000000000000014400000000000001C4000000000000014400000000000001C40000000000000104000000000000018400000000000001040'::geometry ~ f.pos) AND _st_contains('0103000020E6100000010000000500000000000000000018400000000000001040000000000000184000000000000014400000000000001C4000000000000014400000000000001C40000000000000104000000000000018400000000000001040'::geometry, f.pos)))
Heap Blocks: exact=119
Buffers: shared hit=243
-> BitmapOr (cost=663.40..663.40 rows=40000 width=0) (actual time=1.472..1.472 rows=0 loops=1)
Buffers: shared hit=124
-> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.436..0.436 rows=3077 loops=1)
Index Cond: ('0103000020E610000001000000050000000000000000000000000000000000000000000000000000000000000000000840000000000000F03F0000000000000840000000000000F03F000000000000000000000000000000000000000000000000'::geometry ~ f.pos)
Buffers: shared hit=37
-> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.438..0.438 rows=1991 loops=1)
Index Cond: ('0103000020E61000000100000005000000000000000000F03F0000000000000440000000000000F03F00000000000008400000000000001440000000000000084000000000000014400000000000000440000000000000F03F0000000000000440'::geometry ~ f.pos)
Buffers: shared hit=33
-> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.365..0.365 rows=2435 loops=1)
Index Cond: ('0103000020E610000001000000050000000000000000001440000000000000044000000000000014400000000000001440000000000000184000000000000014400000000000001840000000000000044000000000000014400000000000000440'::geometry ~ f.pos)
Buffers: shared hit=31
-> Bitmap Index Scan on idx_f (cost=0.00..162.52 rows=10000 width=0) (actual time=0.234..0.234 rows=988 loops=1)
Index Cond: ('0103000020E6100000010000000500000000000000000018400000000000001040000000000000184000000000000014400000000000001C4000000000000014400000000000001C40000000000000104000000000000018400000000000001040'::geometry ~ f.pos)
Buffers: shared hit=23
Planning time: 0.163 ms
Execution time: 11.497 ms
(22 rows)
```

优化手段2,将长条条的polygon拆分成多个小的box,将大的bound box消除,搜索的BLOCK再次降低到243。质的飞跃。

将两个手段合并起来用,起到了双剑合璧的效果。

pic

st_split 切分对象

PostGIS提供了切分对象的方法。

http://postgis.net/docs/manual-2.4/ST_Split.html

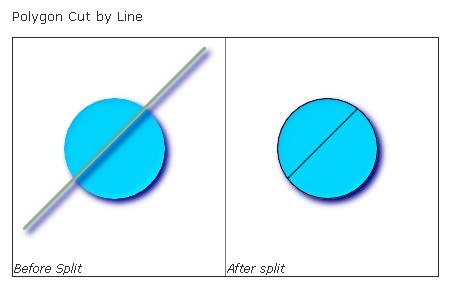

pic

```
-- this creates a geometry collection consisting of the 2 halves of the polygon
-- this is similar to the example we demonstrated in ST_BuildArea
SELECT ST_Split(circle, line)
FROM (SELECT
ST_MakeLine(ST_MakePoint(10, 10),ST_MakePoint(190, 190)) As line,
ST_Buffer(ST_GeomFromText('POINT(100 90)'), 50) As circle) As foo;

-- result --
GEOMETRYCOLLECTION(POLYGON((150 90,149.039264020162 80.2454838991936,146.193976625564 70.8658283817455,...), POLYGON(...)))

-- To convert to individual polygons, you can use ST_Dump or ST_GeometryN
SELECT ST_AsText((ST_Dump(ST_Split(circle, line))).geom) As wkt
FROM (SELECT
ST_MakeLine(ST_MakePoint(10, 10),ST_MakePoint(190, 190)) As line,
ST_Buffer(ST_GeomFromText('POINT(100 90)'), 50) As circle) As foo;

-- result --
wkt


POLYGON((150 90,149.039264020162 80.2454838991936,...))
POLYGON((60.1371179574584 60.1371179574584,58.4265193848728 62.2214883490198,53.8060233744357 ...))
```

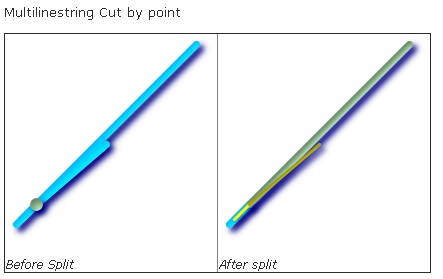

pic

```
SELECT ST_AsText(ST_Split(mline, pt)) As wktcut
FROM (SELECT
ST_GeomFromText('MULTILINESTRING((10 10, 190 190), (15 15, 30 30, 100 90))') As mline,
ST_Point(30,30) As pt) As foo;

wktcut

GEOMETRYCOLLECTION(
LINESTRING(10 10,30 30),
LINESTRING(30 30,190 190),
LINESTRING(15 15,30 30),
LINESTRING(30 30,100 90)
)
```

我后面写了一篇文档来简化SPLIT:

《PostgreSQL 空间切割(st_split)功能扩展 - 空间对象网格化》

st_snap

http://postgis.net/docs/manual-2.4/ST_Snap.html

@, ~ 与 ST_Contains, ST_Within的区别

@, ~ 与 ST_Contains, ST_Within都是对象包含的操作符或函数,他们有什么区别呢?

@

A @ B

Returns TRUE if A's bounding box is contained by B's.

~

@ 含义相反。

A ~ B

Returns TRUE if A's bounding box contains B's.

ST_Contains

ST_Contains(A, B)

Returns true if and only if no points of B lie in the exterior of A, and at least one point of the interior of B lies in the interior of A.

ST_Within

ST_Contains 含义相反。

ST_Within(A, B)

Returns true if the geometry A is completely inside geometry B

区别

```
@ 和 ~的操作并不是直接针对几何对象,而是针对A和B的bound box的,也就是说包含对象的左下和右上的点组成的BOX。

ST_Within和ST_Contains是针对几何对象的,但是从GiST索引搜索角度来看,是需要先用BOUND BOX去搜索,再通过CPU进行计算来判断的。
```

例子

pic

```
A @ Polygon,返回真

B @ Polygon,返回真

C @ Polygon,返回真

ST_Contains(Polygon, A),返回假

ST_Contains(Polygon, B),返回真

ST_Contains(Polygon, C),返回假
```

ST_Subdivide

http://postgis.net/docs/manual-2.4/ST_Subdivide.html

ST_Subdivide也是分割函数,可以将一个空间对象,分割成多个空间对象。

小结

空间搜索的两个可以优化的点,原理如下:

1、空间数据在存储时乱序存放,导致搜索一批数据时扫描的数据块很多。(点查感觉不到这个问题。)

2、PostGIS的GiST空间索引,采用了BOUND BOX作为KEY,搜索时也是使用对象的BOUND BOX进行搜索,因此当对象是长条条时,可能造成大量的BOUND BOX空洞,放大了扫描范围(对st_contains, st_within来说),增加了CPU过滤的开销。

优化手段1:空间聚集,解决IO放大问题。

优化手段2:对输入条件(长条条的多边形)进行SPLIT,降低BOUND BOX放大引入的扫描范围(对st_contains, st_within来说)放大的问题。

数据量:1000万。

点面判断(长条形多边形,或者离散多个多边形对象覆盖的空间对象)。

对比 | 优化前 | 优化1(空间聚集) | 优化1,2(SPLIT多边形)
---|---|---|--- 访问数据块数量 | 35323 | 1648 | 243 被过滤的无效记录条数 | 26590 | 26590 | 0

参考

《通过空间思想理解GiST索引的构造》

《PostgreSQL 黑科技 - 空间聚集存储》

《Greenplum 空间(GIS)数据检索 b-tree & GiST 索引实践 - 阿里云HybridDB for PostgreSQL最佳实践》

《PostGIS空间索引(GiST、BRIN、R-Tree)选择、优化 - 阿里云RDS PostgreSQL最佳实践》

《PostGIS 空间数据学习建议》

《PostgreSQL 空间切割(st_split)功能扩展 - 空间对象网格化》

http://postgis.net/docs/manual-2.4/ST_Within.html

http://postgis.net/docs/manual-2.4/ST_Contains.html

http://postgis.net/docs/manual-2.4/ST_Geometry_Contained.html

http://postgis.net/docs/manual-2.4/ST_Geometry_Contain.html

http://postgis.net/docs/manual-2.4/ST_Split.html

http://postgis.net/docs/manual-2.4/ST_Snap.html
