作者
digoal
日期
2016-05-29
标签
PostgreSQL , ECPG
背景
ECPG 是在C中嵌套SQL的一种用法。

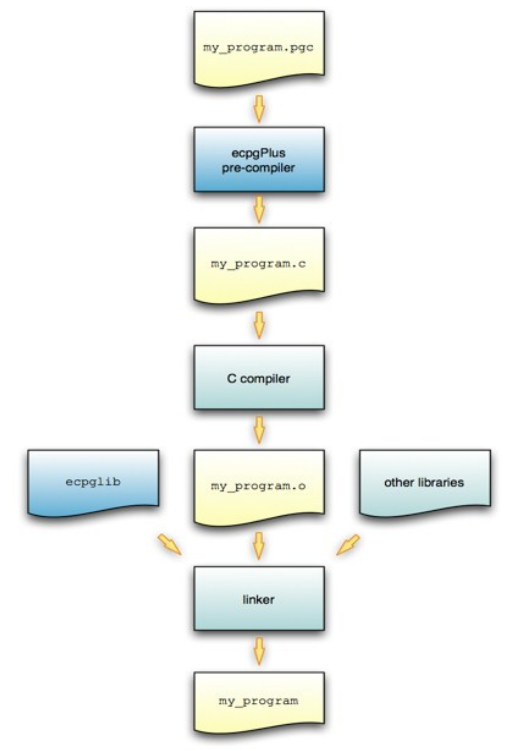

写好pgc文件后，需要使用ecpg程序将pgc编程成C文件来使用。
详细的用法请参考
https://www.postgresql.org/docs/9.5/static/ecpg.html
ecpg的用法, 以EXEC SQL开头表示后面是SQL写法
一些简单的用法
大小写敏感.
1. 连接数据库
```
EXEC SQL CONNECT TO target [AS connection-name] [USER user-name];
target :
dbname[@hostname][:port]
tcp:postgresql://hostname[:port][/dbname][?options]
unix:postgresql://hostname[:port][/dbname][?options]
例子
EXEC SQL CONNECT TO mydb@sql.mydomain.com;
EXEC SQL CONNECT TO unix:postgresql://sql.mydomain.com/mydb AS myconnection USER john;
EXEC SQL BEGIN DECLARE SECTION;
const char target = "mydb@sql.mydomain.com";
const char user = "john";
const char passwd = "secret";
EXEC SQL END DECLARE SECTION;
...
EXEC SQL CONNECT TO :target USER :user USING :passwd;
/ or EXEC SQL CONNECT TO :target USER :user/:passwd; */
```
2. 定义ecpg变量
PostgreSQL数据类型与ecpg使用的类型的映射关系
https://www.postgresql.org/docs/9.5/static/ecpg-variables.html#ECPG-VARIABLES-TYPE-MAPPING
有些类型没有一一对应的关系，需要使用ecpg的函数来转换。
下面是一个DEMO
首先需要编写pgc文件。
```
$ vi t.pgc
include
include
include
EXEC SQL WHENEVER SQLERROR STOP;
int
main(void)
{
EXEC SQL BEGIN DECLARE SECTION;
numeric num;
numeric num2;
decimal *dec;
EXEC SQL END DECLARE SECTION;
EXEC SQL CONNECT TO tcp:postgresql://xxxcs.com:3433/postgres AS db_digoal USER digoal USING digoal;
num = PGTYPESnumeric_new();
dec = PGTYPESdecimal_new();
EXEC SQL SELECT 12.345::numeric(4,2), 23.456::decimal(4,2) INTO :num, :dec;
printf("numeric = %s\n", PGTYPESnumeric_to_asc(num, 0));
printf("numeric = %s\n", PGTYPESnumeric_to_asc(num, 1));
printf("numeric = %s\n", PGTYPESnumeric_to_asc(num, 2));
/* Convert decimal to numeric to show a decimal value. */
num2 = PGTYPESnumeric_new();
PGTYPESnumeric_from_decimal(dec, num2);
printf("decimal = %s\n", PGTYPESnumeric_to_asc(num2, 0));
printf("decimal = %s\n", PGTYPESnumeric_to_asc(num2, 1));
printf("decimal = %s\n", PGTYPESnumeric_to_asc(num2, 2));
PGTYPESnumeric_free(num2);
PGTYPESdecimal_free(dec);
PGTYPESnumeric_free(num);
EXEC SQL COMMIT;
EXEC SQL DISCONNECT ALL;
return 0;
}
```
本地环境中需要有依赖的头文件和库.
编译.pgc
-t 表示使用自动提交
ecpg -t -c -I/home/digoal/pgsql9.6/include -o t.c t.pgc
查看编译后的.c
```
/ Processed by ecpg (4.12.0) /
/ These include files are added by the preprocessor /
include
include
include
/ End of automatic include section /
line 1 "t.pgc"
include
include
include
/ exec sql whenever sqlerror stop ; /
line 5 "t.pgc"
int
main(void)
{
/ exec sql begin declare section /
line 11 "t.pgc"
numeric * num ;
line 12 "t.pgc"
numeric * num2 ;
line 13 "t.pgc"
decimal * dec ;
/ exec sql end declare section /
line 14 "t.pgc"
{ ECPGconnect(__LINE__, 0, "tcp:postgresql://rdsqm2ffv0wjxnxk5nbsi.pg.rds.aliyuncs.com:3433/postgres" , "digoal" , "digoal" , "db_digoal", 1);
line 16 "t.pgc"
if (sqlca.sqlcode < 0) exit (1);}
line 16 "t.pgc"
num = PGTYPESnumeric_new();
dec = PGTYPESdecimal_new();
{ ECPGdo(__LINE__, 0, 1, NULL, 0, ECPGst_normal, "select 12.345 :: numeric ( 4 , 2 ) , 23.456 :: decimal ( 4 , 2 )", ECPGt_EOIT,
ECPGt_numeric,&(num),(long)1,(long)0,sizeof(numeric),
ECPGt_NO_INDICATOR, NULL , 0L, 0L, 0L,
ECPGt_decimal,&(dec),(long)1,(long)0,sizeof(decimal),
ECPGt_NO_INDICATOR, NULL , 0L, 0L, 0L, ECPGt_EORT);
line 21 "t.pgc"
if (sqlca.sqlcode < 0) exit (1);}
line 21 "t.pgc"
printf("numeric = %s\n", PGTYPESnumeric_to_asc(num, 0));
printf("numeric = %s\n", PGTYPESnumeric_to_asc(num, 1));
printf("numeric = %s\n", PGTYPESnumeric_to_asc(num, 2));
/* Convert decimal to numeric to show a decimal value. */
num2 = PGTYPESnumeric_new();
PGTYPESnumeric_from_decimal(dec, num2);
printf("decimal = %s\n", PGTYPESnumeric_to_asc(num2, 0));
printf("decimal = %s\n", PGTYPESnumeric_to_asc(num2, 1));
printf("decimal = %s\n", PGTYPESnumeric_to_asc(num2, 2));
PGTYPESnumeric_free(num2);
PGTYPESdecimal_free(dec);
PGTYPESnumeric_free(num);
{ ECPGtrans(__LINE__, NULL, "commit");
line 39 "t.pgc"
if (sqlca.sqlcode < 0) exit (1);}
line 39 "t.pgc"
{ ECPGdisconnect(__LINE__, "ALL");
line 40 "t.pgc"
if (sqlca.sqlcode < 0) exit (1);}
line 40 "t.pgc"
return 0;
}
```
编译，链接 .c
gcc -I/home/digoal/pgsql9.6/include -Wall -g t.c -L/home/digoal/pgsql9.6/lib -lecpg -lpq -lpgtypes -o t
也可以写成Makefile如下 :
$ vi Makefile
注意行首缩进的地方需要TAB键输入.
```
ECPG = ecpg
CC = gcc
INCLUDES = -I$(shell pg_config --includedir)
LIBPATH = -L$(shell pg_config --libdir)
CFLAGS += $(INCLUDES)
LDFLAGS += -Wall -g
LDLIBS += $(LIBPATH) -lecpg -lpq -lpgtypes
%.c: %.pgc
$(ECPG) -t -c $(INCLUDES) -o $@ $<
%: %.o
$(CC) $(CFLAGS) $(LDFLAGS) $(LDLIBS) -o $@ $<
TESTS = t t.c
default: $(TESTS)
clean:
rm -f .o .so t t.c
```
使用时注意把pg_config弄进PATH
$ export PATH=/home/digoal/pgsql9.6/bin:$PATH
$ make
使用编译好的t :
./t
numeric = 12
numeric = 12.4
numeric = 12.35
decimal = 23
decimal = 23.5
decimal = 23.46
