环境搭建
拉取elasticsearch镜像
docker pull elasticsearch:7.10.1
复制
创建用户自定义网络
docker network create technetwork
复制
容器运行ES
docker run --name elasticsearch --net technetwork -p 9200:9200 -p 9300:9300 -e "discovery.type=single-node" -d elasticsearch:7.10.1
复制
查看ES
http://localhost:9200
复制
拉取kibana镜像
docker pull kibana:7.10.1
复制
容器运行kibana
docker run --name kibana --net technetwork -p 5601:5601 -d kibana:7.10.1
复制
查看kibana,并切换到Dev Tools
http://localhost:5601
复制
ES 和 RDBMS 区别
RDBMS - schema / transaction / join
Elasticsearch - schemaless / correlation / High performance full-text retrieval
RDBMS | Elasticsearch |
Table | Index(Type) |
Row | Document |
Column | Field |
Schema | Mapping |
SQL | DSL |

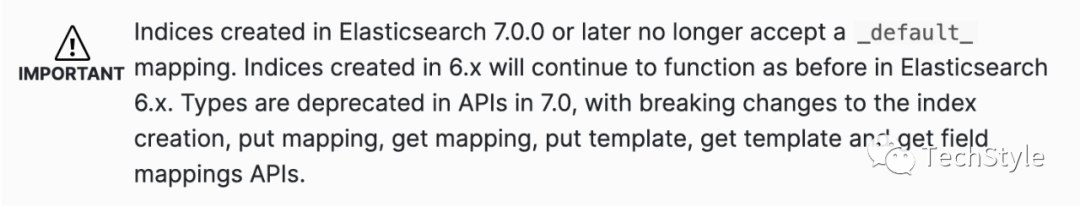

Note:
ES7.0之前,一个Index可以设置多个Type。
ES7.0开始,Type已经被deprecated,一个Index只能设置一个Type —— “_doc”。
ES CRUD
Create | PUT my_index/_doc/1 { "username": "techstyle", "password": "123456", "city": "shanghai" } |
Read | GET my_index/_doc/1 |
Update | POST my_index/_doc/1 { "username": "techstyle", "password": "654321", "city": "beijing" } |
Delete | DELETE my_index/_doc/1 DELETE my_index |
Note:
ES中创建index使用的是PUT,更新index使用的是POST
Index Settings
GET my_index/_settings
复制
Index Mapping
GET my_index/_mapping
复制
Index Alias
add alias to index
POST /_aliases
{
"actions": [{
"add": {
"index": "my_index",
"alias": "techindex"
}
}]
}
复制
remove alias from index
POST /_aliases
{
"actions": [{
"remove": {
"index": "my_index",
"alias": "techindex3"
}
}]
}
复制
get all aliases start from 'tech'
GET _cat/aliases?v&alias=tech*
复制
get by alias
# get By alias
GET techindex/_doc/1
# get by index
GET my_index/_doc/1
复制
Search Template
prepare initial index data

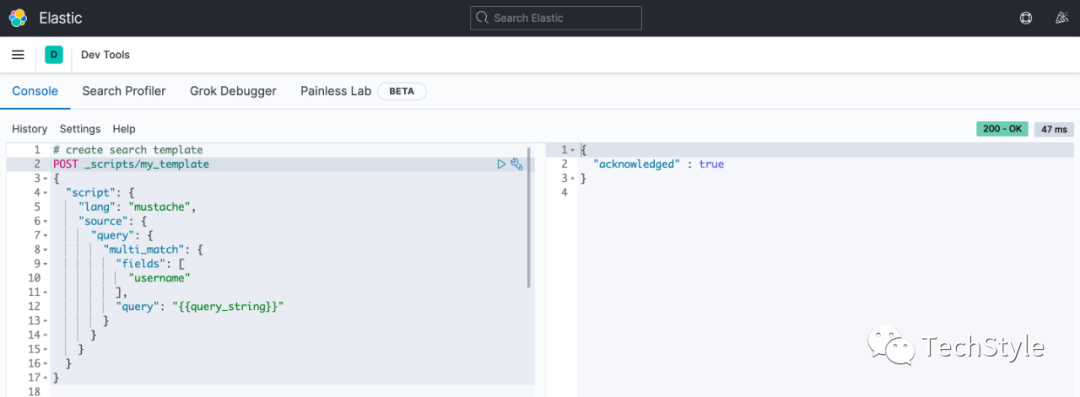

create search template
POST _scripts/my_template
{
"script": {
"lang": "mustache",
"source": {
"query": {
"multi_match": {
"fields": [
"username"
],
"query": "{{query_string}}"
}
}
}
}
}
复制
Note: 这里仅仅匹配 'username'
get template
GET _scripts/my_template
复制
search by template
POST my_index/_search/template
{
"id": "my_template",
"params": {
"query_string": "beijing"
}
}
复制
Note: 查询 'username=beijing' 的 doc,仅命中1个
delete template
DELETE _scripts/my_template
复制
重新创建一个匹配 username 和 city 的 search template
POST _scripts/my_template
{
"script": {
"lang": "mustache",
"source": {
"query": {
"multi_match": {
"fields": [
"username",
"city"
],
"query": "{{query_string}}"
}
}
}
}
}
复制
再次使用 search template 进行模板查询,命中了2个
Pipeline
ES内部有许多内置的processor,比如date、append、join、split、convert、script等,具体可以参考如下链接
https://www.elastic.co/guide/en/elasticsearch/reference/current/ingest-processors.html |
这里为了演示方便就新建一个convert pipeline,将price字段转为float类型
PUT _ingest/pipeline/my_pipeline
{
"description": "update from string to double",
"processors": [
{
"convert": {
"field": "price",
"type": "float"
}
}
]
}
复制
simulate看下新建的pipeline的效果
POST _ingest/pipeline/my_pipeline/_simulate
{
"docs": [
{
"_index": "index",
"_id": "id",
"_source": {
"product": "Macbook",
"price": "999"
}
},
{
"_index": "index",
"_id": "id",
"_source": {
"product": "iPhone",
"price": "666"
}
}
]
}
复制
可以看到price字段全部转为了float类型
查看自定义的convert pipeline
GET _ingest/pipeline/my_pipeline
复制
创建index的时候启用自定义的convert pipeline
PUT my_index/_doc/4?pipeline=my_pipeline
{
"product": "iPad",
"price": "999"
}
复制
查看新创建的index的doc内容,可以看到price字段已经convert为float类型
删除自定义的convert pipeline
DELETE _ingest/pipeline/my_pipeline
复制
Reference
https://hub.docker.com/_/elasticsearch
https://hub.docker.com/_/kibana
https://www.elastic.co/downloads/elasticsearch
https://www.elastic.co/downloads/kibana
https://www.elastic.co/guide/en/elasticsearch/reference/current/indices.html
https://www.elastic.co/guide/en/elasticsearch/reference/current/index-templates.html
https://www.elastic.co/guide/en/elasticsearch/reference/current/search-template.html
https://www.elastic.co/guide/en/elasticsearch/reference/current/modules-scripting.html
https://www.elastic.co/guide/en/elasticsearch/reference/current/pipeline.html
https://www.elastic.co/guide/en/elasticsearch/reference/current/ingest-apis.html
https://www.elastic.co/guide/en/elasticsearch/reference/current/removal-of-types.html
https://www.elastic.co/guide/en/elasticsearch/reference/current/indices-get-settings.html
