一  AOF

二  AOFRW

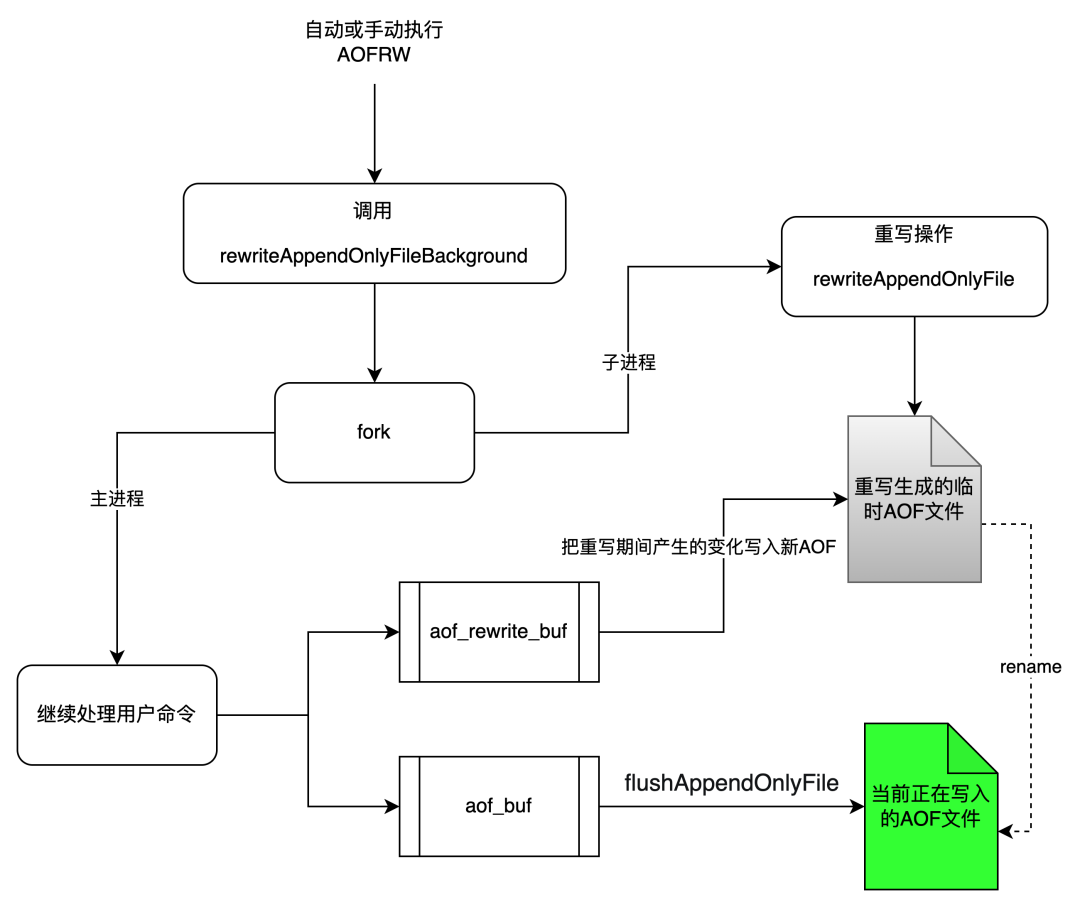

三  AOFRW存在的问题

1  内存开销

aof_pending_rewrite:0
aof_buffer_length:35500
aof_rewrite_buffer_length:34000
aof_pending_bio_fsync:0

复制

3351:M 25 Jan 2022 09:55:39.655 * Background append only file rewriting started by pid 6817
3351:M 25 Jan 2022 09:57:51.864 * AOF rewrite child asks to stop sending diffs.
6817:C 25 Jan 2022 09:57:51.864 * Parent agreed to stop sending diffs. Finalizing AOF...
6817:C 25 Jan 2022 09:57:51.864 * Concatenating 2135.60 MB of AOF diff received from parent.
3351:M 25 Jan 2022 09:57:56.545 * Background AOF buffer size: 100 MB
复制

2  CPU开销

1. 在AOFRW期间，主进程需要花费CPU时间向aof_rewrite_buf写数据，并使用eventloop事件循环向子进程发送aof_rewrite_buf中的数据：



/* Append data to the AOF rewrite buffer, allocating new blocks if needed. */
void aofRewriteBufferAppend(unsigned char *s, unsigned long len) {
    // 此处省略其他细节...


    /* Install a file event to send data to the rewrite child if there is
     * not one already. */
    if (!server.aof_stop_sending_diff &&
        aeGetFileEvents(server.el,server.aof_pipe_write_data_to_child) == 0)
    {
        aeCreateFileEvent(server.el, server.aof_pipe_write_data_to_child,
            AE_WRITABLE, aofChildWriteDiffData, NULL);
    }


    // 此处省略其他细节...
}
复制

1. 在子进程执行重写操作的后期，会循环读取pipe中主进程发送来的增量数据，然后追加写入到临时AOF文件：



int rewriteAppendOnlyFile(char *filename) {
     // 此处省略其他细节...


    /* Read again a few times to get more data from the parent.
     * We can't read forever (the server may receive data from clients
     * faster than it is able to send data to the child), so we try to read
     * some more data in a loop as soon as there is a good chance more data
     * will come. If it looks like we are wasting time, we abort (this
     * happens after 20 ms without new data). */
    int nodata = 0;
    mstime_t start = mstime();
    while(mstime()-start < 1000 && nodata < 20) {
        if (aeWait(server.aof_pipe_read_data_from_parent, AE_READABLE, 1) <= 0)
        {
            nodata++;
            continue;
        }
        nodata = 0; /* Start counting from zero, we stop on N *contiguous*
                       timeouts. */
        aofReadDiffFromParent();
    }


    // 此处省略其他细节...
}
复制

1. 在子进程完成重写操作后，主进程会在backgroundRewriteDoneHandler 中进行收尾工作。其中一个任务就是将在重写期间aof_rewrite_buf中没有消费完成的数据写入临时AOF文件。如果aof_rewrite_buf中遗留的数据很多，这里也将消耗CPU时间。

void backgroundRewriteDoneHandler(int exitcode, int bysignal) {
    // 此处省略其他细节...


    /* Flush the differences accumulated by the parent to the rewritten AOF. */
    if (aofRewriteBufferWrite(newfd) == -1) {
        serverLog(LL_WARNING,
                "Error trying to flush the parent diff to the rewritten AOF: %s", strerror(errno));
        close(newfd);
        goto cleanup;
     }


     // 此处省略其他细节...
}

复制

3  磁盘IO开销

4  代码复杂度

 /* AOF pipes used to communicate between parent and child during rewrite. */
 int aof_pipe_write_data_to_child;
 int aof_pipe_read_data_from_parent;
 int aof_pipe_write_ack_to_parent;
 int aof_pipe_read_ack_from_child;
 int aof_pipe_write_ack_to_child;
 int aof_pipe_read_ack_from_parent;

复制

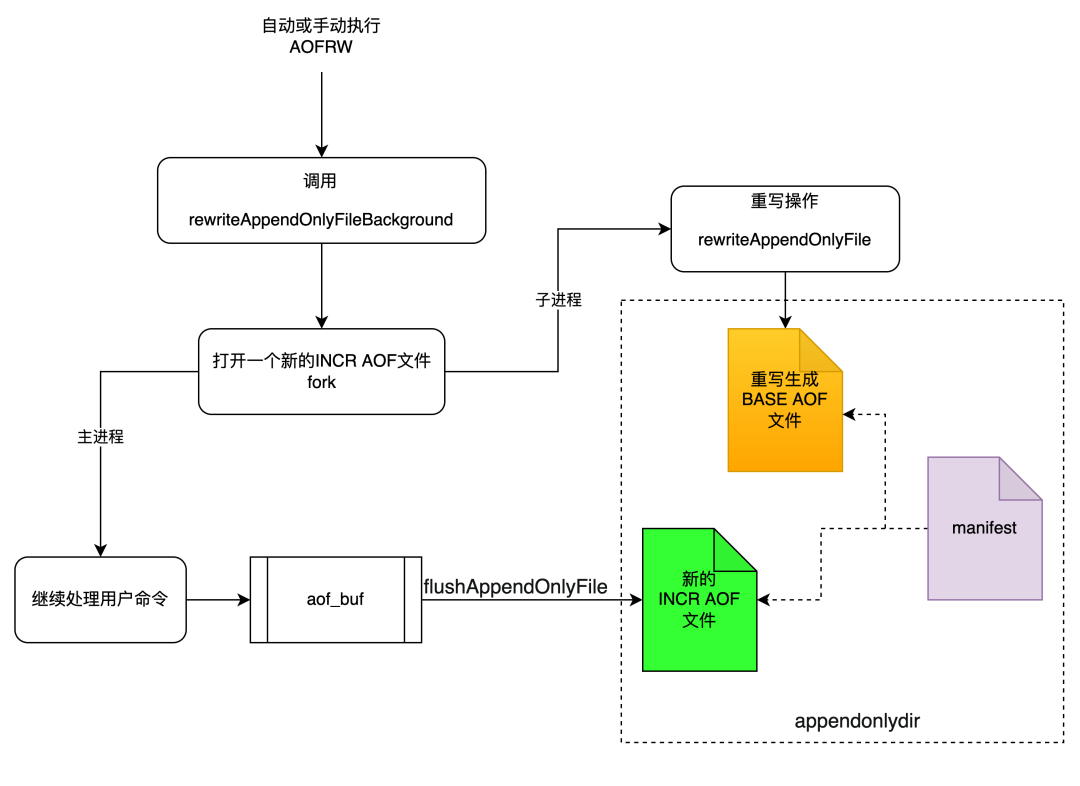

四  MP-AOF实现

1  方案概述

• BASE：表示基础AOF，它一般由子进程通过重写产生，该文件最多只有一个。

• INCR：表示增量AOF，它一般会在AOFRW开始执行时被创建，该文件可能存在多个。

• HISTORY：表示历史AOF，它由BASE和INCR AOF变化而来，每次AOFRW成功完成时，本次AOFRW之前对应的BASE和INCR AOF都将变为HISTORY，HISTORY类型的AOF会被Redis自动删除。

2  关键实现

Manifest

1）在内存中的表示

• aofInfo：表示一个AOF文件信息，当前仅包括文件名、文件序号和文件类型

• base_aof_info：表示BASE AOF信息，当不存在BASE AOF时，该字段为NULL

• incr_aof_list：用于存放所有INCR AOF文件的信息，所有的INCR AOF都会按照文件打开顺序排放

• history_aof_list：用于存放HISTORY AOF信息，history_aof_list中的元素都是从base_aof_info和incr_aof_list中move过来的

typedef struct {
    sds           file_name;  /* file name */
    long long     file_seq;   /* file sequence */
    aof_file_type file_type;  /* file type */
} aofInfo;


typedef struct {
    aofInfo     *base_aof_info;       /* BASE file information. NULL if there is no BASE file. */
    list        *incr_aof_list;       /* INCR AOFs list. We may have multiple INCR AOF when rewrite fails. */
    list        *history_aof_list;    /* HISTORY AOF list. When the AOFRW success, The aofInfo contained in
                                         `base_aof_info` and `incr_aof_list` will be moved to this list. We
                                         will delete these AOF files when AOFRW finish. */
    long long   curr_base_file_seq;   /* The sequence number used by the current BASE file. */
    long long   curr_incr_file_seq;   /* The sequence number used by the current INCR file. */
    int         dirty;                /* 1 Indicates that the aofManifest in the memory is inconsistent with
                                         disk, we need to persist it immediately. */
} aofManifest;

复制

struct redisServer {
    // 此处省略其他细节...


    aofManifest *aof_manifest;       /* Used to track AOFs. */


    // 此处省略其他细节...
}

复制

2）在磁盘上的表示

file appendonly.aof.1.base.rdb seq 1 type b
file appendonly.aof.1.incr.aof seq 1 type i
file appendonly.aof.2.incr.aof seq 2 type i

复制

file appendonly.aof.1.base.rdb seq 1 type b newkey newvalue
file appendonly.aof.1.incr.aof type i seq 1
# this is annotations
seq 2 type i file appendonly.aof.2.incr.aof

复制

文件命名规则

• seq为文件的序号，由1开始单调递增，BASE和INCR拥有独立的文件序号

• type为AOF的类型，表示这个AOF文件是BASE还是INCR

• format用来表示这个AOF内部的编码方式，由于Redis支持RDB preamble机制，因此BASE AOF可能是RDB格式编码也可能是AOF格式编码：

#define BASE_FILE_SUFFIX           ".base"
#define INCR_FILE_SUFFIX           ".incr"
#define RDB_FORMAT_SUFFIX          ".rdb"
#define AOF_FORMAT_SUFFIX          ".aof"
#define MANIFEST_NAME_SUFFIX       ".manifest"

复制

appendonly.aof.1.base.rdb // 开启RDB preamble
appendonly.aof.1.base.aof // 关闭RDB preamble
appendonly.aof.1.incr.aof
appendonly.aof.2.incr.aof

复制

兼容老版本升级

1. 如果appenddirname目录不存在




2. 或者appenddirname目录存在，但是目录中没有对应的manifest清单文件




3. 如果appenddirname目录存在且目录中存在manifest清单文件，且清单文件中只有BASE AOF相关信息，且这个BASE AOF的名字和server.aof_filename相同，且appenddirname目录中不存在名为server.aof_filename的文件

/* Load the AOF files according the aofManifest pointed by am. */
int loadAppendOnlyFiles(aofManifest *am) {
    // 此处省略其他细节...


    /* If the 'server.aof_filename' file exists in dir, we may be starting
     * from an old redis version. We will use enter upgrade mode in three situations.
     *
     * 1. If the 'server.aof_dirname' directory not exist
     * 2. If the 'server.aof_dirname' directory exists but the manifest file is missing
     * 3. If the 'server.aof_dirname' directory exists and the manifest file it contains
     *    has only one base AOF record, and the file name of this base AOF is 'server.aof_filename',
     *    and the 'server.aof_filename' file not exist in 'server.aof_dirname' directory
     * */
    if (fileExist(server.aof_filename)) {
        if (!dirExists(server.aof_dirname) ||
            (am->base_aof_info == NULL && listLength(am->incr_aof_list) == 0) ||
            (am->base_aof_info != NULL && listLength(am->incr_aof_list) == 0 &&
             !strcmp(am->base_aof_info->file_name, server.aof_filename) && !aofFileExist(server.aof_filename)))
        {
            aofUpgradePrepare(am);
        }
    }


    // 此处省略其他细节...
  }

复制

1. 使用server.aof_filename作为文件名来构造一个BASE AOF信息




2. 将该BASE AOF信息持久化到manifest文件




3. 使用rename 将旧AOF文件移动到appenddirname目录中

void aofUpgradePrepare(aofManifest *am) {
    // 此处省略其他细节...


    /* 1. Manually construct a BASE type aofInfo and add it to aofManifest. */
    if (am->base_aof_info) aofInfoFree(am->base_aof_info);
    aofInfo *ai = aofInfoCreate();
    ai->file_name = sdsnew(server.aof_filename);
    ai->file_seq = 1;
    ai->file_type = AOF_FILE_TYPE_BASE;
    am->base_aof_info = ai;
    am->curr_base_file_seq = 1;
    am->dirty = 1;


    /* 2. Persist the manifest file to AOF directory. */
    if (persistAofManifest(am) != C_OK) {
        exit(1);
    }


    /* 3. Move the old AOF file to AOF directory. */
    sds aof_filepath = makePath(server.aof_dirname, server.aof_filename);
    if (rename(server.aof_filename, aof_filepath) == -1) {
        sdsfree(aof_filepath);
        exit(1);;
    }


    // 此处省略其他细节...
}

复制

多文件加载及进度计算

int loadAppendOnlyFiles(aofManifest *am) {
    // 此处省略其他细节...


    /* Here we calculate the total size of all BASE and INCR files in
     * advance, it will be set to `server.loading_total_bytes`. */
    total_size = getBaseAndIncrAppendOnlyFilesSize(am);
    startLoading(total_size, RDBFLAGS_AOF_PREAMBLE, 0);


    /* Load BASE AOF if needed. */
    if (am->base_aof_info) {
        aof_name = (char*)am->base_aof_info->file_name;
        updateLoadingFileName(aof_name);
        loadSingleAppendOnlyFile(aof_name);
    }


    /* Load INCR AOFs if needed. */
    if (listLength(am->incr_aof_list)) {
        listNode *ln;
        listIter li;


        listRewind(am->incr_aof_list, &li);
        while ((ln = listNext(&li)) != NULL) {
            aofInfo *ai = (aofInfo*)ln->value;
            aof_name = (char*)ai->file_name;
            updateLoadingFileName(aof_name);
            loadSingleAppendOnlyFile(aof_name);
        }
    }


    server.aof_current_size = total_size;
    server.aof_rewrite_base_size = server.aof_current_size;
    server.aof_fsync_offset = server.aof_current_size;


    stopLoading();


    // 此处省略其他细节...
}

复制

AOFRW Crash Safety

1. BASE AOF的名字中包含文件序号，保证每次创建的BASE AOF不会和之前的BASE AOF冲突；




2. 先执行AOF的rename 操作，再修改manifest文件；

file appendonly.aof.1.base.rdb seq 1 type b
file appendonly.aof.1.incr.aof seq 1 type i

复制

file appendonly.aof.1.base.rdb seq 1 type b
file appendonly.aof.1.incr.aof seq 1 type i
file appendonly.aof.2.incr.aof seq 2 type i

复制

file appendonly.aof.2.base.rdb seq 2 type b
file appendonly.aof.1.base.rdb seq 1 type h
file appendonly.aof.1.incr.aof seq 1 type h
file appendonly.aof.2.incr.aof seq 2 type i

复制

1. 在修改内存中的server.aof_manifest前，先dup一份临时的manifest结构，接下来的修改都将针对这个临时的manifest进行。这样做的好处是，一旦后面的步骤出现失败，我们可以简单的销毁临时manifest从而回滚整个操作，避免污染server.aof_manifest全局数据结构；




2. 从临时manifest中获取新的BASE AOF文件名（记为new_base_filename），并将之前（如果有）的BASE AOF标记为HISTORY；




3. 将子进程产生的temp-rewriteaof-bg-pid.aof临时文件重命名为new_base_filename；




4. 将临时manifest结构中上一次的INCR  AOF全部标记为HISTORY类型；




5. 将临时manifest对应的信息持久化到磁盘（persistAofManifest内部会保证manifest本身修改的原子性）；




6. 如果上述步骤都成功了，我们可以放心的将内存中的server.aof_manifest指针指向临时的manifest结构（并释放之前的manifest结构），至此整个修改对Redis可见；




7. 清理HISTORY类型的AOF，该步骤允许失败，因为它不会导致数据一致性问题。

void backgroundRewriteDoneHandler(int exitcode, int bysignal) {
    snprintf(tmpfile, 256, "temp-rewriteaof-bg-%d.aof",
        (int)server.child_pid);


    /* 1. Dup a temporary aof_manifest for subsequent modifications. */
    temp_am = aofManifestDup(server.aof_manifest);


    /* 2. Get a new BASE file name and mark the previous (if we have)
     * as the HISTORY type. */
    new_base_filename = getNewBaseFileNameAndMarkPreAsHistory(temp_am);


    /* 3. Rename the temporary aof file to 'new_base_filename'. */
    if (rename(tmpfile, new_base_filename) == -1) {
        aofManifestFree(temp_am);
        goto cleanup;
    }


    /* 4. Change the AOF file type in 'incr_aof_list' from AOF_FILE_TYPE_INCR
     * to AOF_FILE_TYPE_HIST, and move them to the 'history_aof_list'. */
    markRewrittenIncrAofAsHistory(temp_am);


    /* 5. Persist our modifications. */
    if (persistAofManifest(temp_am) == C_ERR) {
        bg_unlink(new_base_filename);
        aofManifestFree(temp_am);
        goto cleanup;
    }


    /* 6. We can safely let `server.aof_manifest` point to 'temp_am' and free the previous one. */
    aofManifestFreeAndUpdate(temp_am);


    /* 7. We don't care about the return value of `aofDelHistoryFiles`, because the history
     * deletion failure will not cause any problems. */
    aofDelHistoryFiles();
}

复制

支持AOF truncate

 if (ftruncate(server.aof_fd, server.aof_last_incr_size) == -1) {
      //此处省略其他细节...
 }



复制

AOFRW限流

if (server.aof_state == AOF_ON &&
    !hasActiveChildProcess() &&
    server.aof_rewrite_perc &&
    server.aof_current_size > server.aof_rewrite_min_size &&
    !aofRewriteLimited())
{
    long long base = server.aof_rewrite_base_size ?
        server.aof_rewrite_base_size : 1;
    long long growth = (server.aof_current_size*100/base) - 100;
    if (growth >= server.aof_rewrite_perc) {
        rewriteAppendOnlyFileBackground();
    }
}

复制

五  总结
