LightDB23.1新特性支持Oracle hint增强

原创姚崇 2023-02-17

359

unnest和no_unnest

Oracle中，子查询非嵌套(Subquery Unnesting)：当where子查询中有in，not in，exists，not exists等，CBO会尝试将子查询展开(unnest)，从而消除FILTER，这个过程就叫做子查询非嵌套。
LightDB从23.1开始支持此优化器特性

创建测试表emp和dept，默认的执行计划如下，两个表走hash join

test@test=> explain analyze
test@test-> select ename, deptno
test@test-> from emp
test@test-> where deptno in (select deptno from dept where dname = 'CHICAGO');
                                                 QUERY PLAN
------------------------------------------------------------------------------------------------------------
 Hash Join  (cost=19.80..35.11 rows=2 width=44) (actual time=0.047..0.053 rows=0 loops=1)
   Hash Cond: (emp.deptno = dept.deptno)
   ->  Seq Scan on emp  (cost=0.00..14.20 rows=420 width=44) (actual time=0.012..0.013 rows=1 loops=1)
   ->  Hash  (cost=19.75..19.75 rows=4 width=12) (actual time=0.013..0.015 rows=0 loops=1)
         Buckets: 1024  Batches: 1  Memory Usage: 8kB
         ->  Seq Scan on dept  (cost=0.00..19.75 rows=4 width=12) (actual time=0.011..0.012 rows=0 loops=1)
               Filter: ((dname)::text = 'CHICAGO'::text)
               Rows Removed by Filter: 4
 Planning Time: 0.210 ms
 Execution Time: 0.115 ms
(10 rows)
复制

指定hint no_unnest 让执行计划走filter

test@test-> where deptno in (select /*+ no_unnest */ deptno from dept where dname = 'CHICAGO');
                                                   QUERY PLAN
----------------------------------------------------------------------------------------------------------------
 Seq Scan on emp @"lt#1"  (cost=19.76..35.01 rows=210 width=44) (actual time=0.033..0.035 rows=0 loops=1)
   Filter: (hashed SubPlan 1)
   Rows Removed by Filter: 14
   SubPlan 1
     ->  Seq Scan on dept @"lt#0"  (cost=0.00..19.75 rows=4 width=12) (actual time=0.006..0.007 rows=0 loops=1)
           Filter: ((dname)::text = 'CHICAGO'::text)
           Rows Removed by Filter: 4
 Planning Time: 0.153 ms
 Execution Time: 0.087 ms
(9 rows)
复制

同样只用unnest hint，可以实现非filter的执行计划

test@test=> explain analyze
test@test-> select ename, deptno
test@test-> from emp
test@test-> where deptno in (select /*+ unnest */ deptno from dept where dname = 'CHICAGO');
                                                     QUERY PLAN
--------------------------------------------------------------------------------------------------------------------
 Hash Join  (cost=19.80..35.11 rows=2 width=44) (actual time=0.027..0.032 rows=0 loops=1)
   Hash Cond: (emp.deptno = dept.deptno)
   ->  Seq Scan on emp @"lt#1"  (cost=0.00..14.20 rows=420 width=44) (actual time=0.009..0.010 rows=1 loops=1)
   ->  Hash  (cost=19.75..19.75 rows=4 width=12) (actual time=0.010..0.011 rows=0 loops=1)
         Buckets: 1024  Batches: 1  Memory Usage: 8kB
         ->  Seq Scan on dept @"lt#0"  (cost=0.00..19.75 rows=4 width=12) (actual time=0.008..0.009 rows=0 loops=1)
               Filter: ((dname)::text = 'CHICAGO'::text)
               Rows Removed by Filter: 4
 Planning Time: 0.217 ms
 Execution Time: 0.065 ms
(10 rows)
复制

push_pred

谓词推入(Pushing Predicate)：当SQL语句中包含有不能合并的视图，并且视图有谓词过滤(也就是where过滤条件)，CBO会将谓词过滤条件推入视图中，这个过程就叫做谓词推入。谓词推入的主要目的就是让Oracle尽可能早的过滤掉无用的数据，从而提升查询性能。

create table test as select * from pg_class;
create table test1 as select * from pg_class;

create or replace view v_pushpredicate as
     select  * from test
     union all
     select  * from test1;

create index i_test_id on test(oid);
create index i_test1_id on test1(oid);
复制

执行下面语句

test@test=> explain analyze select /*+push_pred(v)*/* from v_pushpredicate v where oid = 19787;

                                                        QUERY PLAN
--------------------------------------------------------------------------------------------------------------------------
 Append  (cost=0.28..4.59 rows=2 width=265) (actual time=0.051..0.091 rows=2 loops=1)
   ->  Index Scan using i_test_id on test  (cost=0.28..2.29 rows=1 width=265) (actual time=0.049..0.051 rows=1 loops=1)
         Index Cond: (oid = '19787'::oid)
   ->  Index Scan using i_test1_id on test1  (cost=0.28..2.29 rows=1 width=265) (actual time=0.031..0.032 rows=1 loops=1)
         Index Cond: (oid = '19787'::oid)
 Planning Time: 1.080 ms
 Execution Time: 0.137 ms
(7 rows)
复制

并行相关hint

Oracle并行的生产者和消费者模型中，Table Queue: 生产者和消费者之间的数据分发. 常见的数据并行分发方式有broadcast, hash. 12c引入多种新的数据分发, 比如replicate, 更加智能的adaptive分发.

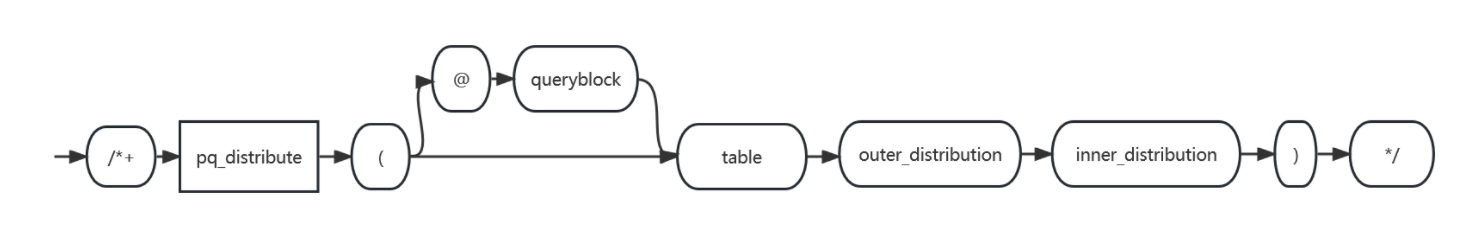

在 oracle 中 pq_distribute 用来控制并行连接的方式，LightDB 的语法与oracle相同，具体如下所示：

但是 LightDB 只支持 none,broadcast 和 hash,hash 组合，其中 hash,hash 只支持语法（因为LightDB 不支持此模式）。其他模式待后续支持。

test@test=> explain analyze select
test@test->   /*+ use_hash(a,b) pq_distribute(a none,broadcast) leading(b a)*/
test@test->  * from test a,  test1 b where a.oid = b.oid;
                                                             QUERY PLAN
-------------------------------------------------------------------------------------------------------------------------------------
 Gather  (cost=37.05..62.87 rows=758 width=530) (actual time=1.942..12.191 rows=758 loops=1)
   Workers Planned: 3
   Workers Launched: 2
   ->  Hash Join  (cost=37.05..62.87 rows=245 width=530) (actual time=0.477..1.342 rows=253 loops=3)
         Hash Cond: (b.oid = a.oid)
         ->  Parallel Seq Scan on test1 b @"lt#0"  (cost=0.00..22.45 rows=245 width=265) (actual time=0.005..0.218 rows=254 loops=3)
         ->  Hash  (cost=27.58..27.58 rows=758 width=265) (actual time=1.387..1.390 rows=758 loops=1)
               Buckets: 1024  Batches: 1  Memory Usage: 163kB
               ->  Seq Scan on test a @"lt#0"  (cost=0.00..27.58 rows=758 width=265) (actual time=0.005..0.595 rows=758 loops=1)
 Planning Time: 0.282 ms
 Execution Time: 12.724 ms
(11 rows)

复制

使用pq_distribute(b hash,hash)执行计划如下
LightDB 只支持 none,broadcast 和 hash,hash 组合，其中 hash,hash 只支持语法。其他模式待后续支持

test@test=> explain analyze select
test@test->   /*+ use_hash(a,b) pq_distribute(a none,broadcast) */
test@test->  * from test a,  test1 b where a.oid = b.oid;
                                                                QUERY PLAN
-------------------------------------------------------------------------------------------------------------------------------------------
 Gather  (cost=25.52..49.67 rows=758 width=530) (actual time=2.451..12.746 rows=758 loops=1)
   Workers Planned: 3
   Workers Launched: 2
   ->  Parallel Hash Join  (cost=25.52..49.67 rows=245 width=530) (actual time=0.766..1.678 rows=253 loops=3)
         Hash Cond: (a.oid = b.oid)
         ->  Parallel Seq Scan on test a @"lt#0"  (cost=0.00..22.45 rows=245 width=265) (actual time=0.005..0.665 rows=758 loops=1)
         ->  Parallel Hash  (cost=22.45..22.45 rows=245 width=265) (actual time=0.502..0.503 rows=254 loops=3)
               Buckets: 1024  Batches: 1  Memory Usage: 200kB
               ->  Parallel Seq Scan on test1 b @"lt#0"  (cost=0.00..22.45 rows=245 width=265) (actual time=0.013..0.635 rows=761 loops=1)
 Planning Time: 0.273 ms
 Execution Time: 13.294 ms
(11 rows)
复制
