Table of Contents

• 一. 数据源准备
• 二. FLink SQL客户端操作
• 三. 查看运行情况

一. 数据源准备

建表:

CREATE TABLE `mysql_cdc` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(100) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB;
复制

写存储过程批量插入数据:

DELIMITER //

CREATE PROCEDURE p5()
BEGIN

  declare l_n1 int default 1;


  while l_n1 <= 10000000 DO
     insert into mysql_cdc (id,name) values (l_n1,concat('test',l_n1));
     set l_n1 = l_n1 + 1;
  end while;


END;
//

DELIMITER ;
复制

二. FLink SQL客户端操作

启动yarn session
内存尽量多指定，不然会包 OOM的错误

$FLINK_HOME/bin/yarn-session.sh -jm 8192 -tm 8192 -d  2>&1 &

/home/flink-1.14.5/bin/sql-client.sh embedded -s yarn-session
复制

Flink SQL操作:

set execution.checkpointing.interval=10sec;

CREATE TABLE flink_mysql_cdc8 (
    id BIGINT NOT NULL PRIMARY KEY NOT ENFORCED,
    name varchar(100)
  ) WITH (
    'connector' = 'mysql-cdc',
    'hostname' = 'hp8',
    'port' = '3306',
    'username' = 'root',
    'password' = 'abc123',
    'database-name' = 'test',
    'table-name' = 'mysql_cdc',
    'server-id' = '5409-5415',
    'scan.incremental.snapshot.enabled'='true'
);

set sql-client.execution.result-mode=tableau;

select count(*) from flink_mysql_cdc8;


CREATE TABLE flink_hudi_mysql_cdc8(
    id BIGINT NOT NULL PRIMARY KEY NOT ENFORCED,
    name varchar(100)
  ) WITH (
   'connector' = 'hudi',
   'path' = 'hdfs://hp5:8020/tmp/hudi/flink_hudi_mysql_cdc8',
   'table.type' = 'COPY_ON_WRITE',
   'changelog.enabled' = 'true',
   'hoodie.datasource.write.recordkey.field' = 'id',
   'write.precombine.field' = 'name',
   'compaction.async.enabled' = 'false'
);

insert into flink_hudi_mysql_cdc8 select * from flink_mysql_cdc8;

select count(*) from flink_hudi_mysql_cdc8 ;
复制

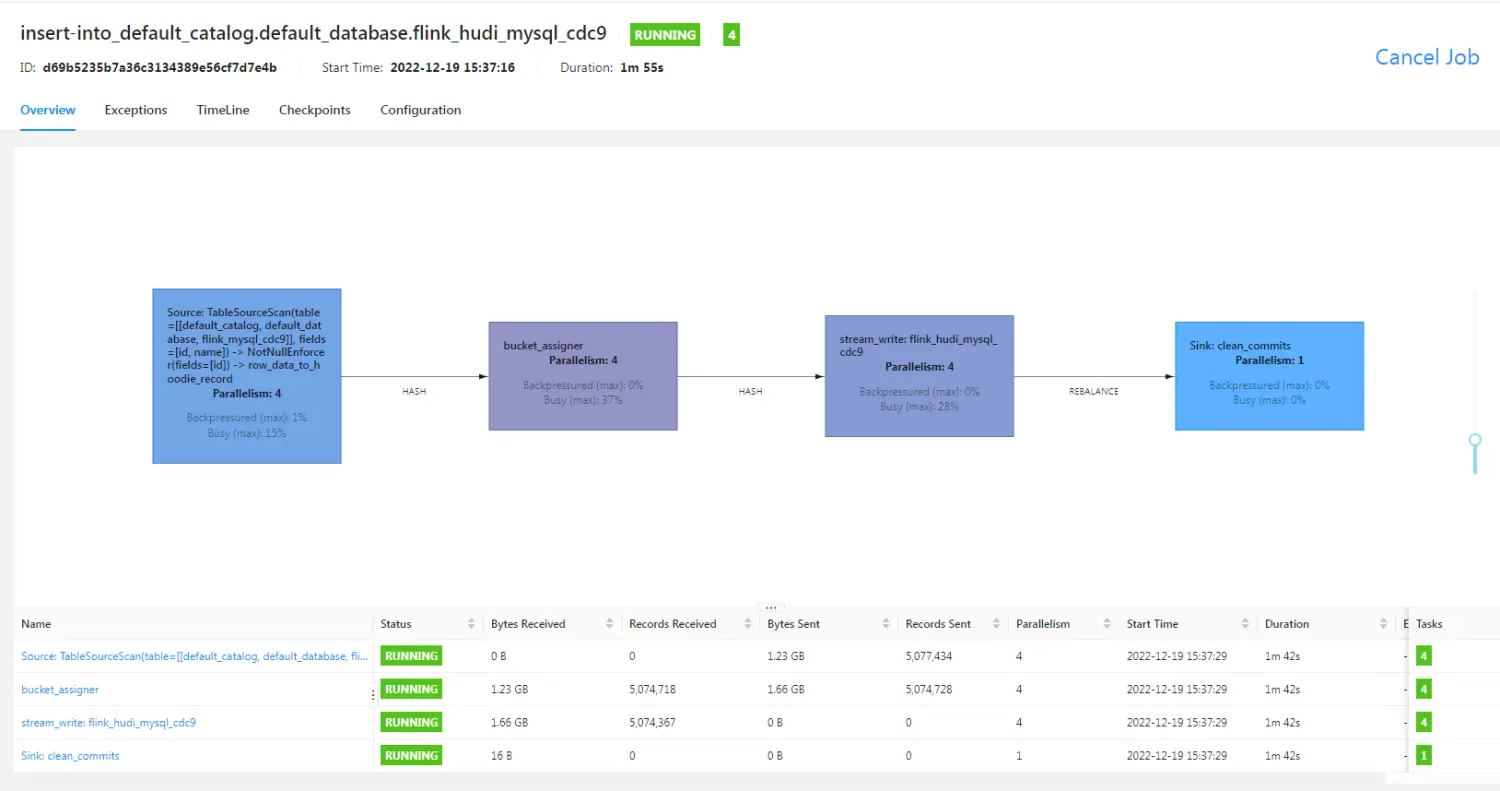

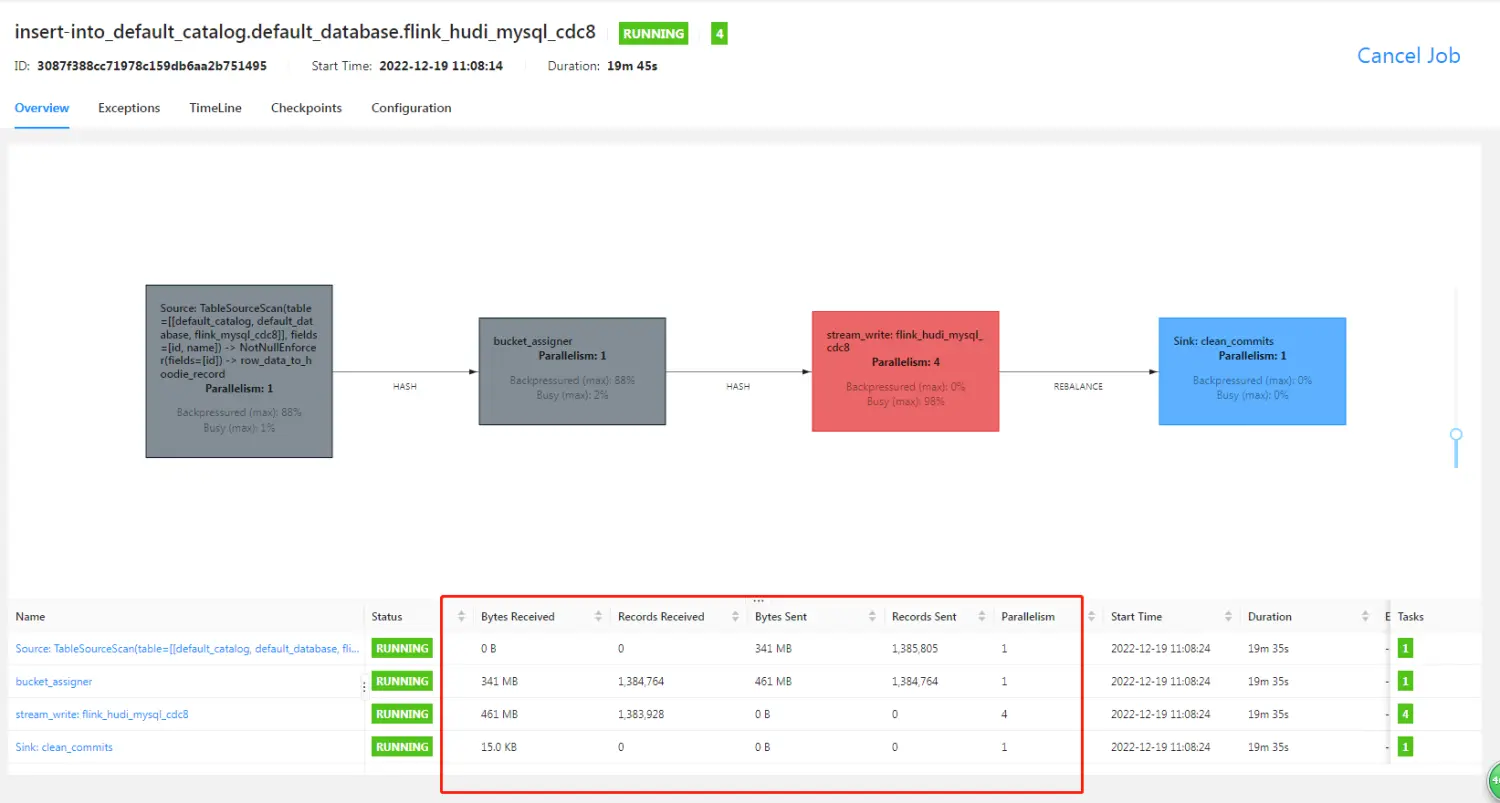

三. 查看运行情况

如果是生产环境，可以指定一个较高的并行度，我这个地方因为是测试环境，并行度指定为1

去掉checkpoint 且将并行度由1调整到4，速度提升了几十倍

set table.exec.resource.default-parallelism=4;
复制
