上图是说明了JavaFX 平台各个各个架构组件，我们将简要描述每个组件的作用以及各个组件之间的联系。最上层是Java FX 公开API(给开发者使用的)Scene Graph。在Java FX 公开API下面是运行JavaFX 代码的引擎，这个引擎由JavaFX 高性能图形引擎: Prism, 一个小巧而又高巧的窗口系统: Glass。一个多媒体引擎，一个Web引擎。尽管这些组件对外部不看见，下面这些描述可以让你理解JavaFX应用是如何运行的。
Scene Graph (场景图)
The JavaFX scene graph, shown as part of the top layer in Figure 2-1, is the starting point for constructing a JavaFX application. It is a hierarchical tree of nodes that represents all of the visual elements of the application's user interface. It can handle input and can be rendered.
A single element in a scene graph is called a node. Each node has an ID, style class, and bounding volume. With the exception of the root node of a scene graph, each node in a scene graph has a single parent and zero or more children. It can also have the following:
Event handlers (such as mouse, key and input method)
事件处理(键鼠 输入)
An application-specific state
应用程序的状态
Unlike in Swing and Abstract Window Toolkit (AWT), the JavaFX scene graph also includes the graphics primitives, such as rectangles and text, in addition to having controls, layout containers, images and media.
For most uses, the scene graph simplifies working with UIs, especially when rich UIs are used. Animating various graphics in the scene graph can be accomplished quickly using the javafx.animation APIs, and declarative methods, such as XML doc, also work well.
The javafx.scene API allows the creation and specification of several types of content, such as:
javafx.scene API允许创建和指定不同类型的内容，举例如下:
Nodes: Shapes (2-D and 3-D), images, media, embedded web browser, text, UI controls, charts, groups, and containers
结点: 形状(2D和3D)、图像、媒体、嵌入式浏览器、文本、UI图表、容器
State: Transforms (positioning and orientation of nodes), visual effects, and other visual state of the content
变换(结点的位置、方向)，视觉效果和其他视觉状态
Effects: Simple objects that change the appearance of scene graph nodes, such as blurs, shadows, and color adjustment
改变场景图结点的简单对象，如模糊、阴影、色彩调整。
Java Public APIs for JavaFX Features
The top layer of the JavaFX architecture shown in Figure 2-1 provides a complete set of Java public APIs that support rich client application development. 架构图上最底层的部分提供了一组公开APIs支持客户端应用的开发。下面是JavaFX的特性:
Allow the use of powerful Java features, such as generics, annotations, multithreading, and Lamda Expressions (introduced in Java SE 8).
可以用强大的Java特性，比如泛型、注解、多线程、Lambda表达式
Make it easier for Web developers to use JavaFX from other JVM-based dynamic languages, such as Groovy and JavaScript.
其他使用基于JVM平台的语言Groovy、JavaScript开发者，掌握JavaFX会更加容易。
Allow Java developers to use other system languages, such as Groovy, for writing large or complex JavaFX applications.
允许Java开发者使用其他语言来构建大型、复杂的JavaFX应用。
Allow the use of binding which includes support for the high performance lazy binding, binding expressions, bound sequence expressions, and partial bind reevaluation. Alternative languages (like Groovy) can use this binding library to introduce binding syntax similar to that of JavaFX Script. 支持绑定、高性能的延迟绑定，绑定序列表达式、部分绑定重新刷新。其他语言像Groovy可以使用绑定库来实现和JavaFX类似的语法。
Extend the Java collections library to include observable lists and maps, which allow applications to wire user interfaces to data models, observe changes in those data models, and update the corresponding UI control accordingly.
The JavaFX Graphics System, shown in blue in Figure 2-1, is an implementation detail beneath the JavaFX scene graph layer. It supports both 2-D and 3-D scene graphs. It provides software rendering when the graphics hardware on a system is insufficient to support hardware accelerated rendering.
Two graphics accelerated pipelines are implemented on the JavaFX platform:
JavaFX实现了两种图形加速管道
Prism processes render jobs. It can run on both hardware and software renderers, including 3-D. It is responsible for rasterization and rendering of JavaFX scenes. The following multiple render paths are possible based on the device being used:
Software rendering when hardware acceleration is not possible
当没有硬件加速的时候，会使用软件渲染。
The fully hardware accelerated path is used when possible, but when it is not available, the software render path is used because the software render path is already distributed in all of the Java Runtime Environments (JREs). This is particularly important when handling 3-D scenes. However, performance is better when the hardware render paths are used.
Quantum Toolkit ties Prism and Glass Windowing Toolkit together and makes them available to the JavaFX layer above them in the stack. It also manages the threading rules related to rendering versus events handling.
The Glass Windowing Toolkit, shown in beige in the middle portion of Figure 2-1, is the lowest level in the JavaFX graphics stack. Its main responsibility is to provide native operating services, such as managing the windows, timers, and surfaces. It serves as the platform-dependent layer that connects the JavaFX platform to the native operating system.
The Glass Windowing Toolkit is also responsible for managing the event queue. Unlike the Abstract Window Toolkit (AWT), which manages its own event queue, the Glass toolkit uses the native operating system's event queue functionality to schedule thread usage. Also unlike AWT, the Glass toolkit runs on the same thread as the JavaFX application. In AWT, the native half of AWT runs on one thread and the Java level runs on another thread. This introduces a lot of issues, many of which are resolved in JavaFX by using the single JavaFX application thread approach.
The system runs two or more of the following threads at any given time：
任何时候在JavaFX应用中至少活跃着两个线程
JavaFX application thread: This is the primary thread used by JavaFX application developers. Any ”live” scene, which is a scene that is part of a window, must be accessed from this thread. A scene graph can be created and manipulated in a background thread, but when its root node is attached to any live object in the scene, that scene graph must be accessed from the JavaFX application thread. This enables developers to create complex scene graphs on a background thread while keeping animations on 'live' scenes smooth and fast. The JavaFX application thread is a different thread from the Swing and AWT Event Dispatch Thread (EDT), so care must be taken when embedding JavaFX code into Swing applications.
Prism render thread: This thread handles the rendering separately from the event dispatcher. It allows frame N to be rendered while frame N +1 is being processed. This ability to perform concurrent processing is a big advantage, especially on modern systems that have multiple processors. The Prism render thread may also have multiple threads that help off-load work that needs to be done in rendering.
Media thread: This thread runs in the background and synchronizes the latest frames through the scene graph by using the JavaFX application thread.
多媒体线程，这个线程运行在后台，通过使用JavaFX使用线程在场景图中同步最新的数据(帧)。
Pulse
A pulse is an event that indicates to the JavaFX scene graph that it is time to synchronize the state of the elements on the scene graph with Prism. A pulse is throttled at 60 frames per second (fps) maximum and is fired whenever animations are running on the scene graph. Even when animation is not running, a pulse is scheduled when something in the scene graph is changed. For example, if a position of a button isD changed, a pulse is scheduled.
When a pulse is fired, the state of the elements on the scene graph is synchronized down to the rendering layer. A pulse enables application developers a way to handle events asynchronously. This important feature allows the system to batch and execute events on the pulse.
Layout and CSS are also tied to pulse events. Numerous changes in the scene graph could lead to multiple layout or CSS updates, which could seriously degrade performance. The system automatically performs a CSS and layout pass once per pulse to avoid performance degradation. Application developers can also manually trigger layout passes as needed to take measurements prior to a pulse.
The Glass Windowing Toolkit is responsible for executing the pulse events. It uses the high-resolution native timers to make the execution.
JavaFX media functionality is available through the javafx.scene.media APIs. JavaFX supports both visual and audio media. Support is provided for MP3, AIFF, and WAV audio files and FLV video files. JavaFX media functionality is provided as three separate components: the Media object represents a media file, the MediaPlayer plays a media file, and a MediaView is a node that displays the media.
The Media Engine component, shown in green in Figure 2-1, has been designed with performance and stability in mind and provides consistent behavior across platforms. For more information, read theIncorporating Media Assets into JavaFX Applicationsdocument.
The Web component is a JavaFX UI control, based on Webkit, that provides a Web viewer and full browsing functionality through its API.
Web组件是一个基于Webkit的JavaFx UI控件,通过API提供Web浏览器的功能。
This Web Engine component, shown in orange in Figure 2-1, is based on WebKit, which is an open source web browser engine that supports HTML5, CSS, JavaScript, DOM, and SVG. It enables developers to implement the following features in their Java applications:
Web 引擎组件是上面架构图的橘黄色部分，基于WebKit，WebKit是一个开源的Web浏览器引擎，支持HTML5，CSS、JavaScript，DOM，SVG。能够让开发者享用以下特性。
Render HTML content from local or remote URL
从本地或者URL中渲染HTML内容。
Support history and provide Back and Forward navigation
支持历史记录并提供后退、前进导航。
Reload the content
重新加载内容
Apply effects to the web component
应用动效于Web组件。
Edit the HTML content
编辑HTML内容
Execute JavaScript commands
执行JavaSceipt命令
Handle events
事件处理
This embedded browser component is composed of the following classes:
集成的浏览器组件在下面这些类里
WebEngine provides basic web page browsing capability.
WebEngin提供基本的web页面浏览功能
WebView encapsulates a WebEngine object, incorporates HTML content into an application's scene, and provides fields and methods to apply effects and transformations. It is an extension of a Node class.
In addition, Java calls can be controlled through JavaScript and vice versa to allow developers to make the best of both environments. For more detailed overview of the JavaFX embedded browser, see the Adding HTML Content to JavaFX Applications document.
除此之外，Java可以调用JavaScript，JavaScript也可以调用Java。更多的的细节在JavaFX Embedded brower。参看Adding HTML Content to JavaFX Applications document. https://docs.oracle.com/javase/8/javafx/embedded-browser-tutorial/overview.htm#JFXWV135
CSS
JavaFX Cascading Style Sheets (CSS) provides the ability to apply customized styling to the user interface of a JavaFX application without changing any of that application's source code.
JavaFX可以使用CSS提供的能力定制用户界面，且不用修改任何应用的源代码。
CSS can be applied to any node in the JavaFX scene graph and are applied to the nodes asynchronously.
CSS可以被应用于JavaFX场景图中的任何结点，支持异步应用。
JavaFX CSS styles can also be easily assigned to the scene at runtime, allowing an application's appearance to dynamically change.
CSS样式也可以在运行时应用，允许应用外观动态改变。
Figure 2-2 demonstrates the application of two different CSS styles to the same set of UI controls.
下面的图在使用了两种不同的CSS样式在一组相同的UI控件中。
Figure 2-2 CSS Style Sheet Sample
JavaFX CSS is based on the W3C CSS version 2.1 specifications, with some additions from current work on version 3. The JavaFX CSS support and extensions have been designed to allow JavaFX CSS style sheets to be parsed cleanly by any compliant CSS parser, even one that does not support JavaFX extensions.
This enables the mixing of CSS styles for JavaFX and for other purposes (such as for HTML pages) into a single style sheet. All JavaFX property names are prefixed with a vendor extension of ”-fx- ”, including those that might seem to be compatible with standard HTML CSS, because some JavaFX values have slightly different semantics.
我们可以将JavaFX的CSS样式和嵌入网页的样式放入一个CSS文件中。所有JavaFX的CSS样式属性名都会带有一个-fx-前缀,包括那些可能与标准HTML、CSS语义看起来相同的属性，因为他们在JavaFX有不同的语义。(比如字体大小,Web中用font-size,JavaFX用-fx-font-size来表示,原因在于JavaFX中的字体大小和Web中略有不同)
For more detailed information about JavaFX CSS, see the Skinning JavaFX Applications with CSS document.
更多JavaFX相关的细节信息,参看Skinning JavaFX Applications with CSS document.这份文档,下面是地址。
The JavaFX UI controls available through the JavaFX API are built by using nodes in the scene graph. They can take full advantage of the visually rich features of the JavaFX platform and are portable across different platforms. JavaFX CSS allows for theming and skinning of the UI controls.

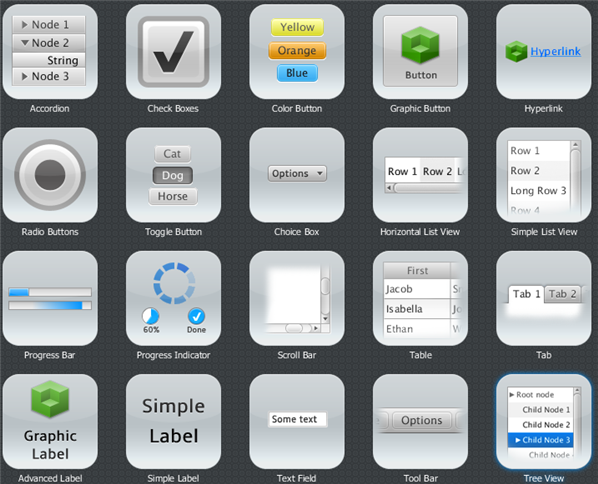

Figure 2-3 shows some of the UI controls that are currently supported. These controls reside in the javafx.scene.control package
这些控件在javafx.scene.control这个包下面
Figure 2-3 JavaFX UI Controls Sample
Description of "Figure 2-3 JavaFX UI Controls Sample"
For more detailed information about all the available JavaFX UI controls, see the Using JavaFX UI Controls and the API documentation for the javafx.scene.control package.
更多关于JavaFX UI控件的信息参看Using JavaFX UI Controls and the API documentation这个章节
想要了解更多的JavaFX UI控件的信息，参看Using JavaFX UI Controls(http://www.oracle.com/pls/topic/lookup?ctx=javase80&id=JFXUI)和API 文档(https://docs.oracle.com/javase/8/javafx/api/)
Layout
Layout containers or panes can be used to allow for flexible and dynamic arrangements of the UI controls within a scene graph of a JavaFX application. The JavaFX Layout API includes the following container classes that automate common layout models:
在JavaFX的场景图中, 布局容器和pane(玻璃板,觉得这么译不合适)可以灵活动态的调整UI控件。JavaFX的布局API包括以下常见自动化容器布局模型，下面是对应的类
The BorderPane class lays out its content nodes in the top, bottom, right, left, or center region.
边框窗格的布局分为上下左右和中心区域。
The HBox class arranges its content nodes horizontally in a single row.
HBox 类将结点水平的放在一行。
The VBox class arranges its content nodes vertically in a single column.
VBox 将结点垂直放在一列
The StackPane class places its content nodes in a back-to-front single stack.
StackPane class 将结点从后往前放在它的堆栈中。
The GridPane class enables the developer to create a flexible grid of rows and columns in which to lay out content nodes.
GridPane Clss允许开发者在行和列中排放结点。
The FlowPane class arranges its content nodes in either a horizontal or vertical ”flow,” wrapping at the specified width (for horizontal) or height (for vertical) boundaries.
FlowPane class将内容结点按水平或垂直方向流式排列，在指定的宽度或高度，内容结点到达边界后自动换行。
The TilePane class places its content nodes in uniformly sized layout cells or tiles
TilePane Class将内容结点放在大小相同的单元格中。
The AnchorPane class enables developers to create anchor nodes to the top, bottom, left side, or center of the layout.
AnchorPane class可以让开发者在布局的上下左右创建锚结点。To achieve a desired layout structure, different containers can be nested within a JavaFX application.
为了实现所需的布局结构，可以在JavaFX应用程序中嵌套不同的容器。To learn more about how to work with layouts, see the Working with Layouts in JavaFX article. For more information about the JavaFX layout API, see the API documentation for the javafx.scene.layout package.
了解更多布局相关的信息,可以参看Working with Layouts in JavaFX。更多布局相关的API,参看javafx.scene.layout包的接口文档。
2-D and 3-D Transformations
Each node in the JavaFX scene graph can be transformed in the x-y coordinate using the following javafx.scene.tranform classes:
JavaFX场景图中每个结点都可以使用javafx.scene.tranform中的类进行在x-y坐标上进行变换。
translate – Move a node from one place to another along the x, y, z planes relative to its initial position.
沿着x,y,z将一个结点从一个位置移动到另一个位置
scale – Resize a node to appear either larger or smaller in the x, y, z planes, depending on the scaling factor.
缩放,依赖于缩放因子，在x、y、z上改变结点的大小。
shear – Rotate one axis so that the x-axis and y-axis are no longer perpendicular. The coordinates of the node are shifted by the specified multipliers.
rotate – Rotate a node about a specified pivot point of the scene.
在场景图对结点进行旋转。
affine – Perform a linear mapping from 2-D/3-D coordinates to other 2-D/3-D coordinates while preserving the 'straight' and 'parallel' properties of the lines. This class should be used with Translate , Scale , Rotate , or Shear transform classes instead of being used directly.
仿射
To learn more about working with transformations, see the Applying Transformations in JavaFX document. For more information about the javafx.scene.transform API classes, see the API documentation.
理解更多变换的信息，参看Applying Transformations in JavaFX document https://docs.oracle.com/javase/8/javafx/visual-effects-tutorial/transforms.htm#JFXTE139。这些变换的类都在javafx.scene.transform 包下面，更多的参看API documentation https://docs.oracle.com/javase/8/javafx/api/
Visual Effects 视觉效果
The development of rich client interfaces in the JavaFX scene graph involves the use of Visual Effects or Effects to enhance the look of JavaFX applications in real time.
在JavaFX的场景图中开发复杂界面时，可以使用视觉效果来实时增强界面的显示效果。
The JavaFX Effects are primarily image pixel-based and, hence, they take the set of nodes that are in the scene graph, render it as an image, and apply the specified effects to it.
JavaFX的效果主要是基于像素的，因此他们会将结点渲染为图片，然后将效果应用。
Some of the visual effects available in JavaFX include the use of the following classes:
JavaFX现在可用的效果有以下类:
DropShadow – Renders a shadow of a given content behind the content to which the effect is applied
在指定的内容后面渲染阴影
Reflection – Renders a reflected version of the content below the actual content.
在实际内容结点下面形成倒影
Lighting Simulates a light source shining on a given content and can give a flat object a more realistic, three-dimensional appearance.
模拟光源照射指定内容可以让界面看起来更逼真，更立体。
For examples on how to use some of the available visual effects, see the Creating Visual Effects document.
