深入理解Kafka客户端之服务端响应及超时请求的处理

Set<SelectionKey> readyKeys = this.nioSelector.selectedKeys();
...
pollSelectionKeys(readyKeys, false, endSelect);
复制

//如果是处理返回的响应，走这个方法
attemptRead(key, channel);
复制

private void attemptRead(SelectionKey key, KafkaChannel channel) throws IOException {
    //如果是读请求
    //hasStagedReceive(channel)判断指定那个channel连接是否有接收到但是还未处理的响应
    if (channel.ready() && (key.isReadable() || channel.hasBytesBuffered()) && !hasStagedReceive(channel)
        && !explicitlyMutedChannels.contains(channel)) {
        //接收服务端的响应（本质也是一个请求）
        //NetworkReceive代表的就是服务端返回来的响应
        NetworkReceive networkReceive;
        //channel.read方法不断读取数据
        while ((networkReceive = channel.read()) != null) {
            //madeReadProgressLastPoll用来标记前一次对poll方法的调用是否能够读到已经缓存的数据，即NetworkReceive是否为null
            madeReadProgressLastPoll = true;
            //不断地读取数据，将这个响应放到stagedReceive队列中
            addToStagedReceives(channel, networkReceive);
        }
        if (channel.isMute()) {//如果channel中内存满了
            outOfMemory = true; //channel has muted itself due to memory pressure.
        } else {
            madeReadProgressLastPoll = true;
        }
    }
}
复制

private void addToStagedReceives(KafkaChannel channel, NetworkReceive receive) {
      //channel代表的就是一个网络的连接，一台kafka节点对应一个channel连接
      /**
       * 如果stagesReceives结构中已经有指定的channel，那么就拿到对应的响应队列，将NetworkReceive响应对象放进去
       * 如果没有指定的channel，就创建一个新的队列，然后把响应对象放进去
       */
      if (!stagedReceives.containsKey(channel))
          stagedReceives.put(channel, new ArrayDeque<>());


      Deque<NetworkReceive> deque = stagedReceives.get(channel);
      deque.add(receive);
  }
复制

addToCompletedReceives();
复制

private void addToCompletedReceives() {
    //如果stagedReceives不为空，说明已经接收到了响应
    if (!this.stagedReceives.isEmpty()) {
        Iterator<Map.Entry<KafkaChannel, Deque<NetworkReceive>>> iter = this.stagedReceives.entrySet().iterator();
        //遍历
        while (iter.hasNext()) {
            Map.Entry<KafkaChannel, Deque<NetworkReceive>> entry = iter.next();
            KafkaChannel channel = entry.getKey();
            //
            if (!explicitlyMutedChannels.contains(channel)) {
                //获取KafkaChanenl对应到NetworkReceive队列
                Deque<NetworkReceive> deque = entry.getValue();
                //从这个队列放中取出一个响应对象放到completedReceives集合中
                addToCompletedReceives(channel, deque);
                if (deque.isEmpty())
                    iter.remove();
            }
        }
    }
}
复制

public List<ClientResponse> poll(long timeout, long now) {
    ...
    //TODO 步骤一：封装一个拉取元数据的请求
    long metadataTimeout = metadataUpdater.maybeUpdate(now);
    try {
        //TODO 步骤二：发送请求，进行复杂的网络操作，这里用的就是java的NIO
        this.selector.poll(Utils.min(timeout, metadataTimeout, defaultRequestTimeoutMs));
    } catch (IOException e) {
        log.error("Unexpected error during I/O", e);
    }

    long updatedNow = this.time.milliseconds();
    //新建一个响应的集合
    List<ClientResponse> responses = new ArrayList<>();
    //这里默认什么都不执行
    handleCompletedSends(responses, updatedNow);
    //将构建的ClientResponse放到responses集合中
    handleCompletedReceives(responses, updatedNow);


    handleDisconnections(responses, updatedNow);


    handleConnections();


    handleInitiateApiVersionRequests(updatedNow);
    //处理超时的请求
    handleTimedOutRequests(responses, updatedNow);
    //TODO 步骤三：处理响应
    // 如果是获取集群元数据的请求，那么获取的响应中就包含集群元数据
    completeResponses(responses);


    return responses;
}
复制

private void handleCompletedReceives(List<ClientResponse> responses, long now) {
    //遍历completedReceives集合中的响应对象NetworkReceive
    for (NetworkReceive receive : this.selector.completedReceives()) {
        //获取broker id
        String source = receive.source();
        //从inFlightRequests集合中对应的inFlightRequest队列中移除已经获取响应的请求
        InFlightRequest req = inFlightRequests.completeNext(source);
        //解析服务端返回的请求
        Struct responseStruct = parseStructMaybeUpdateThrottleTimeMetrics(receive.payload(), req.header,
            throttleTimeSensor, now);
        if (log.isTraceEnabled()) {
            log.trace("Completed receive from node {} for {} with correlation id {}, received {}", req.destination,
                req.header.apiKey(), req.header.correlationId(), responseStruct);
        }
        AbstractResponse body = AbstractResponse.
                parseResponse(req.header.apiKey(), responseStruct, req.header.apiVersion());
        maybeThrottle(body, req.header.apiVersion(), req.destination, now);
        //TODO 如果是关于元数据信息的响应
        if (req.isInternalRequest && body instanceof MetadataResponse)
            metadataUpdater.handleCompletedMetadataResponse(req.header, now, (MetadataResponse) body);
        else if (req.isInternalRequest && body instanceof ApiVersionsResponse)
            handleApiVersionsResponse(responses, req, now, (ApiVersionsResponse) body);
        else
            //构建ClientResponse对象并放到responses集合中，body就是响应的内容
            responses.add(req.completed(body, now));
    }
}
复制

handleTimedOutRequests(responses, updatedNow);
复制

private void handleTimedOutRequests(List<ClientResponse> responses, long now) {
    //获取有超时请求的节点id的集合
    List<String> nodeIds = this.inFlightRequests.nodesWithTimedOutRequests(now);
    for (String nodeId : nodeIds) {
        // close connection to the node
        //关闭和该节点的连接
        this.selector.close(nodeId);
        log.debug("Disconnecting from node {} due to request timeout.", nodeId);


        processDisconnection(responses, nodeId, now, ChannelState.LOCAL_CLOSE);
    }


    // we disconnected, so we should probably refresh our metadata
    if (!nodeIds.isEmpty())
        metadataUpdater.requestUpdate();
    }
复制

List<String> nodeIds = this.inFlightRequests.nodesWithTimedOutRequests(now);
复制

this.selector.close(nodeId);
复制

private void processDisconnection(List<ClientResponse> responses,
                                      String nodeId,
                                      long now,
                                      ChannelState disconnectState) {
    //将这个节点的连接状态修改为DISCONNECTED
    connectionStates.disconnected(nodeId, now);
    apiVersions.remove(nodeId);
    nodesNeedingApiVersionsFetch.remove(nodeId);
    //根据传入都参数，状态是LOCAL_CLOSE，走default，break
    switch (disconnectState.state()) {
        case AUTHENTICATION_FAILED:
            AuthenticationException exception = disconnectState.exception();
            connectionStates.authenticationFailed(nodeId, now, exception);
            metadataUpdater.handleFatalException(exception);
            log.error("Connection to node {} ({}) failed authentication due to: {}", nodeId,
                disconnectState.remoteAddress(), exception.getMessage());
            break;
        case AUTHENTICATE:
            log.warn("Connection to node {} ({}) terminated during authentication. This may happen " +
                "due to any of the following reasons: (1) Authentication failed due to invalid " +
                "credentials with brokers older than 1.0.0, (2) Firewall blocking Kafka TLS " +
                "traffic (eg it may only allow HTTPS traffic), (3) Transient network issue.",
                nodeId, disconnectState.remoteAddress());
            break;
        case NOT_CONNECTED:
            log.warn("Connection to node {} ({}) could not be established. Broker may not be available.", nodeId, disconnectState.remoteAddress());
            break;
        default:
            break; // Disconnections in other states are logged at debug level in Selector
    }
    //清空inFlightRequests中该节点所有批次
    for (InFlightRequest request : this.inFlightRequests.clearAll(nodeId)) {
        log.trace("Cancelled request {} {} with correlation id {} due to node {} being disconnected",
                request.header.apiKey(), request.request, request.header.correlationId(), nodeId);
        //isInternalRequest默认为false
        if (!request.isInternalRequest)
            //构建一个没有响应体的响应并添加到responses集合中
            responses.add(request.disconnected(now, disconnectState.exception()));
        else if (request.header.apiKey() == ApiKeys.METADATA)
            metadataUpdater.handleDisconnection(request.destination);
    }
}
复制

metadataUpdater.requestUpdate();
复制

completeResponses(responses)
复制

private void completeResponses(List<ClientResponse> responses) {
    //遍历响应对象
    for (ClientResponse response : responses) {
        try {
            //对响应进行处理
            response.onComplete();
        } catch (Exception e) {
            log.error("Uncaught error in request completion:", e);
        }
    }
}
复制

public void onComplete() {
    //如果绑定了回调函数
    if (callback != null)
        //调用回调函数的onComplete方法对响应进行处理
        callback.onComplete(this);
}
复制

private void doSend(ClientRequest clientRequest, boolean isInternalRequest, long now, AbstractRequest request) {
    ...
    //封装一个inFlightRequest请求
    InFlightRequest inFlightRequest = new InFlightRequest(
            clientRequest,
            header,
            isInternalRequest,
            request,
            send,
            now);
    ...
}
复制

private void sendProduceRequest(long now, int destination, short acks, int timeout, List<ProducerBatch> batches) {
    ...
    //构建请求的回调函数
    RequestCompletionHandler callback = new RequestCompletionHandler() {
        public void onComplete(ClientResponse response) {
            handleProduceResponse(response, recordsByPartition, time.milliseconds());
        }
    };


    String nodeId = Integer.toString(destination);
    //TODO 构建发送数据的请求：ClientRequest
    ClientRequest clientRequest = client.newClientRequest(nodeId, requestBuilder, now, acks != 0,
            requestTimeoutMs, callback);
}
复制

private void handleProduceResponse(ClientResponse response, Map<TopicPartition, ProducerBatch> batches, long now) {
    //获取响应的请求头
    RequestHeader requestHeader = response.requestHeader();
    long receivedTimeMs = response.receivedTimeMs();


    int correlationId = requestHeader.correlationId();
    //特殊情况，真正要发送请求了，但是broker失去连接了
    //超时的响应走这里
    if (response.wasDisconnected()) {
        log.trace("Cancelled request with header {} due to node {} being disconnected",
            requestHeader, response.destination());
        for (ProducerBatch batch : batches.values())
            completeBatch(batch, new ProduceResponse.PartitionResponse(Errors.NETWORK_EXCEPTION), correlationId, now, 0L);
    //如果是版本不匹配导致无法发送请求的响应
    } else if (response.versionMismatch() != null) {
        log.warn("Cancelled request {} due to a version mismatch with node {}",
                response, response.destination(), response.versionMismatch());
        for (ProducerBatch batch : batches.values())
            completeBatch(batch, new ProduceResponse.PartitionResponse(Errors.UNSUPPORTED_VERSION), correlationId, now, 0L);
    //正常的响应走这里
    } else {
        log.trace("Received produce response from node {} with correlation id {}", response.destination(), correlationId);
        // if we have a response, parse it
        //如果有响应，解析，正常情况走的都是这个分支
        if (response.hasResponse()) {
            ProduceResponse produceResponse = (ProduceResponse) response.responseBody();
            //遍历每个分区的响应，因为不同分区的leader副本可能在同一个节点，那么发送请求时就有多个分区的批次，这里获取每个分区对应的响应
            for (Map.Entry<TopicPartition, ProduceResponse.PartitionResponse> entry : produceResponse.responses().entrySet()) {
                TopicPartition tp = entry.getKey();
                //获取每个分区的响应
                ProduceResponse.PartitionResponse partResp = entry.getValue();
                //获取每个分区的批次对象
                ProducerBatch batch = batches.get(tp);
                //处理对应分区的响应
                completeBatch(batch, partResp, correlationId, now, receivedTimeMs + produceResponse.throttleTimeMs());
            }
            this.sensors.recordLatency(response.destination(), response.requestLatencyMs());
        } else {
            //如果ack=0，即不需要返回响应，即客户端发送完就不管了，不管有没有响应
            for (ProducerBatch batch : batches.values()) {


                completeBatch(batch, new ProduceResponse.PartitionResponse(Errors.NONE), correlationId, now, 0L);
            }
        }
    }
}
复制

completeBatch(batch, new ProduceResponse.PartitionResponse(Errors.NETWORK_EXCEPTION), correlationId, now, 0L);
复制

completeBatch(batch, partResp, correlationId, now, receivedTimeMs + produceResponse.throttleTimeMs());
复制

private void completeBatch(ProducerBatch batch, ProduceResponse.PartitionResponse response, long correlationId,
                               long now, long throttleUntilTimeMs) {
        //获取响应中的error对象
        Errors error = response.error;
        //消息过大异常
        if (error == Errors.MESSAGE_TOO_LARGE && batch.recordCount > 1 && !batch.isDone() &&
                (batch.magic() >= RecordBatch.MAGIC_VALUE_V2 || batch.isCompressed())) {
            ...
        //如果有其它异常
        } else if (error != Errors.NONE) {
            //如果可以重试
            if (canRetry(batch, response, now)) {
                log.warn(
                    "Got error produce response with correlation id {} on topic-partition {}, retrying ({} attempts left). Error: {}",
                    correlationId,
                    batch.topicPartition,
                    this.retries - batch.attempts() - 1,
                    error);
                if (transactionManager == null) {
                    //重新把发送失败的批次加入到队列中
                    reenqueueBatch(batch, now);
                } else if (transactionManager.hasProducerIdAndEpoch(batch.producerId(), batch.producerEpoch())) {
                    log.debug("Retrying batch to topic-partition {}. ProducerId: {}; Sequence number : {}",
                            batch.topicPartition, batch.producerId(), batch.baseSequence());
                    reenqueueBatch(batch, now);
                } else {
                    failBatch(batch, response, new OutOfOrderSequenceException("Attempted to retry sending a " +
                            "batch but the producer id changed from " + batch.producerId() + " to " +
                            transactionManager.producerIdAndEpoch().producerId + " in the mean time. This batch will be dropped."), false);
                }
            } else if (error == Errors.DUPLICATE_SEQUENCE_NUMBER) {
                completeBatch(batch, response);
            //如果无法重试：1。不允许重试；2。重试次数超了
            } else {
                //构建一个RuntimeException实例
                final RuntimeException exception;
                //如果响应中带有Topic没有权限的异常
                if (error == Errors.TOPIC_AUTHORIZATION_FAILED)
                    exception = new TopicAuthorizationException(batch.topicPartition.topic());
                //如果响应中带有Cluster没有权限的异常
                else if (error == Errors.CLUSTER_AUTHORIZATION_FAILED)
                    exception = new ClusterAuthorizationException("The producer is not authorized to do idempotent sends");
                else
                    exception = error.exception();

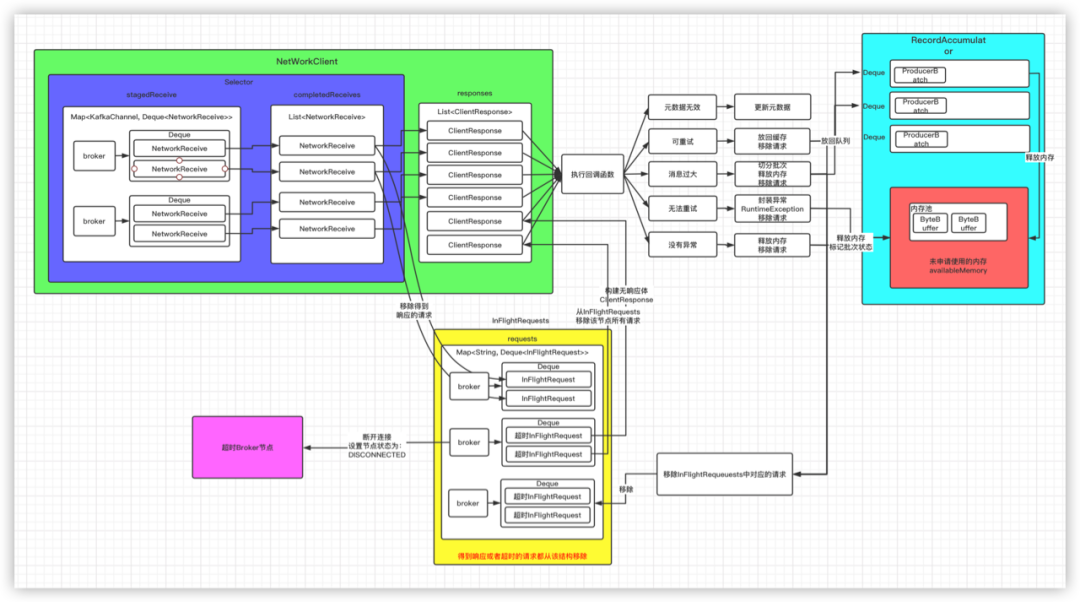

                //调用回调函数处理响应，标记批次的状态并释放内存
                failBatch(batch, response, exception, batch.attempts() < this.retries);
            }
            //如果是元数据无效的异常
            if (error.exception() instanceof InvalidMetadataException) {
                //未知topic或者partition异常
                if (error.exception() instanceof UnknownTopicOrPartitionException) {
                    log.warn("Received unknown topic or partition error in produce request on partition {}. The " +
                            "topic-partition may not exist or the user may not have Describe access to it",
                        batch.topicPartition);
                } else {
                    log.warn("Received invalid metadata error in produce request on partition {} due to {}. Going " +
                            "to request metadata update now", batch.topicPartition, error.exception().toString());
                }
                //更新元数据
                metadata.requestUpdate();
            }
        //如果没有异常
        } else {
            completeBatch(batch, response);
        }
        if (guaranteeMessageOrder)
            this.accumulator.unmutePartition(batch.topicPartition, throttleUntilTimeMs);
    }
复制

private void failBatch(ProducerBatch batch,
                           long baseOffset,
                           long logAppendTime,
                           RuntimeException exception,
                           boolean adjustSequenceNumbers) {
    if (transactionManager != null) {
        transactionManager.handleFailedBatch(batch, exception, adjustSequenceNumbers);
    }


    this.sensors.recordErrors(batch.topicPartition.topic(), batch.recordCount);


    //如果这个批次还未标记状态，则标记状态（失败或者成功）
    if (batch.done(baseOffset, logAppendTime, exception)) {
        //归还内存池的内存并从inFlightBatches集合中移除
        maybeRemoveAndDeallocateBatch(batch);
    }
}
复制

private void completeBatch(ProducerBatch batch, ProduceResponse.PartitionResponse response) {
    if (transactionManager != null) {
        transactionManager.handleCompletedBatch(batch, response);
    }


    //标记批次的状态：成功
    if (batch.done(response.baseOffset, response.logAppendTime, null)) {
        //移除批次并释放内存
        maybeRemoveAndDeallocateBatch(batch);
    }
}
复制
